Model # FDB2410HIC3B Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDB2410HIC3B dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Dishwasher Silverware Basket 5304470270
#140

Racks / hinges diagram

Dishwasher silverware basket

Part #5304470270

Replaced by #5304482498

?
Manufacturer substitution
This part replaces 5304470270. Substitute parts can look different from the original.
$36.01 |
12% OFF Phone Price : $41.01
In Stock
Dishwasher Door Latch 5304512886
#68

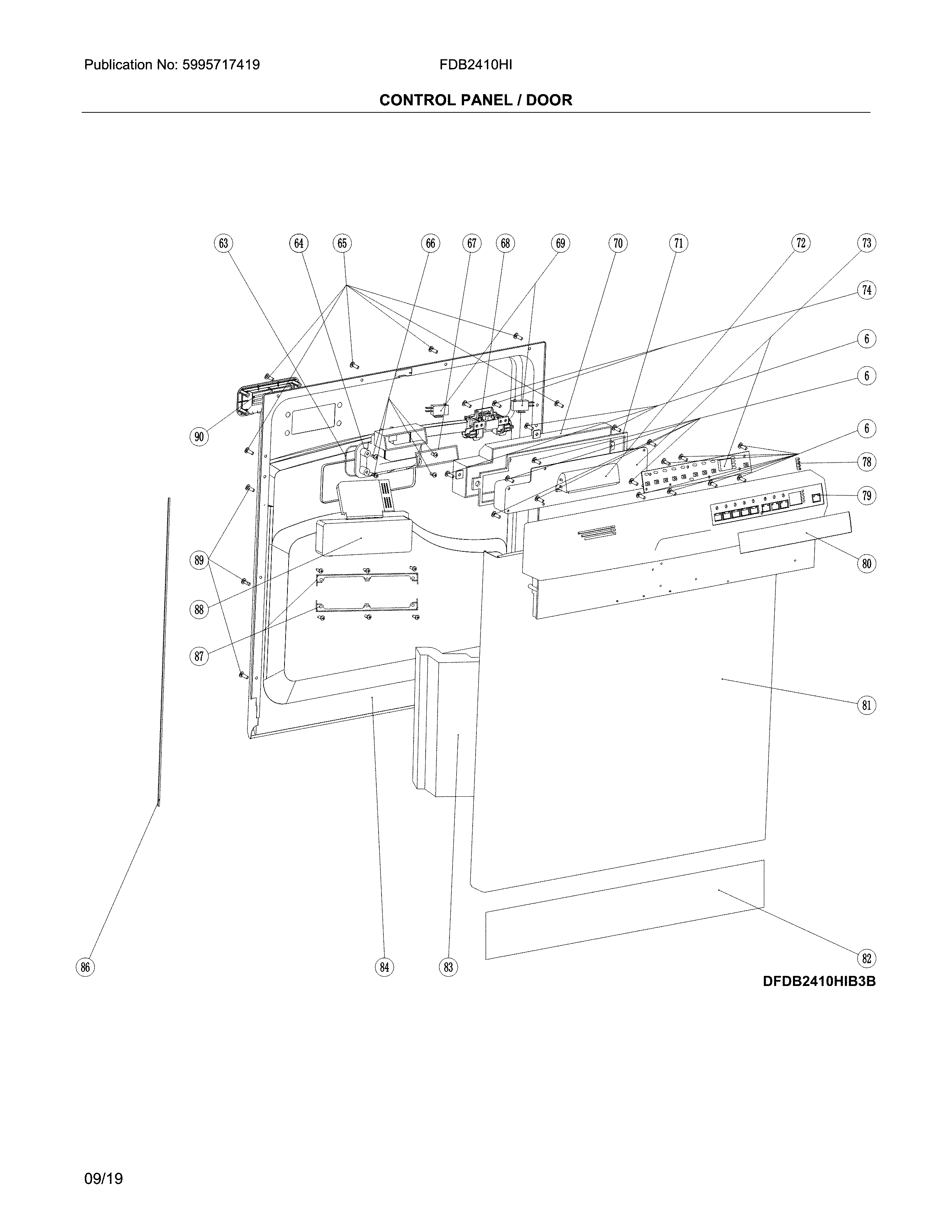

Control panel / door diagram

Dishwasher door latch

Part #5304512886

$45.71
In Stock
Gasket 5304512882
#107

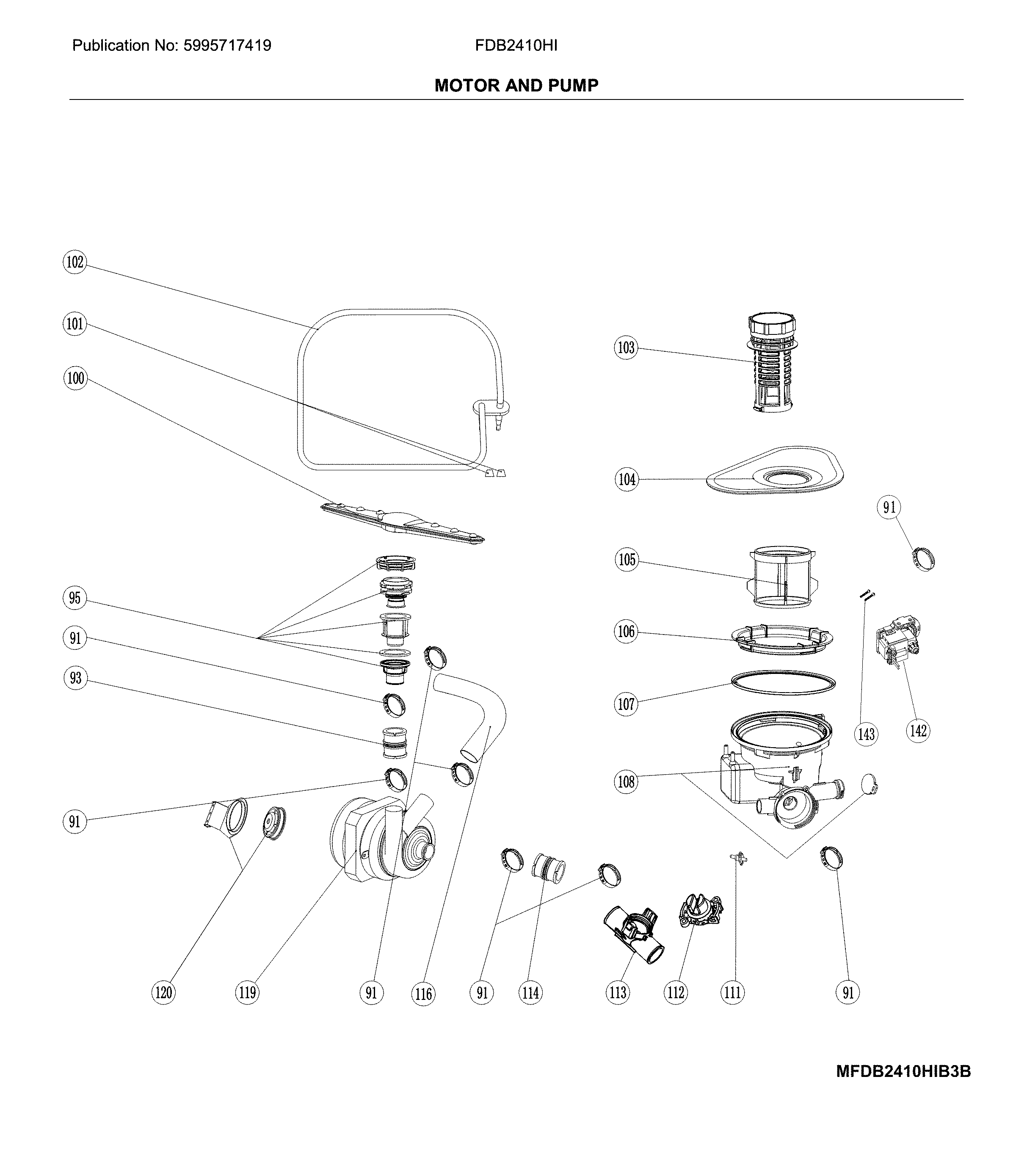

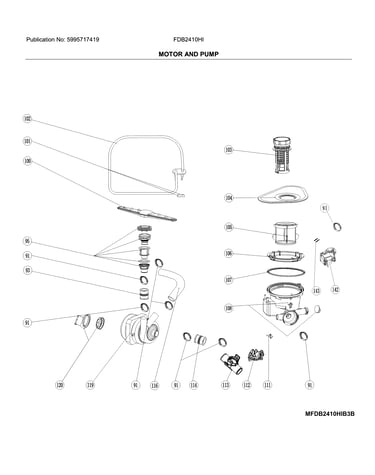

Motor and pump diagram

Gasket

Part #5304512882

$23.11
In Stock
Element Assembly 5304470288
#102

Motor and pump diagram

Element assembly

Part #5304470288

Replaced by #5304525289

?
Manufacturer substitution
This part replaces 5304470288. Substitute parts can look different from the original.
$117.39 |
8% OFF Phone Price : $127.39
In Stock
Dishwasher Circulation Pump Grommet 5304461003
#93

Motor and pump diagram

Dishwasher circulation pump grommet

Part #5304461003

Replaced by #5304512129

?
Manufacturer substitution
This part replaces 5304461003. Substitute parts can look different from the original.
$13.29
In Stock
Clamp 5304482390
#25

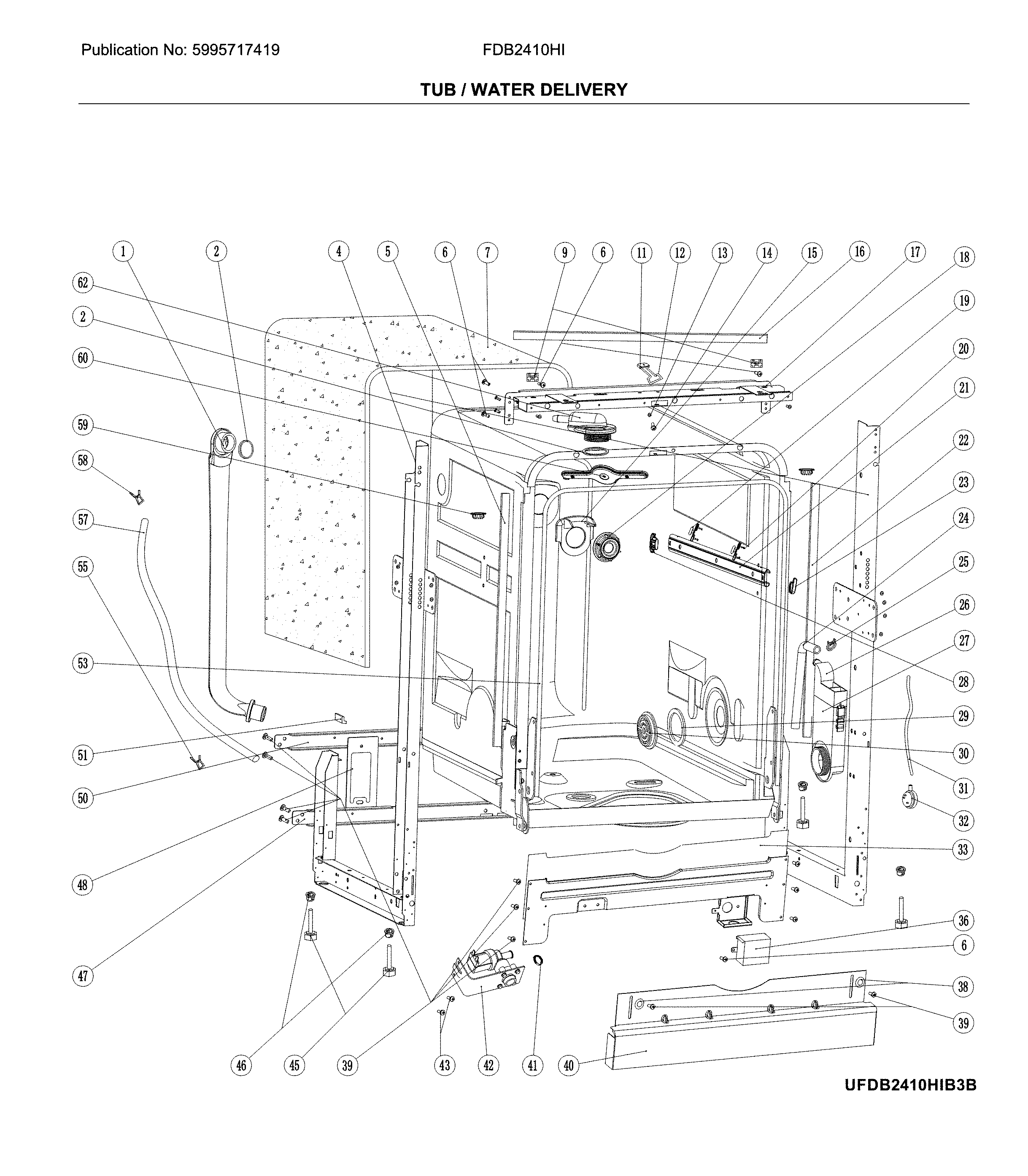

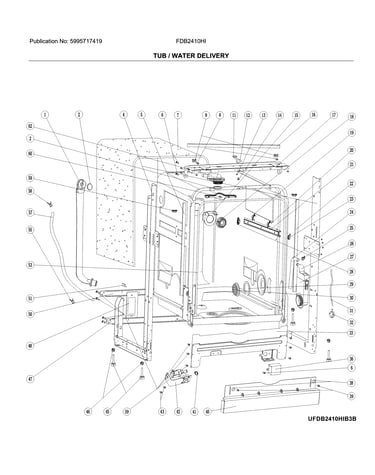

Tub / water delivery diagram

Clamp

Part #5304482390

$17.49
In Stock
Harness,wiring ,main 5304522744
#122

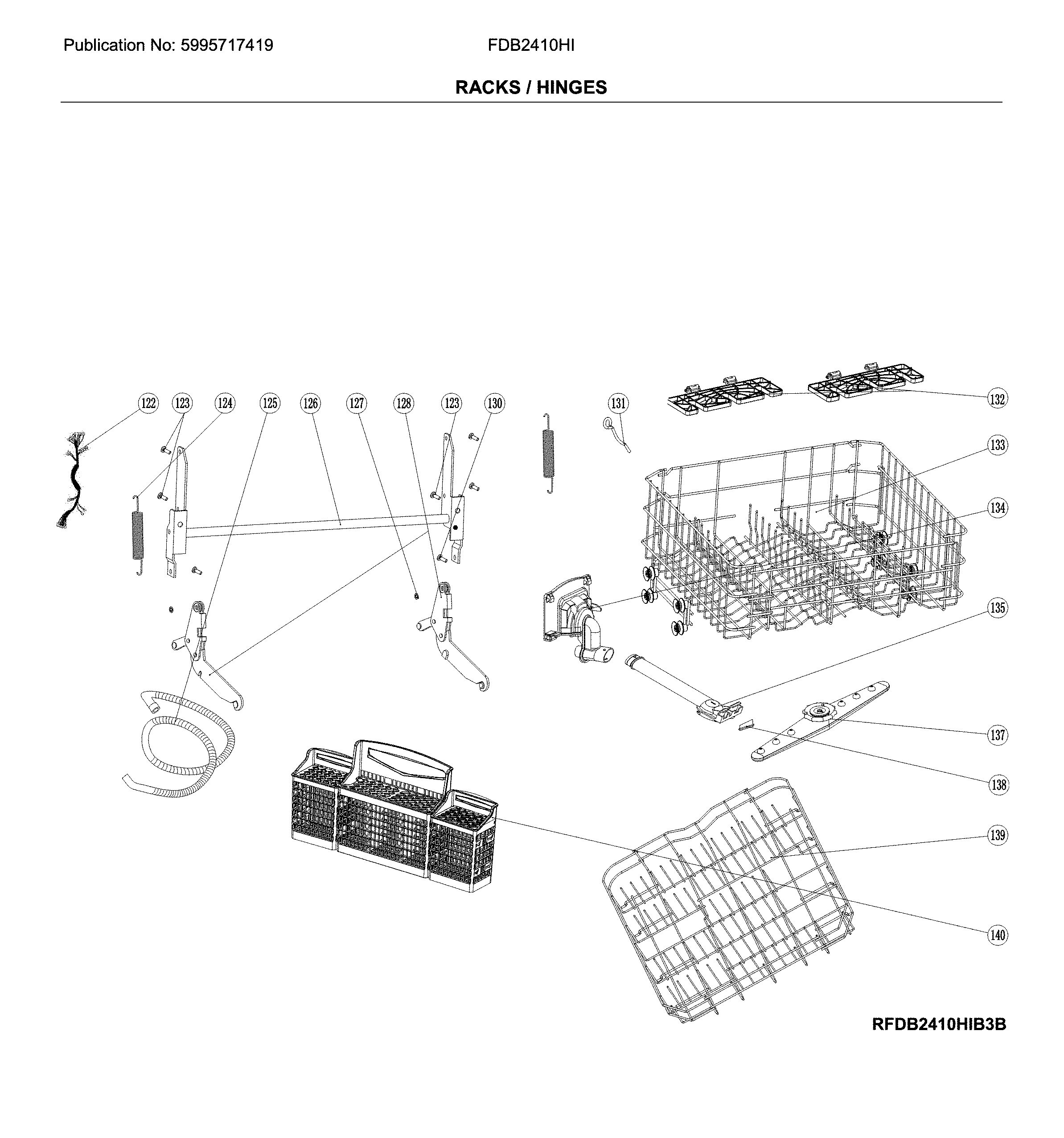

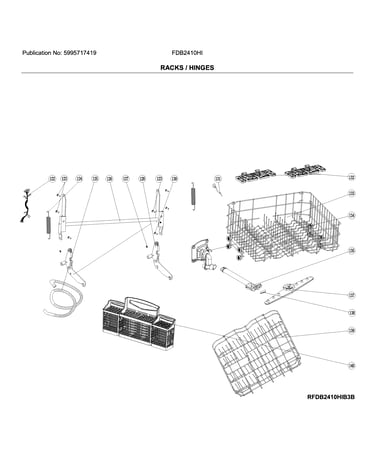

Racks / hinges diagram

Harness,wiring ,main

Part #5304522744

$170.10
In Stock
Dishwasher Control Panel 5304482437
#79

Control panel / door diagram

Dishwasher control panel

Part #5304482437

$83.24
In Stock
Dishwasher Drain Pump (replaces 5304482500) 5304483444
#142

Motor and pump diagram

Dishwasher drain pump (replaces 5304482500)

Part #5304483444

$108.38 |
8% OFF Phone Price : $118.38
In Stock
Dishwasher Lock Nut 5304482375
#13

Tub / water delivery diagram

Dishwasher lock nut

Part #5304482375

This item is not returnable
$4.86
In Stock
