Jenn-Air JJW9627BAS electric built-in oven

Jenn-Air JJW9627BAS electric built-in oven Parts

Here are the diagrams and repair parts for Jenn-Air JJW9627BAS electric built-in oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

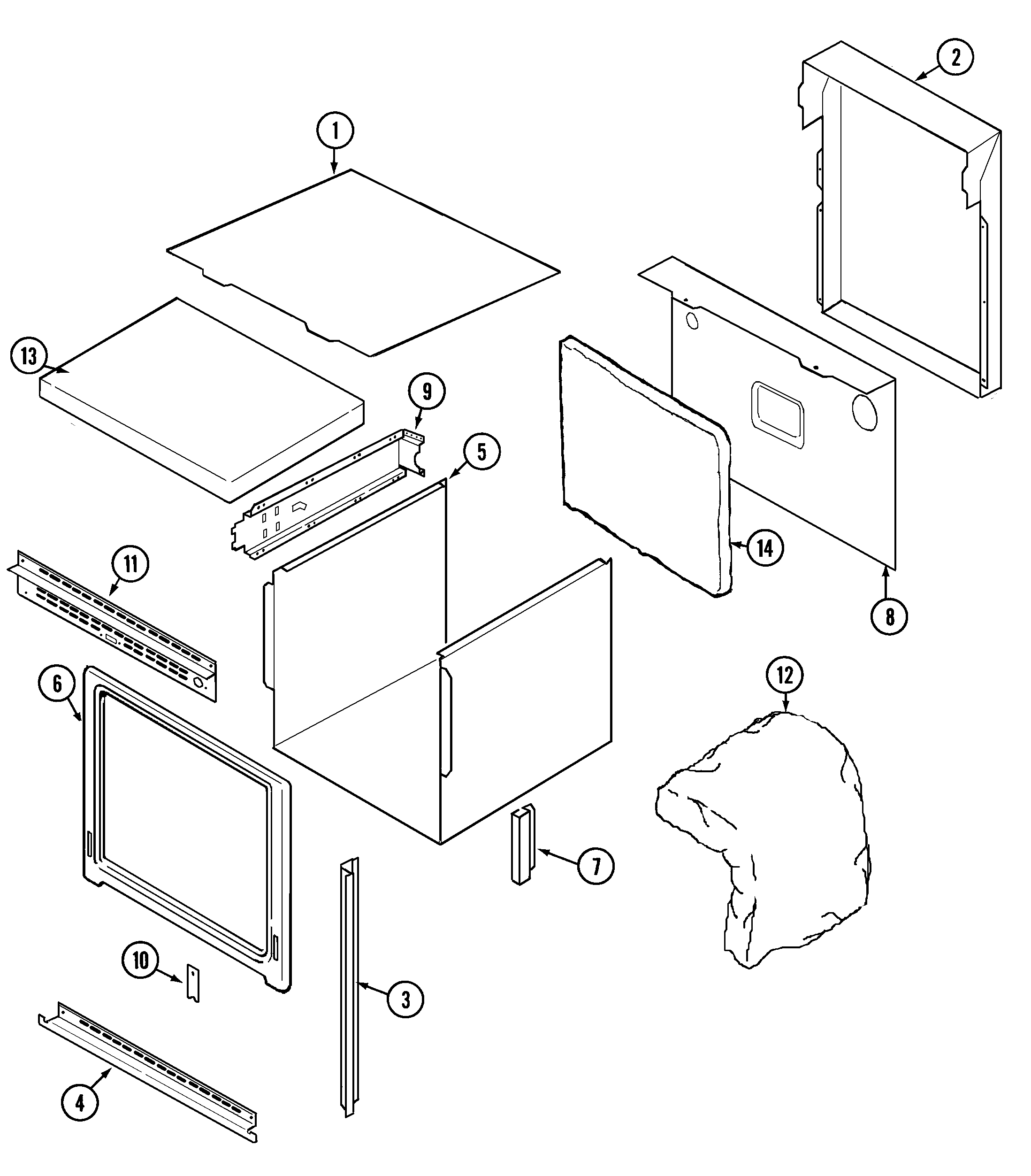

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JJW9627BAS Wall Ovens

  • Whirlpool Range Oven Temperature Sensor for Jenn-Air JJW9627BAS - Part 12001656

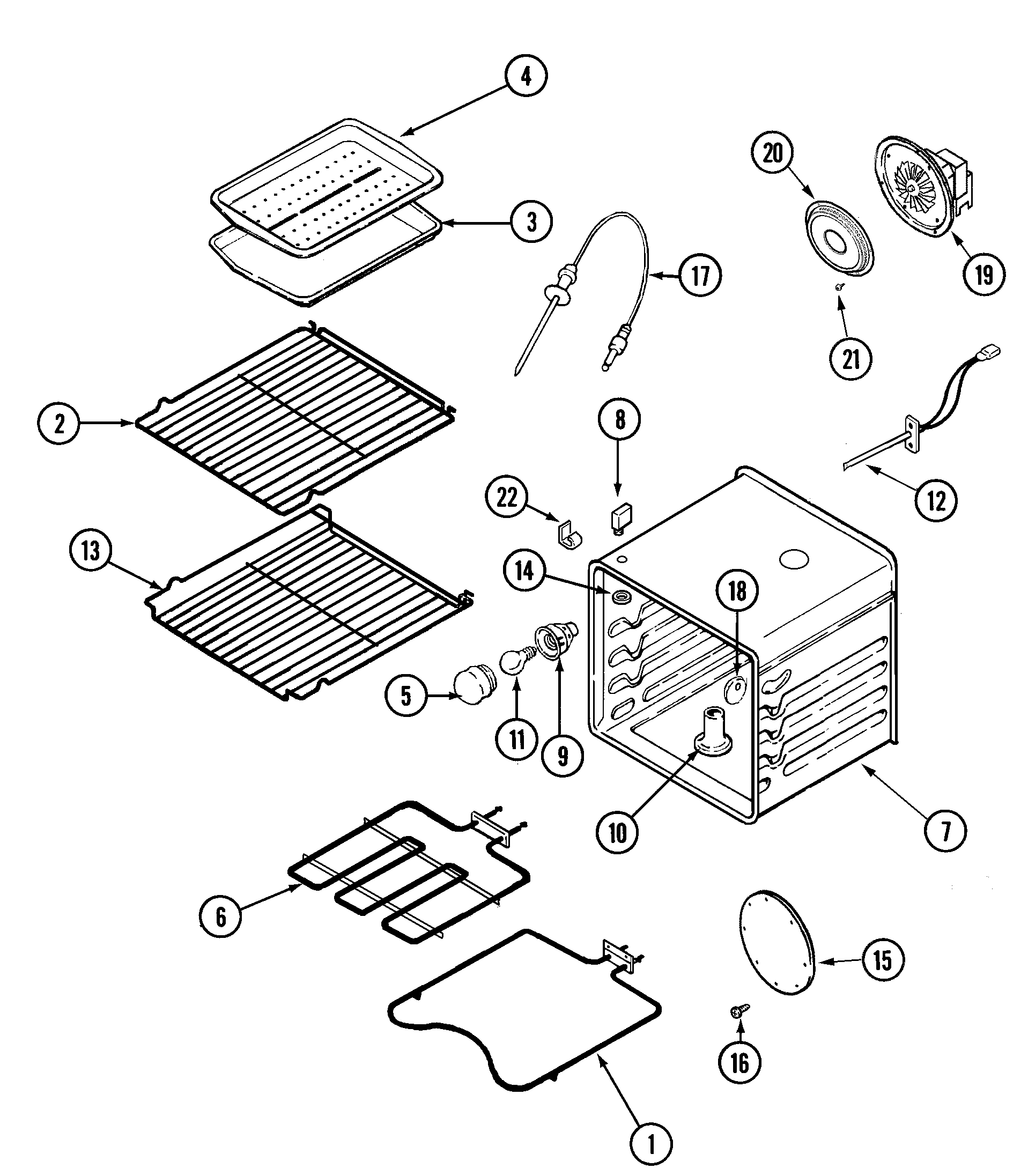

    Oven diagram

    Oven Sensor

    Part #71003083

    Replaced by #12001656

    Info Icon
    Manufacturer substitution
    This part replaces 71003083. Substitute parts can look different from the original.
    In Stock
    $22.64
    21% OFF Phone Price : $28.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Switch for Jenn-Air JJW9627BAS - Part WB24T10147

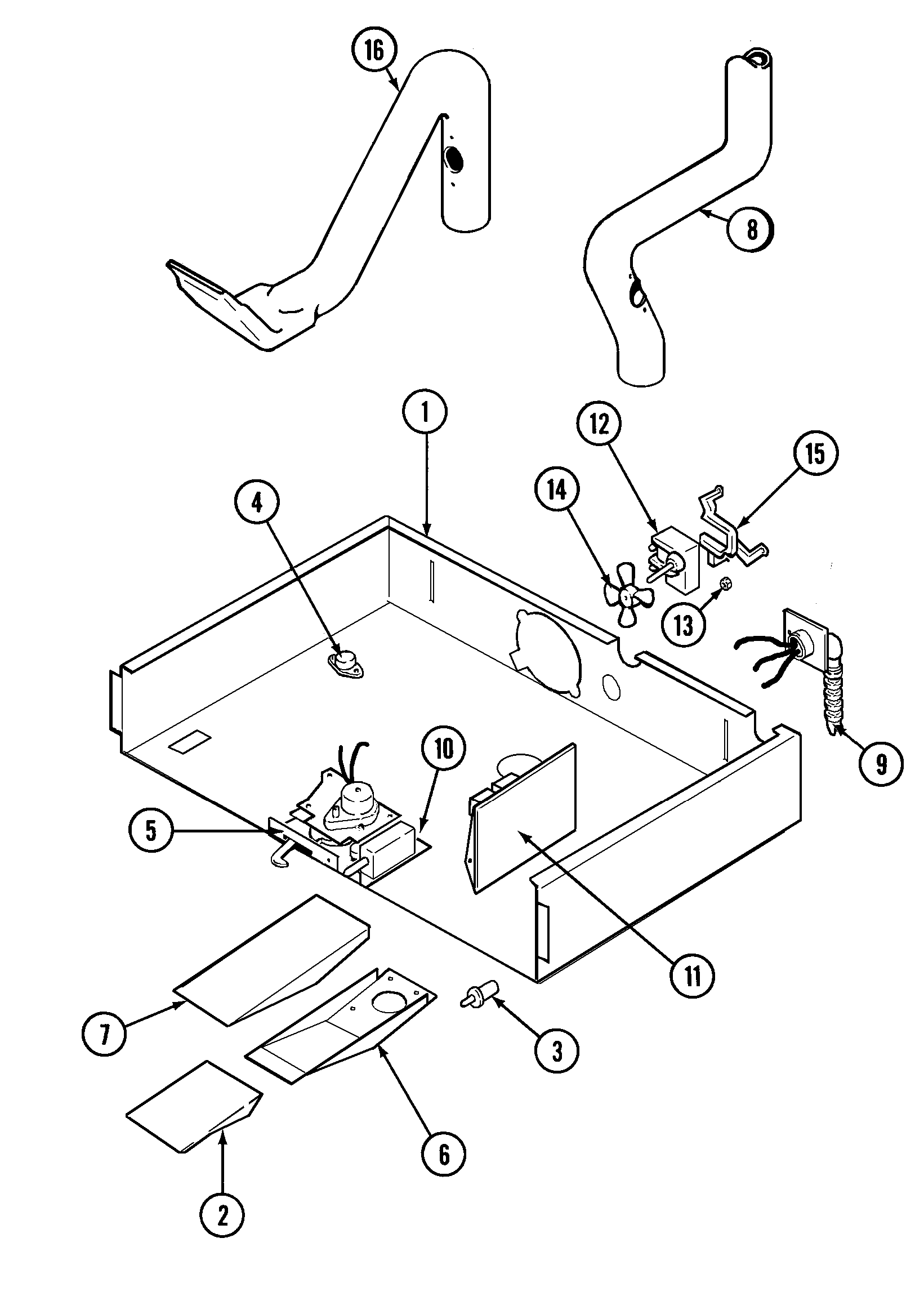

    Internal controls diagram

    Door Switch

    Part #71001129

    Replaced by #WB24T10147

    Info Icon
    Manufacturer substitution
    This part replaces 71001129. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.54
    23% OFF Phone Price : $26.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Nut for Jenn-Air JJW9627BAS - Part WP3400029

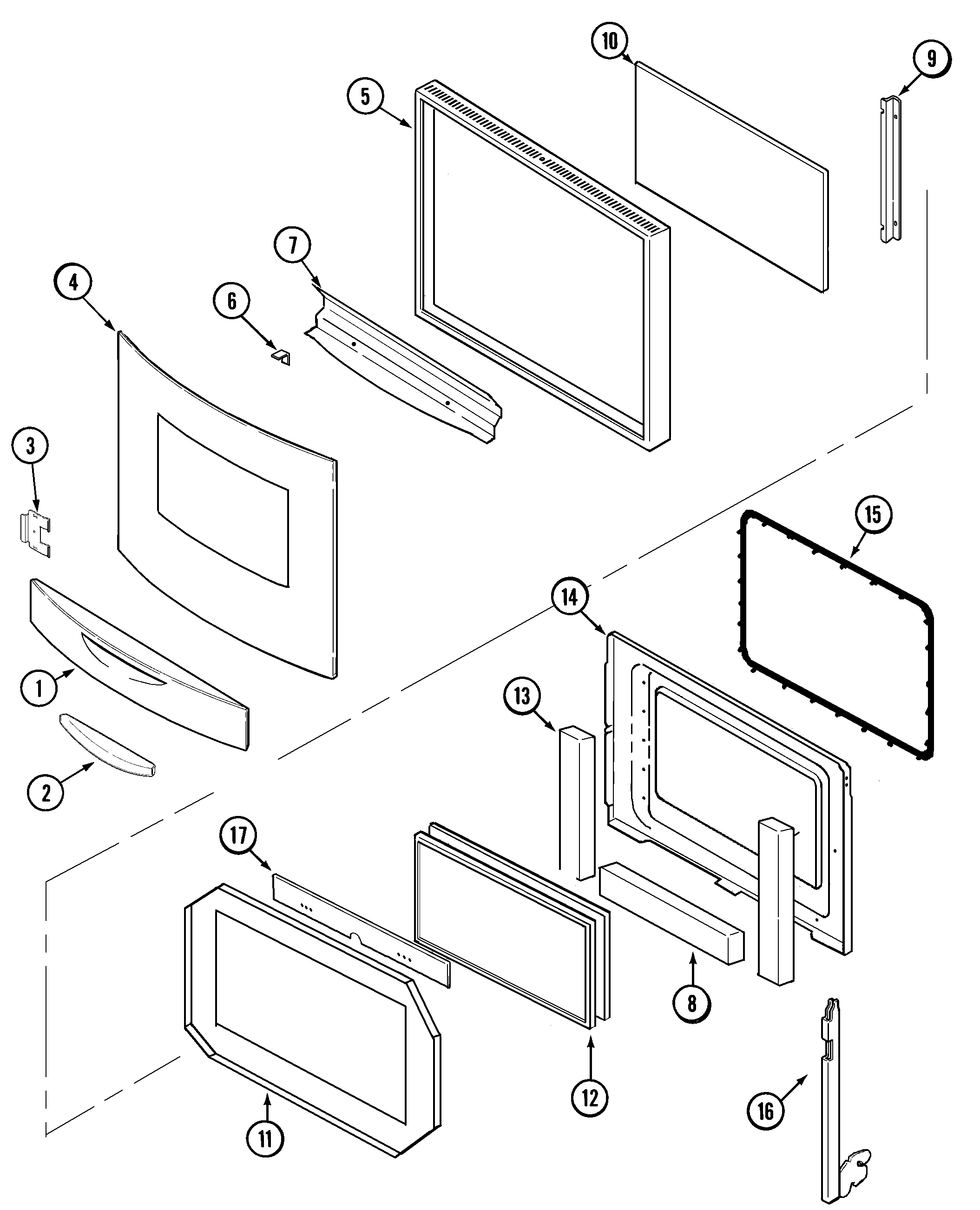

    Door (upper & lower) diagram

    Nut

    Part #715634

    Replaced by #WP3400029

    Info Icon
    Manufacturer substitution
    This part replaces 715634. Substitute parts can look different from the original.
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Control Board for Jenn-Air JJW9627BAS - Part WP71003401

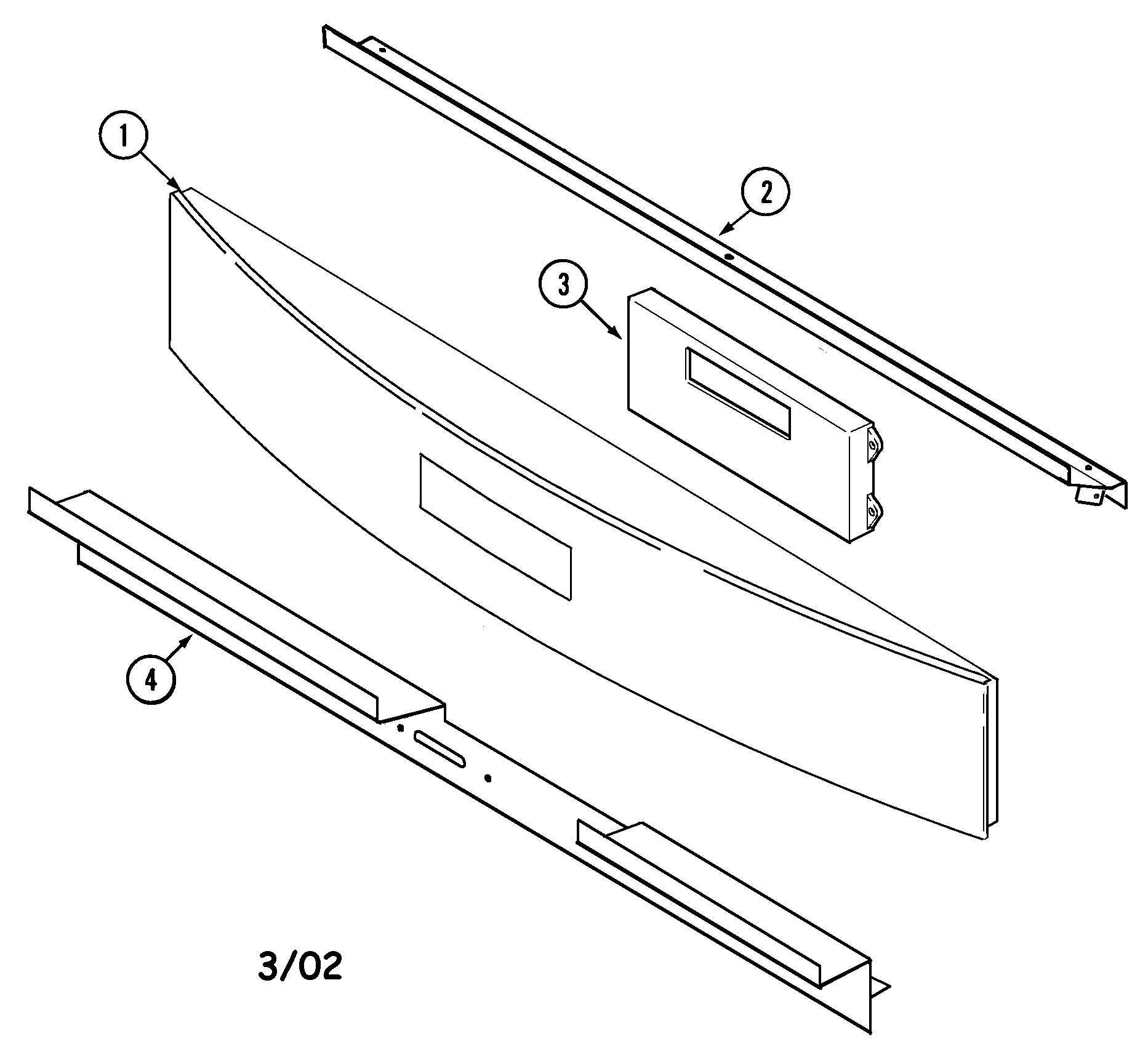

    Control panel diagram

    Wall Oven Control Board

    Part #71003401

    Replaced by #WP71003401

    Info Icon
    Manufacturer substitution
    This part replaces 71003401. Substitute parts can look different from the original.
    In Stock
    $322.67
    $12.00 OFF Phone Price : $334.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Jenn-Air JJW9627BAS - Part WP355214

    Door (upper & lower) diagram

    Screw

    Part #700725

    Replaced by #WP355214

    Info Icon
    Manufacturer substitution
    This part replaces 700725. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air JJW9627BAS - Part WP98008545

    Control panel diagram

    Screw

    Part #790448

    Replaced by #WP98008545

    Info Icon
    Manufacturer substitution
    This part replaces 790448. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.47
    15% OFF Phone Price : $6.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Jenn-Air JJW9627BAS - Part 4396923

    Oven diagram

    Broiler Pan

    Part #3401F020-19

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3401F020-19. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for Jenn-Air JJW9627BAS - Part WP9781049

    Oven diagram

    Lens Bulb

    Part #71001867

    Replaced by #WP9781049

    Info Icon
    Manufacturer substitution
    This part replaces 71001867. Substitute parts can look different from the original.
    In Stock
    $58.17
    9% OFF Phone Price : $64.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air JJW9627BAS - Part WPY706189

    Screw

    Part #706189

    Replaced by #WPY706189

    Info Icon
    Manufacturer substitution
    This part replaces 706189. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Jenn-Air JJW9627BAS - Part 4396923

    Oven diagram

    Broiler Insert

    Part #703165

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 703165. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Most common repair guides to help fix your wall oven

These step-by-step repair guides will help you safely fix what’s broken on your wall oven.

View all
How to replace the thermal switch in a wall oven

How to replace the thermal switch in a wall oven

If the oven won't heat after resetting the thermal switch, replace the thermal switch.…

Read more

Repair time and Difficulty

 60 minutes or less
How to replace a wall oven thermal fuse

How to replace a wall oven thermal fuse

The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…

Read more

Repair time and Difficulty

 60 minutes or less
How to replace a wall oven door outer glass panel

How to replace a wall oven door outer glass panel

Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …

Read more

Repair time and Difficulty

 45 minutes or less

Effective articles & videos to help repair your wall oven

Use the advice and tips in these articles and videos to get the most out of your wall oven.

View all
How to remove grease from your oven

How to remove grease from your oven

Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…

Read more

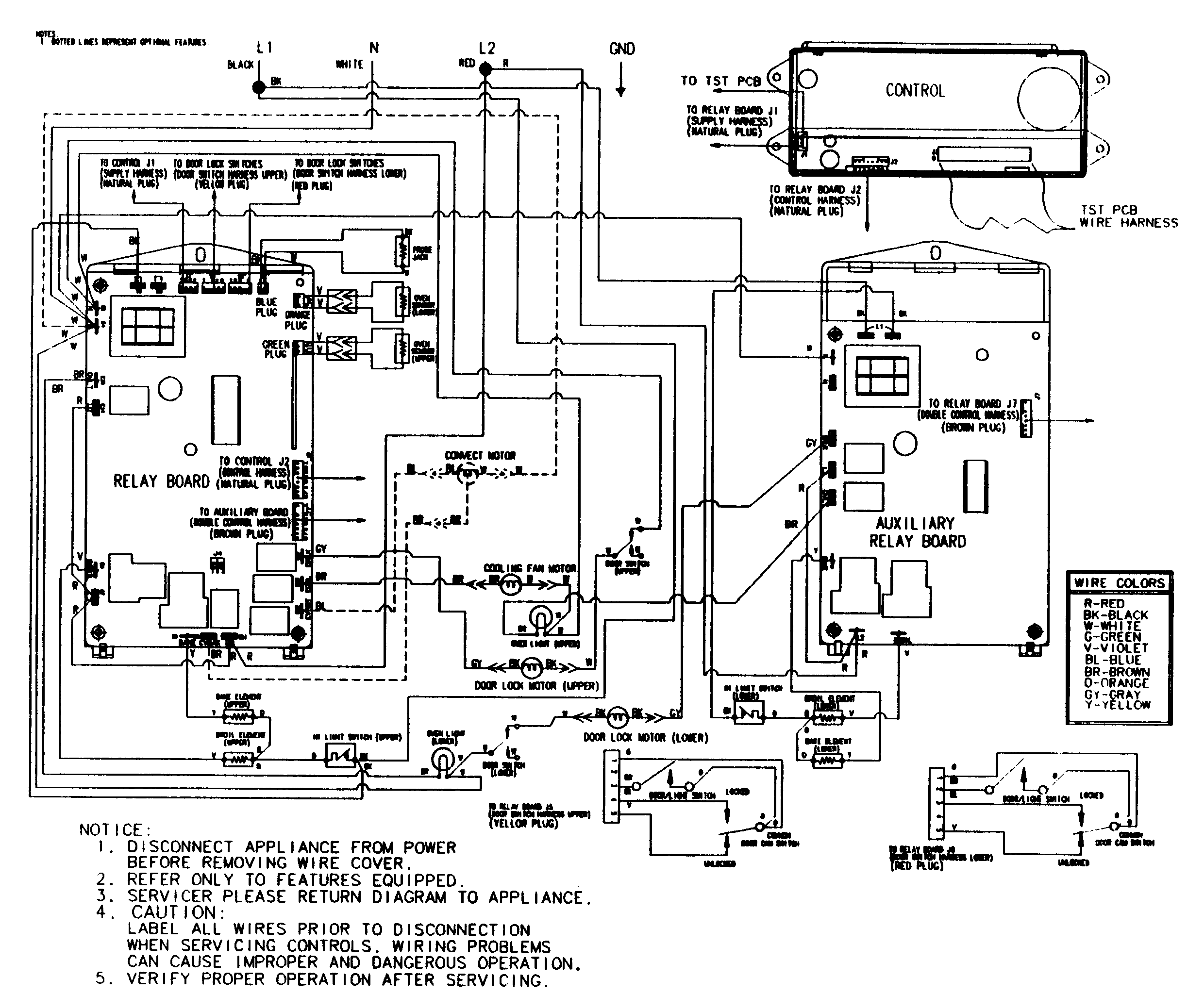

How to read a wiring schematic video
