Bosch HBN3550UC/04 wall oven Parts
Here are the diagrams and repair parts for Bosch HBN3550UC/04 wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

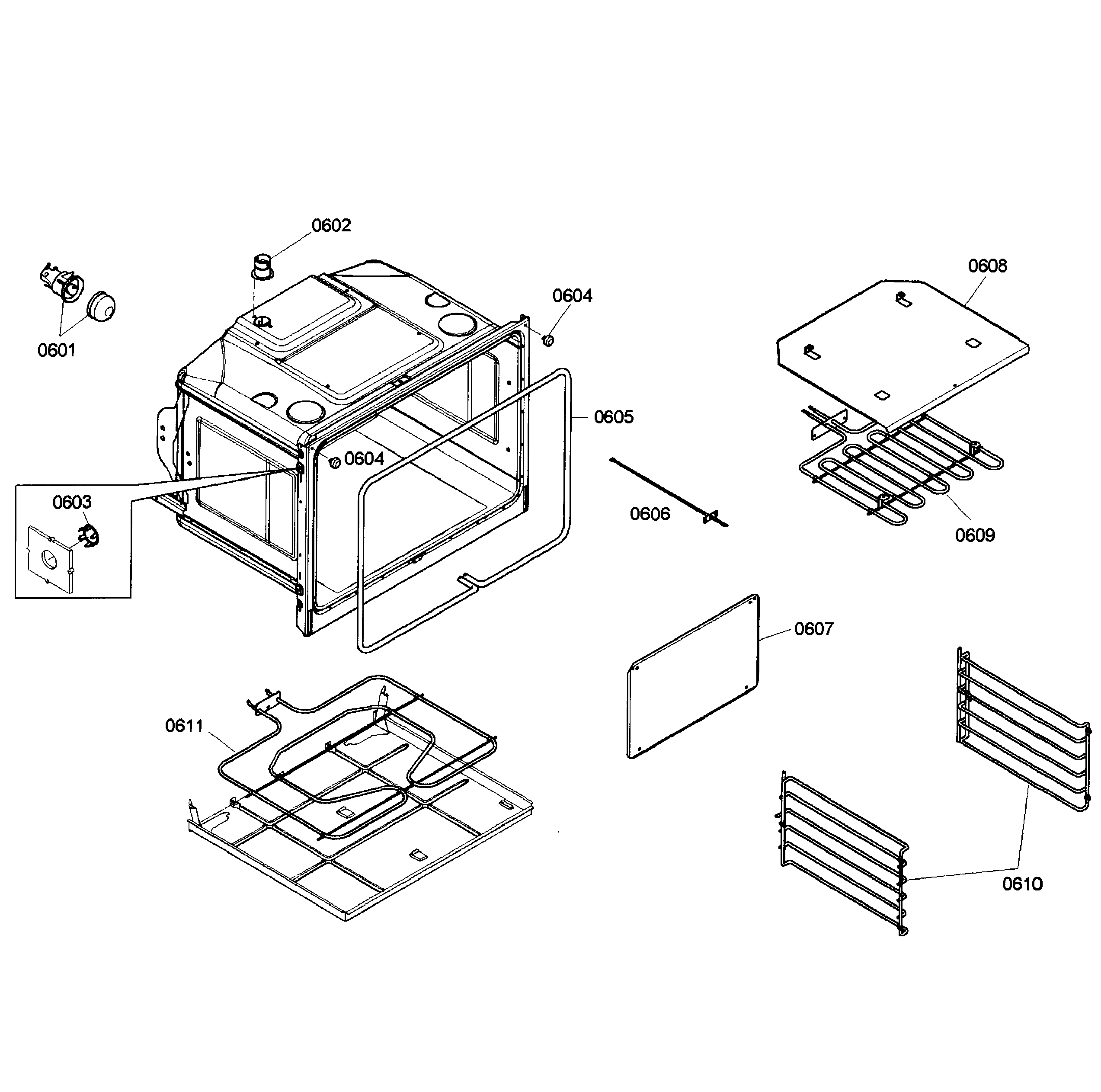

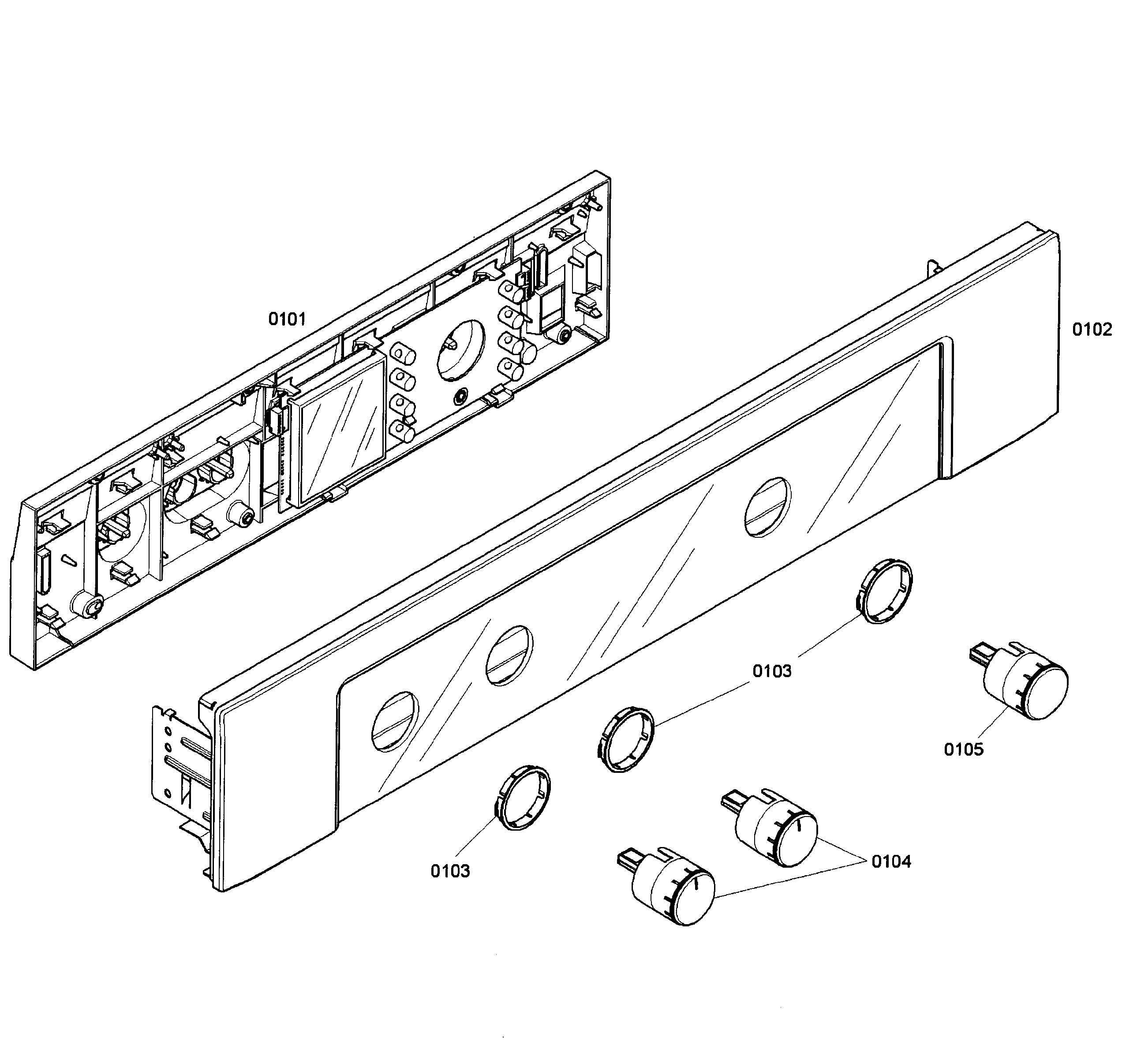

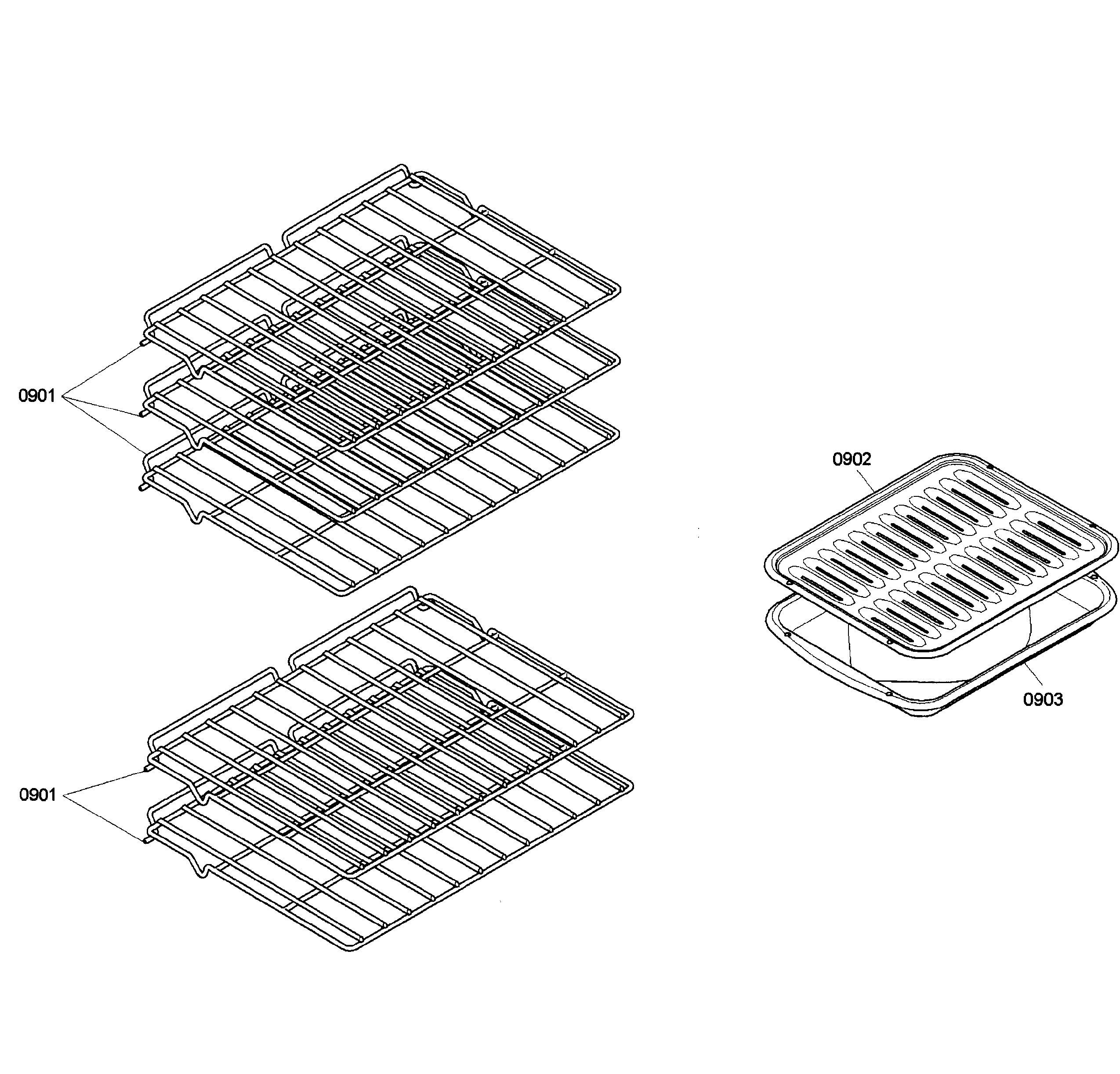

Browse Parts for HBN3550UC/04 Wall Ovens

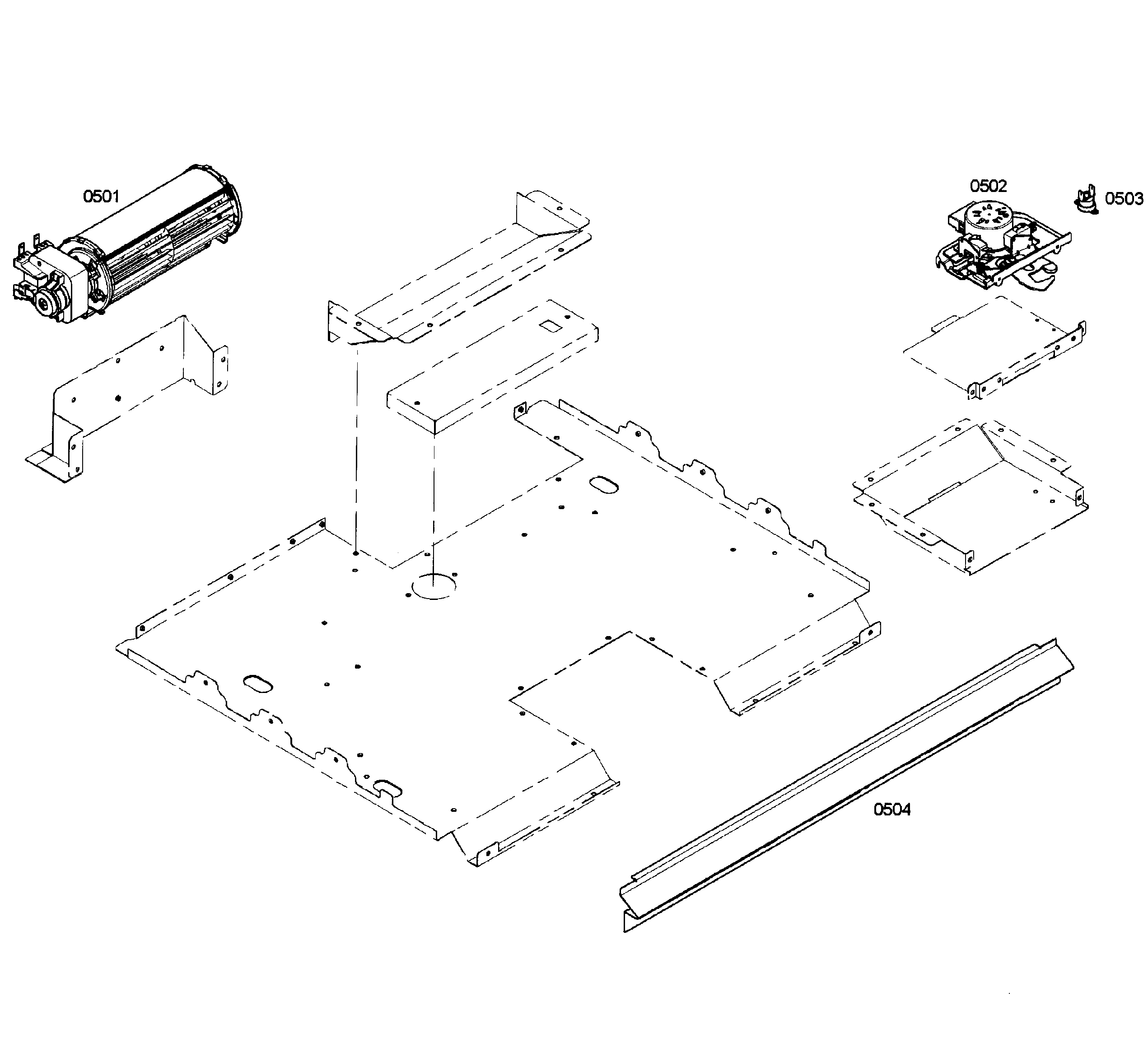

Fan assy diagram
Fan
Part #643456Replaced by #00643456
Manufacturer substitutionThis part replaces 643456. Substitute parts can look different from the original.In Stock$231.665% OFF Phone Price : $243.66
Qty
Heater
Part #478696Replaced by #00478696
Manufacturer substitutionThis part replaces 478696. Substitute parts can look different from the original.In Stock$197.31QtyScrew
Part #608093Replaced by #00620814
Manufacturer substitutionThis part replaces 608093. Substitute parts can look different from the original.In Stock$57.83QtyPlug
Part #413573Replaced by #00413573
Manufacturer substitutionThis part replaces 413573. Substitute parts can look different from the original.In Stock$26.94QtyClip
Part #612252Replaced by #00612252

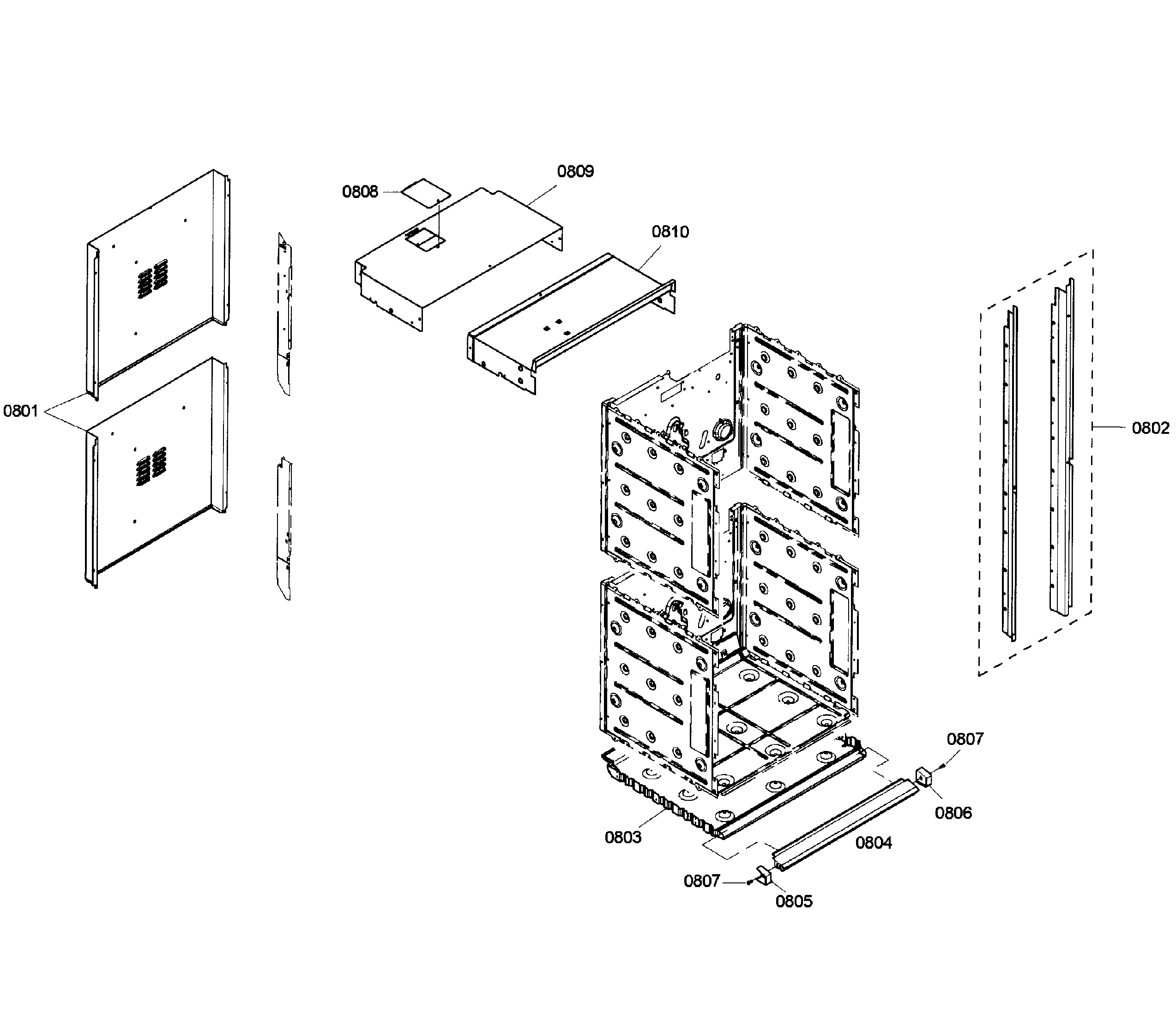

Manufacturer substitutionThis part replaces 612252. Substitute parts can look different from the original.In Stock$45.15QtyCabinet diagram
Exhaust Baffle
Part #144725
The manufacturer no longer makes this part, and there's no substitute part

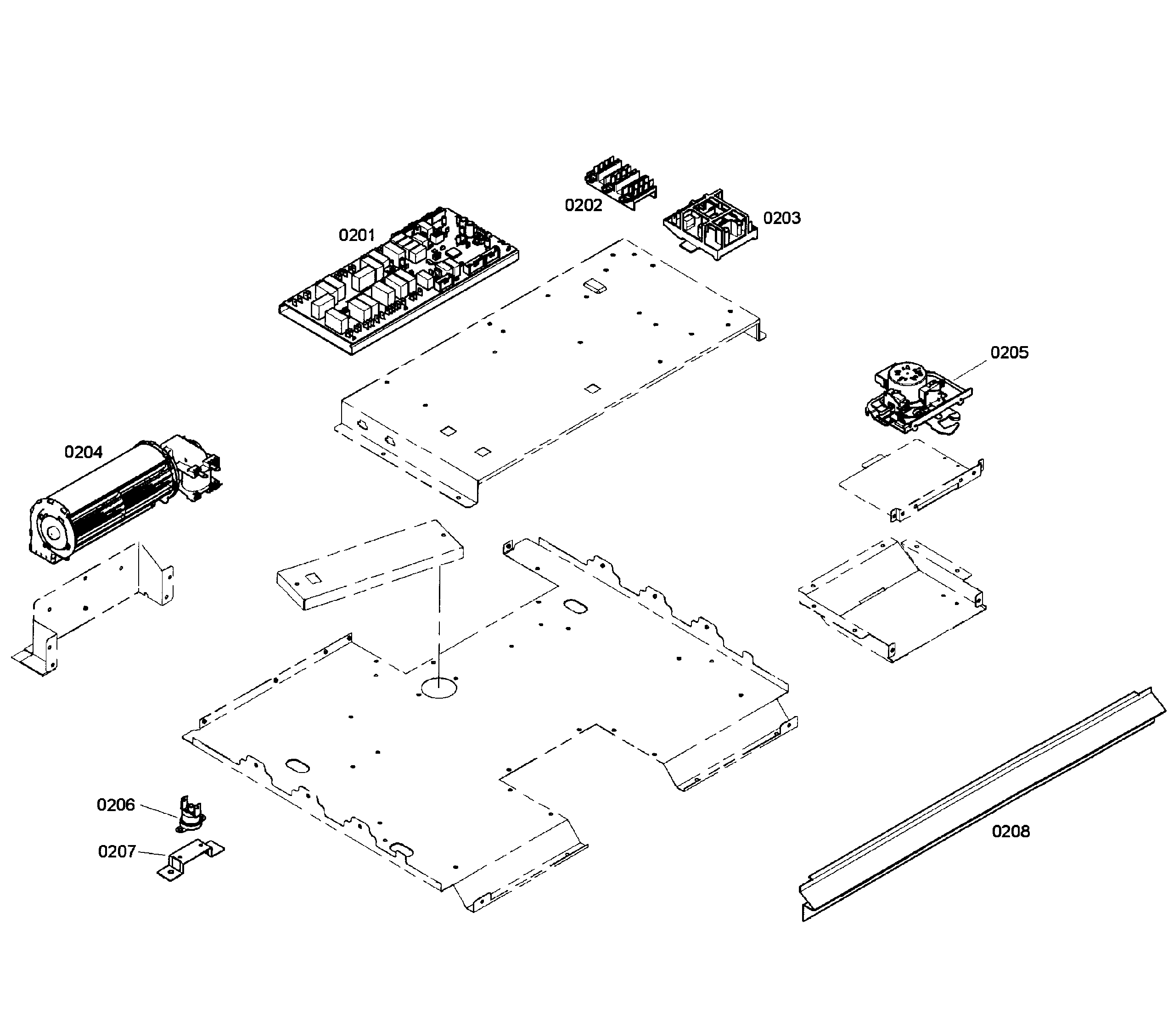

Pcb's assy diagram
Terminal
Part #642842
The manufacturer no longer makes this part, and there's no substitute part
Pcb's assy diagram
Bracket
Part #608076
The manufacturer no longer makes this part, and there's no substitute part

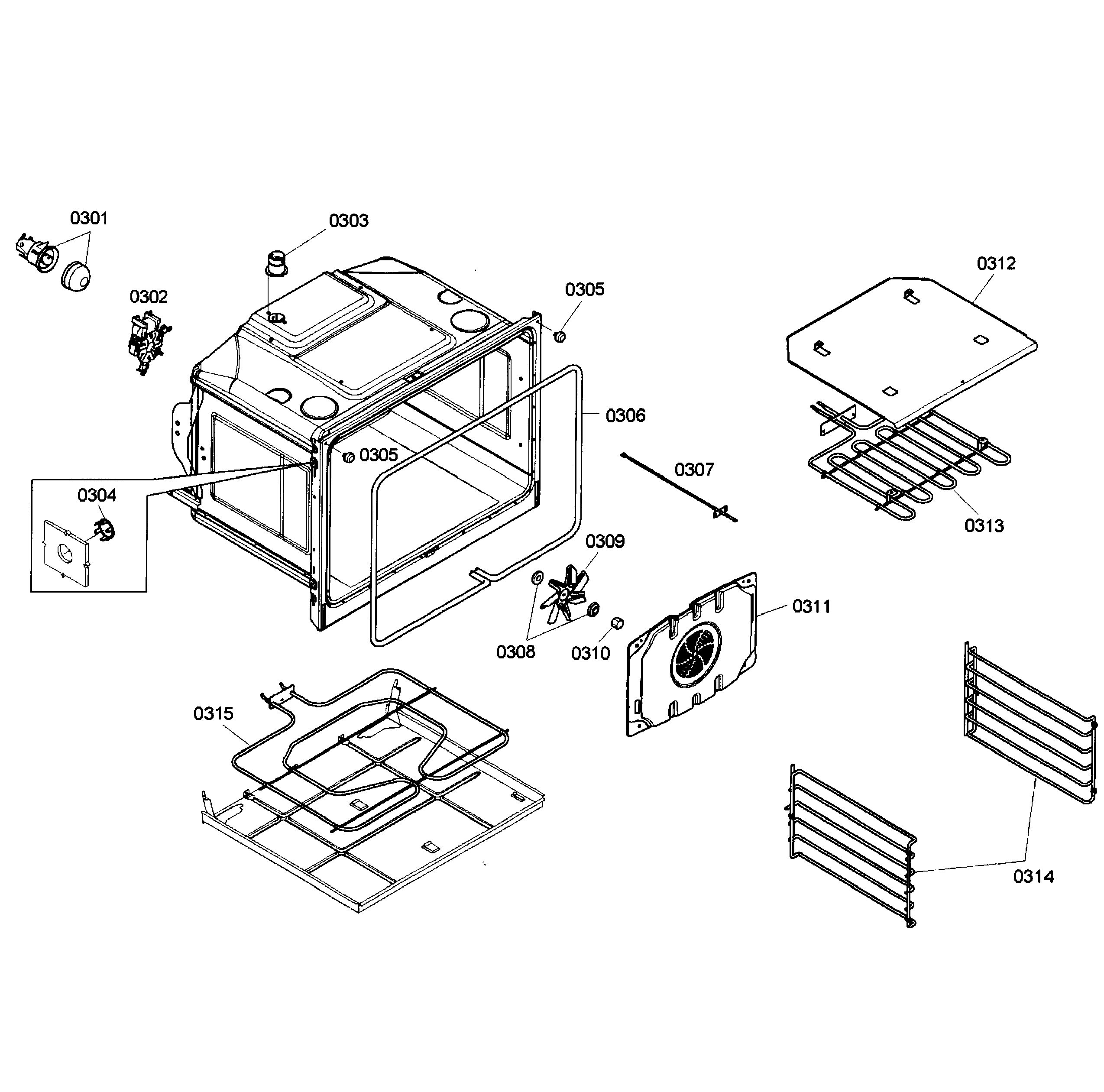

Conv oven diagram
Fan Blade
Part #646291
The manufacturer no longer makes this part, and there's no substitute part

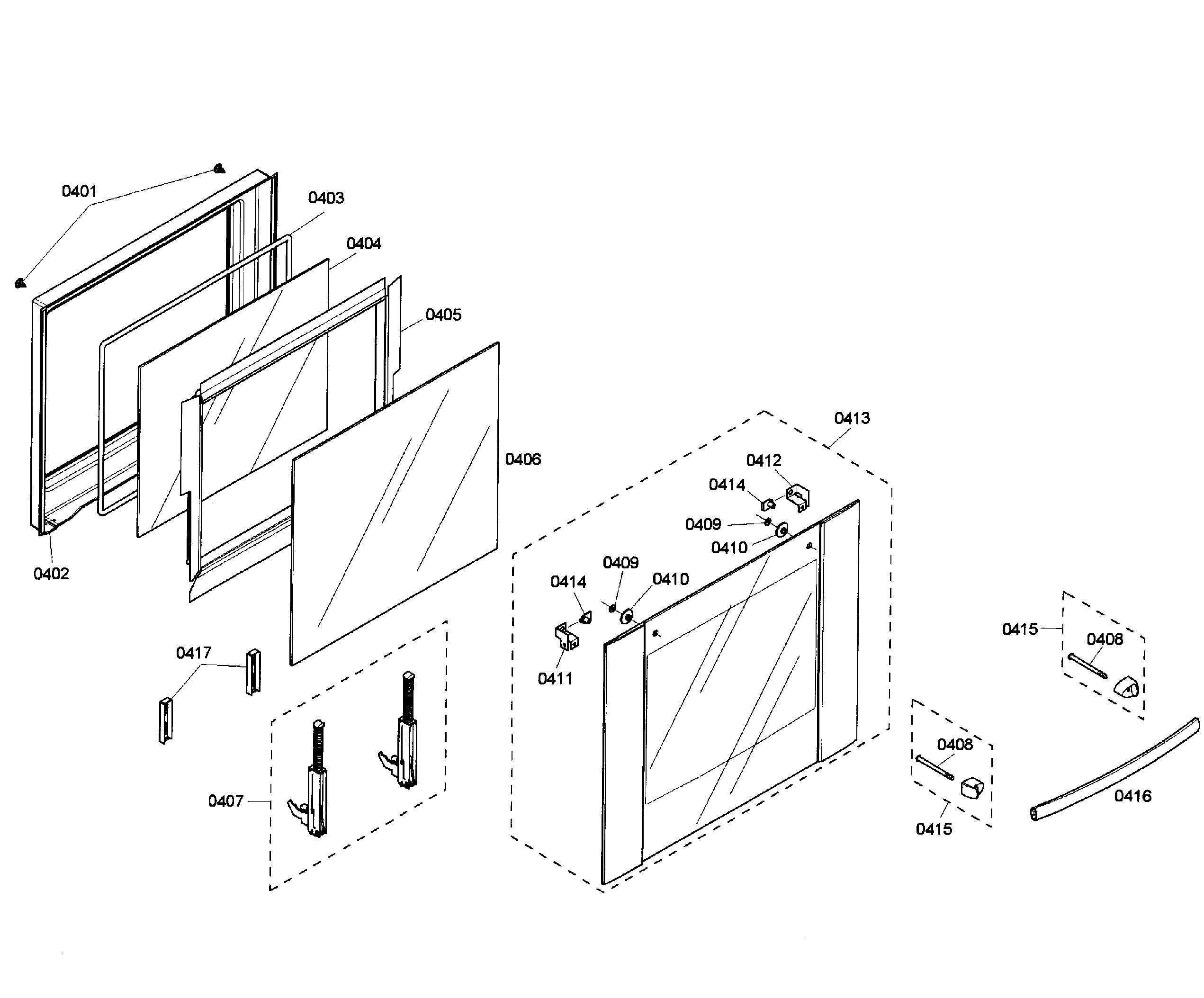

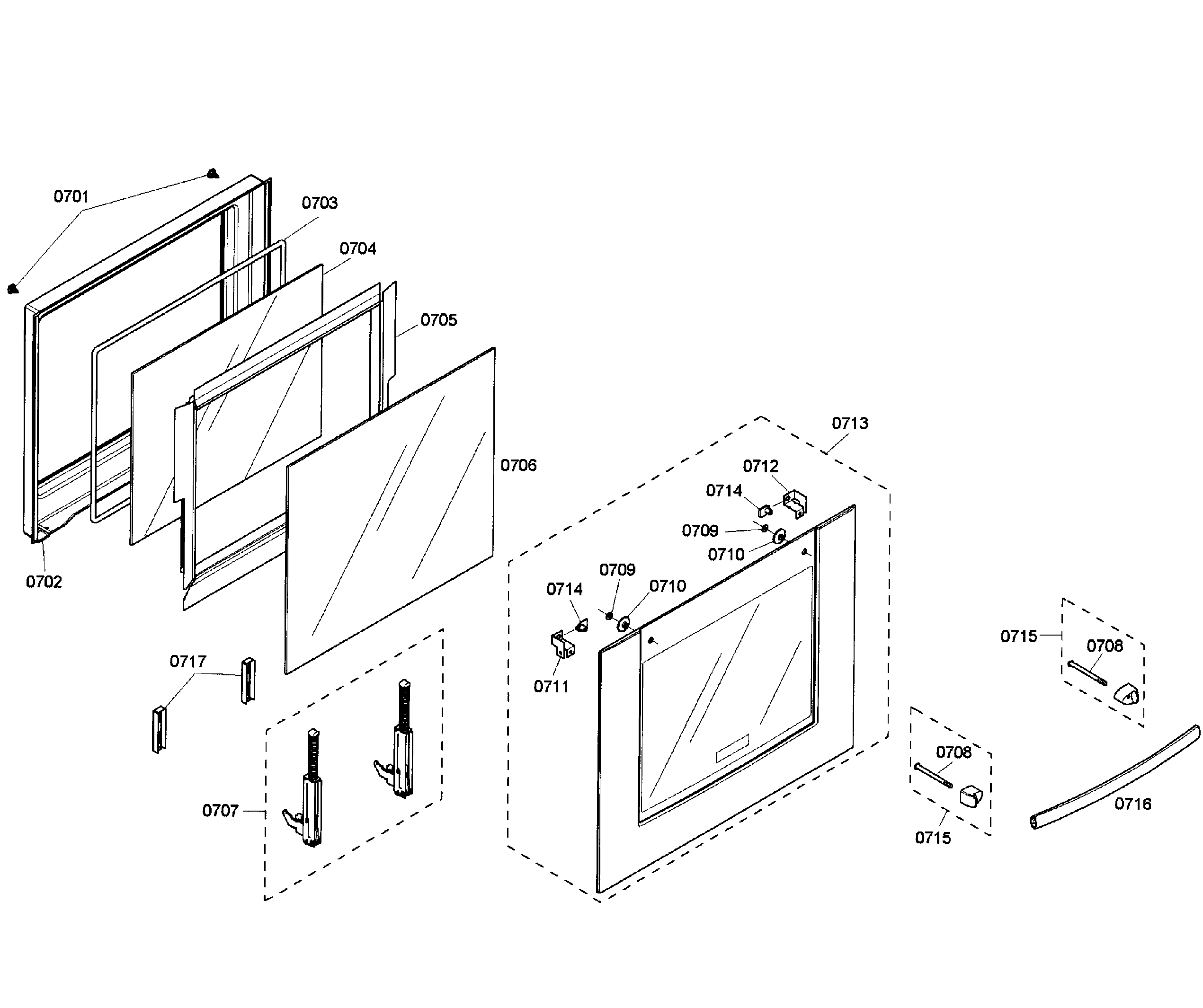

Door assy diagram
Oven Door Glass
Part #479360
The manufacturer no longer makes this part, and there's no substitute part
