GE
Range Hood

Model #JV966D1SS GE range hood

Here are the diagrams and repair parts for GE JV966D1SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 18 parts

    Range Hood Blower Assembly#103

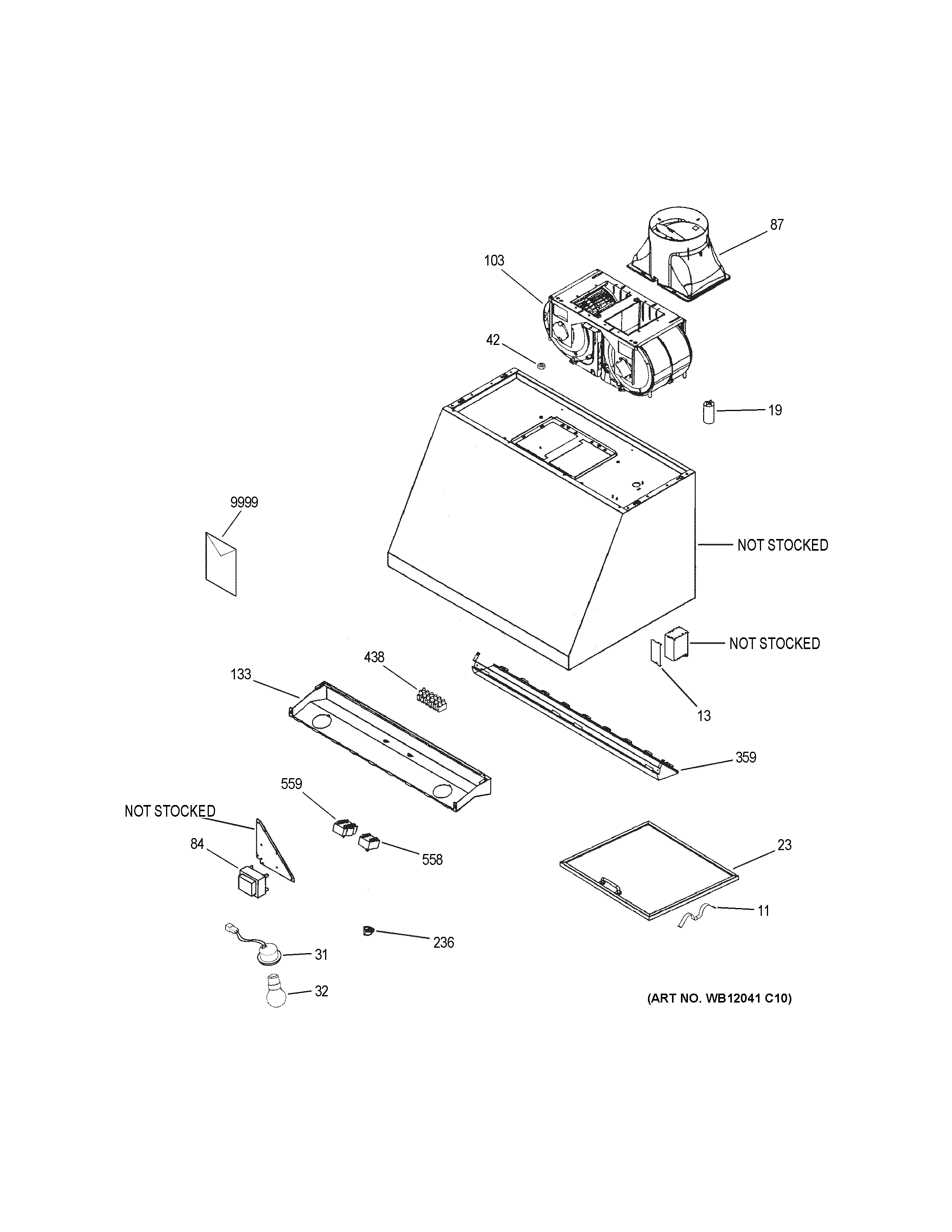

    Range hood Diagram

    Range hood blower assembly

    Part #WB38X10056
    Replaced by #WB26X28614
    ?
    Manufacturer substitution
    This part replaces WB38X10056. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $725.79
    Range Hood Control Knob#236

    Range hood Diagram

    Range hood control knob

    Part #WB03X10140
    This item is not returnable
    In Stock
    $21.14
    Range Hood Blower Switch#559

    Range hood Diagram

    Range hood blower switch

    Part #WB24X10078
    Replaced by #WB24X32233
    ?
    Manufacturer substitution
    This part replaces WB24X10078. Substitute parts can look different from the original.
    In Stock
    $88.67
    Terminal Block#438

    Range hood Diagram

    Terminal block

    Part #WB17X10010
    In Stock
    $14.44
    Range Hood Light Switch#558

    Range hood Diagram

    Range hood light switch

    Part #WB24X10077
    In Stock
    $54.00
    Junction Box#13

    Range hood Diagram

    Junction box

    Part #WB02X10872
    In Stock
    $11.11
    Range Hood Installation#9999

    Range hood Diagram

    Range hood installation

    Part #WB01X10313
    In Stock
    $31.48
    Cooking Appliance Halogen Light Bulb#32

    Range hood Diagram

    In Stock
    $26.57
    Nut#42

    Range hood Diagram

    Nut

    Part #WB01X10336
    This item is not returnable
    In Stock
    $5.00
    Range Hood Grease Filter#23

    Range hood Diagram

    Range hood grease filter

    Part #WB02X10771
    Replaced by #WB02X32234
    ?
    Manufacturer substitution
    This part replaces WB02X10771. Substitute parts can look different from the original.
    In Stock
    $102.60

    Symptoms common to all range hoods

    Choose a symptom to see related range hood repairs.

    Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings
    Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure, wiring problems
    Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure
    Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade
    Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light socket, wiring failure
    Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board failure
    Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure
