Model # FGF382HCJ Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire FGF382HCJ gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

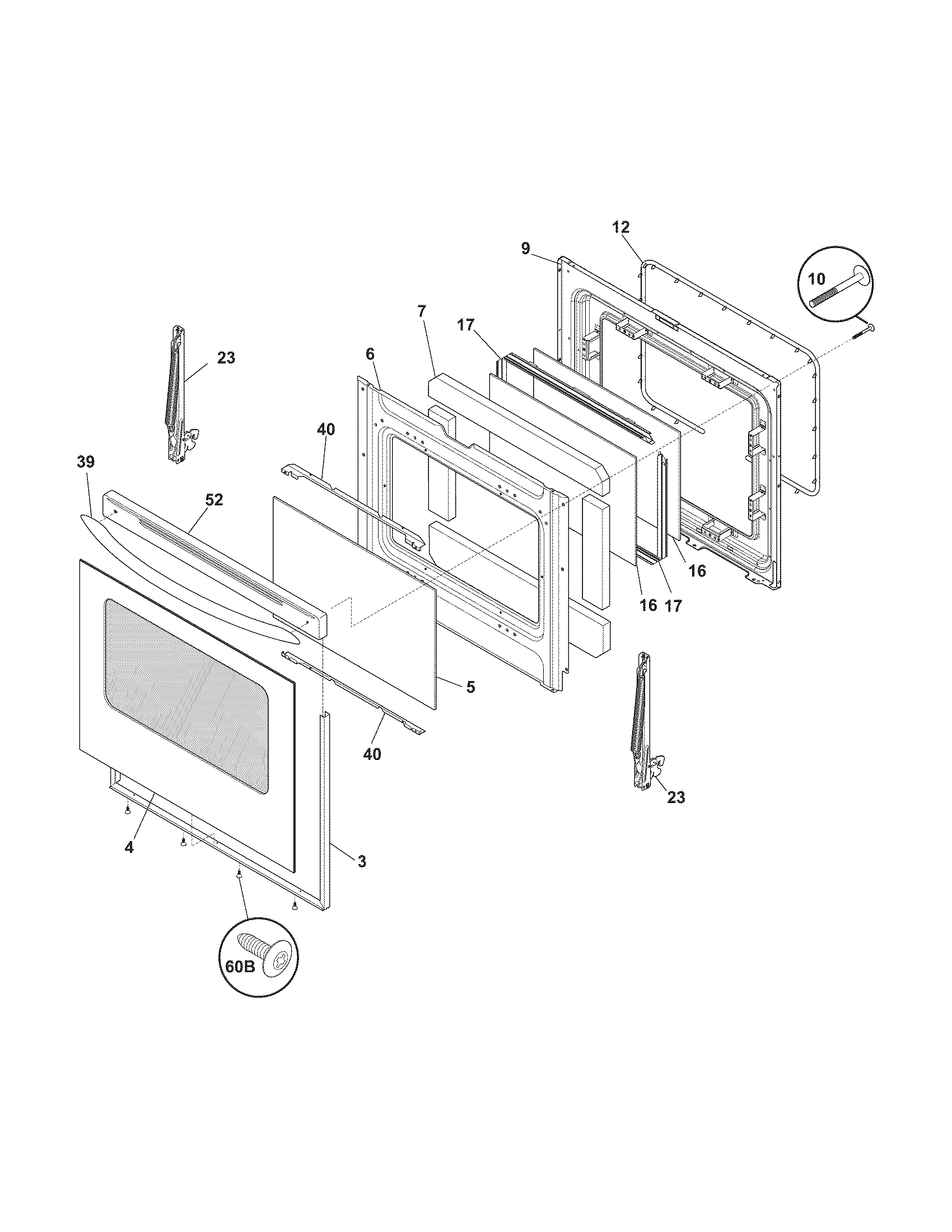

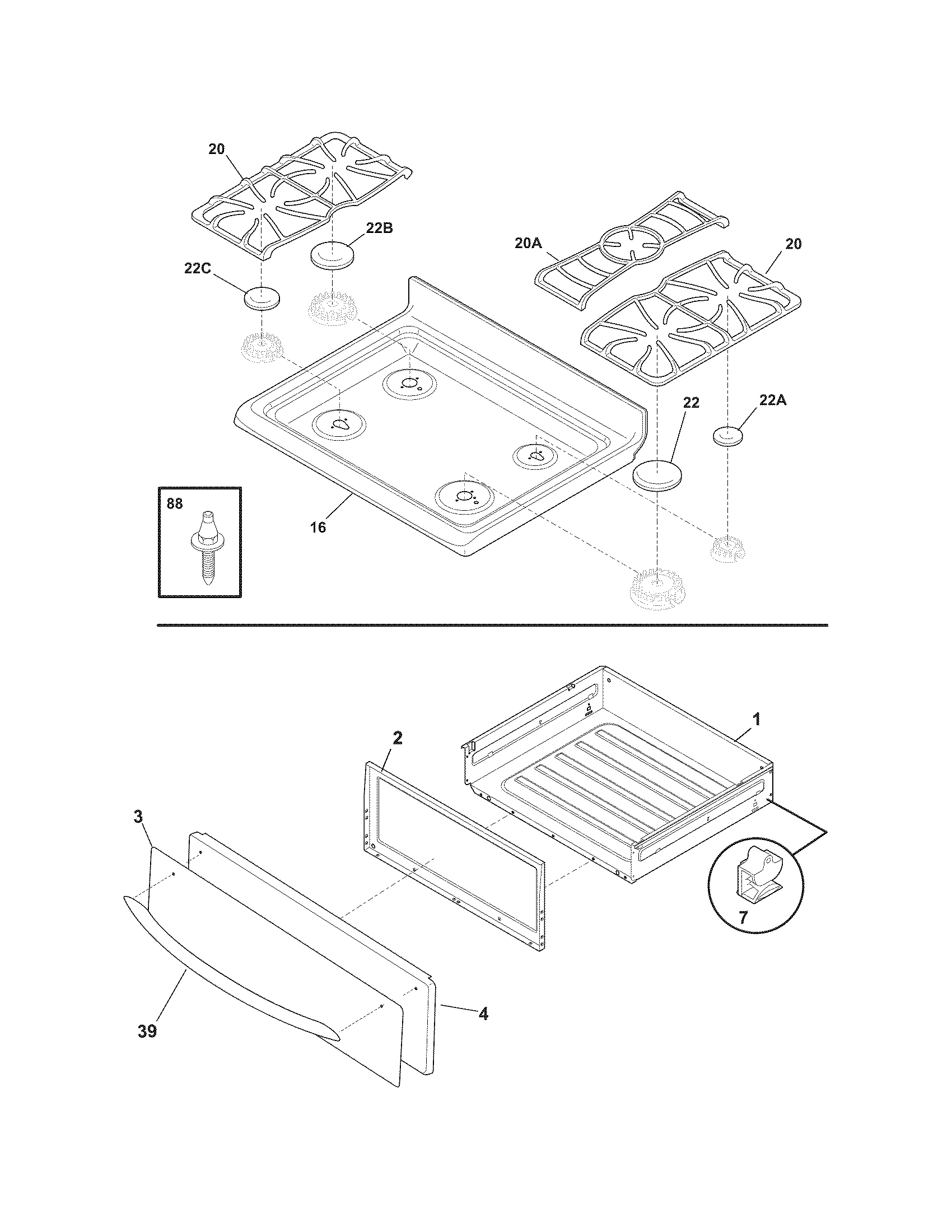

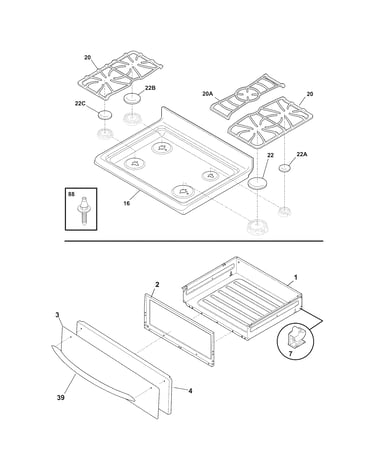

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |

Tappan Range Oven Burner Igniter (replaces 5304508786, 7316489403) 316489403
#26

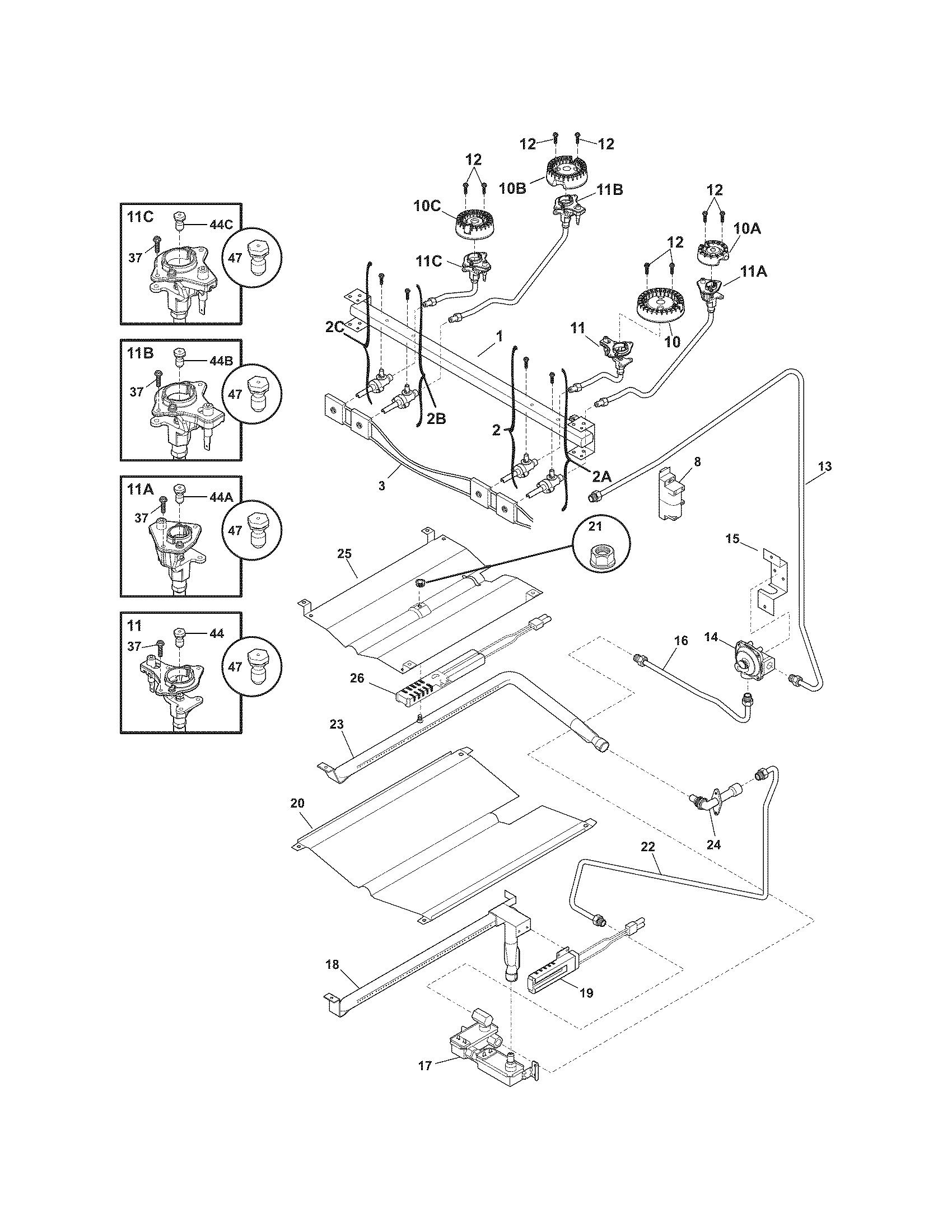

Burner diagram

Tappan range oven burner igniter (replaces 5304508786, 7316489403)

Part #316489403

BEST SELLER
$116.21
9% OFF Phone Price : $128.21
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

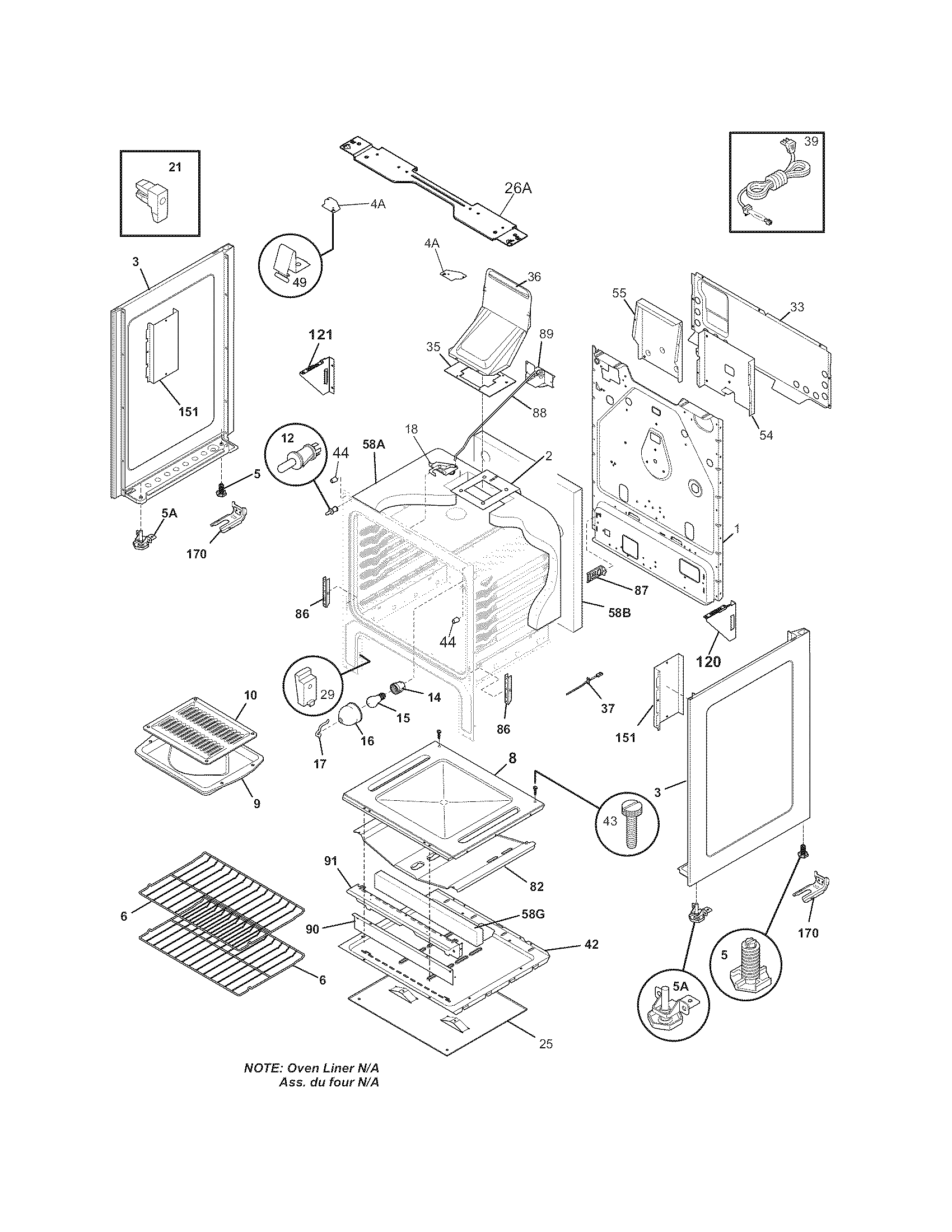

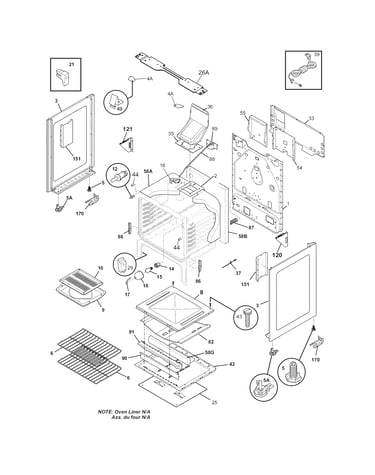

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05
15% OFF Phone Price : $39.05
In Stock
Range Oven Igniter 316489404
#19

Burner diagram

Range oven igniter

Part #316489404

Replaced by #5304506545

?
Manufacturer substitution
This part replaces 316489404. Substitute parts can look different from the original.
BEST SELLER
$78.03
7% OFF Phone Price : $84.03
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11C

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$79.89
7% OFF Phone Price : $85.89
In Stock
Range Control Panel Overlay 316419103
#20A

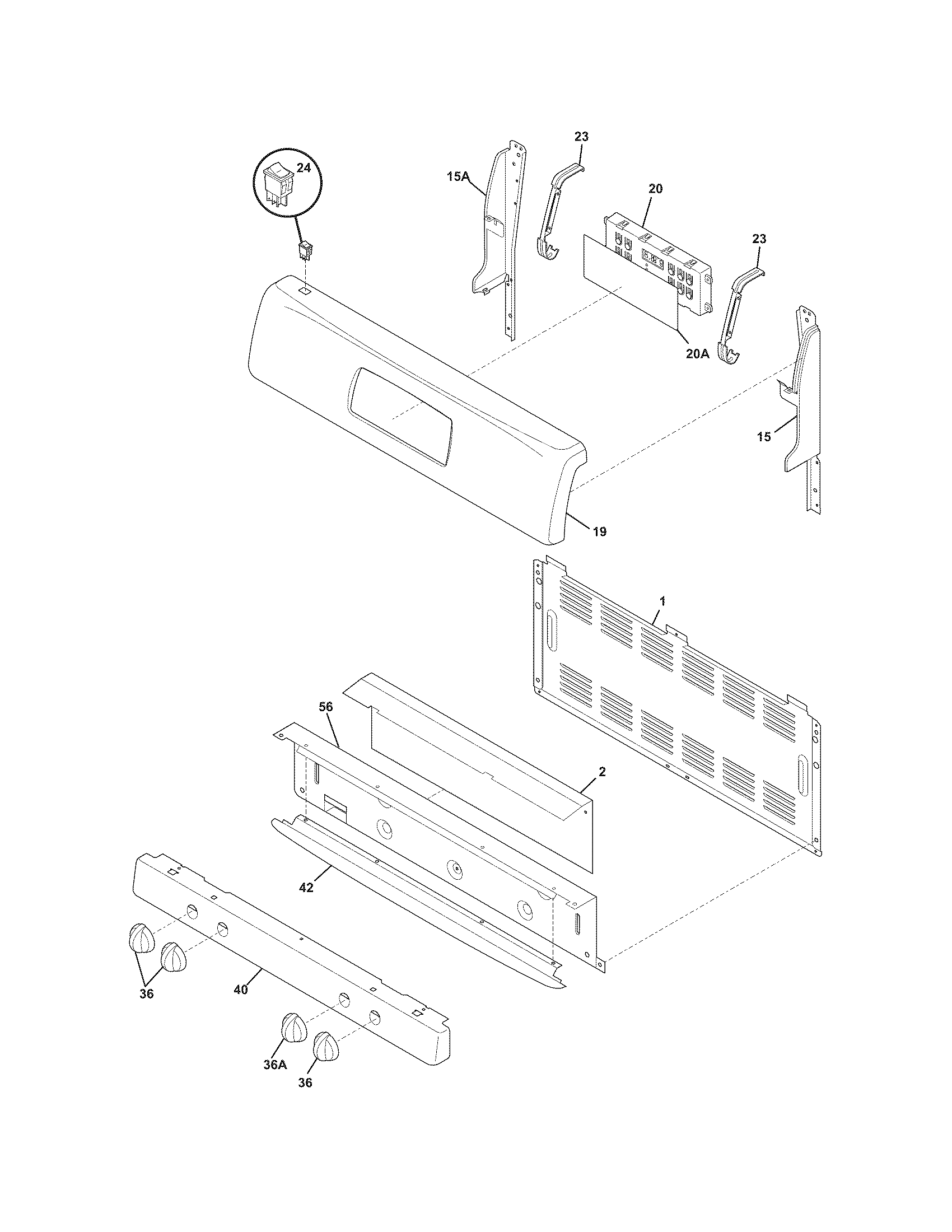

Backguard diagram

Range control panel overlay

Part #316419103

Replaced by #316419141

?
Manufacturer substitution
This part replaces 316419103. Substitute parts can look different from the original.
BEST SELLER
$37.99
14% OFF Phone Price : $43.99
In Stock
Tappan Range Surface Burner Igniter And Orifice Holder (replaces 316449500) 316536610
#11A

Burner diagram

Tappan range surface burner igniter and orifice holder (replaces 316449500)

Part #316536610

BEST SELLER
$56.52
10% OFF Phone Price : $62.52
In Stock
Range Surface Burner Head (replaces 7316438400) 316438400
#10

Burner diagram

Range surface burner head (replaces 7316438400)

Part #316438400

BEST SELLER
$59.89
9% OFF Phone Price : $65.89
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$41.22
13% OFF Phone Price : $47.22
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$66.32
8% OFF Phone Price : $72.32
In Stock
Range Bake Burner (replaces 7316404400) 316404400
#18

Burner diagram

Range bake burner (replaces 7316404400)

Part #316404400

BEST SELLER
$90.07
6% OFF Phone Price : $96.07
In Stock
