Maytag
Electric Range

Model #MER5750BAQ Maytag electric range

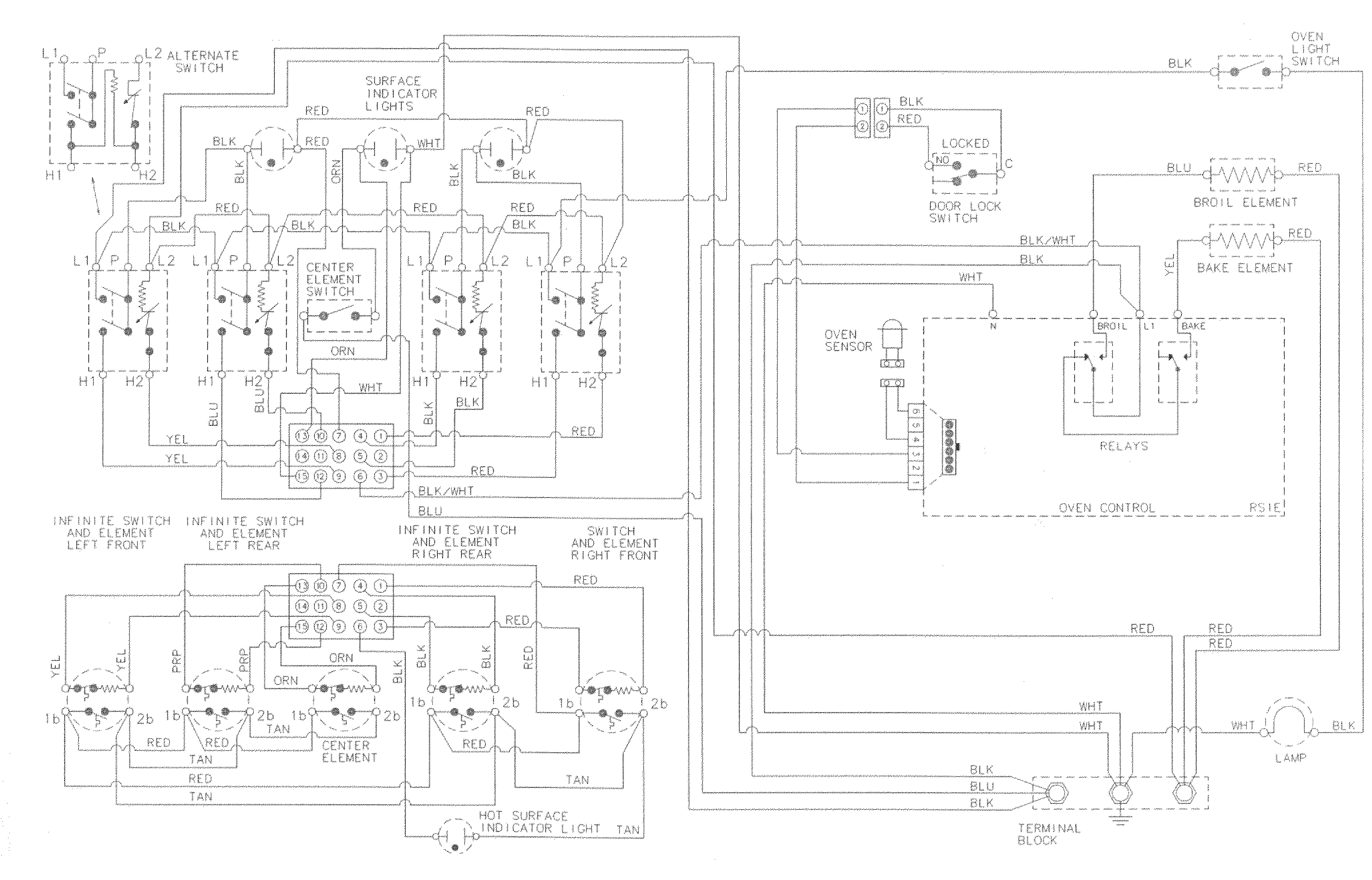

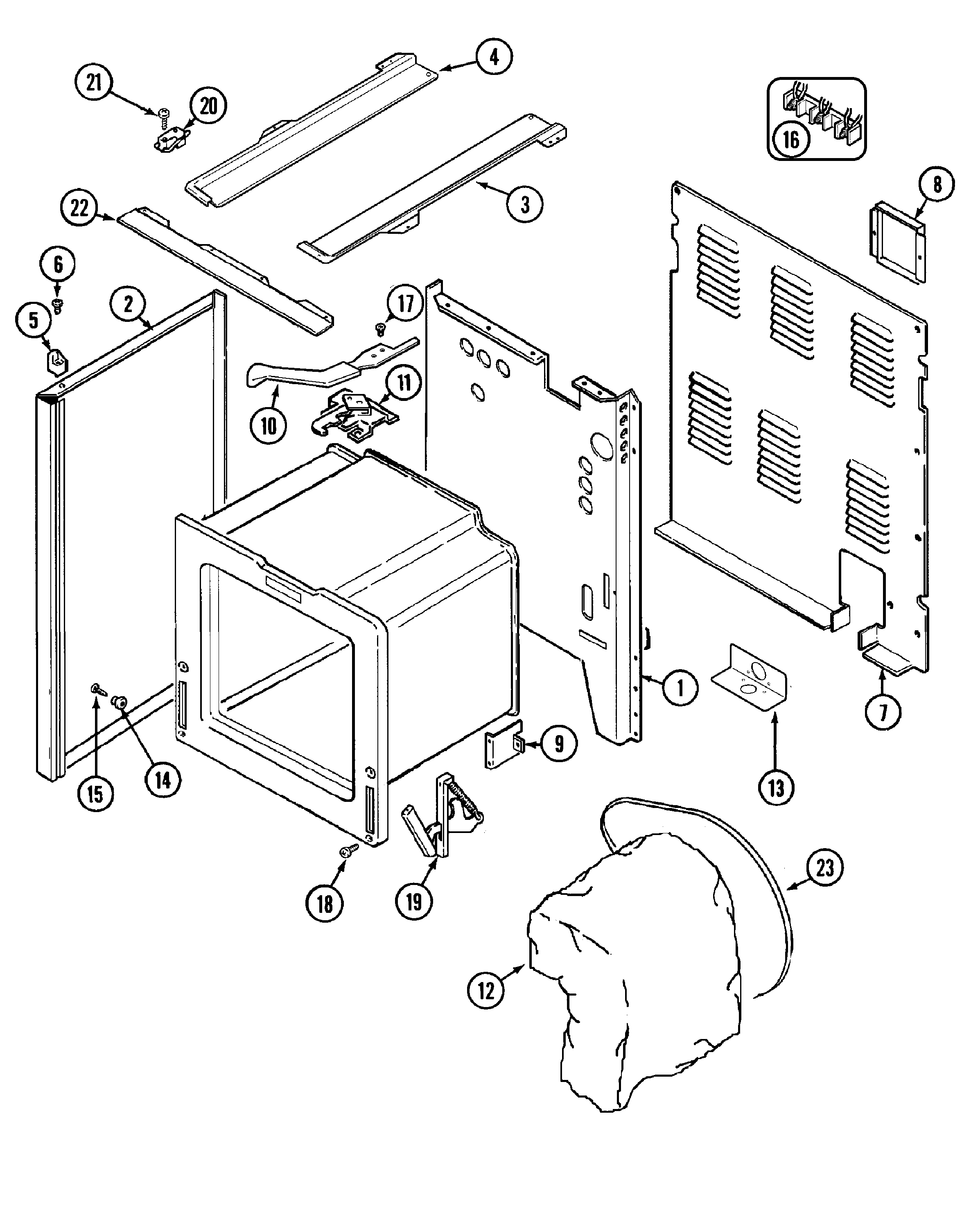

Here are the diagrams and repair parts for Maytag MER5750BAQ electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 161 parts

    Range Anti-Tip Bracket#11

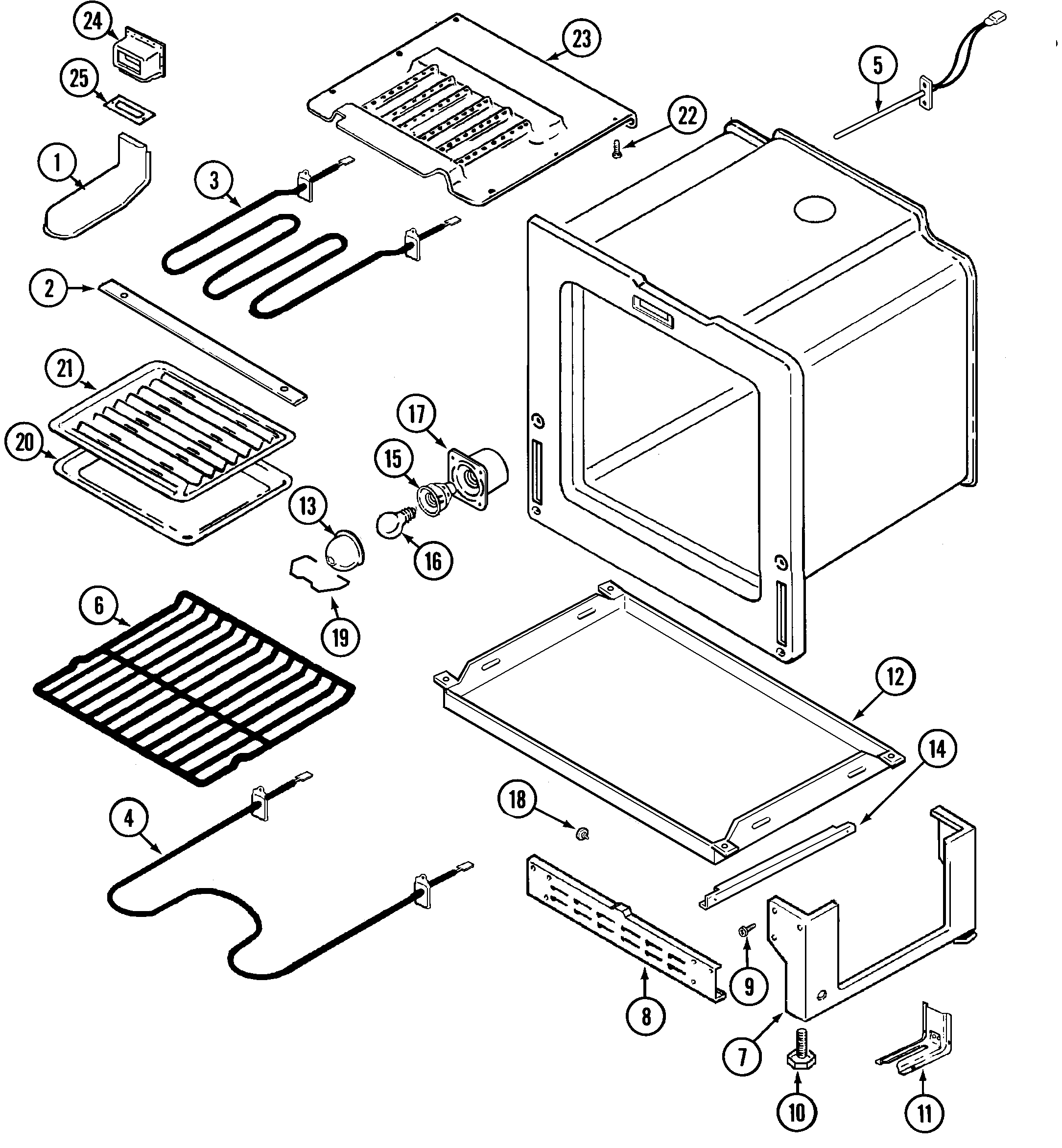

    Oven/base Diagram

    Bracket, ant

    Part #74005564
    Replaced by #WP3801F656-51
    ?
    Manufacturer substitution
    This part replaces 74005564. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $5.59
    Range Surface Element Control Switch#4

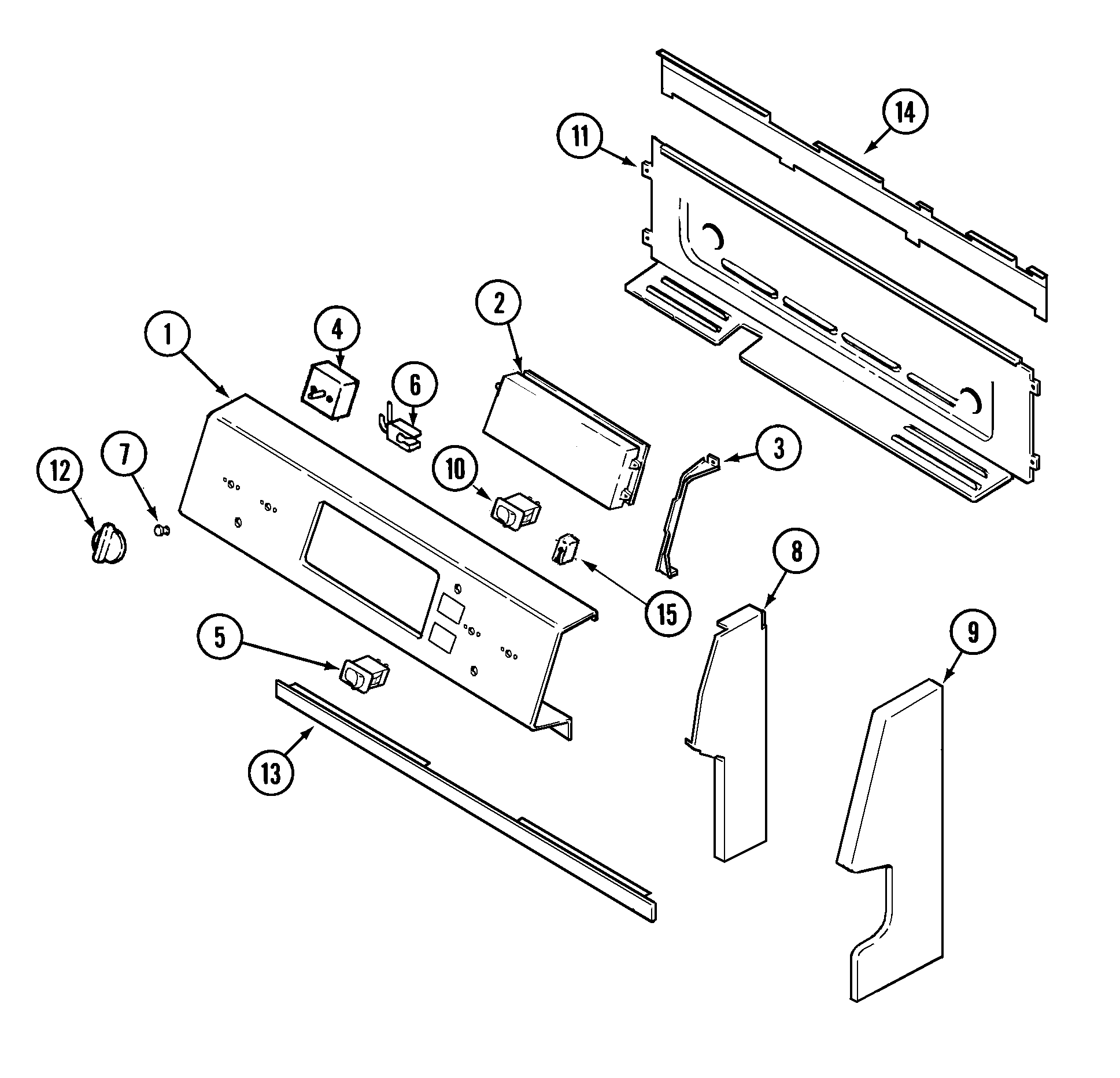

    Control panel Diagram

    Range surface element control switch

    Part #7403P238-60
    Replaced by #WP7403P238-60
    ?
    Manufacturer substitution
    This part replaces 7403P238-60. Substitute parts can look different from the original.
    In Stock
    $55.99
    Range Leveling Leg#10

    Oven/base Diagram

    Range leveling leg

    Part #74002373
    Replaced by #WP74002557
    ?
    Manufacturer substitution
    This part replaces 74002373. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49
    Range Oven Rack#6

    Oven/base Diagram

    Oven rack

    Part #74001757
    Replaced by #WPW10282492
    ?
    Manufacturer substitution
    This part replaces 74001757. Substitute parts can look different from the original.
    In Stock
    $56.89
    Range Radiant Surface Element, 8-in#3

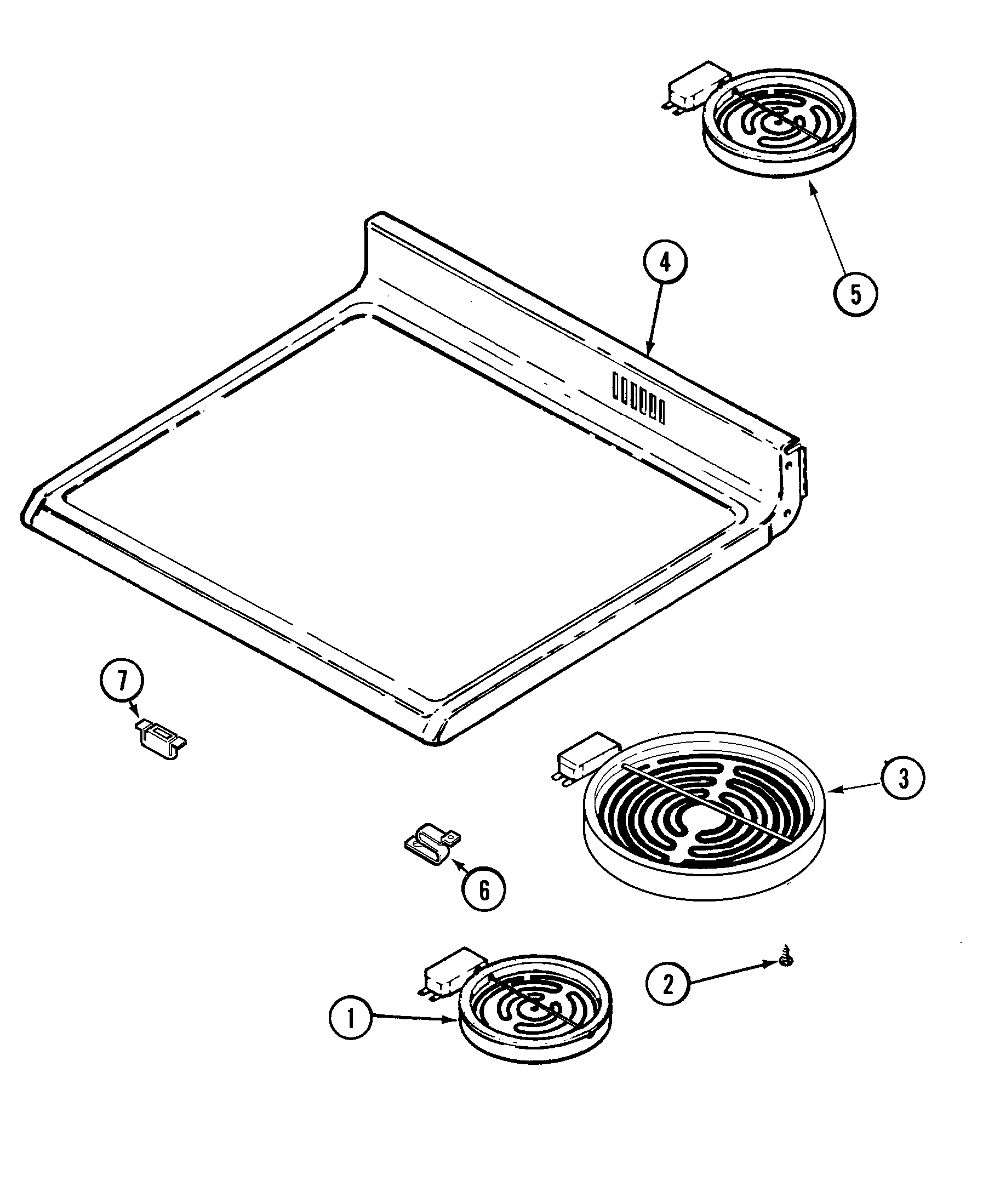

    Top assembly Diagram

    Element w/li

    Part #74005477
    Replaced by #W10823707
    ?
    Manufacturer substitution
    This part replaces 74005477. Substitute parts can look different from the original.
    In Stock
    $131.29 |
    12% OFF
    MSRP: $150.00
    Range Screw

    See All Related Diagrams

    Bracket screw

    Part #7101P040-60
    Replaced by #WP98008545
    ?
    Manufacturer substitution
    This part replaces 7101P040-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.59 |
    58% OFF
    MSRP: $11.00
    Cooktop Warming Radiant Element#5

    Top assembly Diagram

    Element, w/l

    Part #74006584
    Replaced by #WP8523700
    ?
    Manufacturer substitution
    This part replaces 74006584. Substitute parts can look different from the original.
    In Stock
    $106.89
    Insulation#8

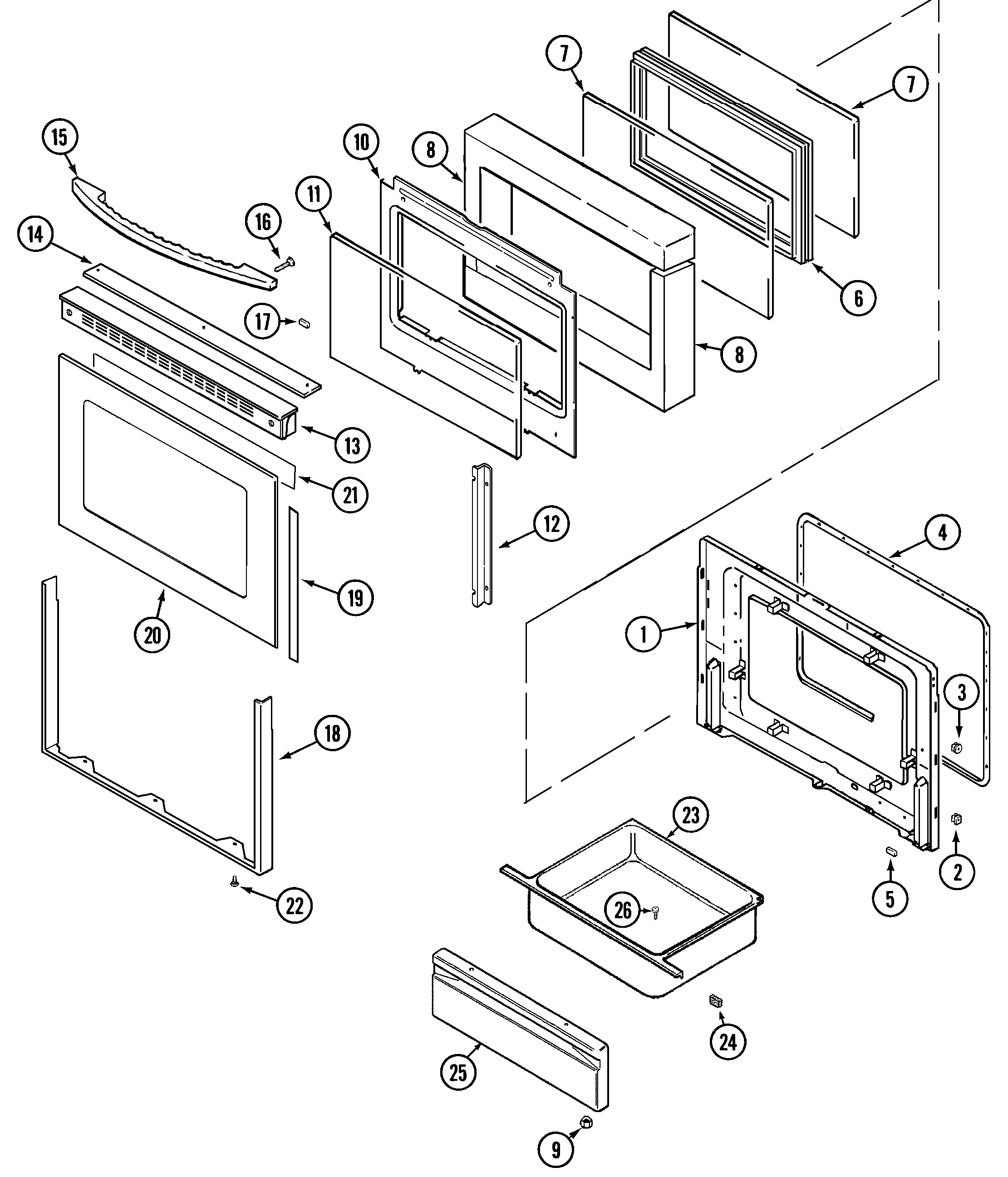

    Door/drawer Diagram

    Insulation

    Part #74003647
    Replaced by #7002P246-60
    ?
    Manufacturer substitution
    This part replaces 74003647. Substitute parts can look different from the original.
    In Stock
    $36.99
    Range Push Nut#3

    Door/drawer Diagram

    Range push nut

    Part #74001574
    Replaced by #WP74001574
    ?
    Manufacturer substitution
    This part replaces 74001574. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.99
    Range Surface Burner Knob (White)#12

    Control panel Diagram

    Range burner control knob

    Part #74003611
    Replaced by #WP74003611
    ?
    Manufacturer substitution
    This part replaces 74003611. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $17.89

    Symptoms common to all ranges

    Choose a symptom to see related range repairs.

    Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
    Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
    Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
    Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
    Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sensor, wiring failure
    Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter
    Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure

    Repair guides common to all ranges

    These step-by-step repair guides will help you safely fix what’s broken on your range.
