Kenmore Elite 10651712411 refrigerator Parts

On Kenmore Elite model 10651712411, the ER IF code points to an ice fan (ice compartment fan) airflow problem. That fan pushes freezer air through the door ducting to keep the ice maker area cold; when airflow drops, the control reports ER IF. See the 10651712411 owner’s manual for the exact reset and diagnostic steps.

What to check first (fast, no parts)

• Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
• Make sure the freezer door closes fully; a door left ajar can trigger airflow and temperature issues.
• Look for ice buildup around the rear freezer panel or inside the ice chute area; frost can block the fan or duct.
• Confirm freezer temperature is set correctly (typical target is 0°F).
• Listen for the ice fan: you may hear a small fan running when the unit is cooling and the door switch is closed.

Common causes and likely fixes

What’s happening	What it usually means	What we recommend
Fan is noisy, intermittent, or silent	Fan blade obstructed or fan motor failing	Inspect for ice obstruction; if damaged, service the fan components
Heavy frost on freezer back wall	Defrost system or airflow restriction issue	Defrost and check vents; verify door seals and loading
Ice maker area warm, cubes melting/clumping	Door duct not getting cold air	Check for blocked ducting and proper door closure
Error returns after reset	Control is still seeing poor airflow	Follow diagnostics in the manual; test fan circuit and controls

Parts that can be involved (when symptoms match)

We only recommend replacing parts after confirming the symptom:

• If you find a broken or rubbing fan blade, replace the refrigerator evaporator fan blade WP2169142.
• If multiple cooling and fan-related issues appear together, the main control can be involved; check the refrigerator electronic control board W10898445 only after completing the manual’s checks.

Why it matters

The ice fan is what keeps the ice maker compartment cold. When airflow is restricted, you can get slow ice production, clumping ice, dispenser issues, and temperature swings in the freezer door area.

Last updated: January 2026

Kenmore Elite refrigerator capacity depends on the exact model; for Kenmore Elite 10651712411 (side-by-side), the cubic-foot rating is listed on the model’s specification section in the 10651712411 owner's manual. Use that value for the most accurate total capacity for your refrigerator.

How to find the cubic feet for model 10651712411

Check these common places where Kenmore lists total capacity (refrigerator plus freezer):

• The specifications page in the 10651712411 owner's manual
• The model and serial tag inside the fresh food compartment (often includes capacity)
• The product data label area near the crisper or side wall
• The parts diagram notes (occasionally references cabinet size)

Typical capacity ranges (for context)

Most Kenmore Elite side-by-side refrigerators fall into a fairly consistent range. Use this as a quick comparison while you confirm the exact spec for 10651712411.

Refrigerator style	Typical total capacity	Notes
Side-by-side	22 to 26 cu. ft.	Narrower compartments; more vertical storage
French door	25 to 30+ cu. ft.	Wider shelves; larger fresh food section
Top freezer	14 to 21 cu. ft.	Smaller footprint; simpler layout

Why it matters

Knowing the correct cubic feet helps when you are comparing replacement refrigerators, planning kitchen fit, and choosing compatible accessories like a Kenmore refrigerator water filter 9081 and air filtration options.

Last updated: January 2026

Common problems on the Kenmore Elite 10651712411 side-by-side refrigerator include warm temperatures (airflow or sealed-system issues), ice maker or water dispenser failures (filter or valve related), frost buildup (defrost or door sealing issues), and unusual noises (fan or compressor area). Use the 10651712411 owner's manual to match symptoms to the correct checks.

Most common symptoms and what usually causes them

• Not cooling or weak cooling: dirty condenser coils, blocked vents, failed evaporator fan, or a control issue
• Ice maker not making ice: clogged filter, low water pressure, frozen fill tube, or a failing ice maker
• Water dispenser slow or not dispensing: restricted filter, kinked water line, or a weak inlet valve
• Frost buildup in freezer: door not sealing, frequent door openings, or a defrost system problem
• Buzzing, clicking, or rattling: condenser fan noise, evaporator fan noise, or compressor/start components

Quick checks we recommend before replacing parts

1. Confirm settings: freezer near 0°F and fresh food near 37°F.
2. Clean condenser coils and make sure the unit has airflow behind and underneath.
3. Check door closure: look for gaps, torn gasket areas, or items preventing full closure.
4. For water issues, replace the filter and purge air from the line.
5. Listen for fan noise changes when you open the doors (a clue for door switch or fan problems).

Parts that commonly relate to these problems

Symptom	Part often involved	What it affects
Bad taste/slow water	Kenmore refrigerator water filter 9081	Water flow and filtration

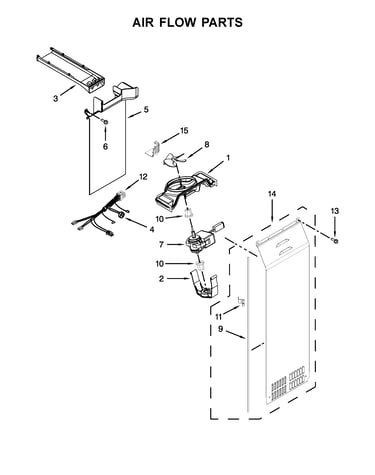

Warm fridge/freezer, poor airflow	Refrigerator air diffuser assembly W11164593	Cold air delivery to compartments
No ice or no water	Refrigerator water inlet valve WPW10341320	Water supply to ice maker/dispenser

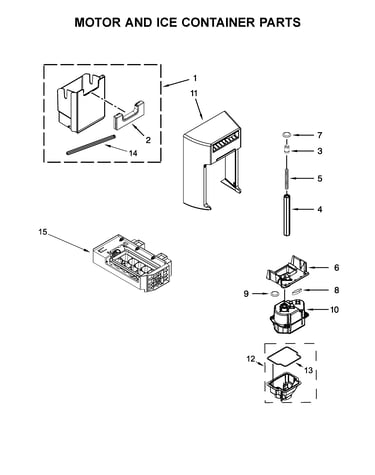

No ice production	Refrigerator ice maker assembly WPW10251076	Ice harvest and fill cycles
Warm temps, noise	Refrigerator evaporator fan blade WP2169142	Air circulation across evaporator

Why it matters

Catching airflow, filtration, and door-seal problems early prevents food spoilage, reduces frost and leaks, and helps the compressor run less, which extends overall refrigerator life.

Last updated: January 2026

For Kenmore Elite side-by-side refrigerator model 10651712411, use the published product dimensions in the specifications section of the 10651712411 owner's manual. Those measurements list the official height, width, and depth for installation planning and cabinet fit.

Where to find the exact dimensions for model 10651712411

We recommend using the manual specs first, then confirming with a tape measure so you account for handles, hinges, and flooring.

• Look for “Product dimensions” or “Specifications” in the 10651712411 owner's manual
• Record width, height, and depth exactly as listed
• Check whether depth is shown with handles or without handles
• Confirm any required clearances for airflow and door swing
• Measure your opening and compare before moving the refrigerator

Quick measurement checklist (what to measure at home)

Measurement	How to measure	Common gotcha
Width	Widest point across cabinet	Hinge side can be widest
Height	Floor to top of hinge cover/cabinet	Leveling legs change height
Depth	Back to front (note handles)	Handles add noticeable depth

Why it matters

Correct dimensions prevent installation problems such as doors hitting walls, poor ventilation that can cause warm temperatures, and pinched water lines that affect the ice maker and dispenser.

Related parts if fit issues are caused by sealing or door closure

If the refrigerator fits the opening but doors do not close or seal correctly, these parts are commonly involved:

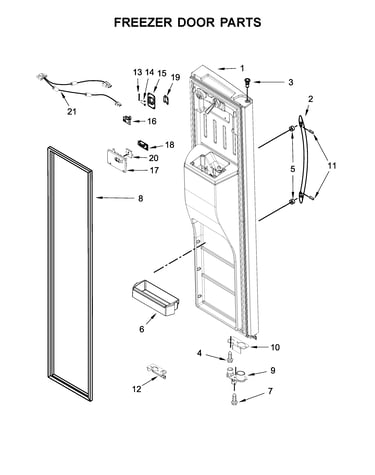

• Refrigerator freezer door gasket WPW10249913 for restoring a tight door seal
• Refrigerator door bin WPW10160952 if a mis-seated bin prevents full closure
• Refrigerator door switch W11384469 if lights stay on or the unit thinks the door is open

Last updated: January 2026
