Does anyone make a 30 inch side-by-side refrigerator?
Yes. Several brands make 30-inch-wide side-by-side refrigerators, but they are less common than 33-inch and 36-inch models. For fit, focus on the actual cabinet width and the clearance your opening needs for ventilation and door swing; our owner's manual for Kenmore model 59658642890 also shows typical spacing rules you can use when comparing sizes.
What “30 inch” usually means (and what to measure)
Manufacturers often market a refrigerator as “30 inch” even when the cabinet width is slightly under 30 inches. Measure your space before shopping:
- Opening width at the front and at the back (walls are often not perfectly square)
- Height to the lowest cabinet or soffit
- Depth to the wall, including baseboards
- Door swing clearance (especially next to a fixed wall)
- Ventilation clearance at the top and sides
Spacing and clearance guidelines to compare models
Our Kenmore 59658642890 installation guidance uses these common clearances:
| Clearance area | Typical minimum to plan for | Why it matters |
|---|---|---|
| Top and sides | 1 inch | Airflow and efficient cooling |
| Next to a fixed wall | 2 3/4 inches (each side, varies by model) | Door can open to 90 degrees |
| Back (with ice maker/water line) | Extra space needed | Room for water line connection |
Why it matters
A refrigerator that is “30 inch” wide can still fail to fit if the doors cannot open fully or if there is not enough ventilation space. Planning for clearance helps prevent warm temperatures, poor ice production, and doors that do not seal.
If you are replacing a side-by-side like 59658642890
When you compare a new 30-inch side-by-side to your current Kenmore 59658642890, also check:
- Whether you need a water line connection for an ice maker
- Whether the new unit’s hinge side matches your kitchen layout
- Whether your flooring is level (leveling affects door sealing)
Last updated: February 2026
How to tell if a Kenmore refrigerator compressor is bad?
On Kenmore model 59658642890, a bad compressor typically shows up as poor or no cooling along with repeated clicking (start attempts) or the compressor running hot and shutting off. Before condemning the compressor, we check the defrost cycle and the start components because those can mimic compressor failure; see the owner's manual.
Quick checks you can do safely
Unplug the refrigerator before touching any electrical parts.
- Confirm the outlet has power and the cord is fully plugged in.
- If lights work but the fans and compressor are not running, wait 40 minutes; the refrigerator may be in a defrost cycle.
- Listen at the back bottom area: repeated clicking every few minutes often points to a start problem.
- Check for airflow issues: a blocked base grille can make the compressor run too much.
- Clean condenser coils if dirty; heavy dust can cause long run times and warm temps.
- If the unit runs but never cools, the sealed system (including compressor) is the likely failure area.
Symptoms: compressor vs. common look-alikes
| What you notice | Most likely cause | What to check next |
|---|---|---|
| Clicks, hums briefly, then clicks off | Start device issue or compressor locked | Test/inspect start parts like refrigerator ptc relay WP10097202 and refrigerator overload WP10377023 |
| Runs a lot, cooling is weak | Dirty coils, warm room, door sealing, airflow restriction | Coils, door gaskets, base grille blockage |
| Lights on, nothing runs, then later restarts | Normal defrost cycle | Wait 40 minutes (per manual) |
| No cooling and unusual loud buzzing/knocking from compressor area | Internal compressor damage | Professional sealed-system diagnosis |
Why it matters
Replacing a compressor is a major repair and the wrong diagnosis wastes time and money. Ruling out defrost operation, airflow problems, and start components first gives you a clear, accurate path to the real fix.
When replacement is the right move

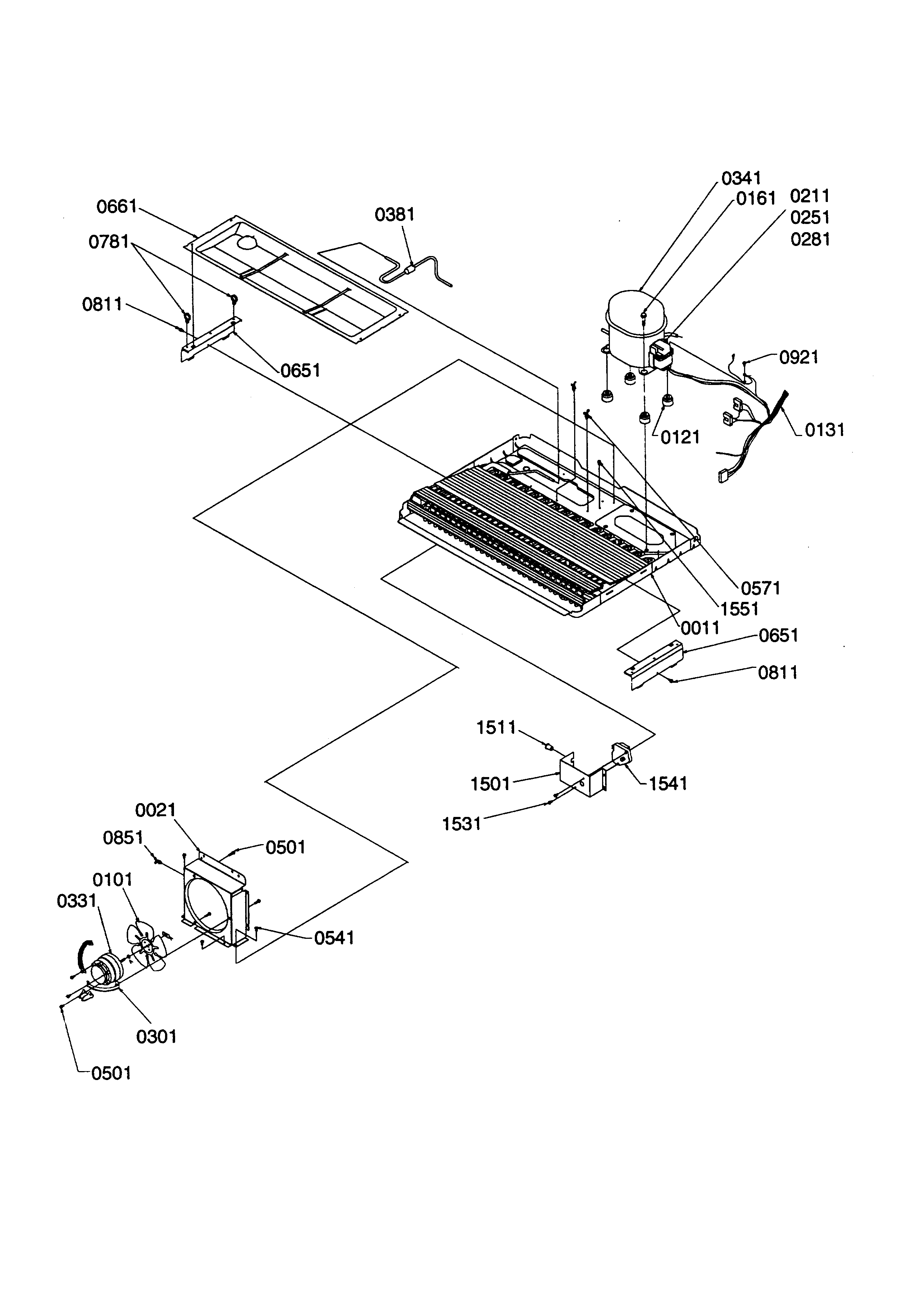

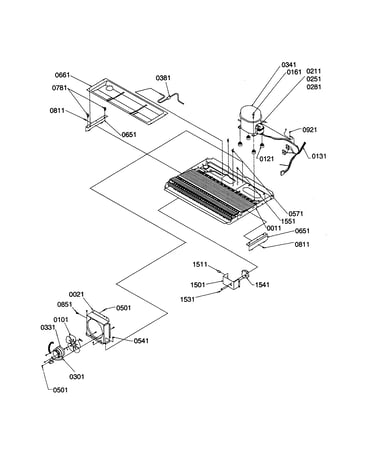

If the compressor will not start even with known-good start components, or it overheats and trips repeatedly, replacement of the compressor or sealed-system service is the correct next step. For this model, the compressor part listed is refrigerator compressor W10160407.
Last updated: February 2026
What does er if mean on a Kenmore refrigerator?
On Kenmore refrigerator model 59658642890, the ER IF code points to a problem with the ice maker fan (ice fan) circuit, most often a fan that is blocked by ice, not running, or not getting power. Start by checking for frost buildup and restoring airflow; then test the fan and wiring per the owner's manual.
What to check first (fast fixes)
- Unplug the refrigerator for safety.
- Open the freezer and listen for the ice fan when the door switch is pressed (fan should run when cooling is calling).
- Look for ice or frost blocking the fan cover or air passages near the ice maker area.
- Make sure freezer vents are not blocked by packages (restricted airflow can lead to icing).
- Power-cycle the refrigerator (unplug 5 minutes, plug back in) after clearing any ice.
Likely causes and what they mean
| What you notice | Most likely cause | What to do next |
|---|---|---|
| Fan is noisy, rubbing, or stops and starts | Ice buildup contacting the fan blade | Defrost the area and confirm the fan spins freely |
| Fan never runs but freezer is cold | Failed ice fan motor or wiring issue | Inspect harness connections; replace the fan motor if needed |
| Ice maker area is warm, little or no ice | Airflow problem or fan not moving cold air | Clear vents, check fan operation, verify door seals |
| Code returns quickly after reset | Electrical fault in fan circuit or control issue | Check connectors; if fan tests good, move to control diagnostics |
Parts that commonly relate to ER IF symptoms
If troubleshooting points to a failed fan or ice production issue, these model-matched parts are commonly involved:

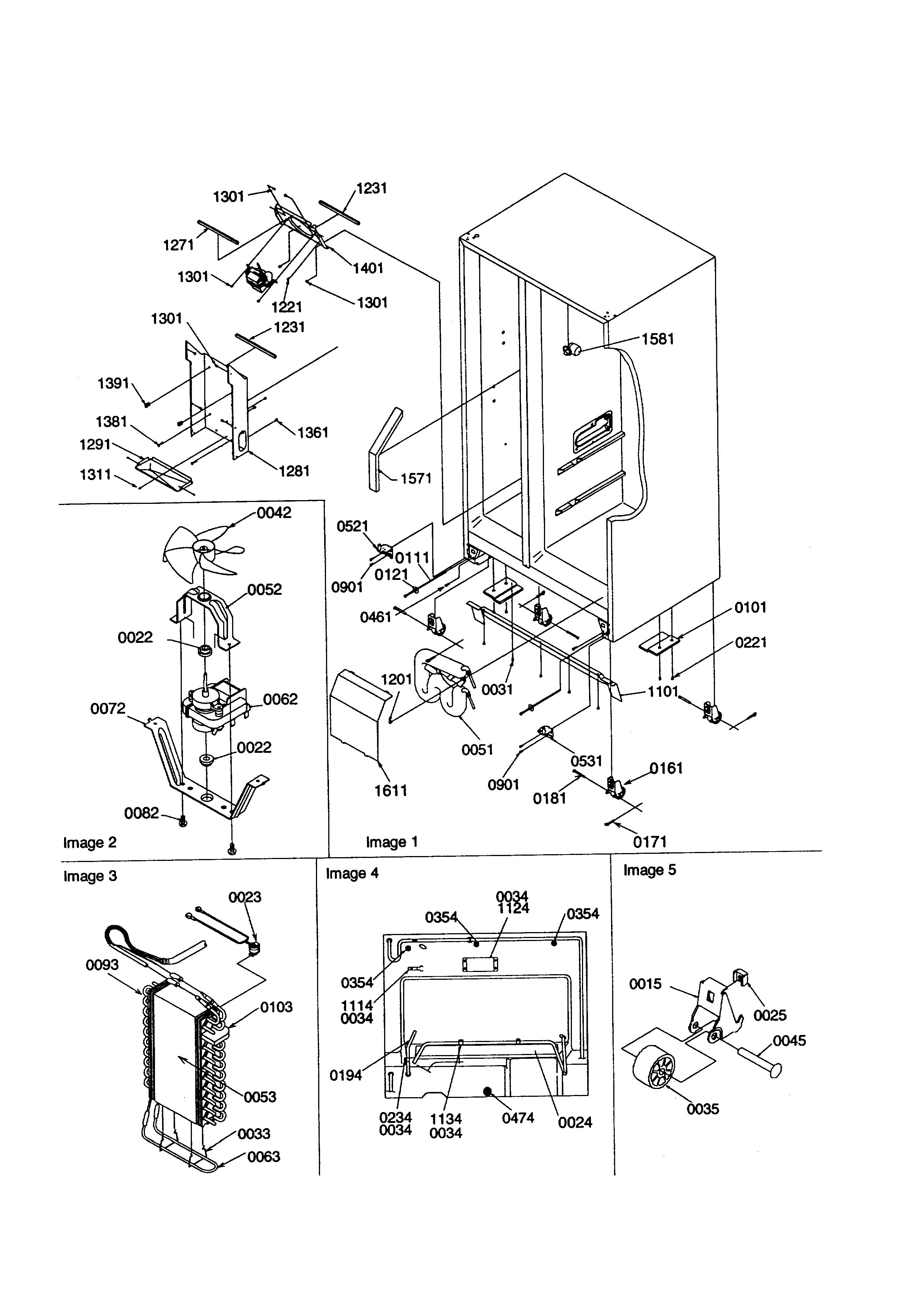

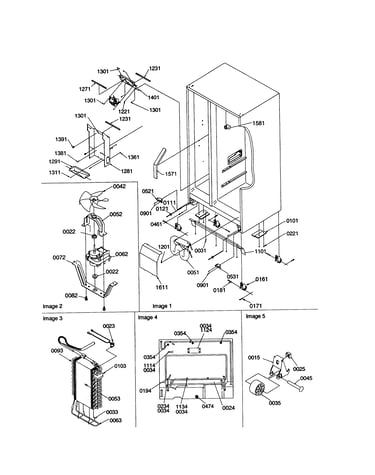

- Evaporator motor WP10513803 (fan motor used for airflow)

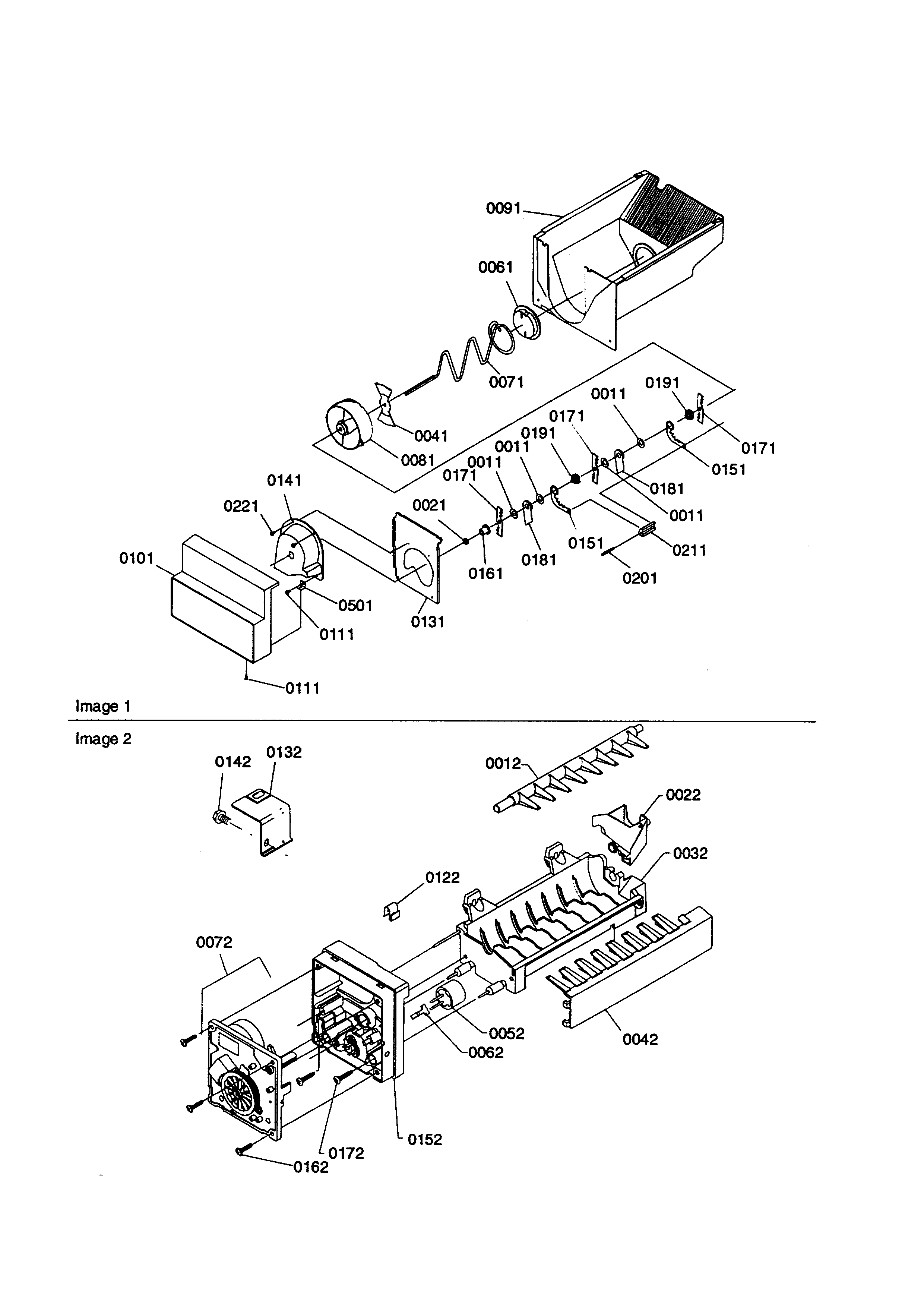

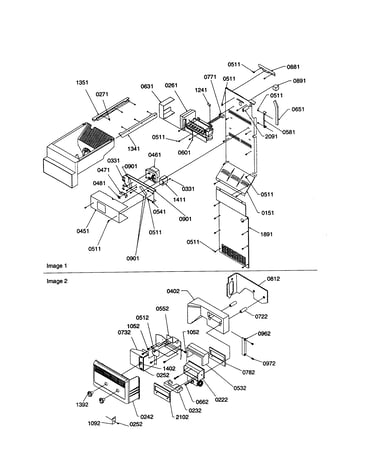

- Refrigerator ice maker D7824706Q (if ice maker issues are part of the complaint)
Why it matters
The ice fan moves cold air to keep the ice maker compartment at the right temperature. When airflow stops, temperatures rise, ice production drops, and frost can build up, which can trigger the ER IF code again.
Last updated: February 2026
Where is the model number on a Kenmore side by side refrigerator?
On Kenmore side-by-side refrigerator model 59658642890, the model number is printed on the serial plate inside the fresh food (refrigerator) compartment; it’s located on the top left wall. You’ll typically see the model number and serial number together on that label; confirm the exact format in the owner's manual.
How to find it quickly
- Open the refrigerator (fresh food) door, not the freezer door.
- Look along the inside cabinet walls near the top.
- Check the top left interior wall of the refrigerator compartment.
- Use a flashlight; the label can be hard to read in low light.
- Write down the full model number and serial number exactly as shown.
What the label usually includes
Most Kenmore serial plates list several identifiers. Here’s what to look for:
| Item on label | What it’s used for | Example for this unit |
|---|---|---|
| Model number | Matching parts and diagrams | 59658642890 |
| Serial number | Production info and service history | Varies by unit |
| Electrical ratings | Verifying power requirements | Varies by unit |
Why it matters
Using the exact model number helps us match the correct Kenmore parts for your refrigerator, such as an ice maker, water inlet valve, door switch, or evaporator fan motor. Even small model-number differences can change which parts fit.
Last updated: February 2026
