Whirlpool RBS245PDQ10 electric oven Parts
Here are the diagrams and repair parts for Whirlpool RBS245PDQ10 electric oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for RBS245PDQ10 Wall Ovens
Top venting diagram
Side
Part #4451598Replaced by #W10790240
Manufacturer substitutionThis part replaces 4451598. Substitute parts can look different from the original.In Stock$94.97
Qty
Top venting diagram
Terminal Block
Part #4449868Replaced by #WP8203546
Manufacturer substitutionThis part replaces 4449868. Substitute parts can look different from the original.This item is not returnableIn Stock$20.9322% OFF Phone Price : $26.93

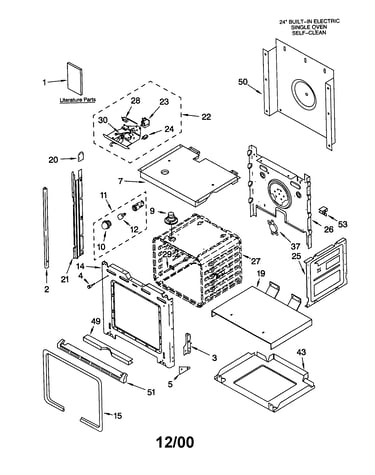

QtyOven diagram
Mounting Rail
Part #4450580Replaced by #814372

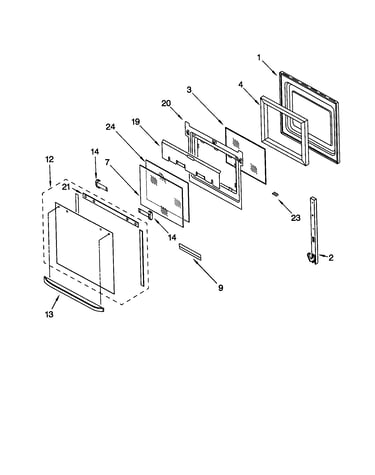

Manufacturer substitutionThis part replaces 4450580. Substitute parts can look different from the original.In Stock$112.81QtyOven door diagram
Wall Oven Door Insulation
Part #4451720Replaced by #W11688413
Manufacturer substitutionThis part replaces 4451720. Substitute parts can look different from the original.In Stock$32.36Qty#NI
All parts diagram
Wire (black)
Part #242828
The manufacturer no longer makes this part, and there's no substitute part
Oven diagram
Side-compt
Part #4454691
The manufacturer no longer makes this part, and there's no substitute part
Oven door diagram
Oven Retainer
Part #4451668
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Wire Harness
Part #4455733
The manufacturer no longer makes this part, and there's no substitute part
Oven door diagram
Retainer
Part #4450863
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Microcomputer
Part #4453193
The manufacturer no longer makes this part, and there's no substitute part
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Appliance Touch-up Paint, 6-oz (citrine White)
In Stock
$34.36
15% OFF Phone Price : $40.36
Qty
Appliance Touch-up Paint
Part #72017
This item is not returnable
In Stock
$31.61
Qty
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
