GE ZISW36DWA refrigerator - w series

GE ZISW36DWA refrigerator - w series Parts

Here are the diagrams and repair parts for GE ZISW36DWA refrigerator - w series, as well as links to manuals and error code tables, if available.

By Schematic
By Part

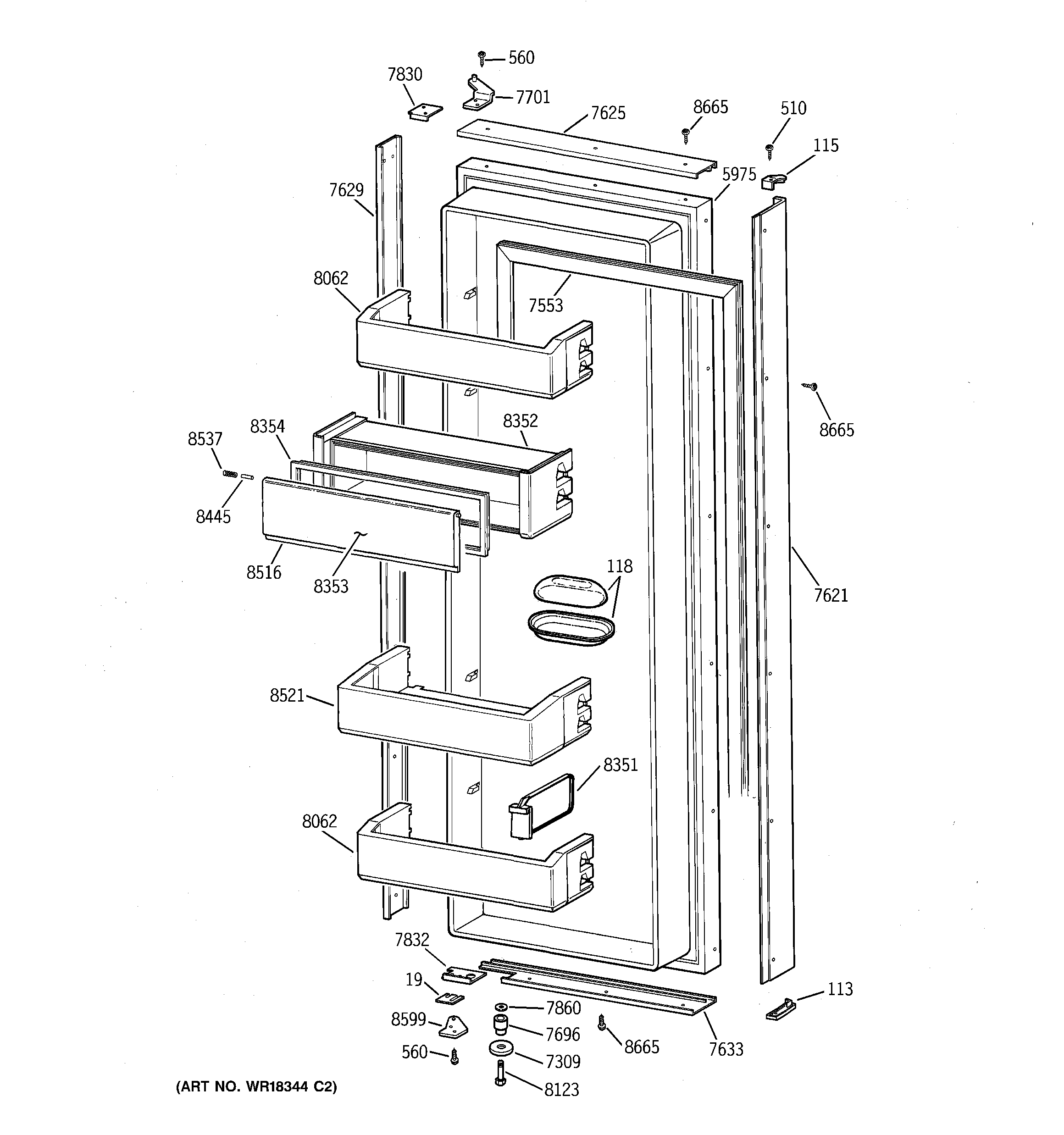

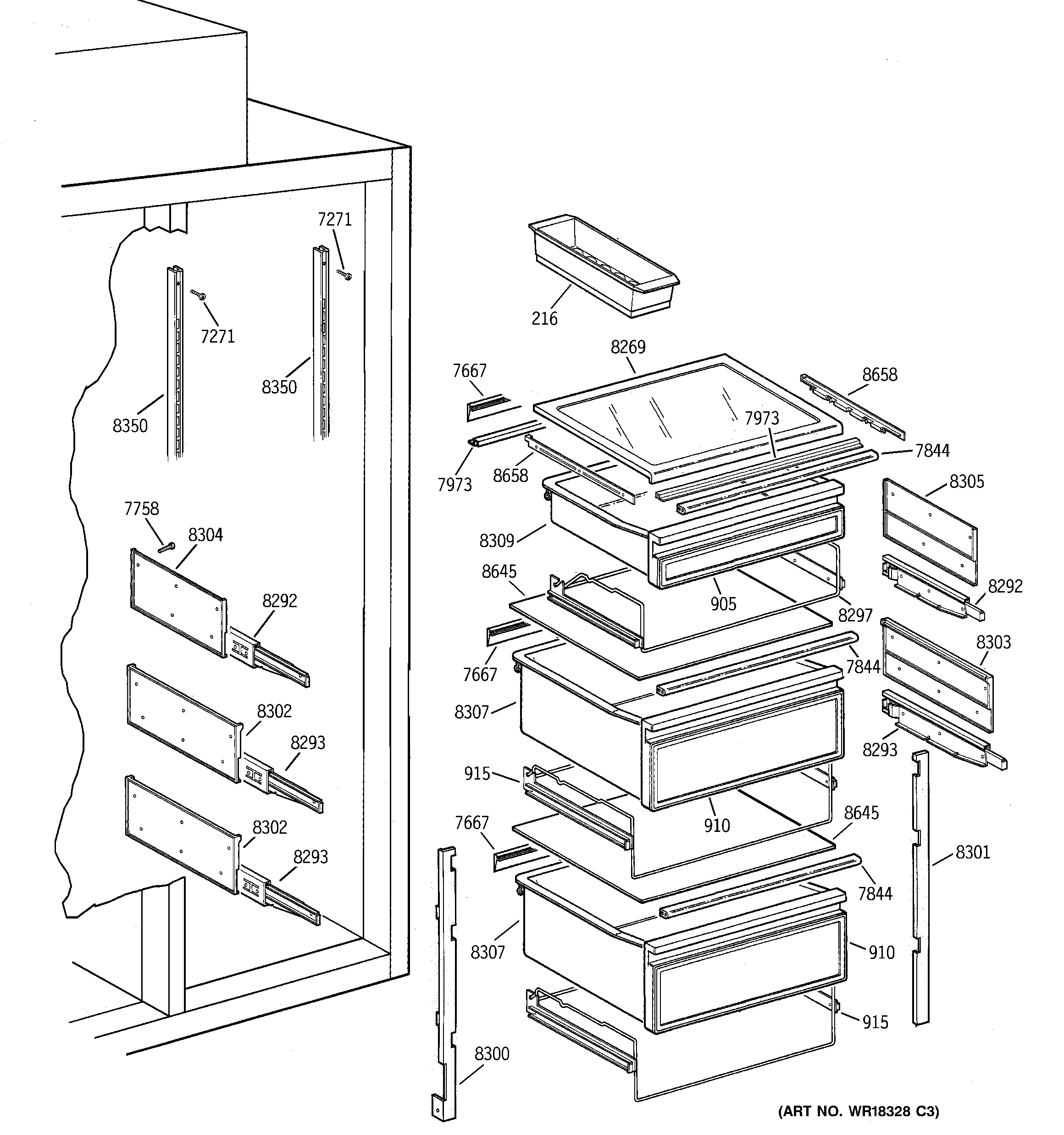

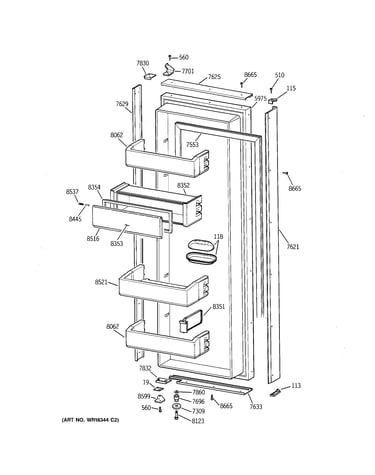

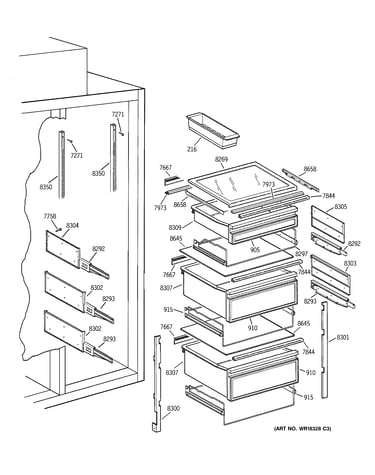

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ZISW36DWA Refrigerators

  • G.e. Refrigerator Ice Maker Kit for GE ZISW36DWA - Part WR30X10093

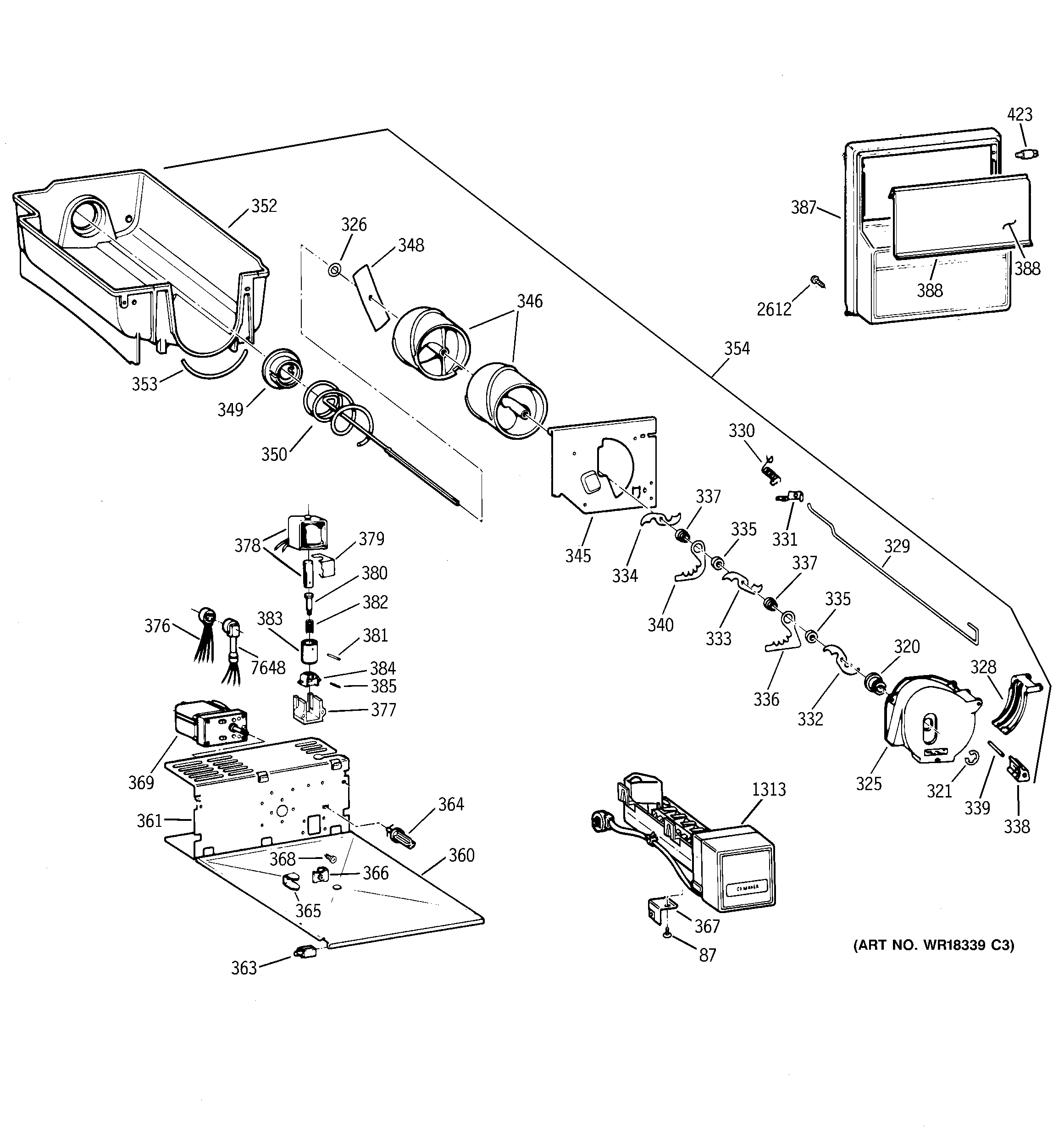

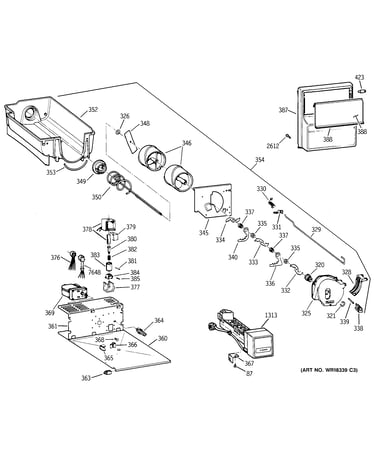

    Ice maker & dispenser diagram

    Refrigerator Ice Maker

    Part #WR30X0304

    Replaced by #WR30X10093

    Info Icon
    Manufacturer substitution
    This part replaces WR30X0304. Substitute parts can look different from the original.
    In Stock
    $247.78
    5% OFF Phone Price : $259.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Dispenser Ice Chute Door Kit for GE ZISW36DWA - Part WR17X11653

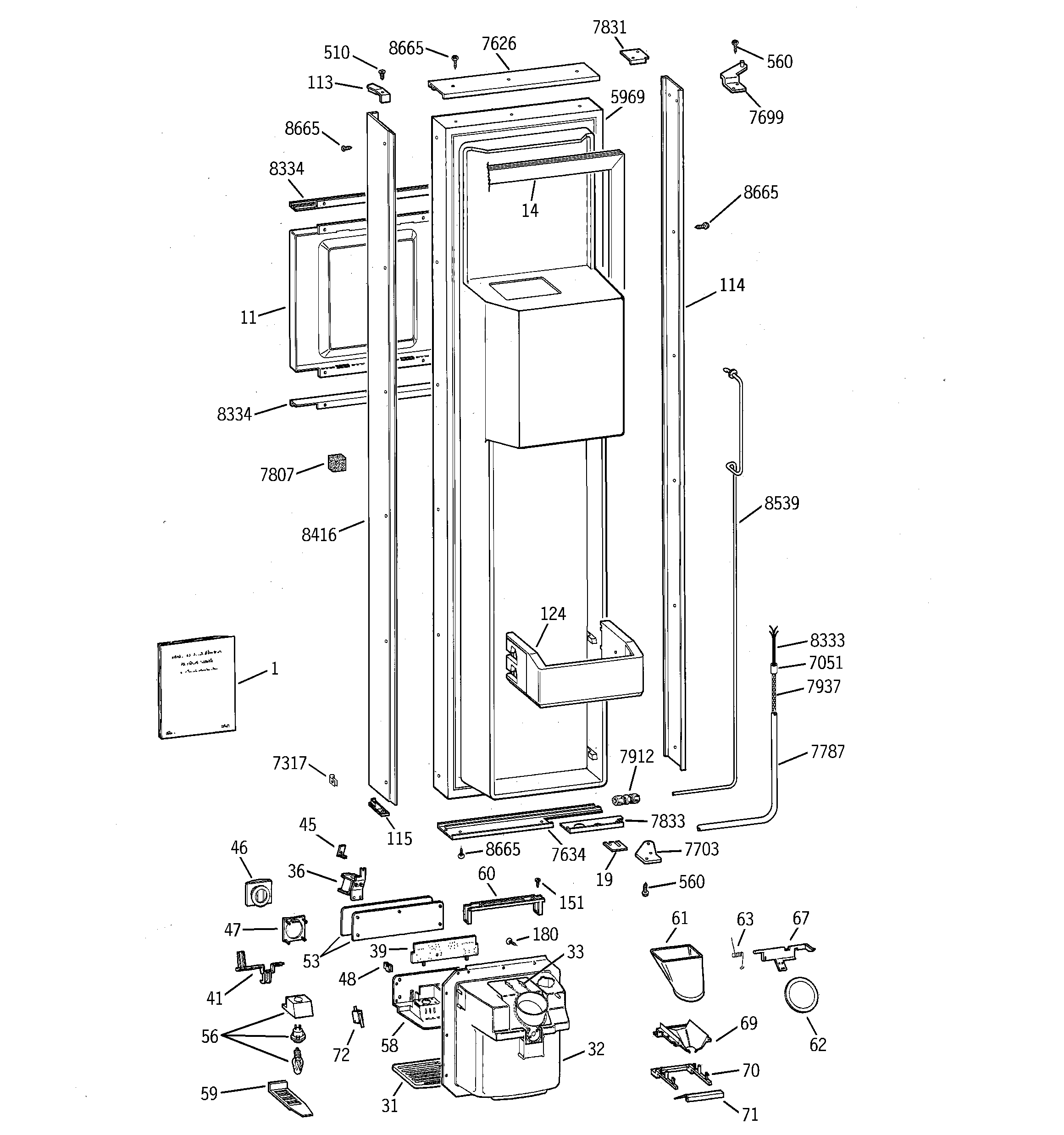

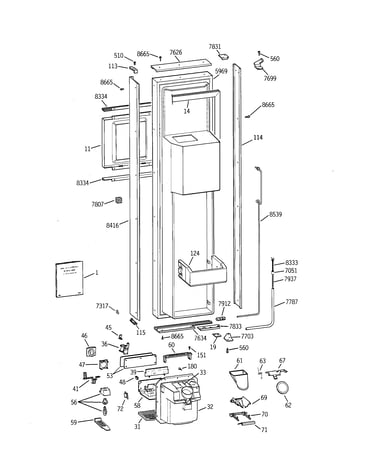

    Freezer door diagram

    Dr Reces Asm

    Part #WR17X3093

    Replaced by #WR17X11653

    Info Icon
    Manufacturer substitution
    This part replaces WR17X3093. Substitute parts can look different from the original.
    In Stock
    $19.31
    9% OFF Phone Price : $21.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Reservoir-to-dispenser Water Tubing for GE ZISW36DWA - Part WR17X2891

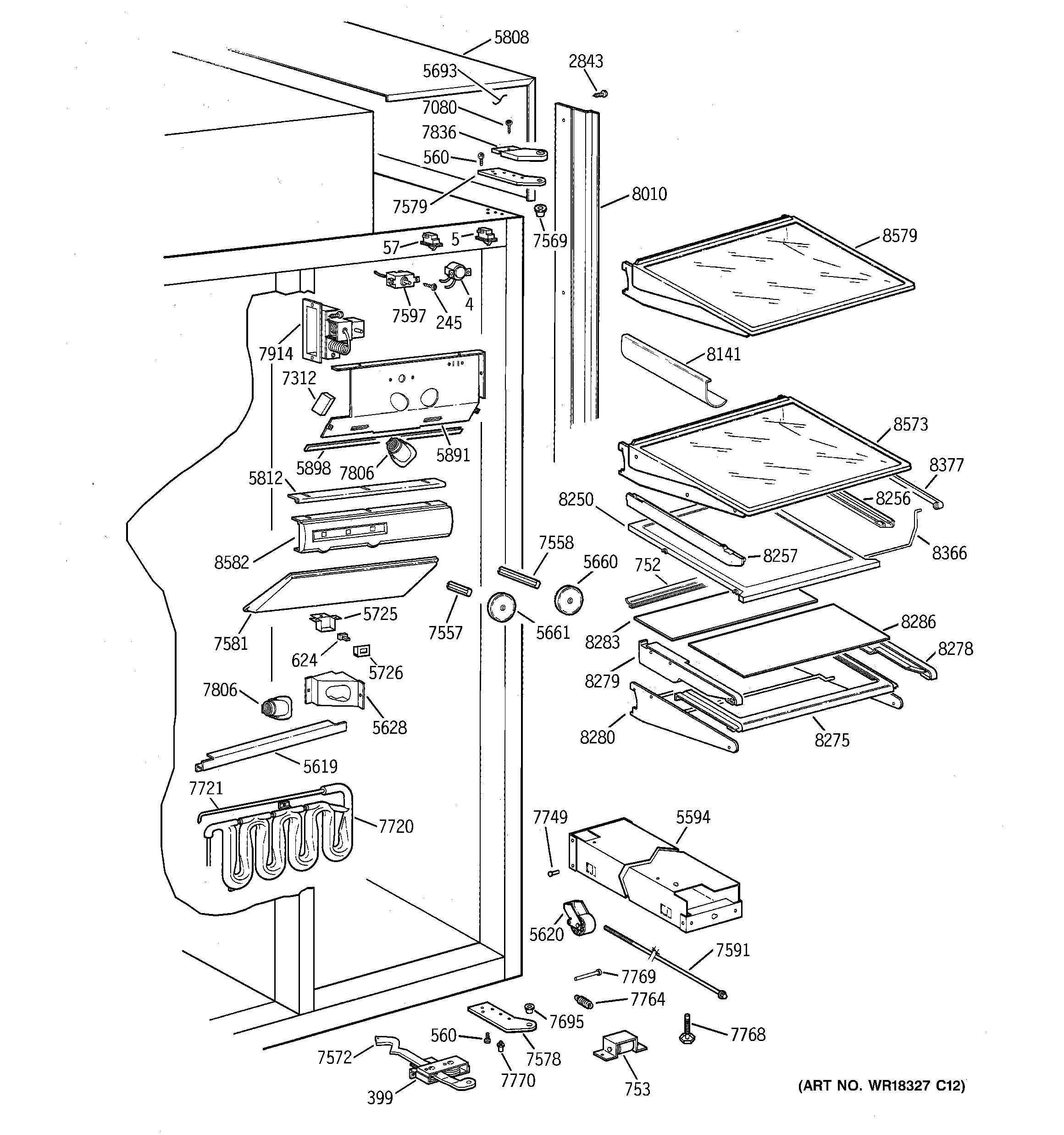

    Fresh food section diagram

    Refrigerator Reservoir-to-dispenser Water Tubing

    Part #WR17X2891
    In Stock
    $31.63
    16% OFF Phone Price : $37.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Light Switch for GE ZISW36DWA - Part WR23X37285

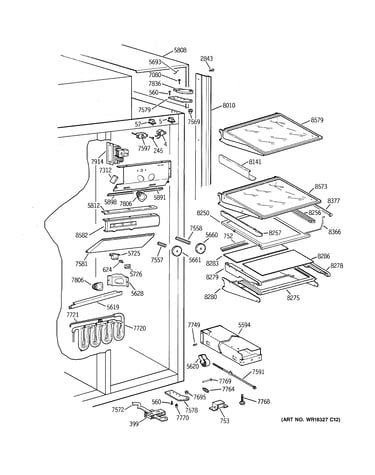

    Fresh food section diagram

    Rocker Swt

    Part #WR23X0475

    Replaced by #WR23X37285

    Info Icon
    Manufacturer substitution
    This part replaces WR23X0475. Substitute parts can look different from the original.
    In Stock
    $65.02
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve Kit for GE ZISW36DWA - Part WR57X10051

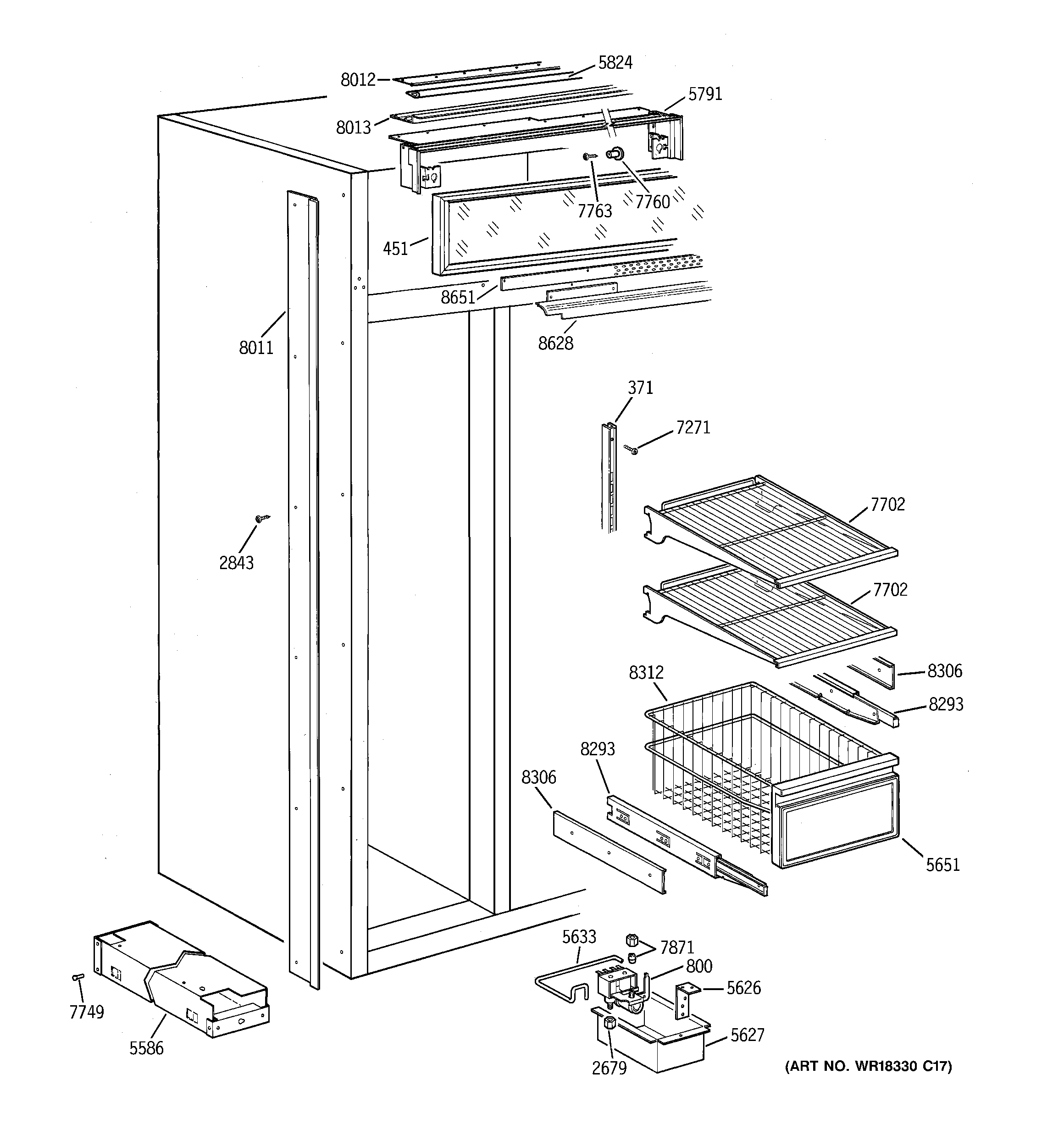

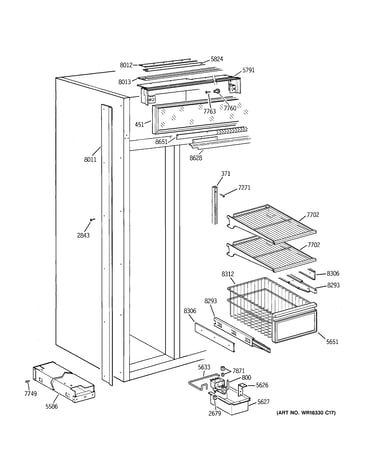

    Freezer shelves diagram

    Refrigerator Water Valve

    Part #WR57X0098

    Replaced by #WR57X10051

    Info Icon
    Manufacturer substitution
    This part replaces WR57X0098. Substitute parts can look different from the original.
    In Stock
    $81.73
    7% OFF Phone Price : $87.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Light Switch for GE ZISW36DWA - Part WR23X37285

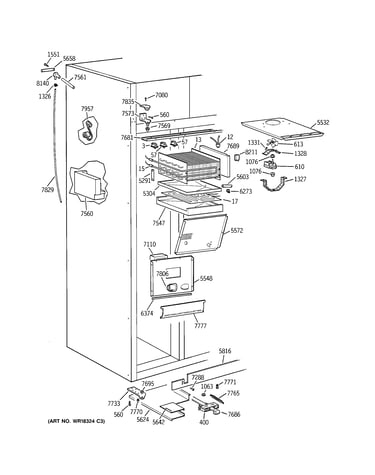

    Freezer section diagram

    Light 200w Switch

    Part #WR23X0411

    Replaced by #WR23X37285

    Info Icon
    Manufacturer substitution
    This part replaces WR23X0411. Substitute parts can look different from the original.
    In Stock
    $65.02
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Start Relay for GE ZISW36DWA - Part WR07X26748

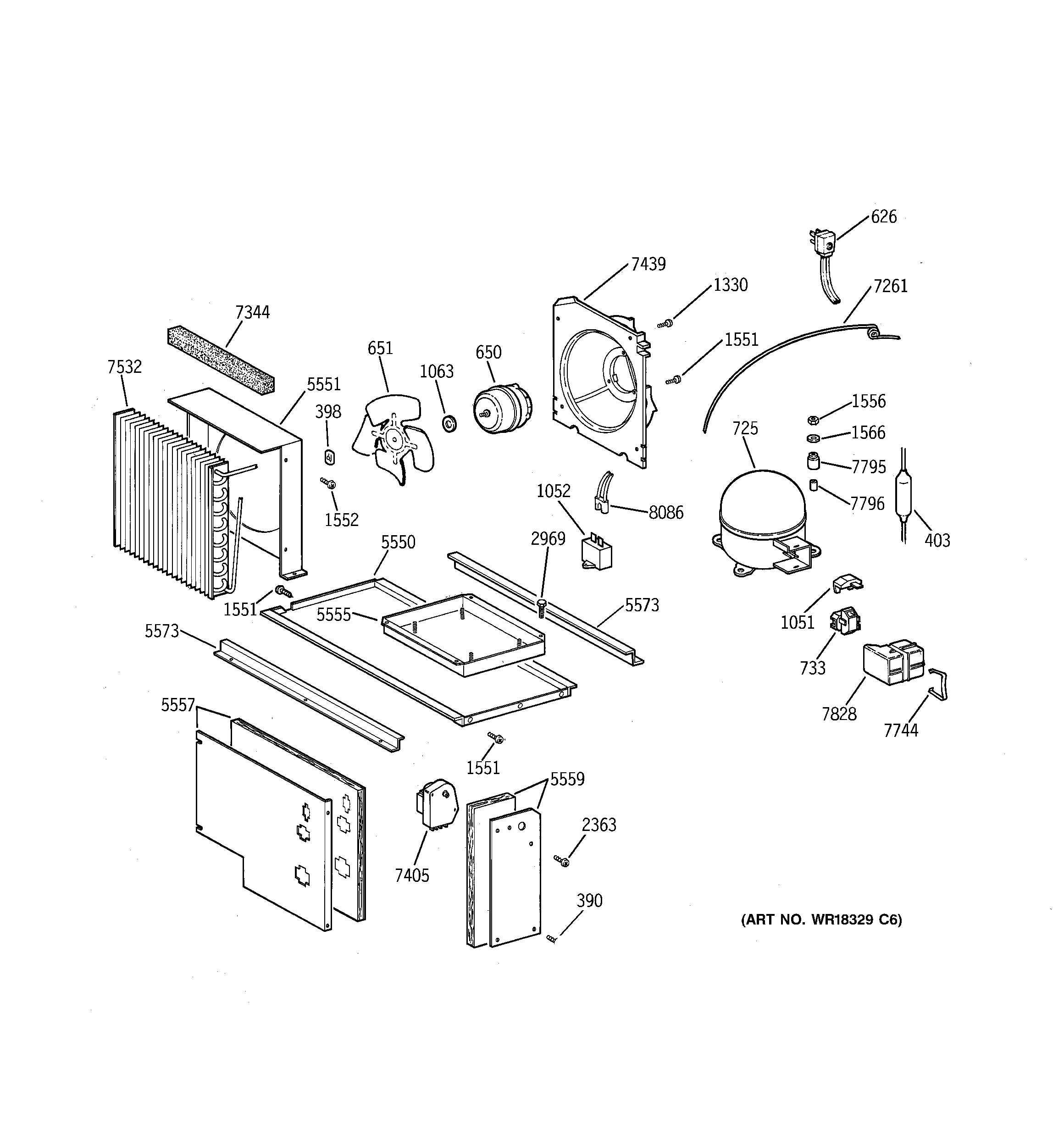

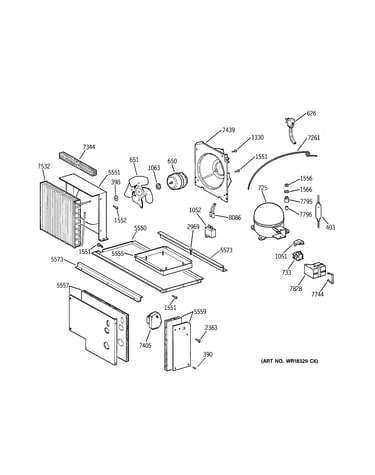

    Unit parts diagram

    Refrigerator Relay

    Part #WR07X0194

    Replaced by #WR07X26748

    Info Icon
    Manufacturer substitution
    This part replaces WR07X0194. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.86
    11% OFF Phone Price : $18.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Freezer Drain Pan Icing Repair Kit for GE ZISW36DWA - Part WR49X10021

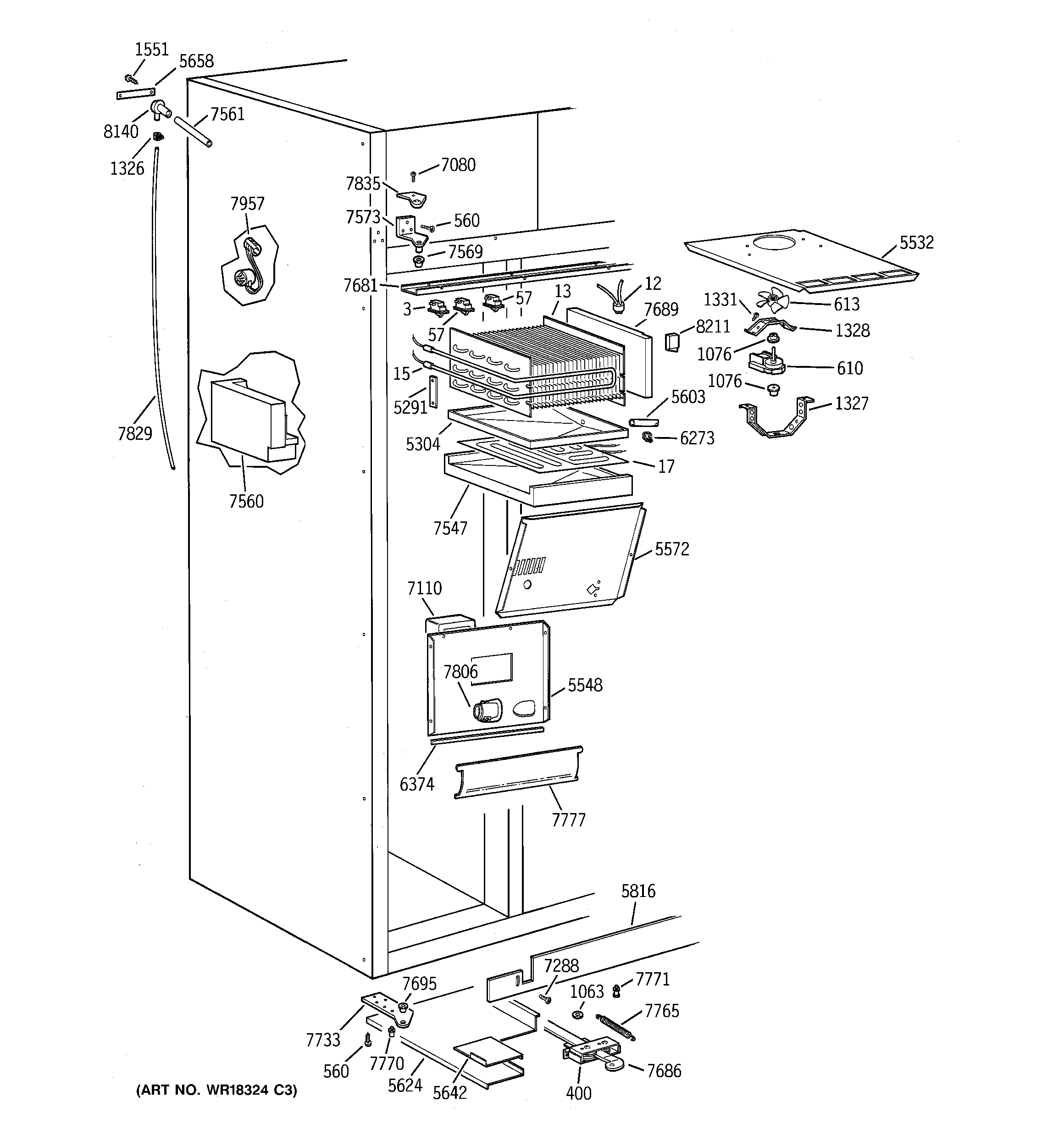

    Freezer section diagram

    Refrigerator Drain Pan

    Part #WR17X3038

    Replaced by #WR49X10021

    Info Icon
    Manufacturer substitution
    This part replaces WR17X3038. Substitute parts can look different from the original.
    In Stock
    $391.06
    $12.00 OFF Phone Price : $403.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Freezer Drain Pan Icing Repair Kit for GE ZISW36DWA - Part WR49X10021

    Freezer section diagram

    Heater Trough

    Part #WR51X0321

    Replaced by #WR49X10021

    Info Icon
    Manufacturer substitution
    This part replaces WR51X0321. Substitute parts can look different from the original.
    In Stock
    $391.06
    $12.00 OFF Phone Price : $403.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Timer for GE ZISW36DWA - Part WR9X502

    Unit parts diagram

    Refrigerator Defrost Control

    Part #WR09X0413

    Replaced by #WR9X502

    Info Icon
    Manufacturer substitution
    This part replaces WR09X0413. Substitute parts can look different from the original.
    In Stock
    $90.01
    6% OFF Phone Price : $96.01Info Icon
    Minus Item
    Qty
    Plus Item
