Model # 9114674591 Official Kenmore 30" radiant slide-in range

Here are the diagrams and repair parts for Official Kenmore 9114674591 30" radiant slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

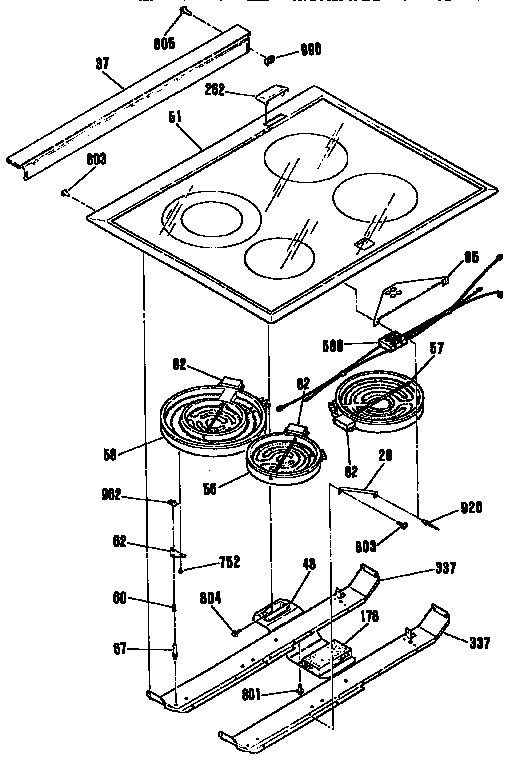

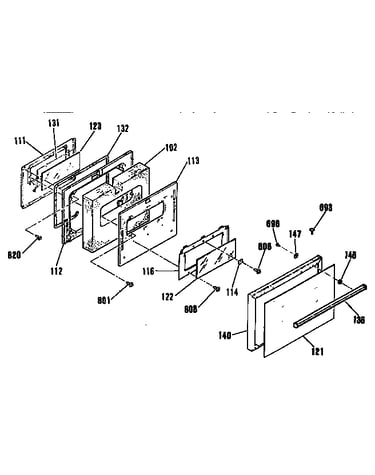

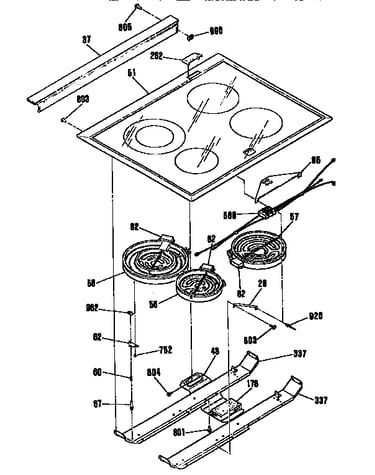

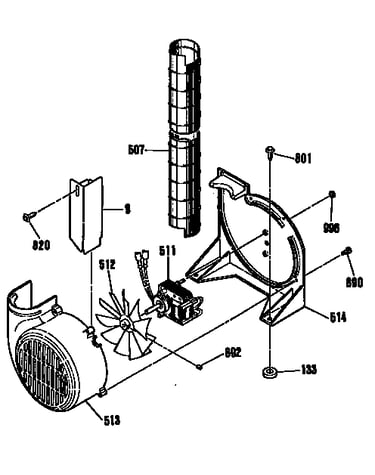

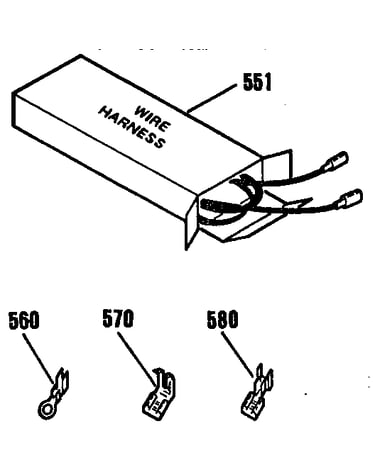

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 210 parts  |
40a15bulb STD372401
#257

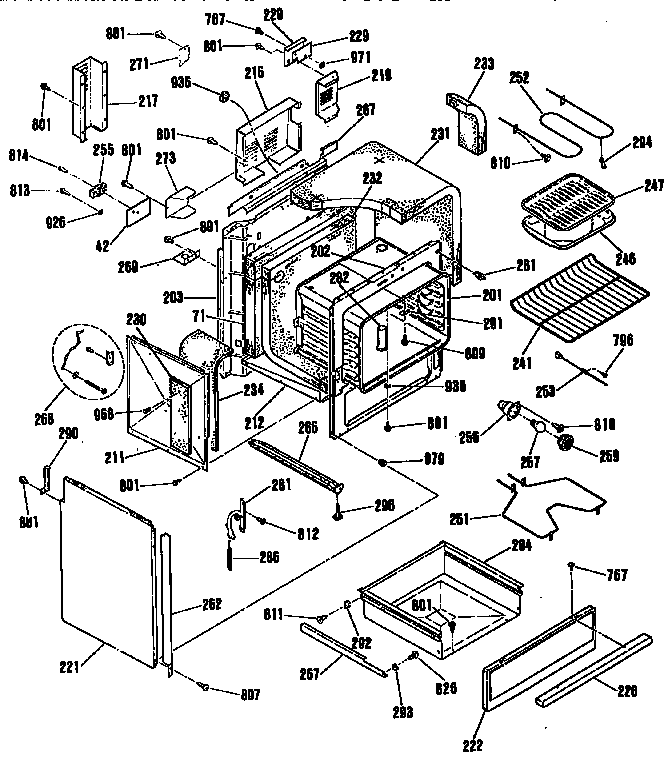

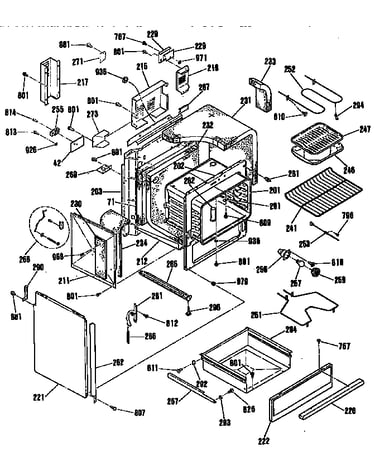

Body section diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$13.23 |
13% OFF Phone Price : $15.23
In Stock
Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012
#251

Body section diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$52.65 |
10% OFF Phone Price : $58.65
In Stock
Broilunt 240 WB44X0232
#252

Body section diagram

Broilunt 240

Part #WB44X0232

Replaced by #WB44X232

?
Manufacturer substitution
This part replaces WB44X0232. Substitute parts can look different from the original.
BEST SELLER
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Hinge WB14X0104
#281A

Body section diagram

Hinge

Part #WB14X0104

Replaced by #WB14X104

?
Manufacturer substitution
This part replaces WB14X0104. Substitute parts can look different from the original.
BEST SELLER
$32.83 |
15% OFF Phone Price : $38.83
In Stock
Hinge WB14X0103
#281

Body section diagram

Hinge

Part #WB14X0103

Replaced by #WB14X103

?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Lock Motor WB26K5030
#151

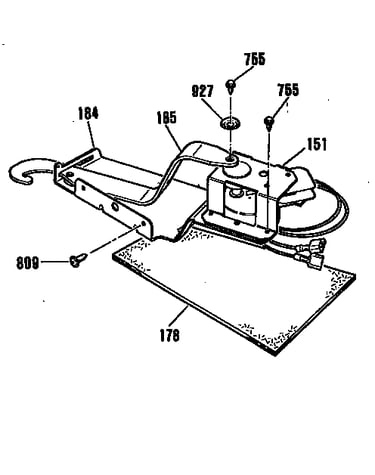

Door lock section diagram

Lock motor

Part #WB26K5030

Replaced by #WB49T10020

?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
Screw WH02X0930
#875

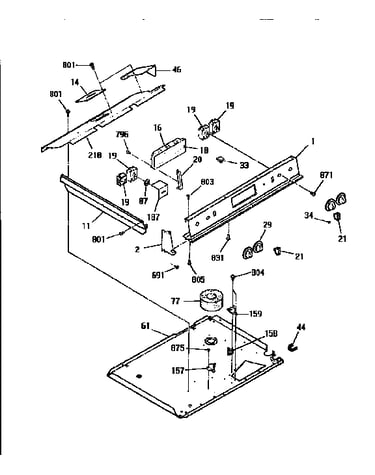

Control panel section diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw-10-32 WB01X1135
#810

Body section diagram

Screw-10-32

Part #WB01X1135

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1135. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Thermal Fuse (replaces Wb24k5034) WB24K5085
#158

Control panel section diagram

Wall oven thermal fuse (replaces wb24k5034)

Part #WB24K5085

$48.47 |
11% OFF Phone Price : $54.47
In Stock
Range Oven Control Faceplate WB27K5166
#18A

Control panel section diagram

Range oven control faceplate

Part #WB27K5166

$87.99 |
6% OFF Phone Price : $93.99
In Stock
