Model #139664300 Craftsman garage door opener

Here are the diagrams and repair parts for Craftsman 139664300 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 91 parts

    E-Ring

    #5

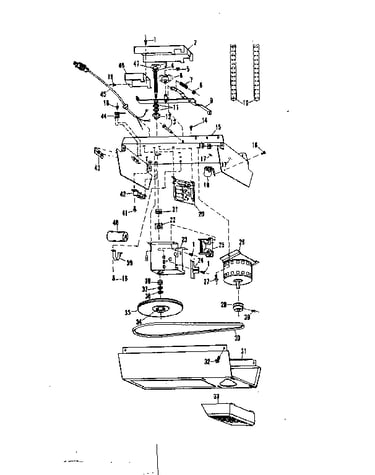

    Functional replacement parts Diagram

    E-ring

    Part #158A30

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #17

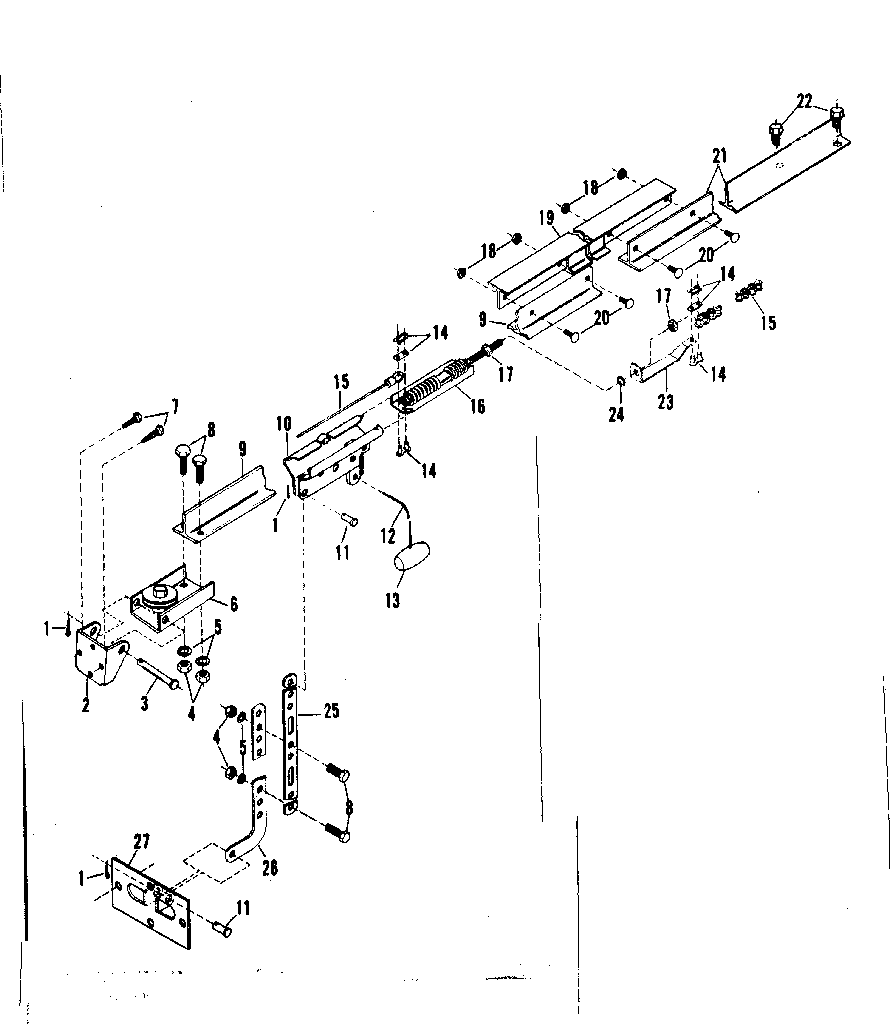

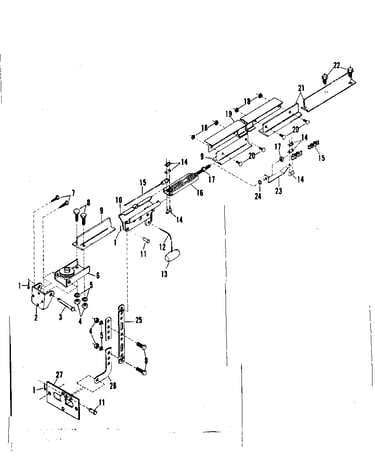

    Rail assembly parts Diagram

    Nut

    Part #133A28

    The manufacturer no longer makes this part, and there's no substitute part

    Master Link

    #14

    Rail assembly parts Diagram

    Master link

    Part #1A995

    The manufacturer no longer makes this part, and there's no substitute part

    Belt

    #30

    Functional replacement parts Diagram

    Belt

    Part #20A3

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #1

    Functional replacement parts Diagram

    Screw

    Part #171A74

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #32

    Functional replacement parts Diagram

    Screw

    Part #171A175

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #8

    Functional replacement parts Diagram

    Nut

    Part #133A106

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Nut

    #18

    Rail assembly parts Diagram

    Lock nut

    Part #133A87

    The manufacturer no longer makes this part, and there's no substitute part

    Thread-Forming Screw, 8-pack

    #14

    Functional replacement parts Diagram

    Thread-forming screw, 8-pack

    Part #STD610805
    ?
    Manufacturer substitution
    This part replaces 171A44. Substitute parts can look different from the original.
    This part replaces 171A44
    This item is not returnable
    $2.79

    In Stock

    Hex Bolt, 5-pack

    #8

    Rail assembly parts Diagram

    Hex bolt, 5-pack

    Part #STD523710
    ?
    Manufacturer substitution
    This part replaces 171A24. Substitute parts can look different from the original.
    This part replaces 171A24
    This item is not returnable
    $2.99

    In Stock

    Symptoms common to all garage door openers

    Choose a symptom to see related garage door opener repairs.

    Things to do: check garage door travel, tighten brackets and fasteners, test safety sensors, check travel limits and force limits
    Main causes: loose fasteners, broken brackets, need preventive maintenance, worn drive gears, loose or worn belt, loose chain
    Main causes: faulty logic control board, bad RPM sensor, broken gears in the drive system, bad drive motor
    Main causes: neighbor's remote programmed at the same time as yours, faulty wall control wiring, bad wall control unit
    Main causes: garage door locked, damaged garage door tracks, up-force setting needs adjustment, RPM sensor failure, bad drive motor
    Main causes: radio interference, weak remote batteries, sunlight interference with safety sensor beams, safety sensors need adjustment
    Main causes: safety sensor beams blocked, safety sensors not aligned, downforce setting needs adjustment, damaged garage door tracks
    Main causes: garage door opener misaligned, travel limits need adjustment, bad travel limit switches, faulty logic control board
