Craftsman
Front-Engine Lawn Tractor

Model # 917271121 Official Craftsman 42" 16.5-hp electric start automatic lawn tractor

Here are the diagrams and repair parts for Official Craftsman 917271121 42" 16.5-hp electric start automatic lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

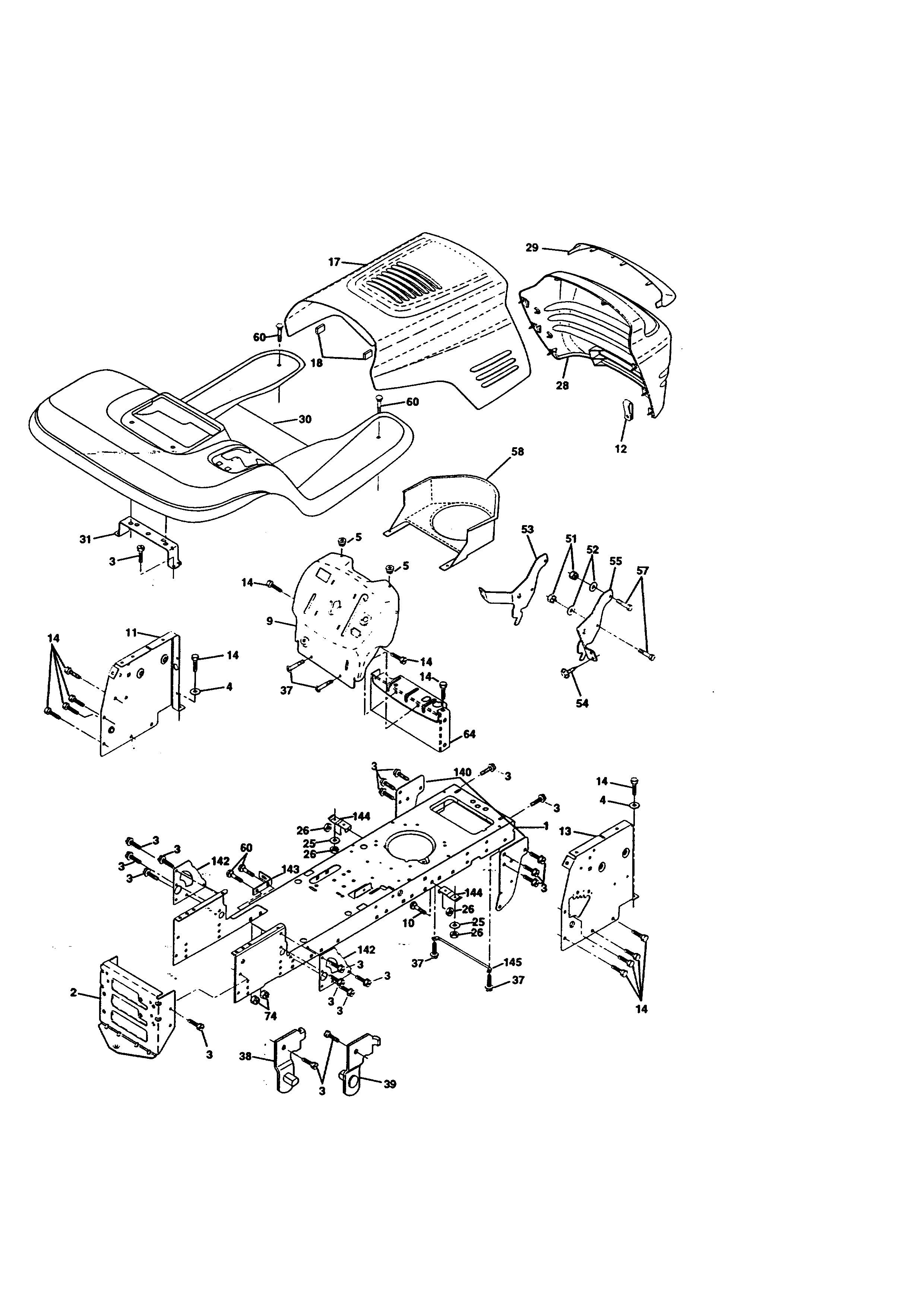

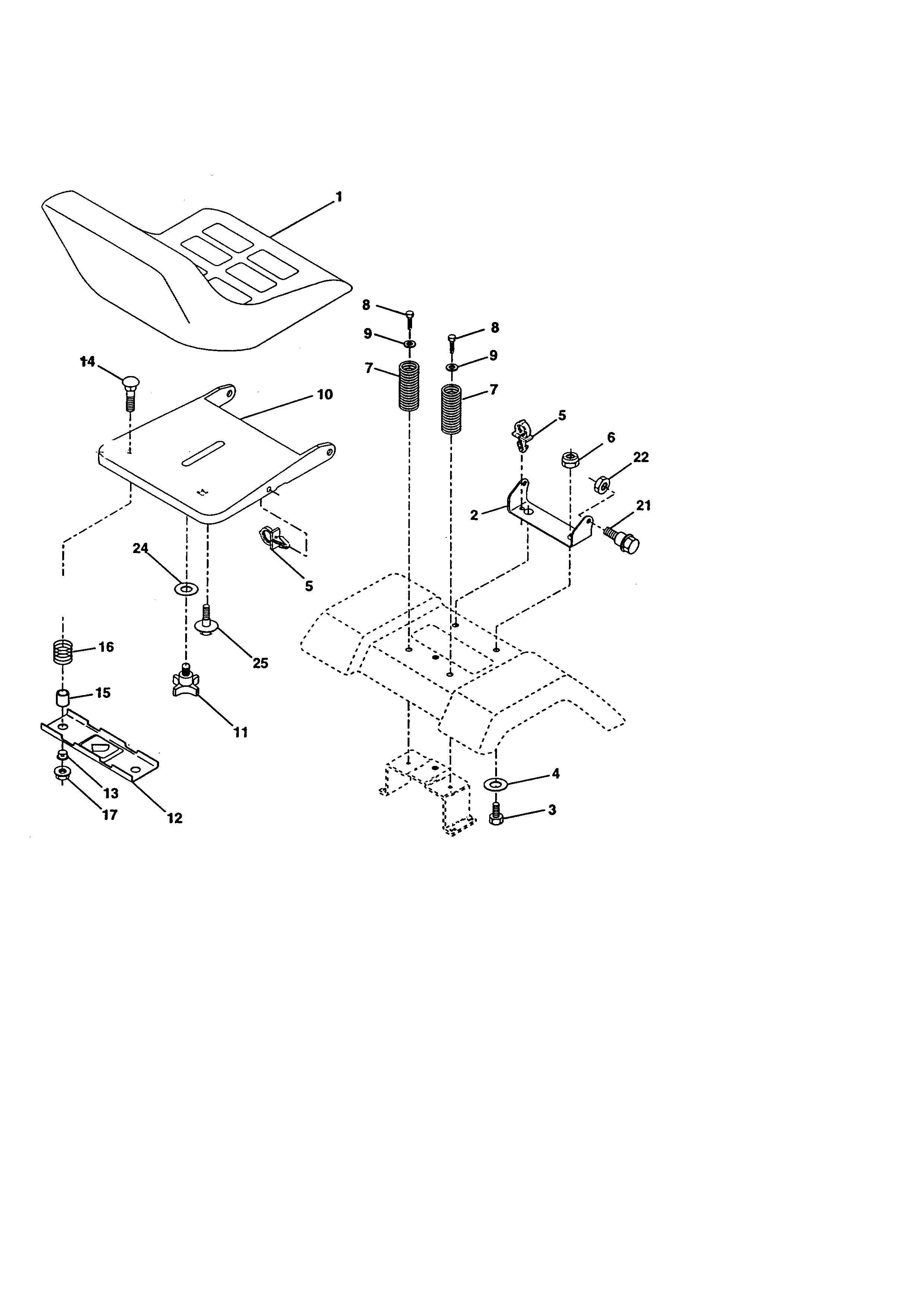

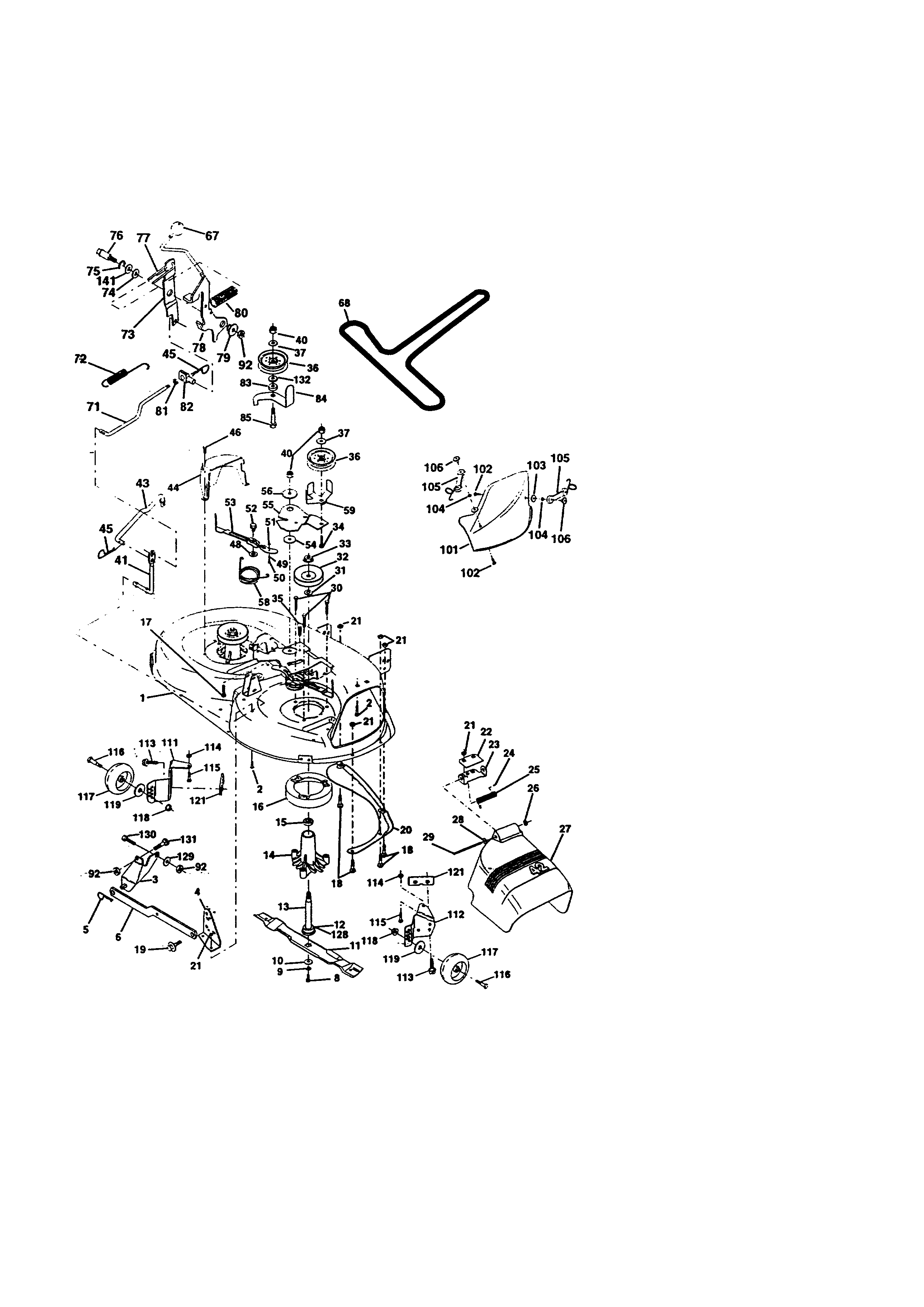

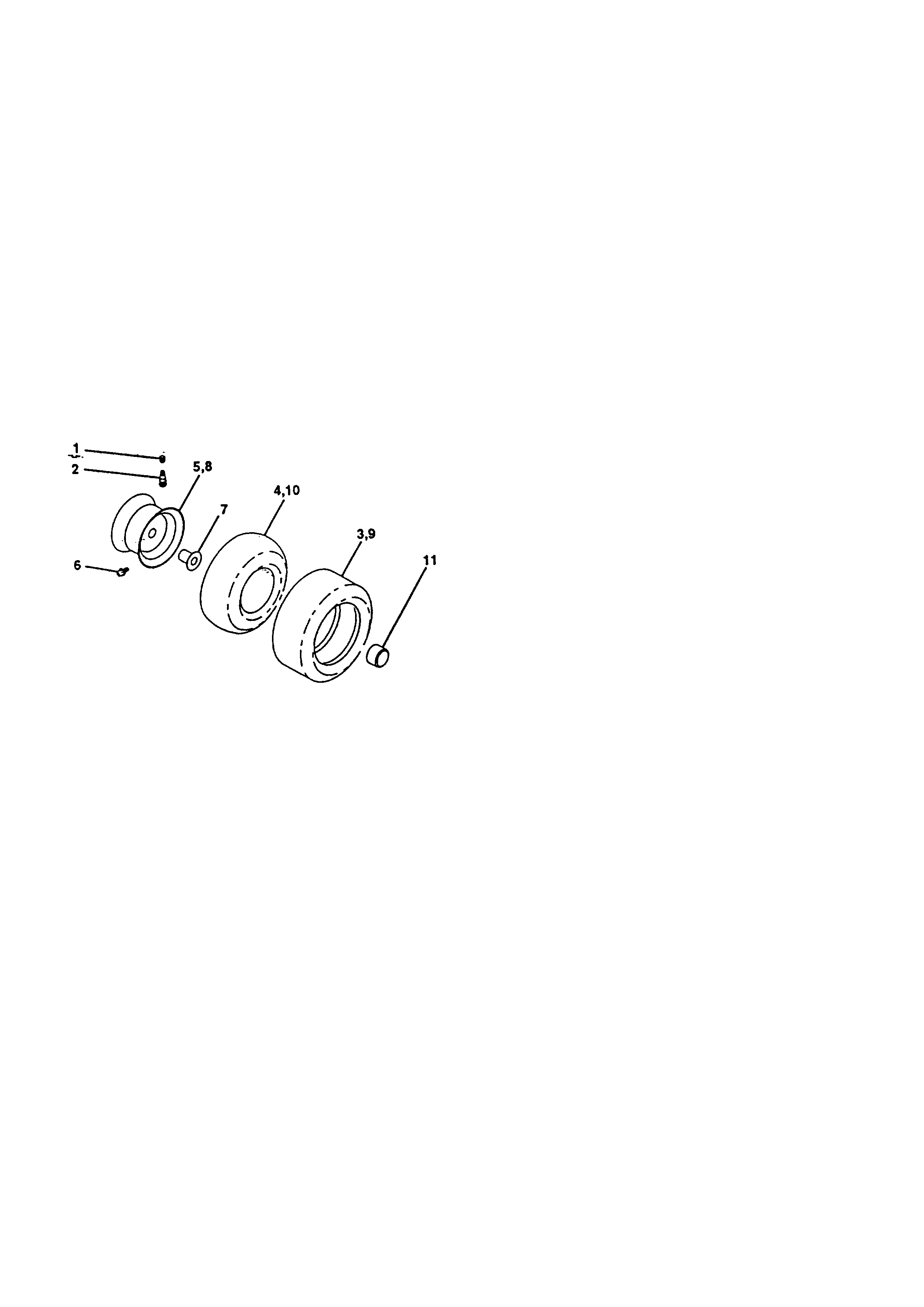

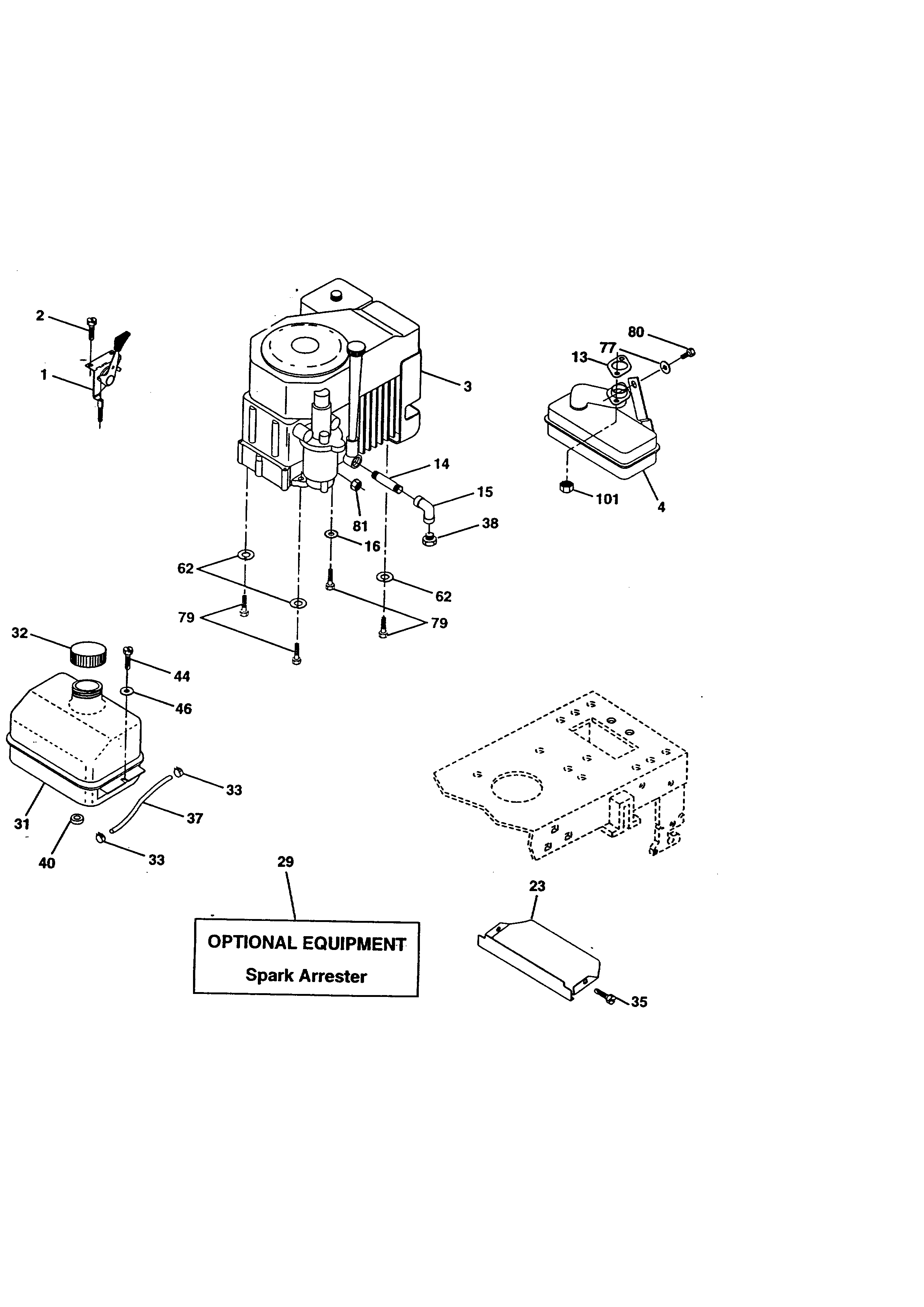

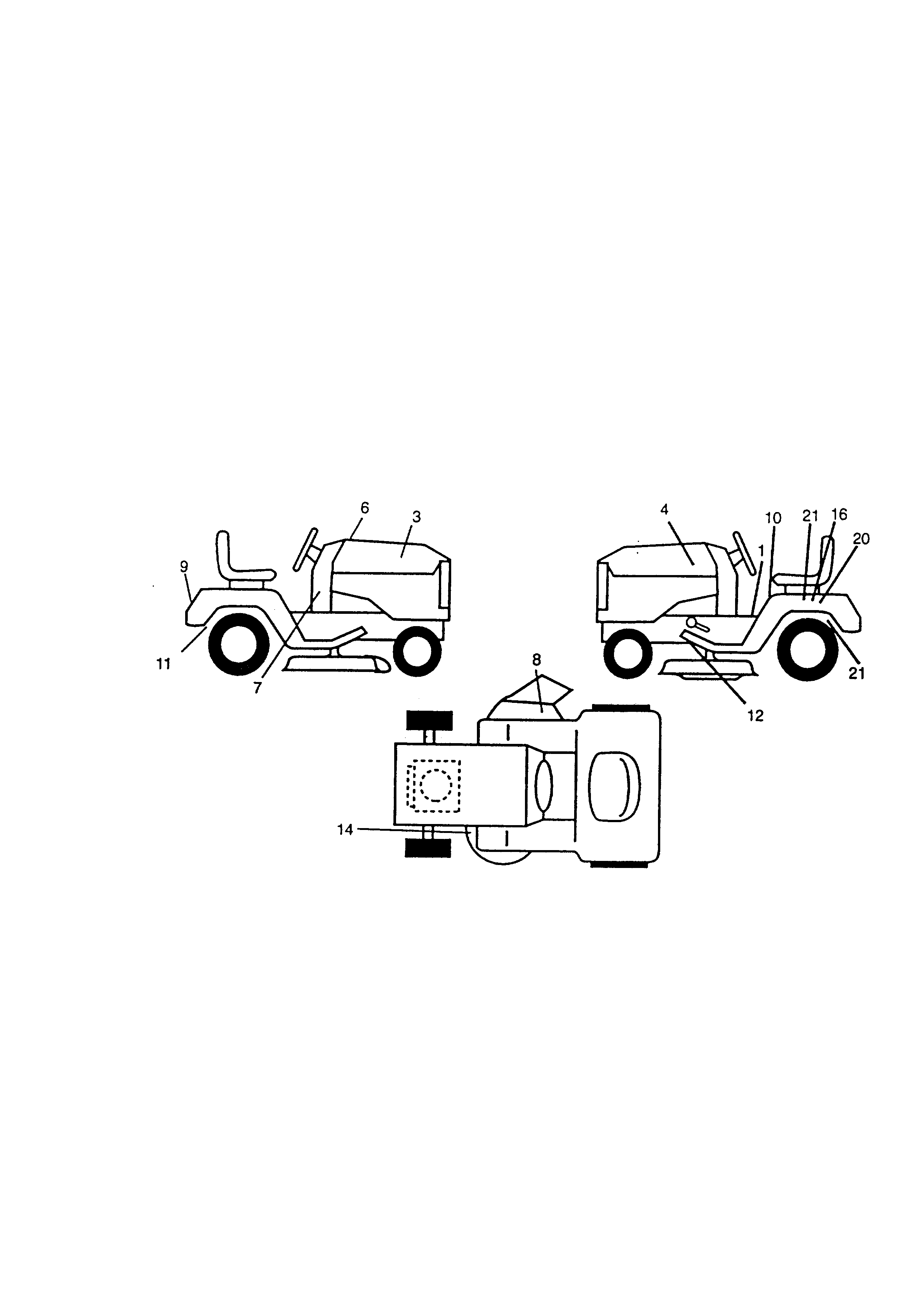

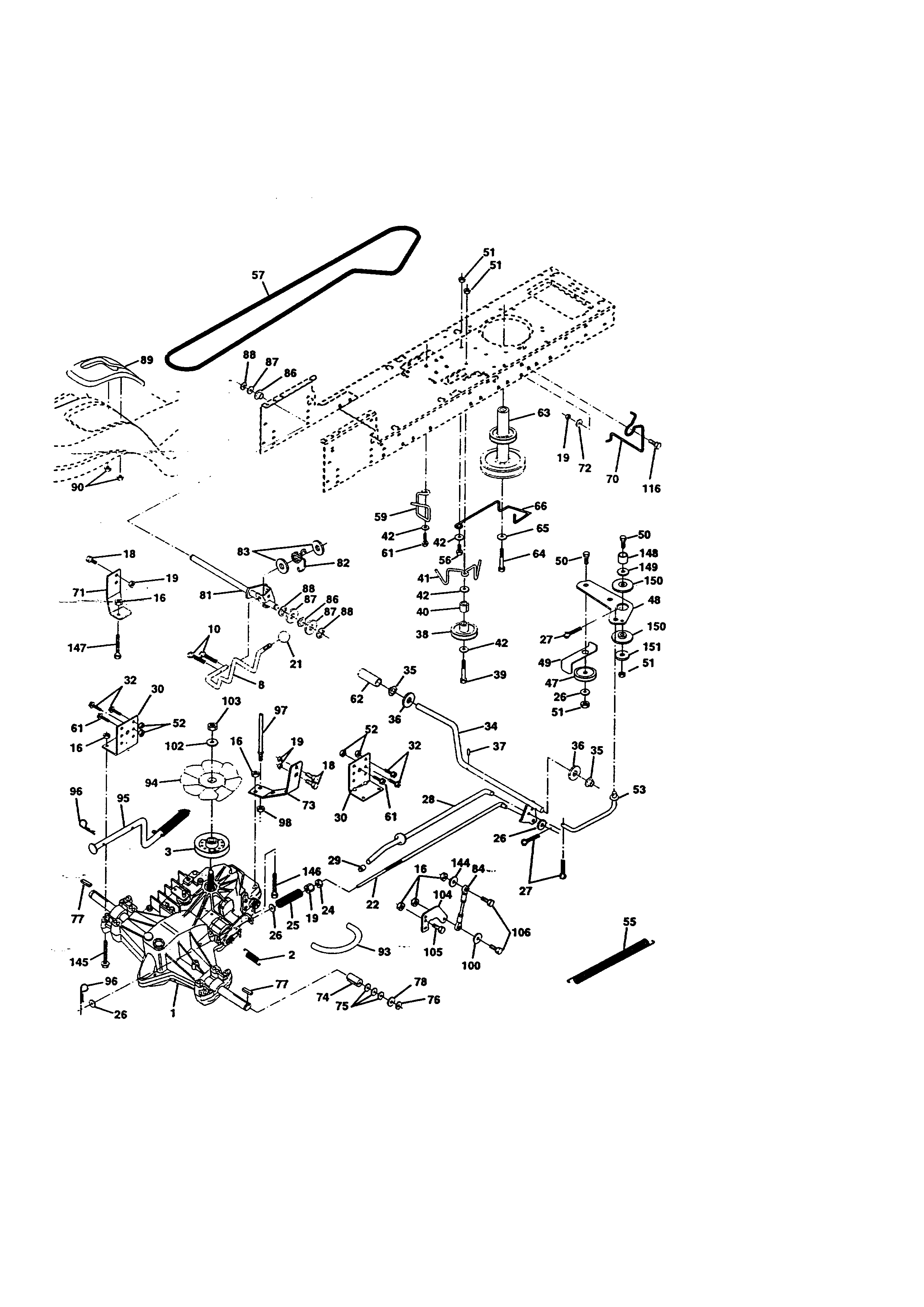

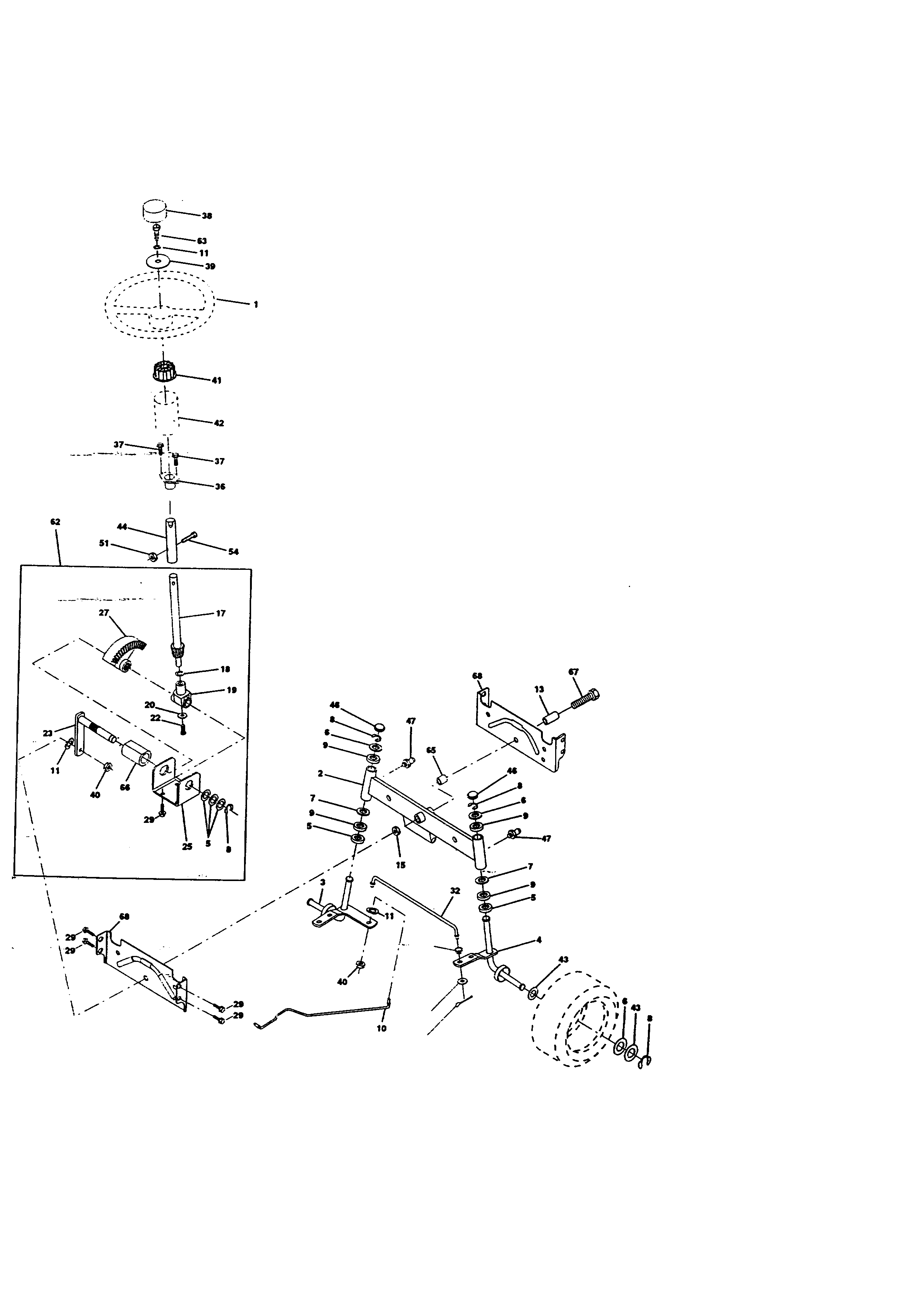

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

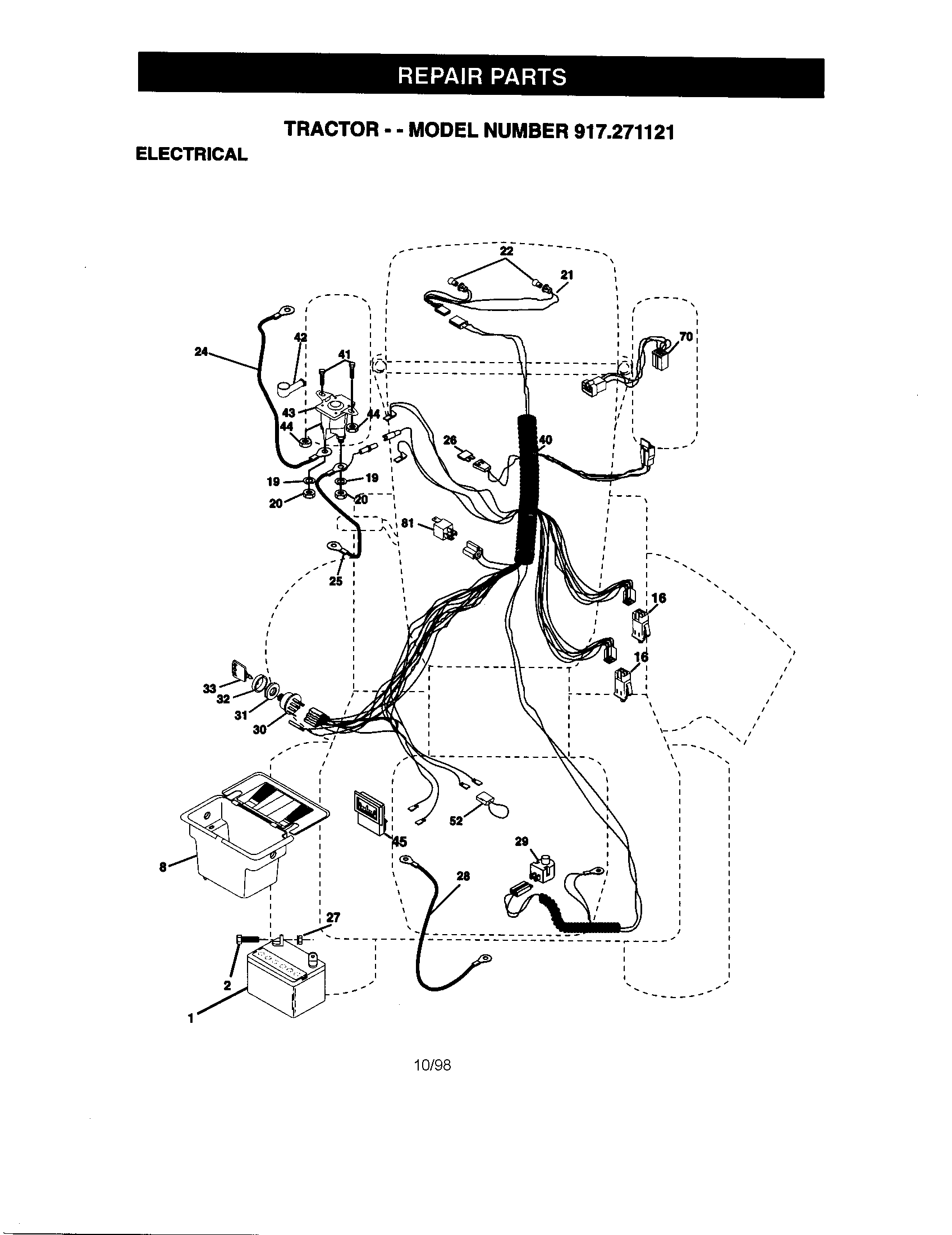

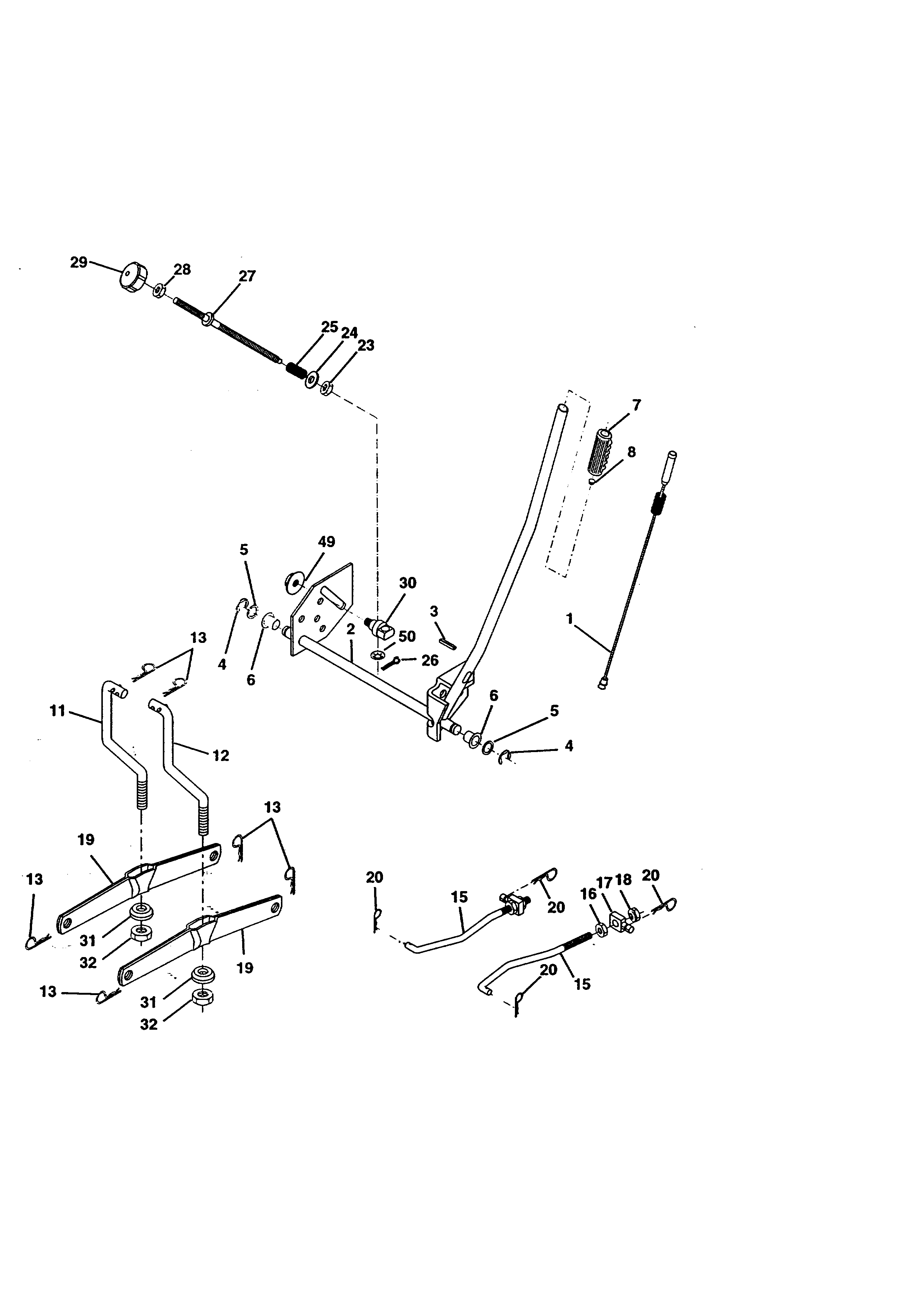

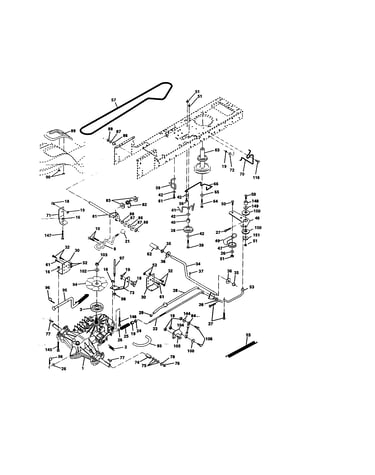

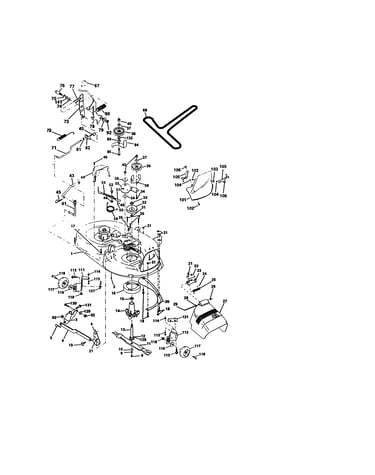

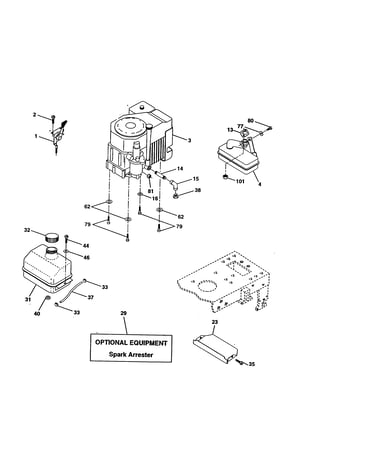

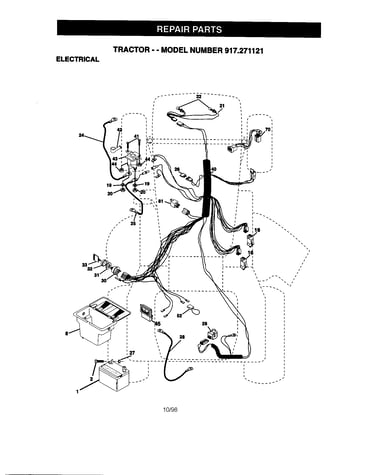

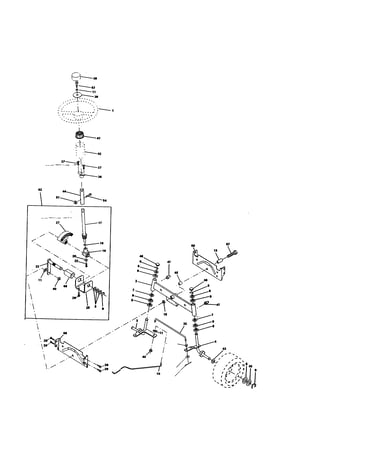

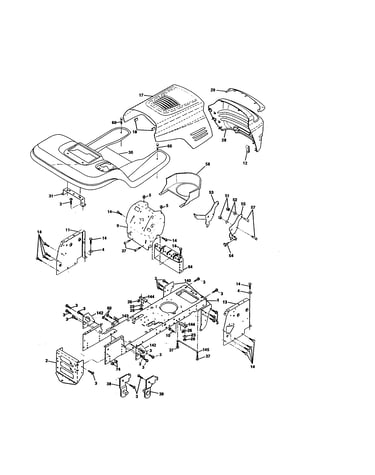

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 367 parts  |
Lawn Tractor Mandrel Assembly (replaces 130794CS, 130794MS, 130794WA, 130797, 180074, 532130794, 5321307-94, 532183170, 539110158, 577203113)

#NI

All parts diagram

Lawn tractor mandrel assembly (replaces 130794cs, 130794ms, 130794wa, 130797, 180074, 532130794, 5321307-94, 532183170, 539110158, 577203113)

Part #130794

BEST SELLER
$41.39 |
38% OFF MSRP : $66.36
