Kenmore 11077542600 dryer Parts

On Kenmore dryer model 11077542600, the model and serial number label is located at the top inside the dryer door well. Open the dryer door and look along the upper inside edge of the door opening for the rating plate style label; that is the complete model number you need for parts and service. See the 11077542600 owner's manual for the exact label location description.

• Open the dryer door fully and use a flashlight.
• Look inside the door opening, not on the outside cabinet.
• Check the top inside area of the door well first.
• Write down both the model number and serial number.
• Take a clear photo of the label so you can zoom in later.

The model/serial label confirms the exact Kenmore dryer configuration so we can match the correct parts (like a door switch, belt, or thermostat) and the correct troubleshooting steps. Using the full model number prevents ordering a similar looking part that will not fit.

“600 series” is usually a marketing series name; the model number is what identifies the exact machine. For this model, the manual’s Product Record section specifically points you to the label in the door well.

Last updated: January 2026

The Kenmore dryer model 11077542600 is a full-size 27-inch class dryer. Based on the installation guide’s dimension diagram, it measures about 43 3/8 in. tall and 27 in. wide; depth varies by door style and is shown in the 11077542600 installation guide.

Use these as your planning dimensions for a typical installation:

• Width: about 27 in. (705 mm)
• Height: about 43 3/8 in. (1102 mm)
• Depth: varies by door configuration (see table below)
• Recommended rear clearance: 5 in. minimum behind the dryer for the exhaust vent elbow (common requirement)

Some listings quote a single depth number, but this dryer’s depth depends on the door style and how the unit is vented. For the most accurate fit:

• Measure the space from the back wall to the front edge of the door swing
• Add room for the vent duct and elbow behind the dryer
• Confirm the door style on your unit matches the diagram you’re using

Correct dryer dimensions help prevent crushed venting (poor drying and overheating risk), ensure the door opens fully, and avoid installation headaches in a closet or recessed area.

Last updated: January 2026

Common problems with the Kenmore 11077542600 dryer include not starting, no heat, long dry times from poor airflow, and unusual noises. Many issues trace back to power supply problems, a door not fully closed, lint or vent restrictions, or worn drive components; use the 11077542600 owner's manual troubleshooting section to narrow it down.

• Dryer will not run: tripped breaker or blown fuse, door not shut, Start not pressed firmly, cycle dial not set correctly
• No heat (drum turns): one of two breakers tripped (electric), gas supply valve closed (gas), overheating protection opened
• Takes too long to dry: restricted venting, crushed duct, lint buildup, weak airflow
• Loud thumping/squealing: worn belt, idler pulley, drum support wear, items caught at drum edge
• Clicking on gas models: normal gas valve cycling sound during operation

• Confirm the dryer has the correct power supply; many electric dryers use 240V and can run without heat if one breaker trips.
• Make sure the door is firmly closed and a cycle is selected (some dial positions will not start).
• Clean the lint screen and check the vent path for restrictions.
• Check the drum edges for coins, buttons, or clips that can cause scraping or rattling.
• Verify the dryer is level on all four legs to reduce vibration and noise.

Airflow and heat problems can trigger safety thermostats and cause repeated shutdowns, longer dry times, and extra wear on the drive motor and belt. Fixing venting and basic start conditions first prevents unnecessary part replacement.

Last updated: January 2026

Replacing a “heating element” in a Kenmore dryer usually runs $75 to $250 for the part and $200 to $500 for parts plus professional labor. For Kenmore model 11077542600, confirm whether your dryer is gas or electric in the 11077542600 owner's manual before pricing parts.

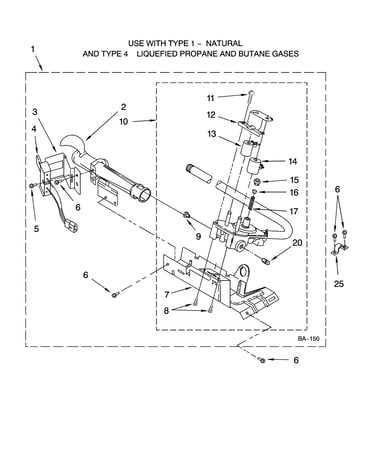

Many 110-series Kenmore dryers are gas models, and the parts list for 11077542600 includes common gas-heat components. If your dryer is gas, you typically replace ignition or safety parts, not an electric heating element.

• Gas dryers: igniter, gas valve coils, radiant sensor, thermostats
• Electric dryers: heating element, thermostats, thermal cutoffs
• Both types: airflow issues can cause repeat “no heat” failures

Use these ranges to budget; your exact total depends on the failed component and local service rates.

If 11077542600 tumbles but does not heat, these model-listed parts are frequent fixes:

• Dryer gas valve coil kit 279834 (heat starts then stops, or intermittent heat)
• Igniter 279311 (no flame at all)
• Dryer radiant sensor WP338906 (burner will not stay lit or will not ignite)

Pricing a “heating element” only makes sense on an electric dryer. Identifying whether 11077542600 is gas or electric first helps you buy the correct part, avoid repeat repairs, and keep the total cost predictable.

Last updated: January 2026
