Whirlpool RF111PXSQ1 electric freestanding range Parts

For your Whirlpool RF111PXSQ1 electric freestanding range, the fastest way to find the right replacement part is to match your model number and then confirm the part ID/part number against the diagrams and parts list; the owner's manual also recommends using genuine FSP replacement parts for proper fit and performance.

Step-by-step: find the correct part

• Confirm the model number on the range’s model/serial tag: RF111PXSQ1
• Identify the symptom (for example: oven not heating, temperature inaccurate, oven light out)
• Use the parts list and diagrams for RF111PXSQ1 to locate the exact part name
• Match the listing by part ID (best match) and manufacturer part number (secondary check)
• Compare your old part’s markings and connector style before ordering
• If you are replacing an electrical part, shut off power at the breaker before inspection

Common RF111PXSQ1 parts customers replace

Problem you notice	Part to check first	Example part on this model

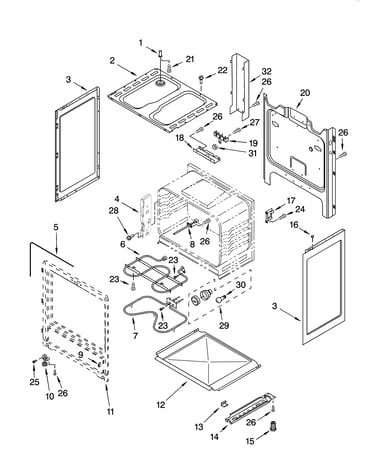

Oven won’t bake or bakes unevenly	Bake element	Oven bake element WPW10308477
Oven temperature seems off	Oven sensor	Oven sensor WPW10181986
Oven light not working	Bulb or lens	Light bulb 8009 and light lens WP3196068

Quick tips to avoid ordering the wrong part

• Use the part ID shown for RF111PXSQ1 (it is more precise than a description alone)
• If a part comes in different colors/finishes, match the color in the description (for example, black vs white panels)
• Replace mounting hardware only if needed; many repairs reuse existing screws
• If wiring looks overheated or brittle, address the connection issue before installing the new part

Why it matters

Using the correct RF111PXSQ1 part helps restore safe heating performance, prevents repeat failures (like burned terminals), and keeps the oven temperature and bake results consistent.

Last updated: February 2026

A Whirlpool stove typically lasts 13 to 15 years. For your Whirlpool RF111PXSQ1 electric freestanding range, regular cleaning, avoiding overheating, and replacing wear parts (like heating elements or sensors) promptly are the biggest factors that help it reach the high end of that range.

Typical lifespan by range type

Most major ranges fall into a fairly consistent life-expectancy window:

Range type	Typical lifespan
Electric range (like RF111PXSQ1)	13 to 15 years
Gas range	15 to 18 years
Heavy-use household cooking	Closer to the low end

What shortens (or extends) range life

These are the most common real-world factors we see:

• High heat and long bake times accelerate wear on the bake and broil elements.
• Spills and boilovers can damage surface element connections and wiring.
• Door seal leaks force the oven to run longer to hold temperature.
• Power surges or loose connections can damage controls and harnesses.
• Routine cleaning (especially around vents and the oven bottom) reduces overheating.

Parts that commonly need replacement as a range ages

If the oven stops heating evenly, takes too long to preheat, or can’t hold temperature, these model-compatible parts are common fixes:

• Oven bake element WPW10308477
• Range broil element W10856603
• Oven sensor WPW10181986
• Light bulb 8009 (for a burned-out oven light)

Why it matters

Knowing the typical lifespan helps you decide whether a repair is worth it. If your RF111PXSQ1 is within the 13 to 15 year window, replacing a failed heating part (like a bake element or sensor) often restores normal baking performance without replacing the whole range.

For care, operating tips, and troubleshooting guidance specific to this model, use the owner's manual.

Last updated: February 2026

Common issues we see with Whirlpool ovens like model RF111PXSQ1 include not heating or heating unevenly, temperature inaccuracy, a non-working oven light, and door sealing problems. Many of these symptoms trace back to a failed heating part, a bad sensor, or a simple maintenance item listed in the owner's manual.

Most common symptoms and likely causes

• Oven will not heat (bake or broil): failed bake element or broil element, wiring issue, or control problem
• Oven temperature is off: failed oven sensor, poor airflow, or heavy soil affecting heat circulation
• Oven light does not work: burned-out bulb, failed light switch, or cracked lens
• Uneven baking: weak bake element, rack position issues, or temperature sensing problems
• Heat leaking or long preheat times: worn door gasket or door not closing squarely

Parts that commonly fix these problems (RF111PXSQ1)

If your symptoms match, these model-compatible parts are common solutions:

Symptom	Part to check/replace	Example part on this model page
Not baking	Bake element	Oven bake element WPW10308477
Not broiling	Broil element	Range broil element W10856603
Temp too hot/cold	Oven sensor	Oven sensor WPW10181986
Oven light out	Bulb or switch or lens	Light bulb 8009, light switch (white) 3149360, light lens WP3196068

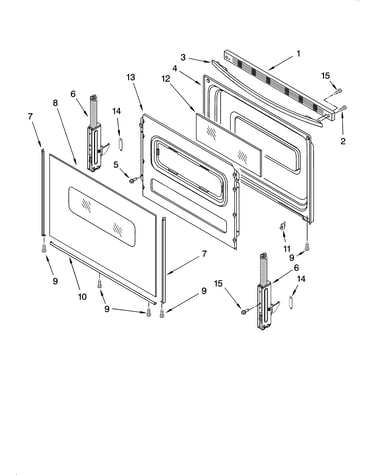

Door leaks heat	Door gasket	Door gasket W11542153

Quick checks we recommend before replacing parts

• Confirm the range has power (a tripped breaker can leave the oven weak or dead).
• For no bake, look for visible damage on the bake element (blisters, cracks, burn spots).
• For temperature complaints, compare set temp vs. actual using an oven thermometer over multiple cycles.
• For light issues, replace the bulb first; then check the switch and lens.
• Inspect the door gasket for gaps, tears, or areas that are flattened.

Why it matters

Heating and temperature-control parts (like the bake element and oven sensor) directly affect cooking results and preheat time. Light and door-seal issues are smaller problems, but they can make the oven harder to use and less efficient.

Last updated: February 2026

On a Whirlpool RF111PXSQ1 electric freestanding range, the most commonly replaced parts are the oven heating parts and a few wear items: bake and broil elements, the oven temperature sensor, and the oven light parts. These parts take the most heat and cycling, so they fail first.

Most common replacements (and what they affect)

• Oven bake element: oven won’t heat, heats unevenly, or takes too long to preheat (see oven bake element WPW10308477).
• Broil element: broil won’t work or only partially glows (see range broil element W10856603).
• Oven temperature sensor: oven temperature is inaccurate, swings hot/cold, or triggers temperature-related issues (see oven sensor WPW10181986).
• Oven light bulb and cover: light out, lens cracked, or lens won’t stay in place (see light bulb 8009 and light lens WP3196068).
• Door gasket: heat leaks, longer cook times, or poor temperature stability (see door gasket W11542153).

Quick symptom-to-part guide

Symptom	Most likely part	What you’ll notice
Oven not heating in Bake	Bake element	No glow, slow preheat, uneven baking
Broil not working	Broil element	No broil heat, only part of element heats
Oven temp off by 25 to 50°F	Oven sensor	Overcooking or undercooking
Oven light doesn’t work	Light bulb or light switch	No interior light when switched on
Heat escaping around door	Door gasket	Hot door edges, longer bake times

How we recommend confirming the right part before ordering

• Match your model number RF111PXSQ1 and the part in the parts list for your range.
• Use the troubleshooting and parts diagrams in the owner's manual to narrow the failure.
• If you’re testing electrical parts, shut off power at the breaker first.
• Check for visible damage first (burn marks, blisters on elements, torn gasket).
• For heating issues, a continuity test with a multimeter is the fastest confirmation.

Why it matters

Replacing the correct heating or sensing part restores accurate oven temperature and normal preheat times, which protects bake results and helps prevent repeated overheating of wiring and controls.

Last updated: February 2026
