Whirlpool WRF532SMHZ02 bottom-mount refrigerator Parts

A bottom-mount refrigerator like the Whirlpool WRF532SMHZ02 keeps the fresh-food section at a more comfortable height, so you reach everyday items with less bending. The freezer stays below, which works well when you access refrigerated foods more often than frozen foods.

Key advantages in daily use

• Fresh foods are closer to eye and hand level for faster viewing and grabbing.
• Less bending for produce drawers, shelves, and door bins during routine cooking.
• Freezer drawer storage can be easier to organize by baskets and sections.
• Better ergonomics for households that use the refrigerator compartment most.
• Door swing and placement can be planned using the clearances in the WRF532SMHZ02 owner's manual.

Space and installation considerations (why the layout matters)

Bottom-mount designs often need planning for door swing and ventilation. For the WRF532SMHZ02, our manual guidance includes:

• Leave about 1/2 inch of space on each side and at the top.
• Leave about 1 inch behind the refrigerator.
• If installed next to a fixed wall, allow at least 2 1/2 inches on the hinge side for door swing (some setups need more).

Bottom-mount vs top-freezer: quick comparison

Feature	Bottom-mount refrigerator	Top-freezer refrigerator
Most-used items	Fresh food at comfortable height	Fresh food lower, more bending
Freezer access	Lower drawer, less frequent use for many homes	Upper door, easy access
Organization style	Drawer and baskets	Shelves and door bins

Why it matters

Choosing a bottom-mount layout is mainly about comfort and workflow. If your household cooks often and uses fresh ingredients daily, keeping the refrigerator compartment higher reduces strain and makes it easier to see what you have (which can also help reduce food waste).

Last updated: February 2026

Bottom-freezer refrigerators like the Whirlpool WRF532SMHZ02 put fresh food at eye level, but the tradeoffs are a harder-to-reach freezer, heavier lifting from a low drawer, and more chances for door alignment or drain/defrost issues if the unit is not level or the doors do not seal tightly. See the WRF532SMHZ02 owner's manual for leveling and door-alignment guidance.

Common disadvantages (what we see most often)

• More bending and lifting: frozen foods sit low, and deep drawers can make heavy items awkward to grab.
• Freezer organization can be tougher: stacked baskets and deep bins can hide items.
• Door alignment matters more: if the cabinet is not level, doors can swing or not seal as well.
• Potential for water/ice buildup issues: bottom-freezer designs can be sensitive to drain or defrost problems when airflow is restricted.
• Higher upfront cost on many models: bottom-mount designs often cost more than basic top-freezer styles.

Quick comparison: bottom freezer vs. top freezer

Feature	Bottom freezer refrigerator	Top freezer refrigerator
Fresh food access	Easier (eye level)	Requires more bending
Freezer access	Requires bending	Easier (higher)
Freezer storage	Deep drawer, can be harder to sort	Shelves, often easier to see
Setup sensitivity	Leveling and alignment are important	Also important, often feels less noticeable

What to check on WRF532SMHZ02 if convenience is the issue

The manual highlights that proper leveling helps doors close easier and align correctly.

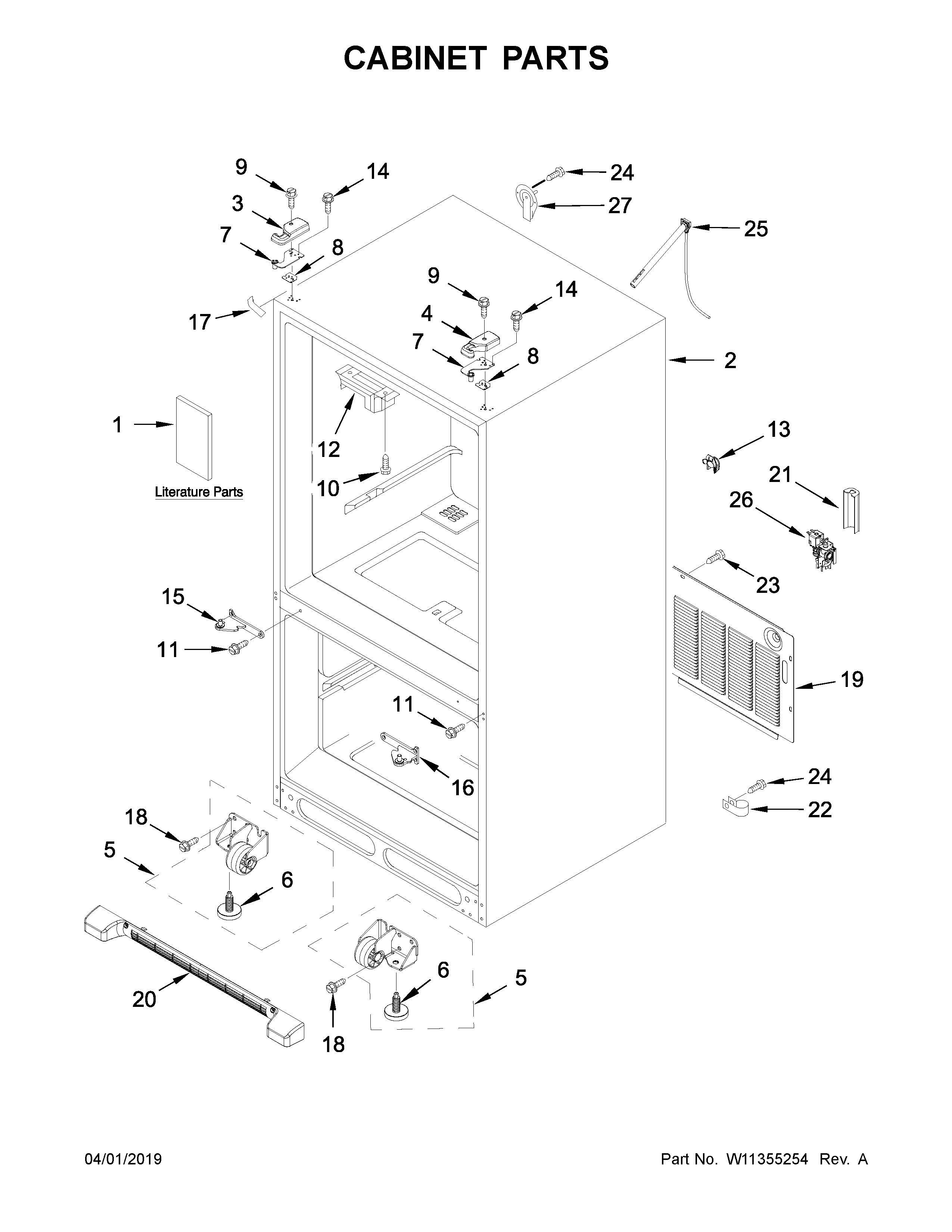

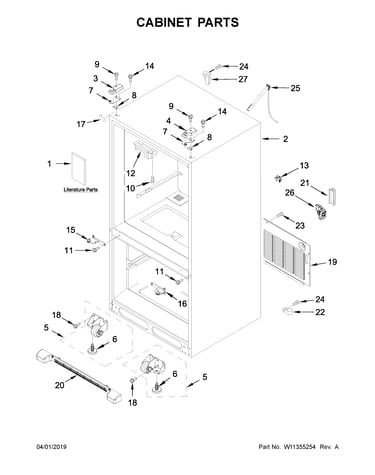

• Remove the base grille to access leveling screws.
• Raise the front slightly (both sides equally) so doors close more naturally.
• Confirm the refrigerator door bottom aligns with the top of the freezer drawer.
• Do not rely on door gasket magnets to hold doors while servicing.

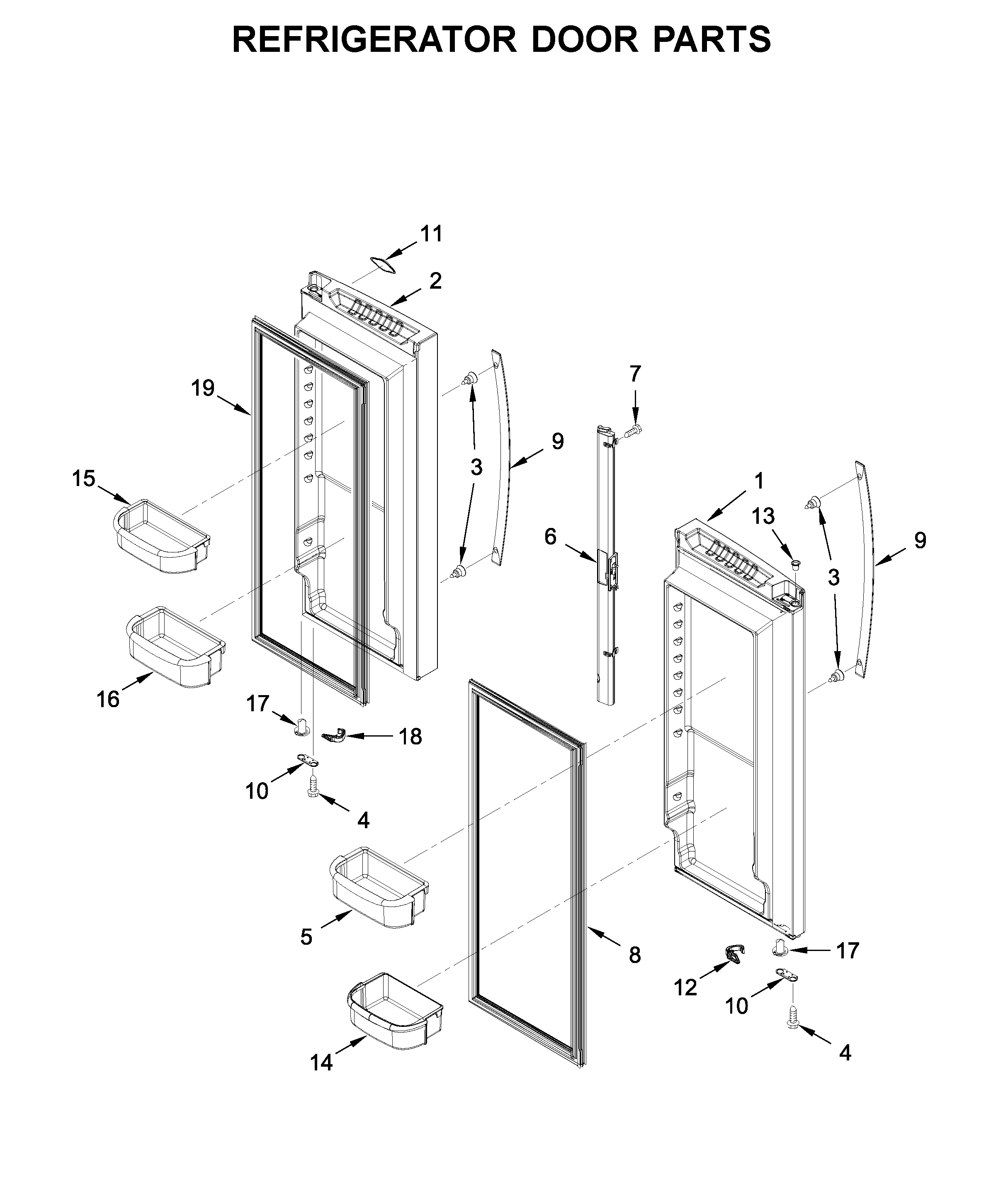

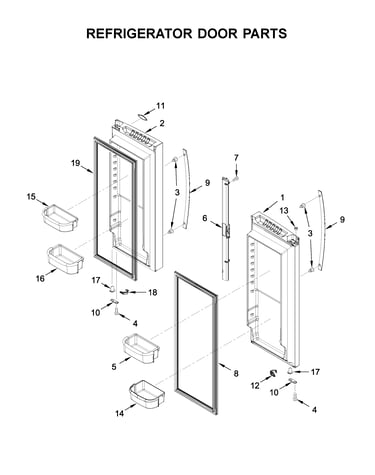

If your doors are not sealing well, a worn gasket can contribute; common replacements include the Whirlpool refrigerator door gasket, left (gray) W10830283 and Whirlpool refrigerator door gasket, right (gray) W10830162.

Why it matters

When a bottom-mount refrigerator is not level or the doors do not seal, you can get temperature swings, frost buildup, and higher run time. Fixing alignment and sealing usually improves cooling performance and reduces nuisance issues.

Last updated: February 2026

Water leaking from the bottom of your Whirlpool WRF532SMHZ02 bottom-mount refrigerator is usually caused by a water supply connection that is loose, kinked, or not fully seated, or by defrost water that is not draining correctly into the drain pan. We focus first on the water line and valve connections at the lower rear of the refrigerator.

Quick checks that fix most bottom leaks

• Unplug the refrigerator before inspecting connections.
• Pull the unit out and inspect the lower right rear water connection for drips.
• Make sure the copper tubing has a smooth “service loop” and is not kinked.
• Confirm the compression nut is snug (tighten firmly, but do not overtighten).
• If the refrigerator was recently moved, re-check every fitting and the tubing routing.
• If you turned the refrigerator on before connecting the water line, turn off the ice maker until the water line is properly connected.

For the model-specific water line routing and connection steps, follow the WRF532SMHZ02 owner's manual.

Most common leak sources (and what to look for)

Leak location	What you’ll see	What to do next
Lower right rear connection	Drips at the fitting or wet floor behind fridge	Re-seat tubing, snug compression nut, remove kinks
Water inlet valve area	Slow seepage near valve body or tubing	Inspect for cracked tubing; replace the valve if it won’t seal
Under freezer area	Water appears after defrost cycles	Check for ice buildup and signs the defrost drain is clogged

If the leak traces back to the valve or its fittings, the correct replacement for this model is the refrigerator water inlet valve WPW10498976.

Why it matters

A small leak can damage flooring and also cause poor ice maker or water dispenser performance because the water pressure and flow become inconsistent. Fixing the water line routing and sealing the connections restores reliable operation.

When to stop and get service

If you see steady dripping you cannot stop by snugging the compression nut, or you find damaged tubing or electrical components getting wet, stop using the refrigerator and contact Sears PartsDirect support.

Last updated: February 2026

For the Whirlpool WRF532SMHZ02 bottom-mount refrigerator, the most common cause of poor cooling is restricted airflow, usually from blocked air vents or dirty condenser coils. Before changing temperature settings, we check for blocked vents and confirm the controls are set correctly per the WRF532SMHZ02 owner's manual.

Quick checks that fix most cooling problems

• Make sure interior air vents are not blocked by food packages (check both fresh food and freezer sections).
• Clean the condenser coils and the area around the base grille (dust buildup reduces heat removal).
• Confirm the doors close fully and the gaskets seal all the way around.
• Verify the controls are turned on and not set to “OFF.”
• After a new install or power outage, allow a full 24 hours to reach normal temperatures.
• Avoid overloading right after restocking; large warm loads can temporarily raise temps.

What to check next (in order)

If airflow and coils look good, these are common next suspects:

Symptom you notice	Likely area to inspect	Example part on this model page

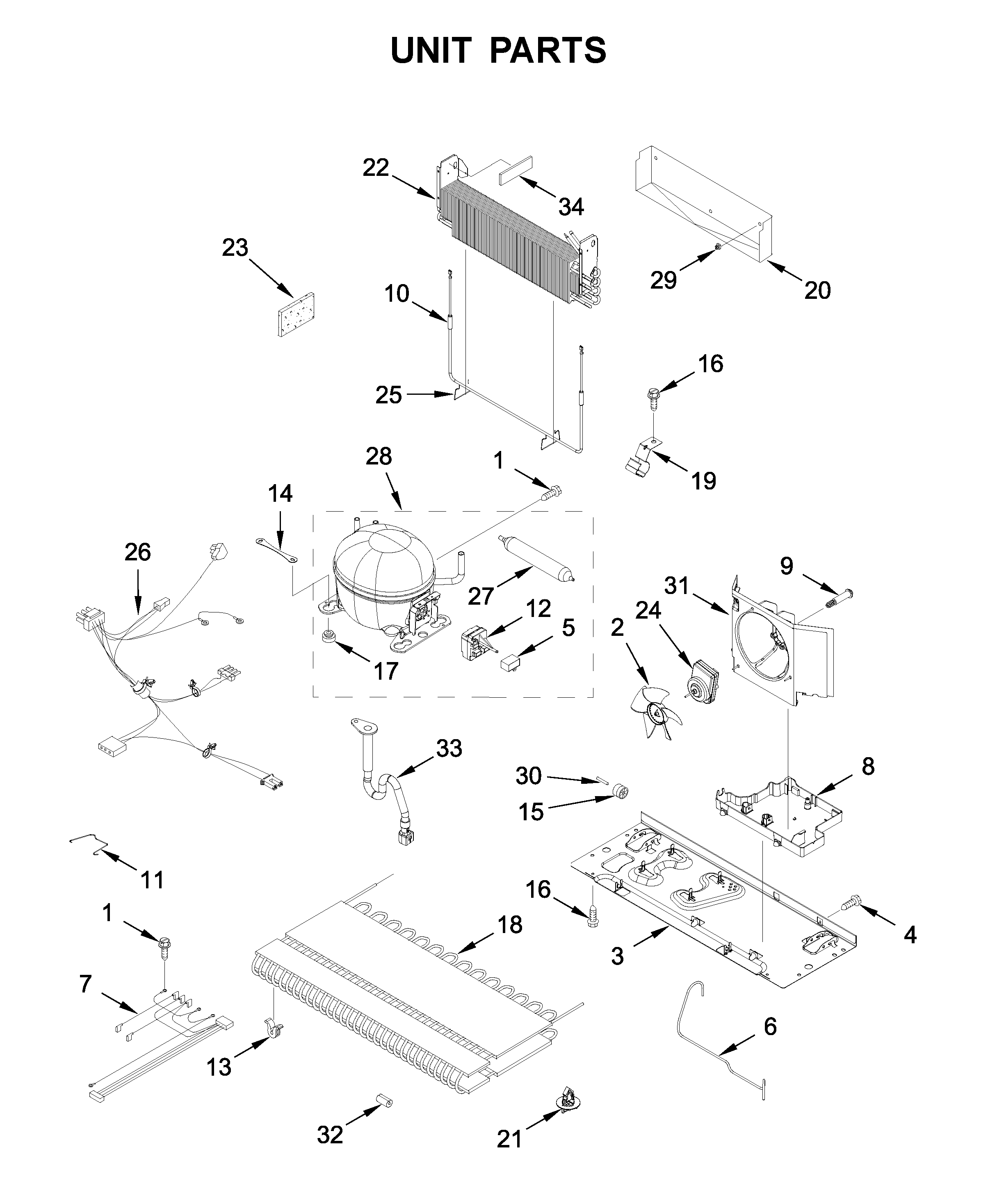

Warm fridge, freezer seems closer to normal	Evaporator fan not moving air	Refrigerator evaporator motor W11024089
Unit runs a lot, poor cooling, hot cabinet sides	Condenser fan not running	Refrigerator condenser fan motor W11613295
Frost buildup on back freezer panel, temps creep up	Defrost system issue	Refrigerator defrost heater WP12729128
Lights or display act odd, temps inconsistent	Electronic control issue	Refrigerator control board WPW10637328

Why it matters

A refrigerator cools by moving air across the evaporator and dumping heat at the condenser. When vents are blocked or coils are dirty, the system cannot move air or release heat efficiently, so temperatures rise even if you set the controls colder.

Helpful related DIY guidance

If you suspect a fan issue, we follow the same troubleshooting flow shown in how to fix your evaporator cooling fan.
