Whirlpool LE8860XWQ0 dryer Parts

Yes. For your Whirlpool dryer model LE8860XWQ0, searching by the full model number is the most reliable way to get compatible replacement parts because it filters results to the exact diagrams and part listings built for that dryer.

How to search by model number (best practice)

• Find the model tag on the dryer (commonly on the door opening, door frame, or inside the cabinet opening).
• Write the model number exactly as shown: LE8860XWQ0.
• Use the model number to pull up the correct parts diagrams and lists.
• Match the part name and identifier to what you see in the diagram.
• Confirm the symptom you are fixing (no heat, won’t start, squealing, not tumbling) before ordering.

Examples of model-matched parts for LE8860XWQ0

If you already know what’s failing, these are common wear items and fixes for this model:

Symptom	Common part to check	Example part for this model
Drum won’t tumble	Belt or idler pulley	Drum belt 341241
Loud squeal or thump	Idler pulley or blower wheel	Dryer idler pulley, dryer blower wheel
Runs but no heat	Thermostat or thermal cut-off kit	Dryer operating thermostat, cut-off kit
Won’t start	Door switch or motor switch	Dryer door switch, dryer motor switch

Why it matters

Whirlpool often uses similar-looking parts across many dryer series, but mounting points, wiring terminals, and lengths can differ. Searching by LE8860XWQ0 helps prevent ordering a part that looks right but does not fit or function correctly.

Quick tip before you order

• If the dryer is not tumbling, inspect the belt for cracks, glazing, or breakage.
• If you hear squealing, check the idler pulley and blower wheel for wear.
• If you are chasing a performance issue (long dry times), clean the lint screen and verify the vent path is clear.

Last updated: February 2026

On a Whirlpool dryer like model LE8860XWQ0, a blown thermal fuse commonly shows up as a dryer that will not start or runs but won’t heat; the sure way to confirm is a continuity test with a multimeter because the fuse is a one-time safety device.

Quick symptoms to look for

• Dryer won’t start (no motor run) even though power is present
• Drum tumbles but there’s no heat (on some designs, heat is disabled)
• Cycle stops early or acts “dead” after a hot load
• You recently had poor airflow (long dry times, very hot cabinet, burning smell)

How we confirm a blown thermal fuse (continuity test)

1. Unplug the dryer (and shut off gas if you have a gas model).
2. Access the thermal fuse area (often on the blower housing or exhaust duct inside the cabinet).
3. Pull at least one wire off the fuse terminal.
4. Set a multimeter to continuity or ohms.
5. Touch probes to the fuse terminals.

What the meter reading means

Meter result	What it means	What to do next
Beep or ~0 to 1 Ω	Fuse is good	Keep troubleshooting (door switch, motor, timer/control, airflow)
No beep or OL/infinite	Fuse is blown	Replace the fuse and fix the airflow restriction

Parts that are often involved in “no heat” or overheating

A blown thermal fuse is usually a result of overheating from restricted venting or a failing airflow component. While diagnosing, we commonly check:

• Lint screen and lint chute for blockage (a damaged seal can leak lint into the cabinet)
• Blower wheel for cracks or slipping on the shaft (dryer blower wheel WP694089)
• Operating thermostat operation (dryer operating thermostat WP3387134)
• Exhaust vent run for crushing, kinks, or heavy lint buildup

If you’re replacing the safety cut-off components together, use the correct kit for this model family (cut-off kit 279769).

Why it matters

A dryer that overheats can keep blowing safety fuses and can also cause long dry times and repeated shutdowns. Restoring proper airflow usually prevents repeat failures and protects the heating circuit.

Last updated: February 2026

A Whirlpool dryer typically lasts 10 to 13 years. With consistent maintenance and normal household use, many dryers reach the upper end of that range; heavy loads, restricted venting, and overheating are the biggest factors that shorten life on a model like LE8860XWQ0.

Typical lifespan and what changes it

Most Whirlpool electric dryers fall into a predictable range, but real-world lifespan depends on heat, airflow, and wear parts.

• Typical: 10 to 13 years
• Often achievable with good care: 13+ years
• Most common life-shorteners: clogged venting, chronic overloading, running on high heat constantly

Usage and maintenance pattern	What we typically see	Why
Clean lint screen every load; vent kept clear	Longer lifespan	Better airflow keeps temperatures and run time down
Long or partially blocked vent; lint buildup	Shorter lifespan	Heat stress increases wear on thermostats, motor, and wiring
Frequent heavy loads; overstuffed drum	Shorter lifespan	Extra strain on belt, idler pulley, and drum support

Parts that commonly wear first (and why)

If your LE8860XWQ0 is otherwise in good shape, replacing a few common wear items often restores performance.

• Drum belt 341241: belt wear can cause squealing, slipping, or a drum that will not turn
• Dryer idler pulley WP691366: worn pulley can squeal and reduce belt tension
• Dryer operating thermostat WP3387134: heat cycling issues can cause overheating or poor drying
• Dryer blower wheel WP694089: damaged wheel reduces airflow and increases dry time

How to extend the life of your LE8860XWQ0

These steps reduce heat stress and mechanical load, which are the two biggest lifespan drivers.

• Clean the lint screen before every load; replace it if torn or warped (see dryer lint screen 339392V)
• Check airflow at the outside vent hood; weak airflow usually means a vent restriction
• Keep vent runs short and smooth-wall when possible; avoid crushed or kinked ducting
• Do not overload; the drum should tumble freely
• If drying times increase, address airflow first before replacing heating parts

Why it matters

A dryer that runs hot or runs too long to dry clothes wears out the motor, thermostats, and wiring faster, and it can also damage fabrics. Good airflow and reasonable load size are the simplest ways to protect the dryer and keep cycles consistent.

Last updated: February 2026

On Whirlpool dryer model LE8860XWQ0, we find the correct part number by first locating the model and serial tag, then using that exact model number to look up the part in the correct diagram. On this style dryer, the tag is typically at the door opening near the door switch area.

Where to look on LE8860XWQ0

Check these common tag locations first (in order):

• Inside the dryer door opening on the cabinet frame (often upper right)
• Near the door switch area on the front panel opening
• On the back panel (less common)
• Along the inside edge of the front panel

How to use the tag to get the right part number

Once you find the tag, use this process to avoid ordering the wrong Whirlpool part:

• Write down the full model number (LE8860XWQ0) and the serial number
• Match the part by name and location in the parts list (example: belt, thermostat, door switch)
• Confirm the part matches your symptom (no heat, won’t start, squealing, poor airflow)
• If multiple versions appear, use the serial number break to pick the correct one

Common parts customers look up on this model

These are examples of parts you can match by name after you confirm the model tag:

Symptom	Part name to check	Example part for this model
Drum not turning, burning rubber smell	Drum belt	Drum belt 341241
Dryer won’t start when door closes	Dryer door switch	Dryer door switch W10820036
No heat or overheating	Dryer operating thermostat	Dryer operating thermostat WP3387134

Why it matters

Whirlpool often uses similar-looking parts across many dryers, but mounting style, wiring terminals, and temperature ratings can differ by model and serial range. Using the model tag first keeps the repair safe, accurate, and faster.

Last updated: February 2026

Common Whirlpool dryer problems (including model LE8860XWQ0) are no-start, no-heat, long dry times, and drum not turning; most causes trace to power supply, airflow restrictions, door switch issues, or worn drive components like the belt and idler pulley.

Most common symptoms and what usually causes them

• Dryer will not start: tripped breaker, failed door switch, failed motor, or a bad start circuit
• Drum not spinning: broken belt, worn idler pulley, seized drum support, or a failed motor
• No heat or weak heat: blown thermal cut-off, thermostat issue, heating circuit problem, or restricted venting
• Takes too long to dry: clogged lint screen or lint chute, crushed/long vent run, blocked blower wheel, or overloaded drum
• Loud squeal or thump: worn idler pulley, drum seal/bearing wear, or a loose blower wheel

Quick checks we recommend first (fast, no parts)

1. Confirm power: reset the dryer breaker(s); electric dryers often need full 240V to heat.
2. Check airflow: clean the lint screen and verify strong airflow at the outside vent hood.
3. Inspect the door switch: if the drum light stays on or the dryer stops when you wiggle the door, suspect the switch.
4. Listen for clues: a hum with no spin often points to a stuck drum, belt issue, or motor problem.
5. Look for lint buildup: lint in the chute or housing can cause long dry times and overheating.

Parts that commonly fix these problems on LE8860XWQ0

Symptom	Common fix	Example part for this model
Drum not turning	Replace worn/broken belt	Drum belt 341241
Squealing, belt slipping	Replace idler pulley	Dryer idler pulley WP691366
No start when door closes	Replace door switch	Dryer door switch W10820036
No heat or overheating shutdown	Replace thermal cut-off kit	Cut-off kit 279769
Poor airflow, rumbling	Replace blower wheel	Dryer blower wheel WP694089

Why it matters

Airflow and drum drive issues do more than slow drying; they can overheat the dryer, shorten the life of thermostats and fuses, and increase wear on the motor and belt.

Helpful DIY reference

If your Whirlpool dryer shows a code (on models that display them), use Whirlpool electronic control model dryer error codes to match the code to a likely failure area before replacing parts.

Last updated: February 2026

For Whirlpool dryer model LE8860XWQ0, 279838 is an OEM number widely used for a dryer heating element on some Whirlpool-built dryers, but it is not the heating element listing shown for this specific model’s parts catalog. For LE8860XWQ0, match parts by the model’s diagram and the exact part ID/part number shown there.

How to identify the correct heating part for LE8860XWQ0

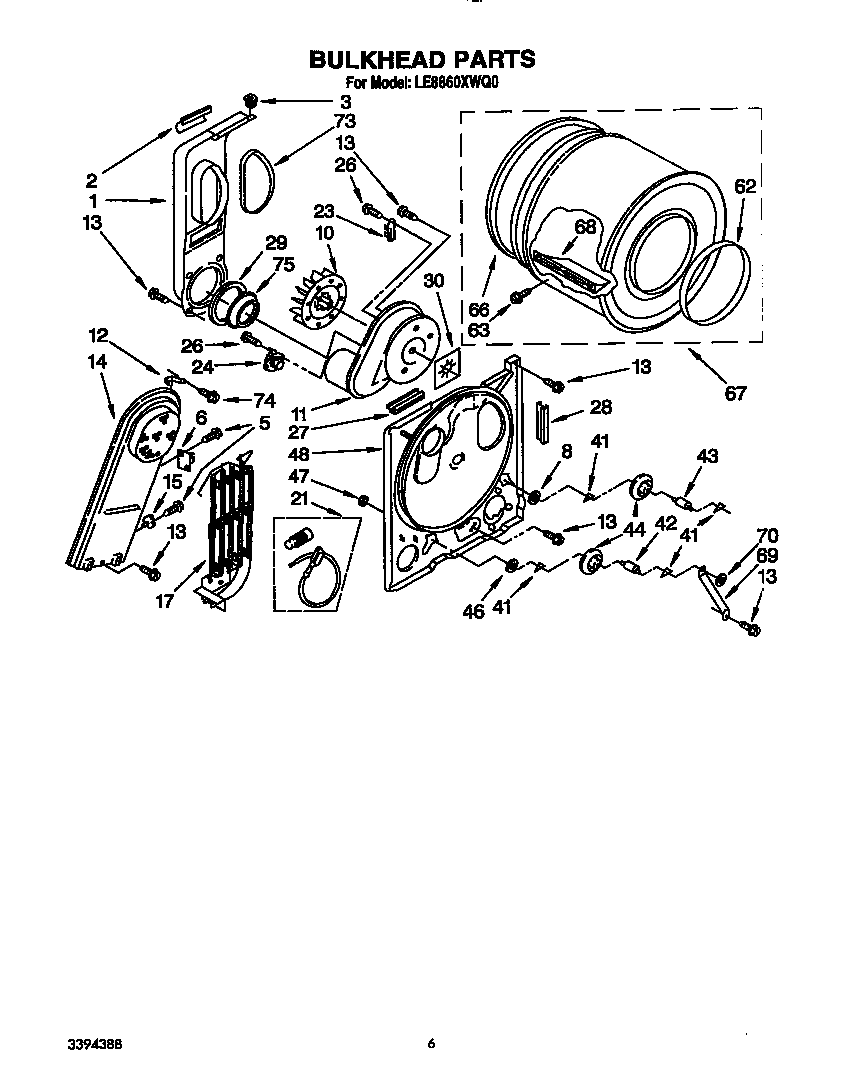

Use the model-based parts breakdown to confirm the exact heater circuit components used on your dryer (heater, thermostats, thermal cut-off, wiring).

• Find the heater or bulkhead section in the diagram for LE8860XWQ0
• Match the callout number to the part name and part ID
• Compare your existing part’s markings (numbers stamped on the metal or tag)
• If you are troubleshooting “no heat,” check safety devices and airflow first
• Replace only the part that tests failed or is visibly damaged

Parts from this model that are commonly involved in “no heat” symptoms

These are heater-circuit related items that are listed for LE8860XWQ0 and often come up during diagnosis:

• Cut-off kit 279769 (thermal cut-off fuse kit)
• Dryer operating thermostat WP3387134
• Dryer heating element wire kit 279457

Quick comparison: what these parts do

Part	What it controls	Common symptom when failed
Thermal cut-off kit	Safety shutoff for overheating	No heat at all
Operating thermostat	Regulates drum temperature	Overheats or low heat
Heating element wire kit	Restores burned heater wiring	Intermittent heat, melted terminals

Why it matters

Ordering by a popular OEM number alone can lead to the wrong fit. Matching the LE8860XWQ0 diagram callout and the exact Whirlpool part ID helps ensure correct mounting, wiring terminals, and safe operation.

Last updated: February 2026
