Amana
Washer

Model # NAV5805AWW Official Amana washer

Here are the diagrams and repair parts for Official Amana NAV5805AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

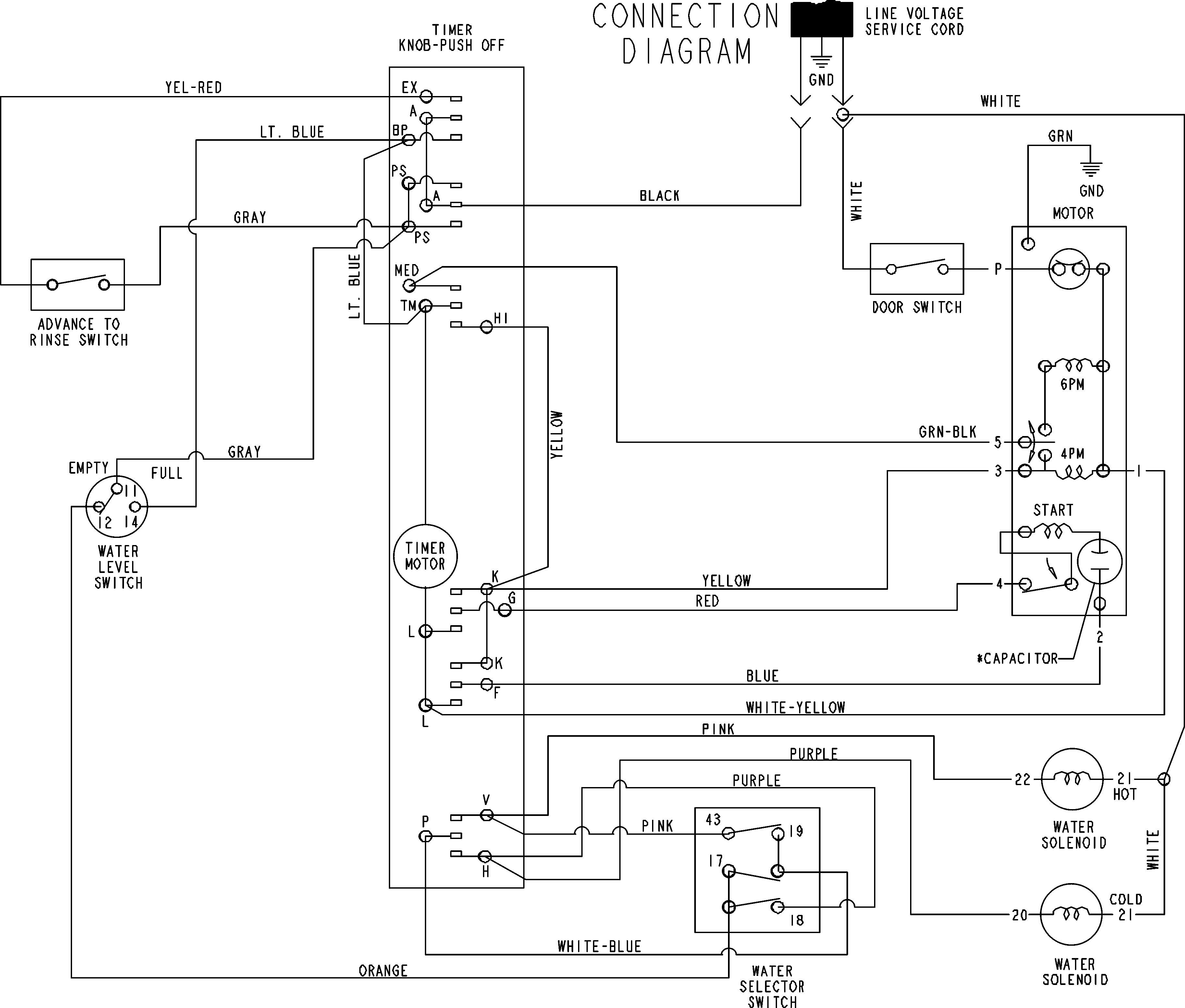

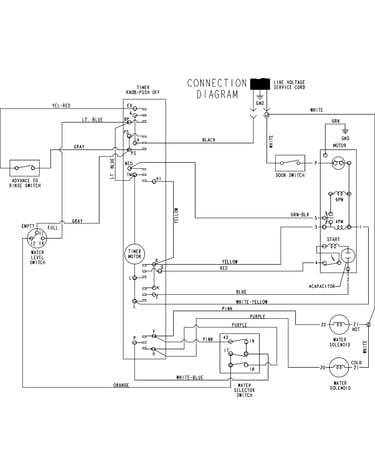

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Screw, Suppo 25-7828
#25

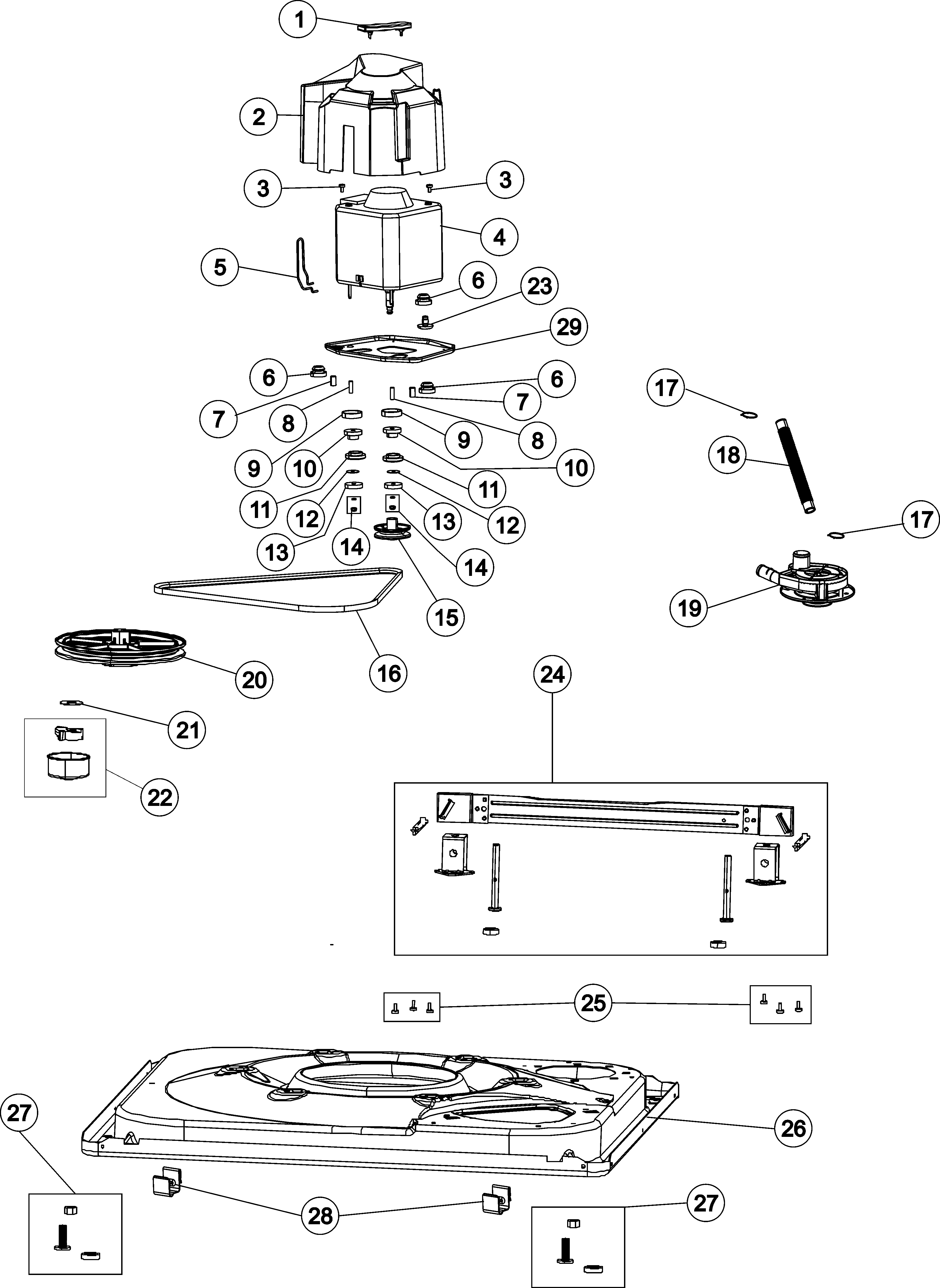

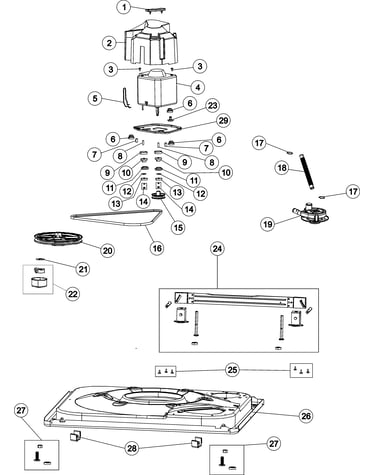

Base & motor diagram

Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Inlet Hose 33-7891
#5

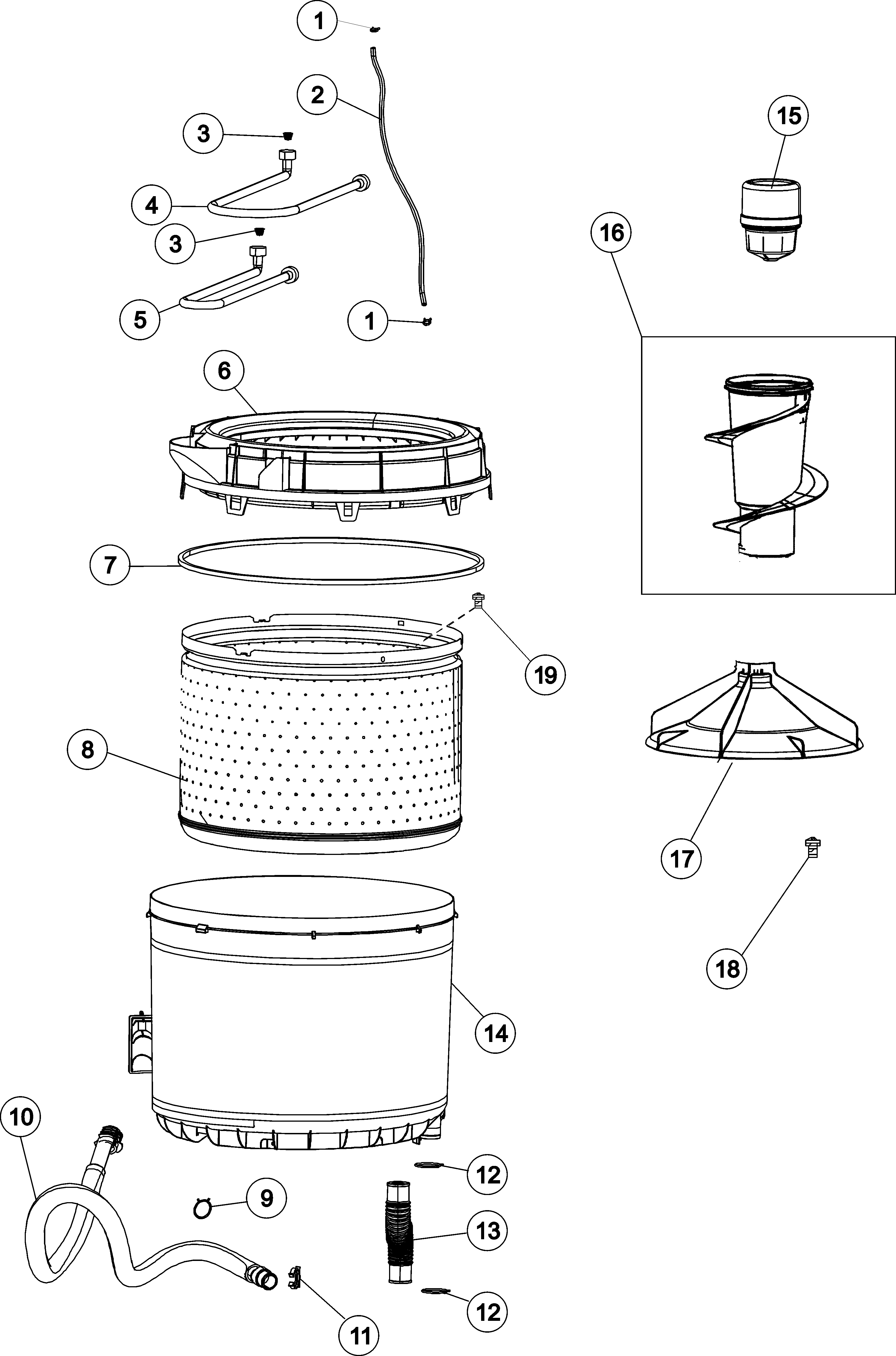

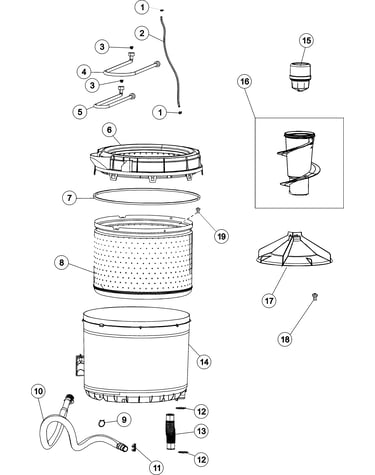

Inner - outer tub diagram

Inlet hose

Part #33-7891

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock
Washer Drive Belt 21352320
#16

Base & motor diagram

Washer drive belt

Part #21352320

Replaced by #WP21352320

?
Manufacturer substitution
This part replaces 21352320. Substitute parts can look different from the original.
BEST SELLER
$15.14 |
50% OFF MSRP : $30.00
In Stock
Washer Pulley And Thrust Bearing Kit (replaces 12001797, 12500036, 22004258, 22004259, La-2007) 12002213
Washer pulley and thrust bearing kit (replaces 12001797, 12500036, 22004258, 22004259, la-2007)

Part #12002213

BEST SELLER
$41.09 |
19% OFF MSRP : $51.00
In Stock
Pump 21001873
#19

Base & motor diagram

Pump

Part #21001873

Replaced by #WP35-6780

?
Manufacturer substitution
This part replaces 21001873. Substitute parts can look different from the original.
BEST SELLER
$105.65 |
9% OFF Phone Price : $115.65
In Stock
Pulley, Driv 21001733
#20

Base & motor diagram

Pulley, driv

Part #21001733

Replaced by #12002213

?
Manufacturer substitution
This part replaces 21001733. Substitute parts can look different from the original.
BEST SELLER
$41.09 |
19% OFF MSRP : $51.00
In Stock
Washer Lid Hinge 35-2044
#13

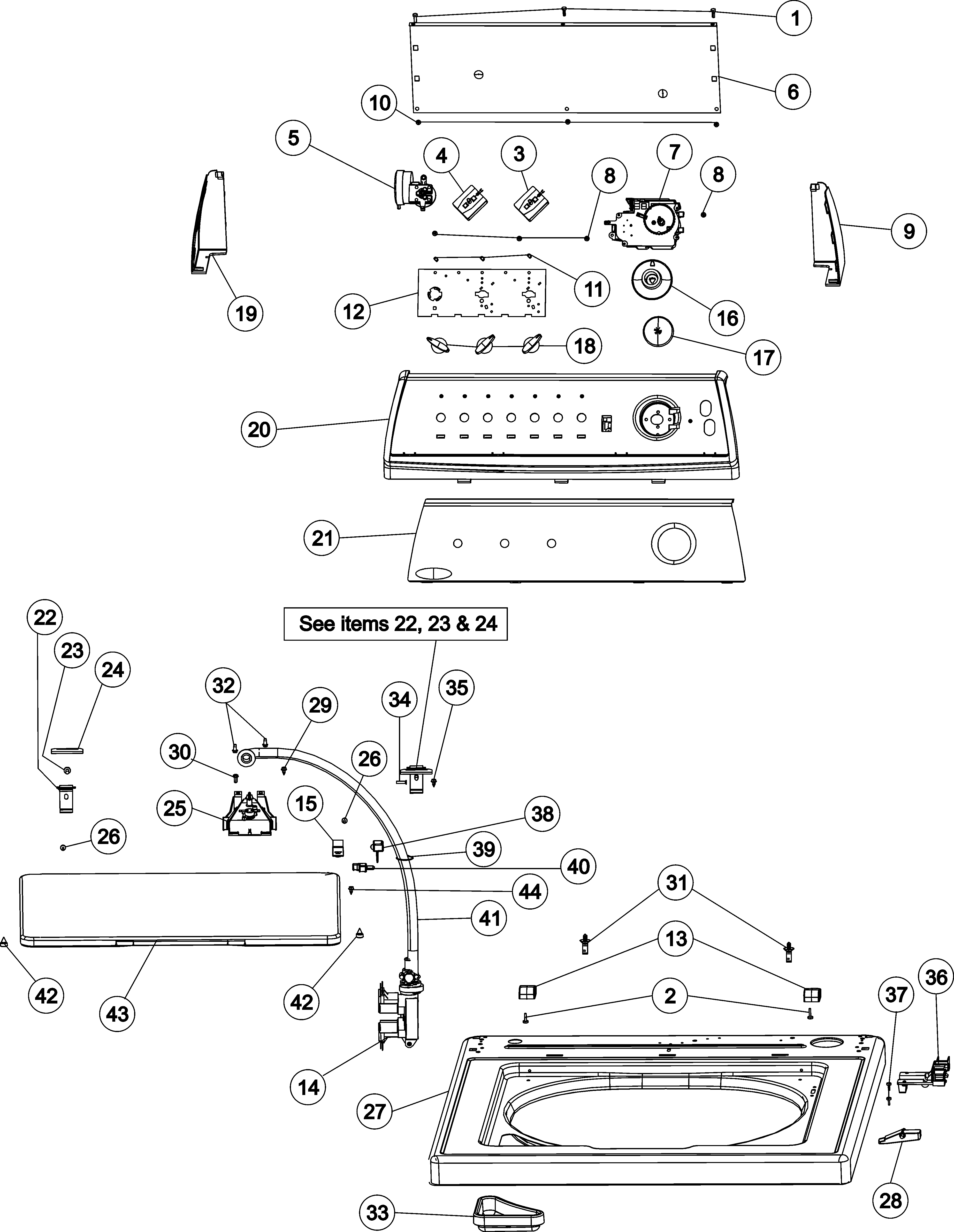

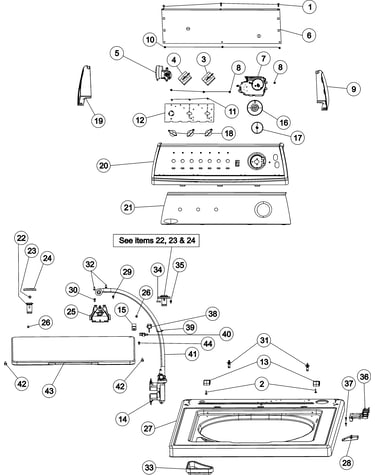

Control panel & top diagram

Washer lid hinge

Part #35-2044

Replaced by #WP35-2044

?
Manufacturer substitution
This part replaces 35-2044. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Seal Hub 21001868
#3

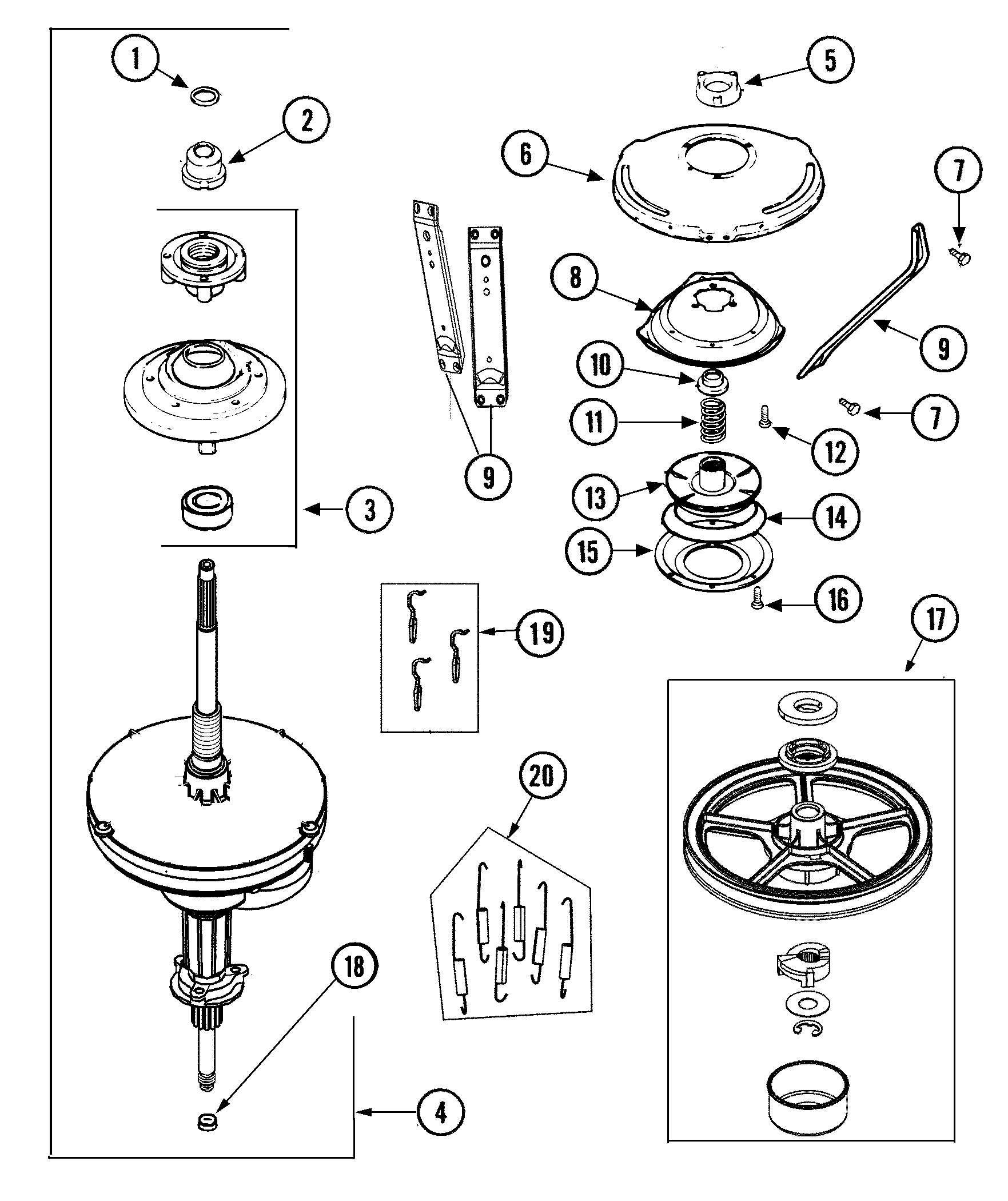

Transmission diagram

Seal hub

Part #21001868

Replaced by #W10219156

?
Manufacturer substitution
This part replaces 21001868. Substitute parts can look different from the original.
$165.21 |
7% OFF MSRP : $178.22
In Stock
Locator Nut 25-0224
#18

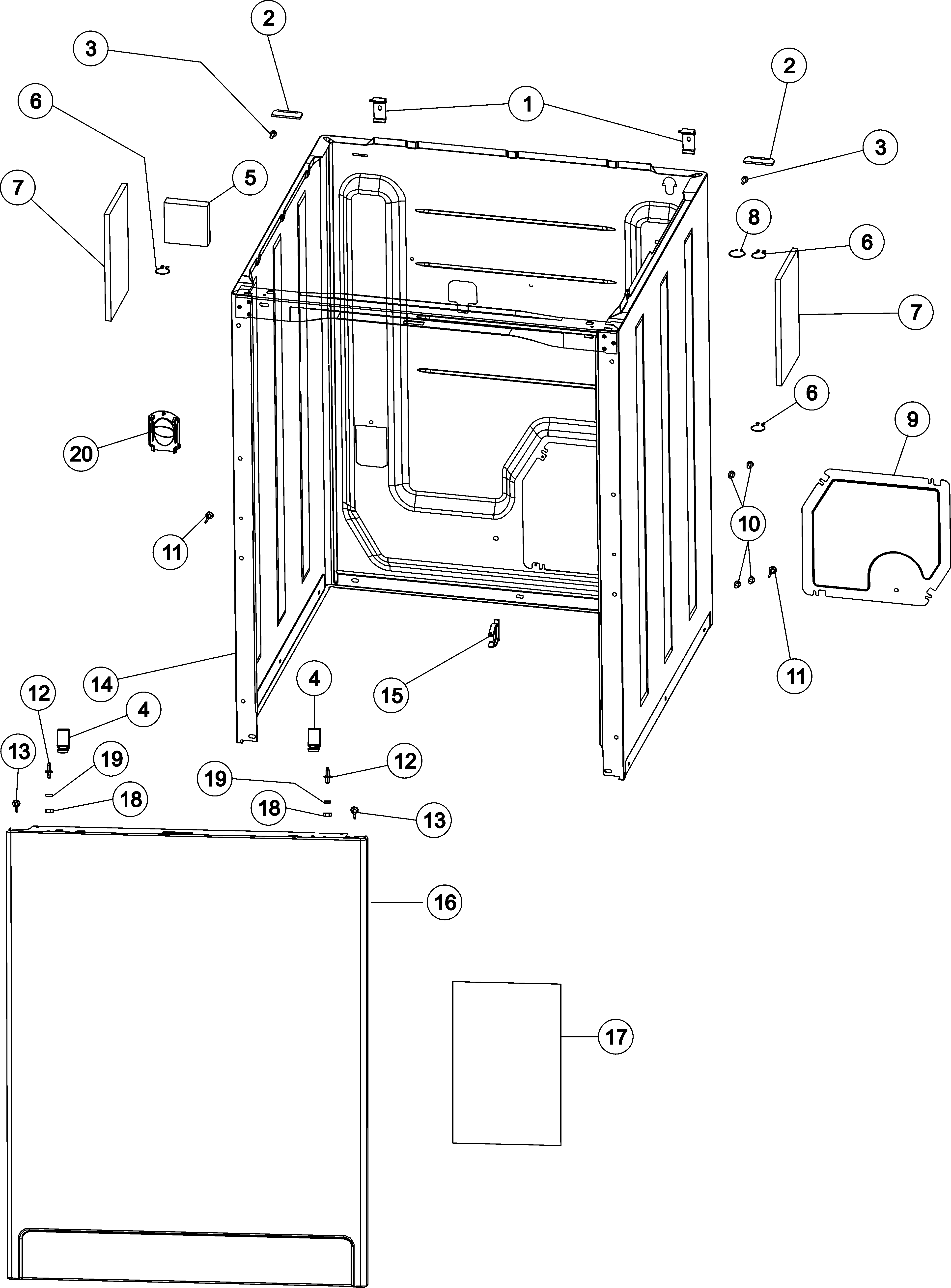

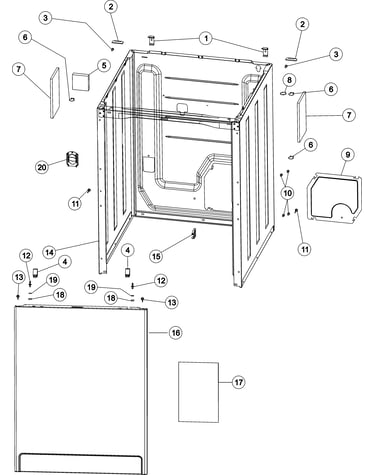

Cabinet & front panel diagram

Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Water Inlet Valve 21001932
#14

Control panel & top diagram

Washer water inlet valve

Part #21001932

Replaced by #WP21001932

?
Manufacturer substitution
This part replaces 21001932. Substitute parts can look different from the original.
$89.02 |
19% OFF MSRP : $110.00
In Stock
