GE
Dishwasher

Model #GDF645SMN0ES GE dishwasher

Here are the repair parts and diagrams for your GE GDF645SMN0ES dishwasher.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 116 parts

Dishwasher Door Latch Lock

#803

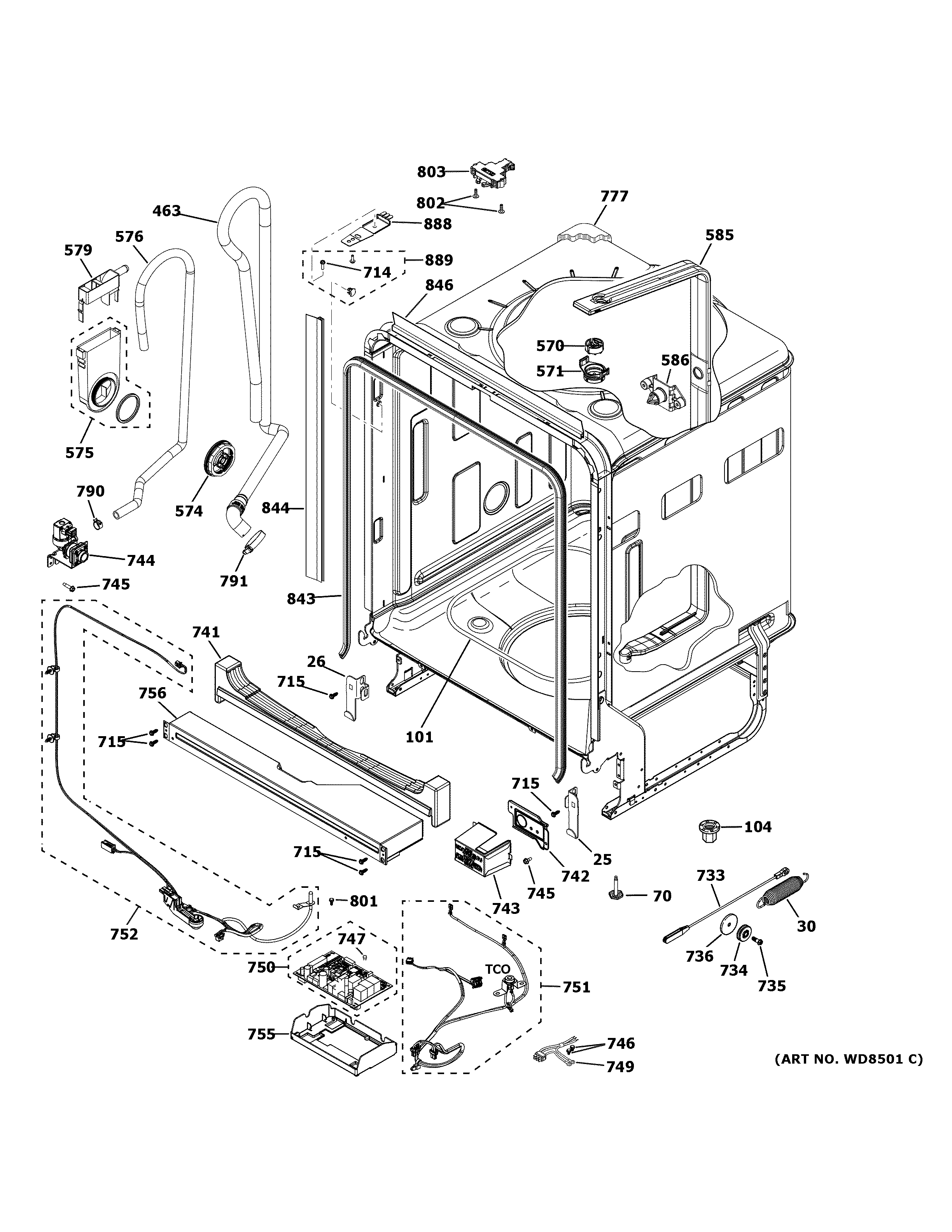

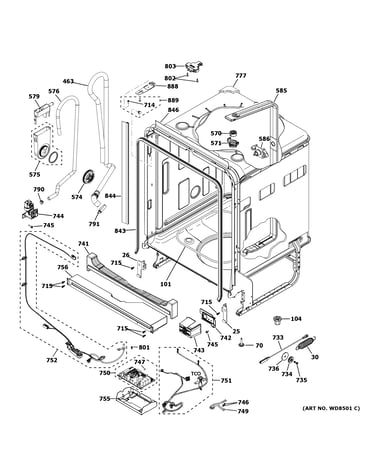

Body parts Diagram

$21.89

In Stock

Dishwasher Installation Bracket

#888

Installation parts Diagram

Dishwasher installation bracket

Part #WD01X21740
This item is not returnable

$1.56

In Stock

Dishwasher Tub Gasket

#843

Body parts Diagram

Dishwasher tub gasket

Part #WD08X22095

$10.73

In Stock

Dishwasher Vent Bezel

#812

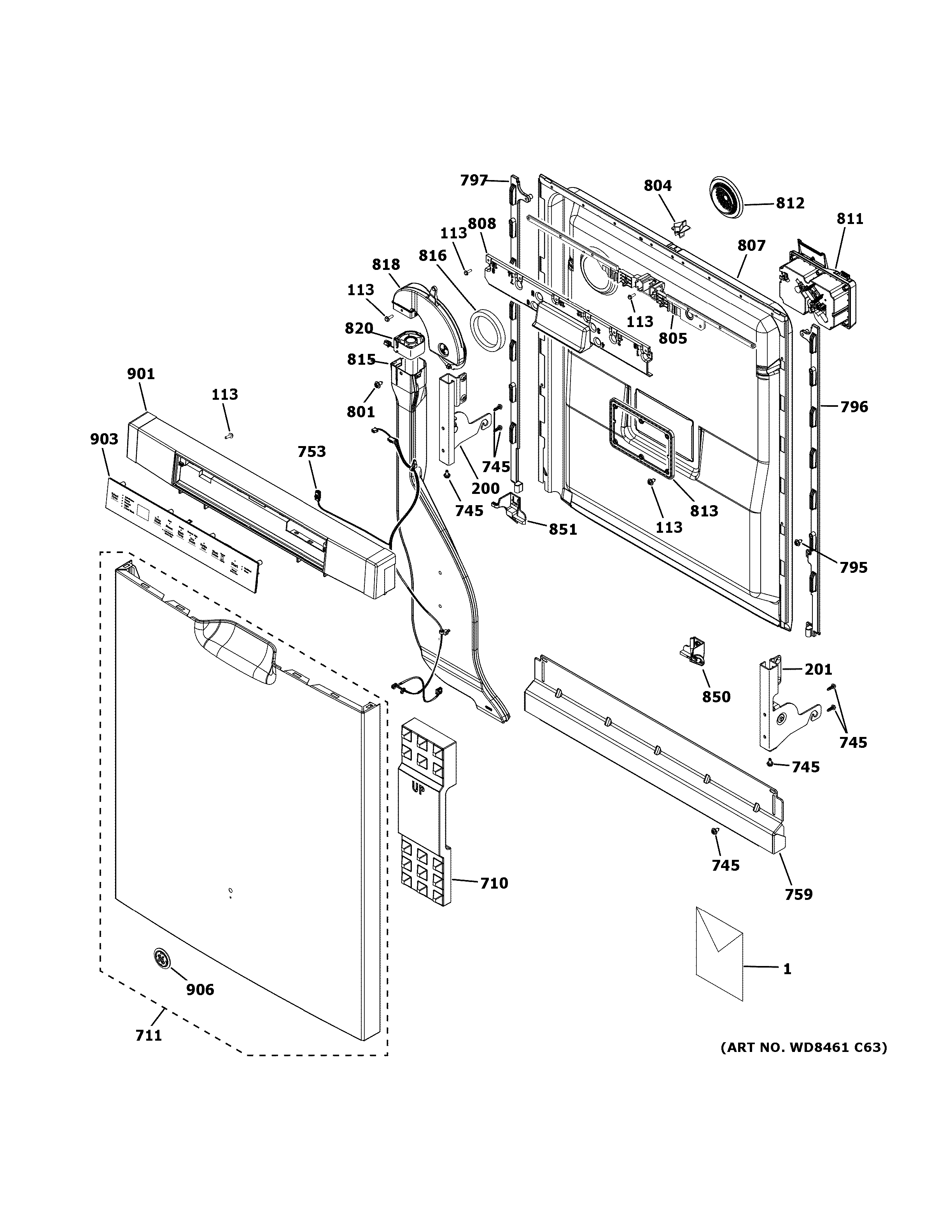

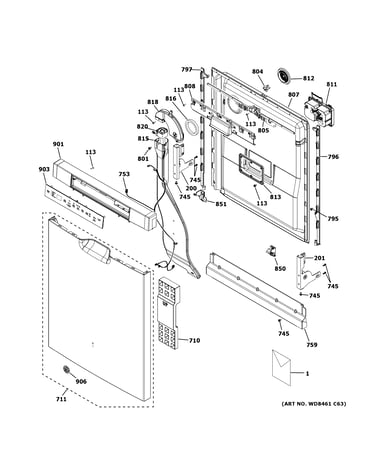

Escutcheon & door assembly Diagram

Dishwasher vent bezel

Part #WD24X20586
This item is not returnable

$2.53

In Stock

Dishwasher Detergent Dispenser

#811

Escutcheon & door assembly Diagram

$31.96

In Stock

Dishwasher Screw

#113

Escutcheon & door assembly Diagram

Dishwasher screw

Part #WD02X10067
This item is not returnable

$2.58

In Stock

Dishwasher Dishrack Roller Cover

#702

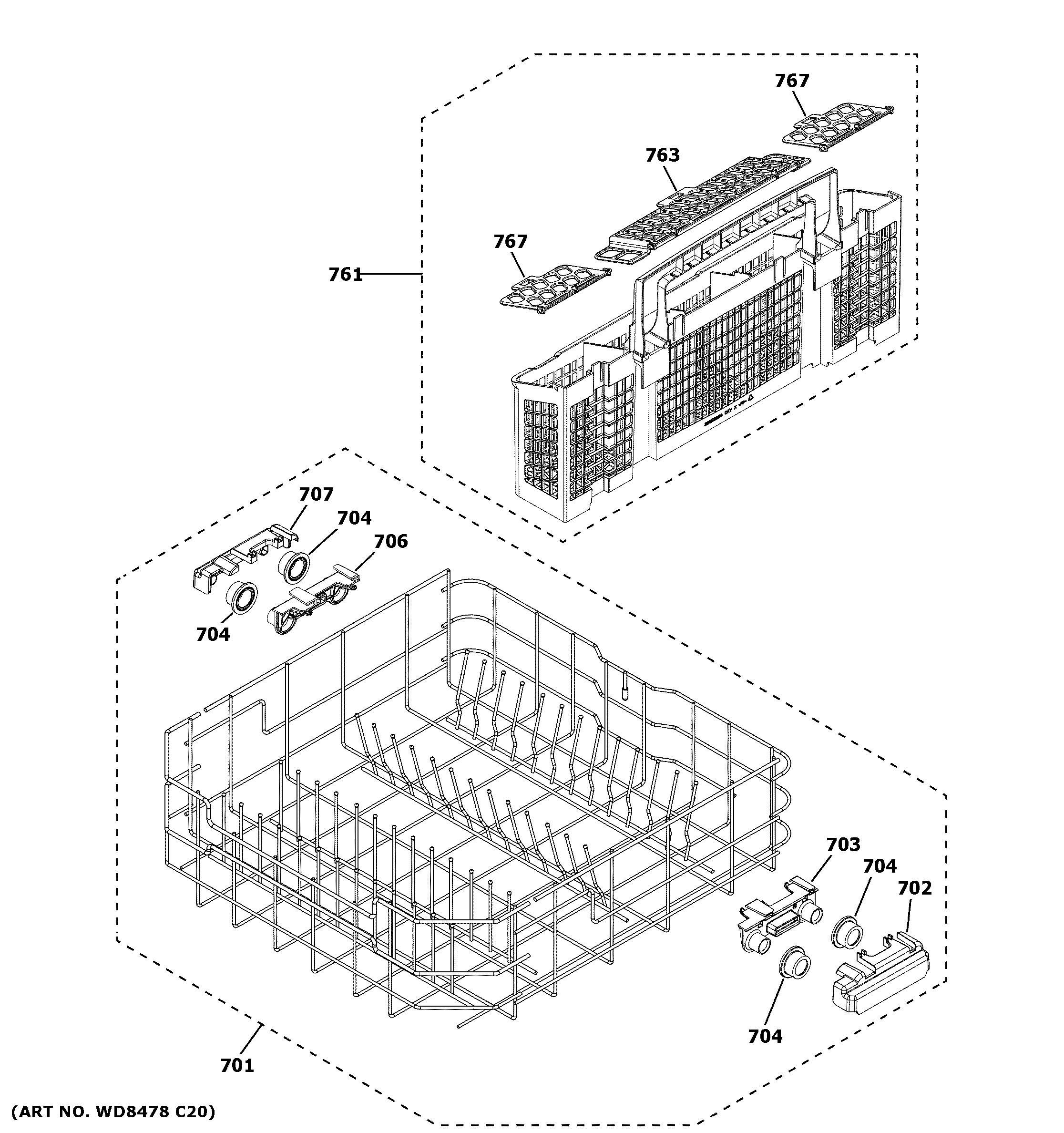

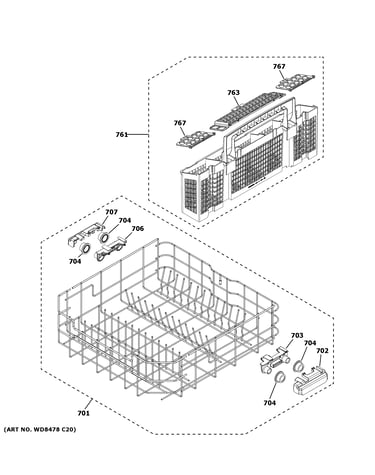

Lower rack assembly Diagram

Dishwasher dishrack roller cover

Part #WD12X10438
This item is not returnable

$6.83

In Stock

Dishwasher Upper Spray Arm Manifold

#632

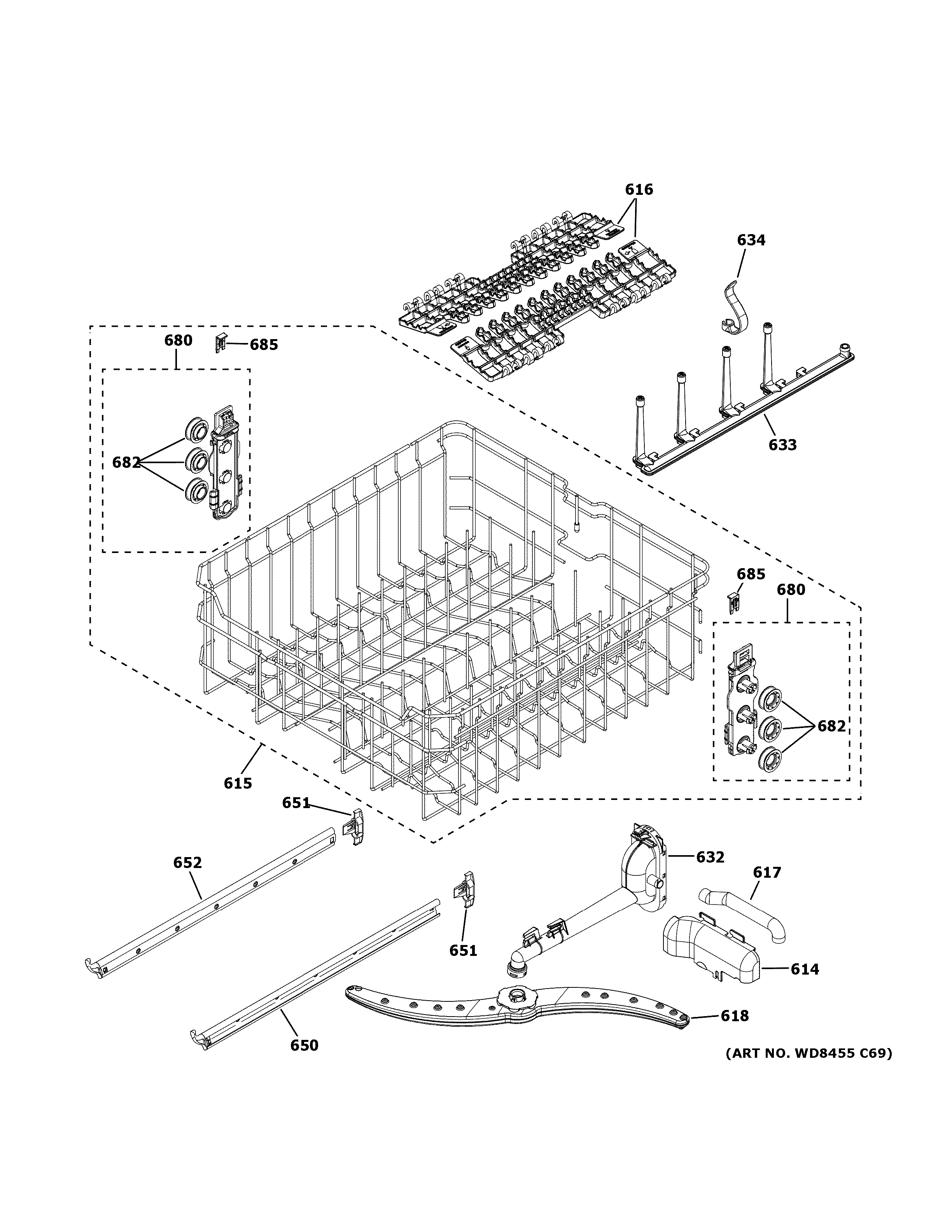

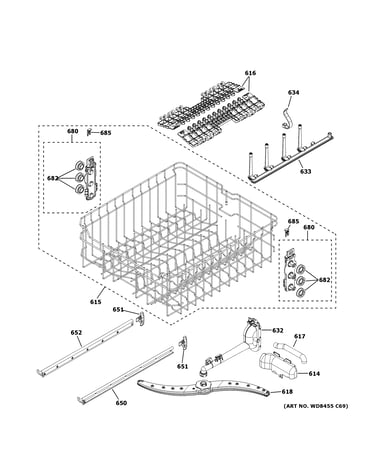

Upper rack assembly Diagram

$23.65

In Stock

Dishwasher Silverware Basket

#761

Lower rack assembly Diagram

$19.34

In Stock

Dishwasher Screw, B-16 x 1/2-in

#159

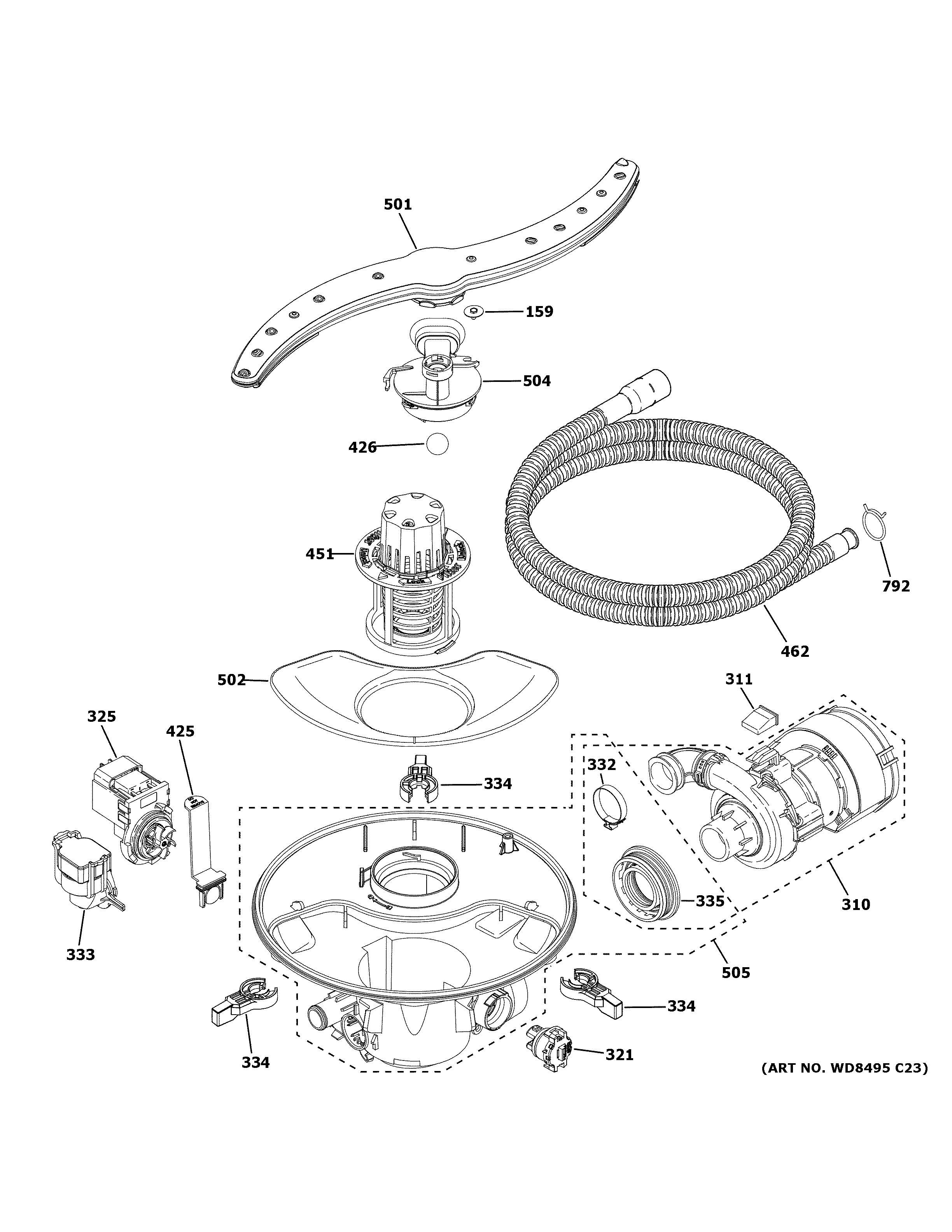

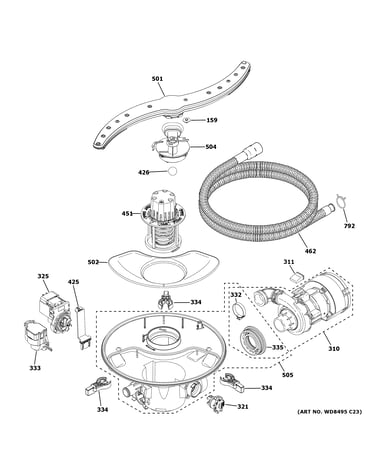

Motor, sump & filter assembly Diagram

Dishwasher screw, b-16 x 1/2-in

Part #WD02X10169
This item is not returnable

$2.90

In Stock

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main cause: damaged rack height adjuster
Main causes: broken door spring, detergent dispenser failure, cabinet mounting brackets loose or broken
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm or pump problems

Repair guides common to all dishwashers

These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.

October 1, 2016
By Lyle Weischwill
How to replace a dishwasher vent and fan assembly

If the control panel goes blank, the fan could be to blame. Replace the vent and fan assembly using these steps.

Repair difficulty
Time required
 30 minutes or less
How to replace a dishwasher circulation pump and motor assembly

When the spray arm won’t spray, you might need to replace the circulation pump and motor assembly. Here's how.

Repair difficulty
Time required
 30 minutes or less
October 1, 2016
By Lyle Weischwill
How to replace a dishwasher water inlet valve

If your dishwasher fills constantly or won't fill at all, the water inlet valve has failed. You can replace it in about half an hour.

Repair difficulty
Time required
 30 minutes or less
