On a Kenmore Elite dryer model 11096762701, a blown thermal fuse commonly shows up as a dryer that will not start, or a dryer that runs but has no heat. The sure way to confirm is a continuity test with a multimeter after disconnecting power (and gas, if applicable). See the 11096762701 owner's manual for model-specific troubleshooting steps.

Quick symptoms to look for

• Dryer will not run even though the door is closed and Start is pressed
• Drum turns but there is no heat (some heating problems can also be power-supply related)
• Dryer stops mid-cycle and then will not restart until it cools
• You recently had restricted airflow (kinked vent, clogged lint buildup)

How we test the thermal fuse (basic continuity check)

1. Unplug the dryer (and shut off gas if your model is gas).
2. Access the thermal fuse (location varies by design; many are on the blower housing).
3. Remove at least one wire from the fuse terminal.
4. Set a multimeter to continuity or lowest ohms.
5. Touch probes to the fuse terminals.

Interpreting the meter reading

Meter result	What it means	Next step
Beep or near 0 ohms	Fuse is good	Keep troubleshooting heat or no-start causes
No beep or OL/infinite	Fuse is blown	Replace the fuse and correct the airflow issue

Why it matters (and what to check next)

A thermal fuse usually blows because the dryer overheated, most often from poor venting. The manual also notes that a tripped breaker or blown household fuse can cause no heat even while the drum turns, so we check power and airflow together.

• Confirm the vent is not crushed or kinked
• Clean the lint screen and inspect the exhaust ducting
• Check household fuses/breaker (especially for “no heat” complaints)
• If it is a gas dryer, confirm the gas supply valve is open

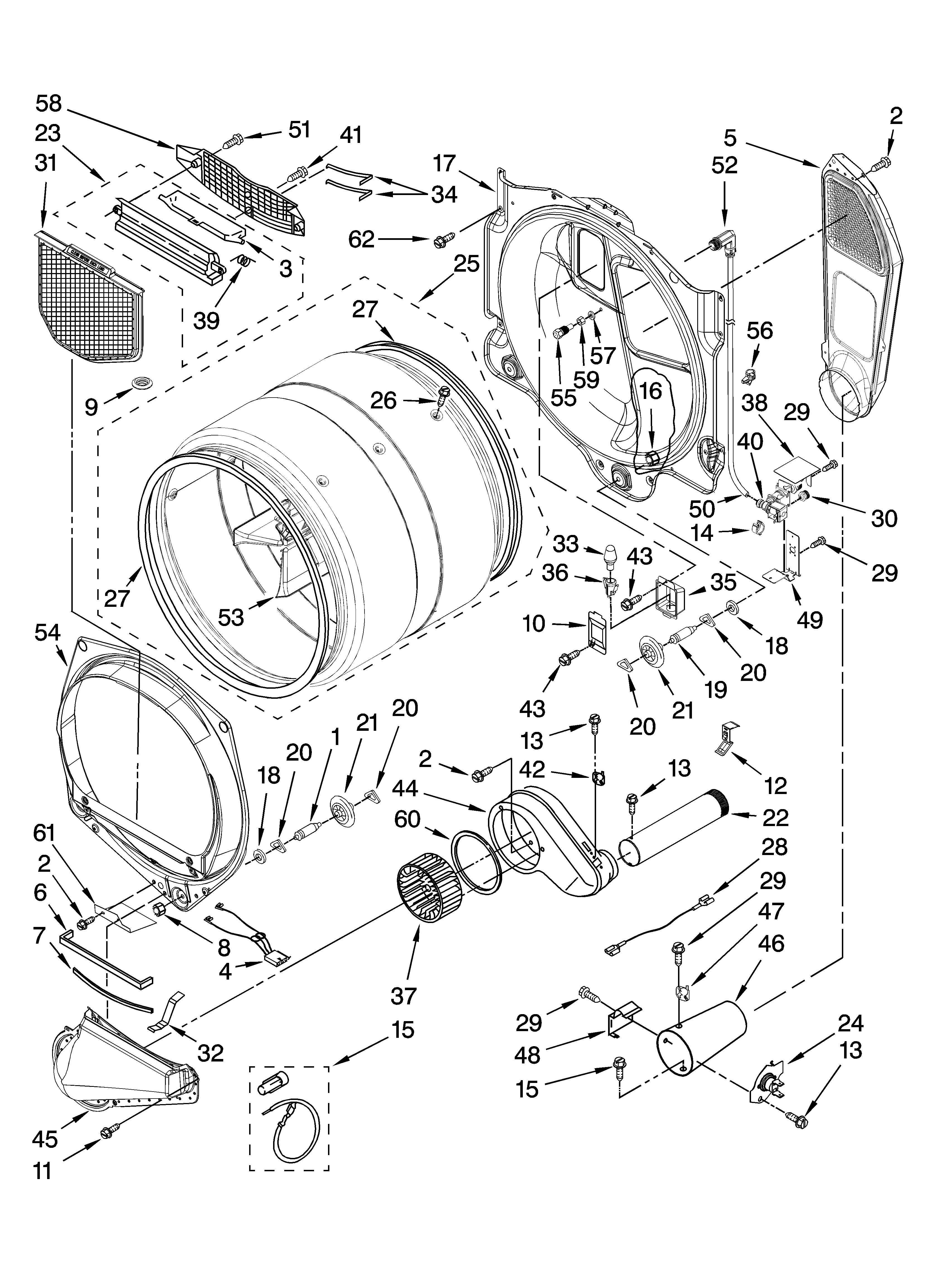

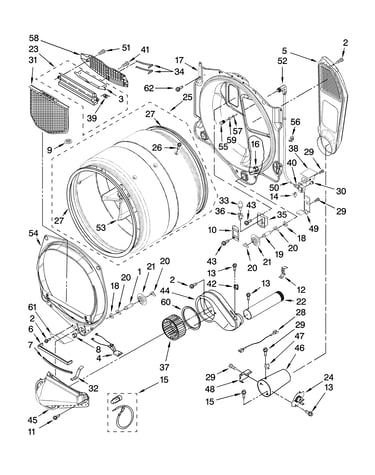

Related parts that often come up during overheating or airflow repairs

If you find airflow restrictions or weak air movement, these model-compatible parts are commonly involved:

• Duct lint WPW10128606 (lint duct path component)
• Dryer blower wheel WP697772 (moves air through the dryer)
• Screen W10120998 (lint screen)

Last updated: February 2026

For a Kenmore Elite dryer like model 11096762701, replacing the heating system typically runs about $100 to $350 total when you include parts and professional labor. If you do the repair yourself, the part cost is commonly $20 to $100+, depending on whether you buy the heater only or a complete assembly.

Typical cost breakdown

• DIY parts only: ~$20 to $100+ (sometimes more for complete assemblies)
• Service call and labor: often ~$80 to $200+
• Total installed cost: commonly ~$100 to $350
• Extra costs to plan for: vent cleaning, clamps/foil tape, or additional worn parts found during teardown

Scenario	What you pay for	Typical total
DIY replacement	Part only	$20 to $100+
Pro repair (best case)	Part + labor	$100 to $200
Pro repair (more involved)	Part + labor + extra parts	$200 to $350+

What changes the price the most

• Dryer type: Electric dryers use a heating element; gas dryers heat with an igniter and gas valve coils, so the “heating element” cost range does not apply the same way.
• What failed: A no-heat complaint can be caused by airflow restriction, a thermal fuse/thermostat, a thermistor, or a burner ignition issue.
• Bundled kits vs single parts: Kits cost more up front but can prevent repeat tear-downs.

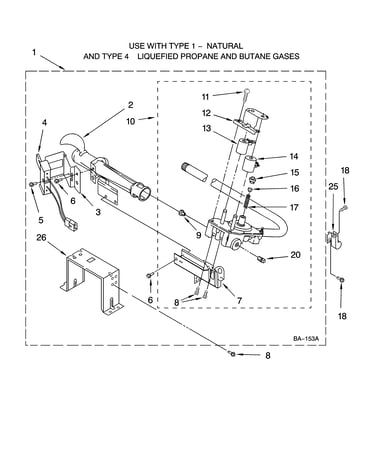

Parts that are commonly involved in “no heat” repairs

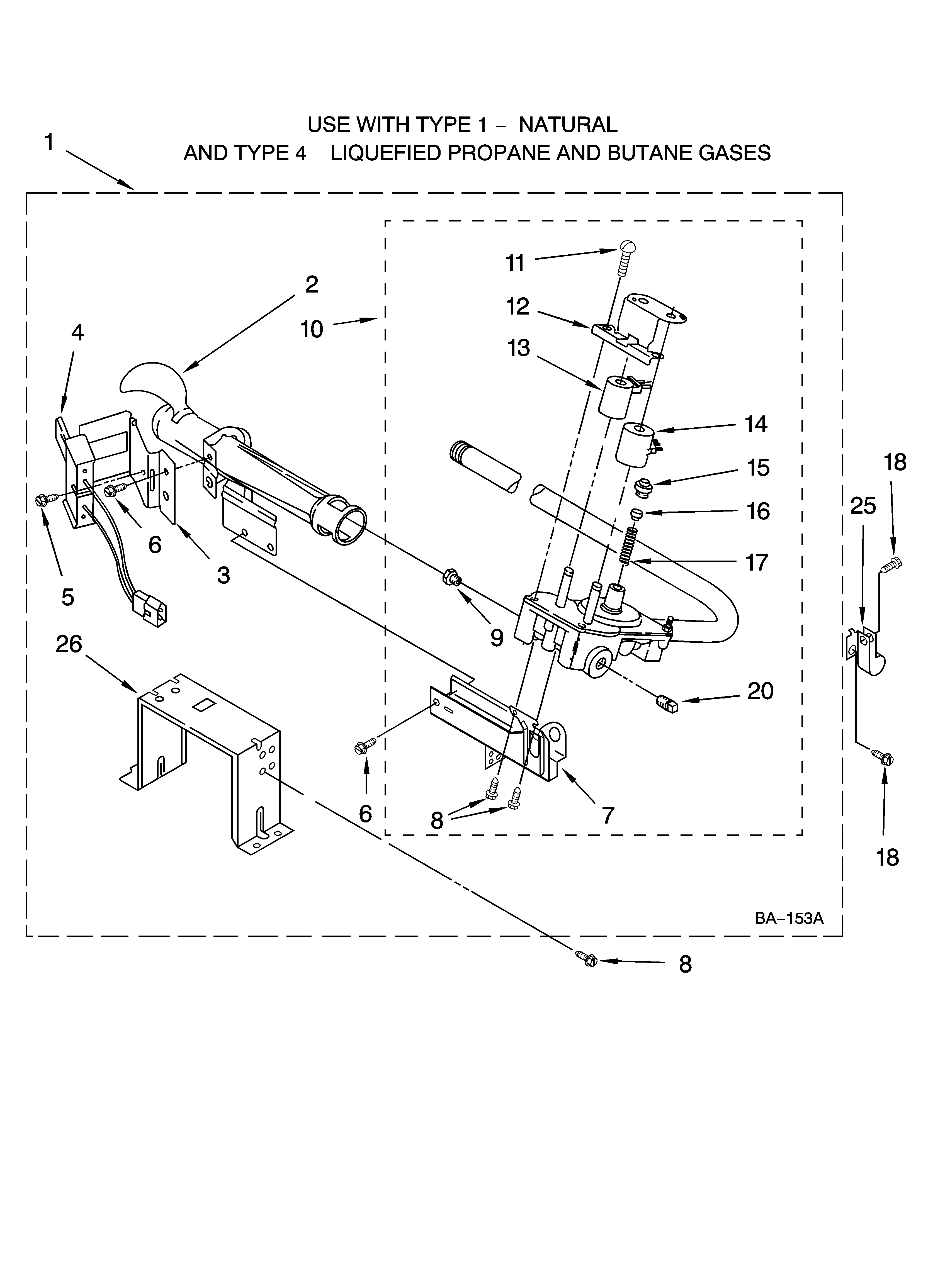

If your 11096762701 is gas and won’t heat, these are frequent suspects:

• Igniter 279311
• Dryer gas valve coil kit 279834
• Dryer thermistor WP8577274

Why it matters

A dryer that “won’t heat” is often a system problem (heat source plus airflow). Fixing the wrong part can leave clothes still damp and can overheat the dryer if the vent is restricted.

Where to confirm the correct procedure for your model

We recommend following the disassembly, operation, and troubleshooting guidance in the 11096762701 owner's manual so you match the repair steps and safety checks to your exact Kenmore Elite dryer.

Last updated: February 2026

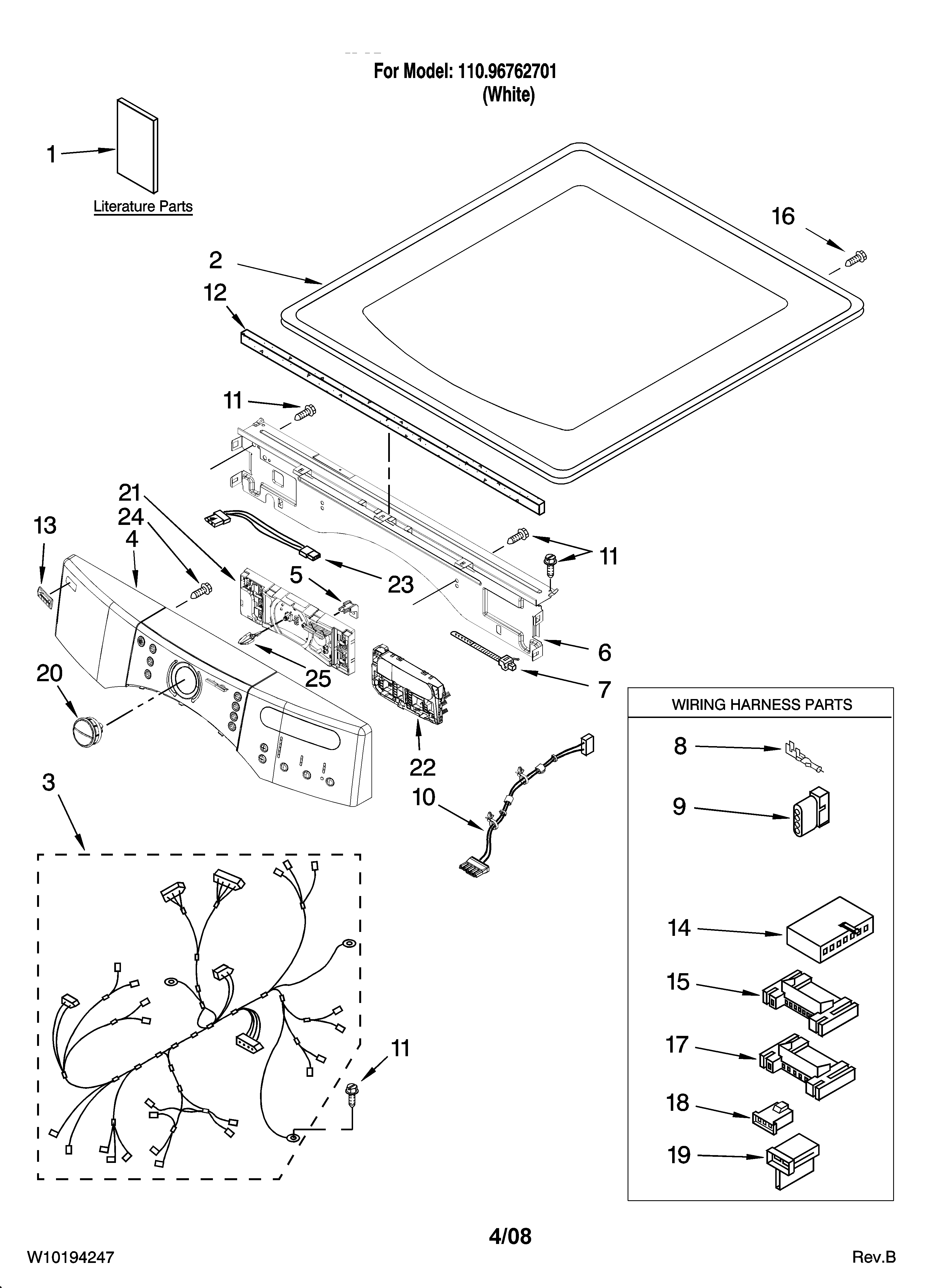

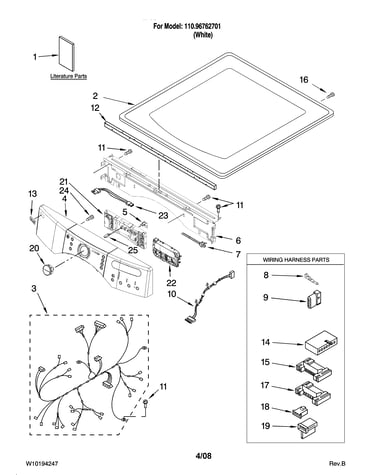

To hard reset your Kenmore Elite dryer model 11096762701, unplug the power cord (or switch the breaker off) for 1 minute, then restore power and try a cycle. If the control is acting “stuck,” you can also clear the current cycle by pressing STOP twice, then selecting a new cycle and pressing and holding START. See the 11096762701 owner's manual for the exact button behavior on your control panel.

Quick reset options (from easiest to most effective)

• Power reset: Unplug for 1 minute, then plug back in.
• Cycle clear: Press STOP twice to end the current cycle and clear settings.
• Restart properly: Close the door, then press and hold START for about 3 seconds.
• Control lock check: If controls do not respond, press and hold CYCLE SIGNAL for 3 seconds to toggle Control Locked.
• Auto shutoff note: If you do not press START within about 5 minutes after choosing a cycle, the dryer shuts off and you must reselect settings.

If the dryer still will not run after a reset

A reset helps when the electronic control needs a fresh start; it will not fix a failed door switch, airflow restriction, or worn drive system.

Common next checks:

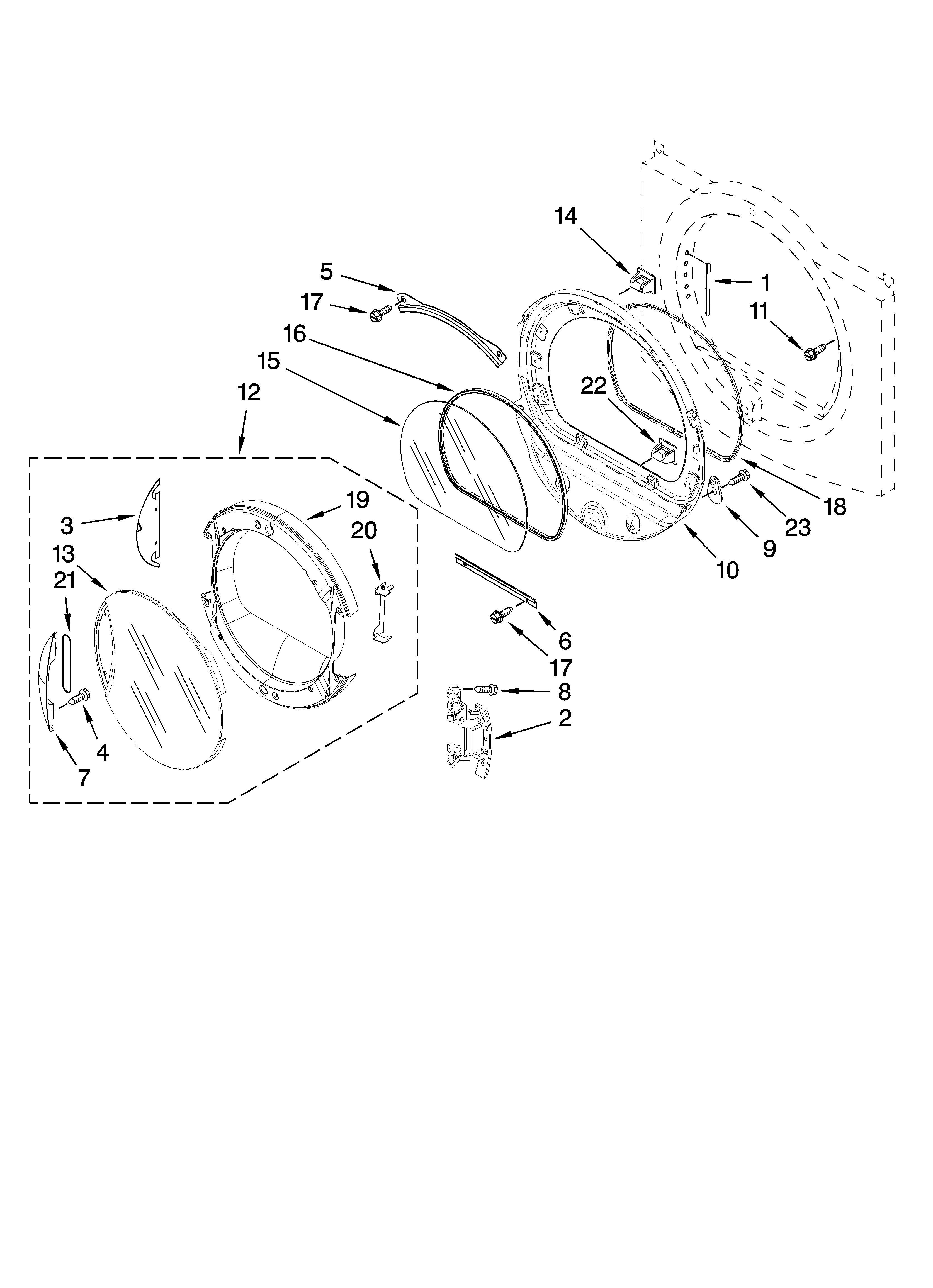

• Confirm the door fully closes and the latch engages.
• Clean the lint screen and verify strong airflow at the outside vent.
• Listen for drum movement; squealing or thumping points to rollers or the idler.
• If the drum turns but drying is poor, check for lint buildup in the blower housing and ducting.

Parts that commonly relate to “won’t start” or “no tumble” symptoms

Symptom	What it often points to	Example part for this model
Drum will not turn, motor hums	Belt/idler/roller drag	Dryer idler pulley 279640
Loud rumble or thump	Worn drum rollers	Support WPW10314173
Weak airflow, longer dry times	Blower wheel or lint duct restriction	Dryer blower wheel WP697772

Why it matters

Resetting clears a stuck cycle state and restores normal control operation, but repeated “needs a reset” behavior usually means an underlying issue (airflow restriction, failing drive components, or a control lock setting) that should be corrected to prevent overheating and poor drying.

Last updated: February 2026

Common problems on the Kenmore Elite dryer model 11096762701 include no heat, long dry times, the dryer not starting, the drum not turning, and squealing or thumping noises. Most issues trace back to airflow restrictions (lint and venting), power supply problems, or normal wear on drum support and drive components; see the 11096762701 owner's manual for model-specific troubleshooting steps.

Most common symptoms and what usually causes them

• Dryer will not run: tripped breaker, blown fuse, door not fully latched, Start button not held long enough
• No heat (drum turns but clothes stay wet): tripped breaker or blown fuse, gas supply valve closed (gas models), failed ignition or sensor parts
• Long drying times: clogged lint screen, crushed or blocked venting, restricted exhaust airflow
• Drum not turning: worn belt, failed motor, seized rollers or idler pulley
• Loud noises (squeal, rumble, thump): worn drum rollers, idler pulley, blower wheel, or drum seals

Quick checks we recommend before replacing parts

1. Confirm power: the manual notes the dryer may run but not heat if a breaker trips; reset the breaker and re-test.

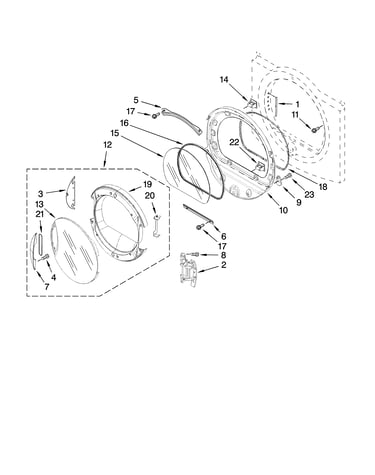

2. Check the door latch: if the door is not firmly closed, the control can beep and the cycle will not start.
3. Clean airflow path: clean the lint screen and inspect the vent for crushing or blockage.
4. Listen and observe: note whether the igniter glows (gas), whether the drum turns, and when the noise happens.

Parts that commonly fix these problems (when symptoms match)

Symptom	Common wear item	Example part for this model
Squealing/rumbling	Drum support roller	Support WPW10314173
Thumping/squealing, drum hard to turn	Idler pulley	Dryer idler pulley 279640
No heat on gas dryer (intermittent)	Gas valve coils	Dryer gas valve coil kit 279834
Poor temperature control, shuts off early	Thermistor	Dryer thermistor WP8577274

Why it matters

Airflow and heat problems can make loads take much longer to dry and can overwork the motor, rollers, and blower wheel. Catching a blocked vent or a failing roller early helps prevent bigger repairs and keeps drying performance consistent.

Last updated: February 2026

On Kenmore Elite dryer model 11096762701, the AF code means the dryer is sensing restricted airflow; the vent may be crushed, kinked, or blocked, which can cause long dry times and overheating. Follow the venting checks in the 11096762701 owner's manual.

What to check first (fast fixes)

• Clean the lint screen completely; wash it with warm water if you use dryer sheets.
• Make sure the exterior vent hood opens freely when the dryer runs.
• Inspect the vent hose behind the dryer for kinks, crushing, or a sag that traps lint.
• Clear lint buildup from the wall duct and the full vent run to the outside.
• Try a timed heated cycle for 10 to 15 minutes; airflow should feel strong at the outside hood.

Why AF happens

AF is triggered when the control detects poor air movement through the exhaust system. Even if the dryer heats, restricted venting can keep moisture from leaving the drum efficiently.

Common symptoms and likely causes

Symptom	Most common cause	What to do
Clothes take too long to dry	Vent restriction	Clean and shorten vent run where possible
Dryer feels hotter than normal	Blocked vent or lint buildup	Stop using dryer until venting is cleared
AF comes and goes	Intermittent flap blockage or crushed flex vent	Replace damaged vent and verify hood flap movement

When a part may be involved

If venting is clear and AF persists, the dryer may not be moving air well.

• A damaged blower can reduce airflow; inspect the dryer blower wheel WP697772 for cracks, looseness, or lint packing.
• Lint buildup inside the cabinet can also restrict airflow; use the cleaning steps in the manual.

Why it matters

Restricted airflow is the #1 cause of poor drying performance; it also increases heat stress on components like the thermistor and gas burner system.

Last updated: February 2026

On Kenmore Elite model 11096762701, the model number is printed on the model and serial number label attached to the dryer cabinet. You typically find it in the door opening area (around the door frame) where it is easy to read when the door is open; confirm the exact label location in the 11096762701 owner's manual.

Where to look first

Check these common label locations on Kenmore Elite dryers:

• Inside the dryer door opening on the cabinet frame (top, left, or right side)
• On the back panel of the dryer cabinet
• Along the door’s inner edge or the door frame area
• Near the lint screen housing area (depending on configuration)

What the label looks like (and what to copy)

The label usually includes multiple identifiers. Copy these exactly:

• Model number (example format: 110.9676###)
• Serial number
• Gas/electrical rating information (helpful for service and parts matching)

Item on label	Why it matters

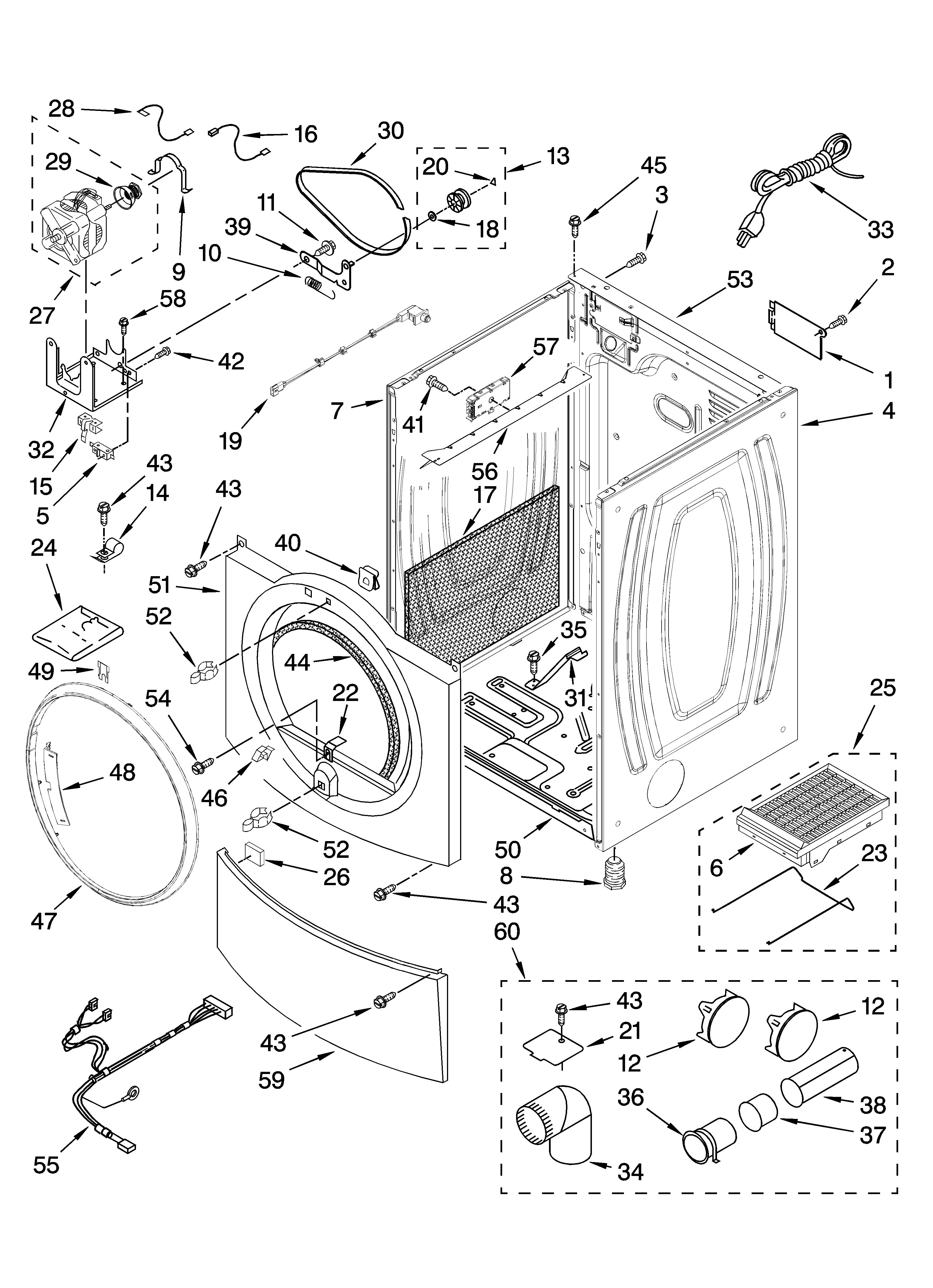

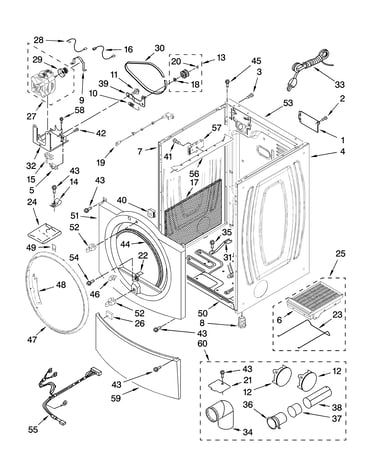

Model number	Ensures we match the correct Kenmore Elite dryer parts diagram
Serial number	Helps confirm production details when parts vary by revision
Type (gas/electric)	Prevents ordering the wrong heating or ignition parts

Why it matters

We use the model number to pull the correct parts list for your exact dryer. Even small model-number differences can change which drum support roller, idler pulley, or sensor fits.

Quick tip if the label is hard to read

• Wipe the label gently with a damp cloth and mild soap
• Use a flashlight at an angle to reduce glare
• Take a close-up photo and zoom in
