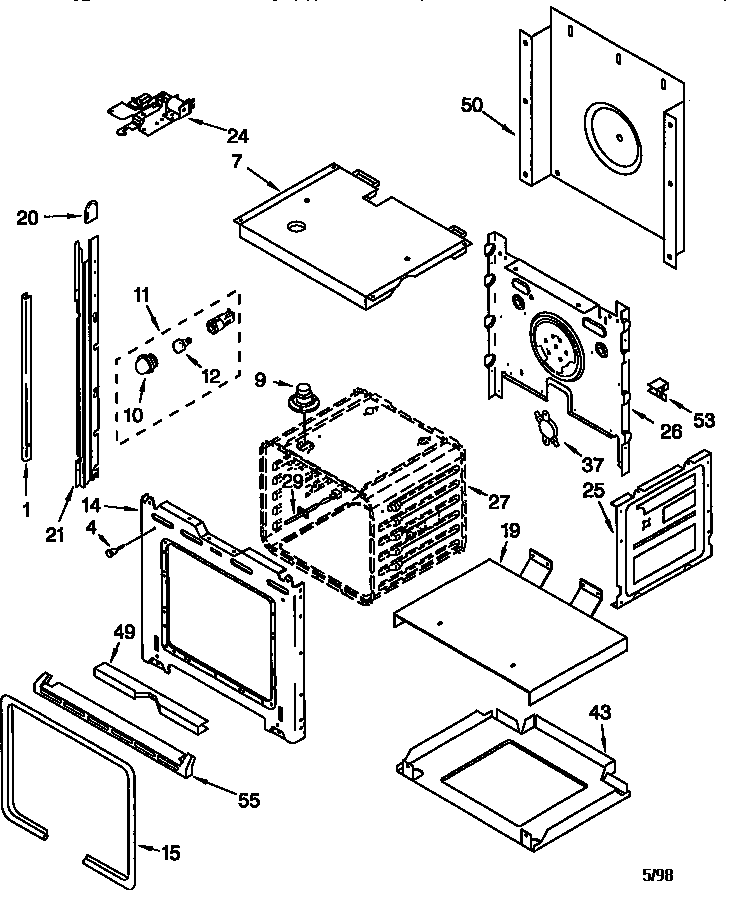

Whirlpool RBS305PDB6 electric wall oven Parts

To hard reset your Whirlpool RBS305PDB6 electric wall oven, turn the oven off, shut off power at the circuit breaker for about 1 minute, restore power, then start a Bake cycle and watch the display for about 1 minute to confirm normal operation. See the RBS305PDB6 owner's manual.

Reset steps (recommended order)

• Press OFF/CANCEL to stop any active cooking cycle.
• Turn OFF the oven circuit breaker (or breakers) supplying the wall oven.
• Wait 1 minute.
• Turn the breaker(s) ON.
• Set a Bake cycle and let it run for 1 minute.
• If an error returns, press OFF/CANCEL and re-enter the setting.

What you might see after power is restored

The manual notes that when power is first supplied, the display lights briefly and may show “PF” (power failure). Clearing it is part of getting the control back to normal.

Display message	What it means	What to do
PF	Power was interrupted	Press OFF/CANCEL (single oven) to clear and reset the clock if needed
Err	An invalid pad was pressed	Press OFF/CANCEL, then retry the entry
LOC / lock icon	Control Lock is on	Press and hold START/ENTER about 5 seconds to unlock

Why it matters

A breaker reset clears many temporary electronic control glitches after a power interruption and helps confirm whether the issue is a one-time control hiccup or an ongoing problem that needs troubleshooting.

If the oven still will not run after a reset

• Confirm the breaker is fully seated ON (some breakers look on but are tripped).
• Make sure Control Lock is not enabled.
• Check for signs of overheating protection; a failed high-limit device can stop heating.
• If you suspect overheating or repeated shutdowns, inspect and test the range high-limit thermostat WP9759243.
• For parts ordering by model number, use the parts list for RBS305PDB6 or search on Sears PartsDirect.

Last updated: February 2026

If your Whirlpool RBS305PDB6 electric wall oven suddenly won’t power on or respond, the most common causes are a tripped breaker or blown house fuse, control settings that prevent operation (Delay Start, Control Lock, Sabbath Mode), or a heat related safety shutdown. Start with the quick checks in the owner's manual.

Quick checks we recommend first

• Reset the circuit breaker (or replace the house fuse) supplying the oven.
• Confirm the oven is wired properly and the power connection is secure (installation issues can stop operation).
• Cancel Delay Start or any timed cooking setting.
• Turn off Control Lock (some models) and Sabbath Mode (some models).
• If you have a double oven setup, make sure the correct oven is selected and neither oven is in Self-Clean.
• Power reset: turn the breaker off for 2 to 5 minutes, then restore power.

What the display is telling you

If the display shows an “F” code (an “F” followed by a number), that points to a control or sensing fault rather than a simple setting issue. Use the troubleshooting section in the owner's manual to match symptoms and decide what to test next.

What you see	What it usually means	What to do next
No lights, no beeps	No power to oven	Check breaker, wiring, terminal connections
Display on, won’t start	Setting or lockout	Cancel Delay Start, disable Control Lock/Sabbath
“F” plus a number	Fault detected	Follow troubleshooting steps; test related circuits

Parts that can be involved (when power is present)

If the oven has power but stops after heating or acts dead after getting hot, a safety device can be involved. One common part in this category is the range high-limit thermostat WP9759243.

Why it matters

An oven that “suddenly” quits is often a power supply interruption or a control lockout. Checking those first prevents unnecessary part replacement and gets you back to baking or broiling faster.

For replacement parts specific to RBS305PDB6, use the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most Whirlpool electric wall ovens like model RBS305PDB6 last 15 years with normal household use. Consistent cleaning, avoiding overheating events, and fixing heat or door-seal problems early helps you reach that full service life. For care and operating guidance, use the RBS305PDB6 owner's manual.

Typical lifespan and what affects it

A wall oven’s life is mostly driven by heat stress and how well it can hold temperature.

• Usage frequency: daily baking and broiling shortens life compared to occasional use
• Self-cleaning frequency: very high heat cycles add wear to wiring, insulation, and controls
• Door seal condition: heat leaks force longer run times and higher internal temperatures
• Electrical health: loose connections can overheat and damage components
• Maintenance habits: keeping spills and grease under control reduces smoke and heat damage

What “15 years” looks like in practice

Here is a practical way to think about replacement timing for a Whirlpool wall oven.

Oven age	What we typically see	What to do next
0 to 7 years	Minor wear items, light bulbs, occasional adjustments	Keep it clean; replace small parts as needed
8 to 15 years	More frequent heating or door issues	Repair key items early to prevent bigger failures
16+ years	Higher chance of repeated repairs	Compare repair cost vs. replacement

Parts that commonly extend oven life

When performance drops, replacing the right part often restores normal heating and reduces strain on the oven.

• If broil is weak or uneven, consider the broiler element WP9760767
• If bake is slow or uneven, consider the bake element WPW10207397
• If the oven overheats or shuts down from heat, check the range high-limit thermostat WP9759243

You can order model-matched replacement parts from the parts list for RBS305PDB6, or search by model number on Sears PartsDirect.

Why it matters

A wall oven that struggles to hold temperature runs longer and hotter, which accelerates wear on elements, wiring, and safety controls. Addressing heating and door-seal issues early helps the oven cook more evenly and last its full expected lifespan.

Last updated: February 2026

Yes. Whirlpool wall ovens like the RBS305PDB6 are a solid choice for most kitchens because they are built for everyday reliability, have widely available replacement parts, and are supported by clear operating and installation instructions in the RBS305PDB6 owner's manual.

What “good” means for a wall oven

A good electric wall oven consistently heats, holds temperature, and has serviceable components (heating elements, door parts, and electrical connections) that can be replaced when they wear out.

Common strengths we see with Whirlpool wall ovens:

• Consistent baking performance when the bake element and temperature sensor are working correctly
• Straightforward serviceability (many parts are accessible from the rear or inside the oven cavity)
• Strong parts availability for core wear items like heating elements and door hardware
• Clear model identification (the model/serial plate is typically on the oven door or frame)

Quick reliability checklist (what to watch for)

If you are evaluating a Whirlpool wall oven or troubleshooting one you already own, these are the most common “make-or-break” items:

• Even baking: no hot spots, no underbaked centers
• Broil performance: element glows and cycles normally
• Door seal: no heat leaking around the door, no torn gasket
• Electrical connections: no burning smell, no loose terminal connections
• Overheat protection: oven does not shut down unexpectedly from overheating

Parts that often solve common complaints

When performance issues show up, these model-compatible parts are frequently involved:

Symptom	Common cause	Example part for RBS305PDB6
Slow preheat or uneven baking	Weak bake element	Bake element WPW10207397
Poor broiling	Weak broiler element	Broiler element WP9760767
Oven shuts off or overheats	High-limit thermostat opening	Range high-limit thermostat WP9759243

Why it matters

A wall oven is a long-term appliance; choosing a brand with dependable core components and readily available parts reduces downtime and keeps repair costs predictable. For the RBS305PDB6, having common service parts available makes ownership easier over the life of the oven.

For replacement parts and diagrams for your Whirlpool RBS305PDB6, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

For your Whirlpool RBS305PDB6 electric wall oven, the model number is printed on the model and serial plate located on the oven door or on the oven frame. Use that exact model number when ordering parts or checking wiring diagrams in the owner's manual.

Where to look on the oven

Check these common locations on Whirlpool built-in ovens:

• Open the oven door and look along the door frame (front frame of the oven)
• Check the edge of the oven door itself
• Look for a sticker or metal tag labeled “Model” and “Serial”
• Wipe the area with a damp cloth if grease makes the label hard to read
• Write the model number exactly as shown (letters and numbers)

What the model number helps you do

Having the correct model number (like RBS305PDB6) ensures you get the right fit and electrical match for parts such as:

• Bake element WPW10207397
• Broiler element WP9760767
• Terminal block WP8203546
• Oven light WPW10734065

Quick check: model vs. serial

Label item	What it tells you	Why it matters
Model number	The exact oven design and parts list	Prevents ordering the wrong part
Serial number	Production code and build details	Helps with age and service history

Why it matters

Wall ovens often look similar across model families (RBS245, RBS275, RBS305, etc.), but heating elements, door parts, and wiring connections can differ. Matching parts to RBS305PDB6 avoids installation problems and repeat repairs.

Ordering tip

We recommend ordering replacement parts from the parts list for RBS305PDB6 on this page; for additional model lookups and parts searches, use Sears PartsDirect.

Last updated: February 2026
