Model #1106808900 Kenmore electric dryer

Here are the diagrams and repair parts for Kenmore 1106808900 electric dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 205 parts

Washer Lid Bumper

#98

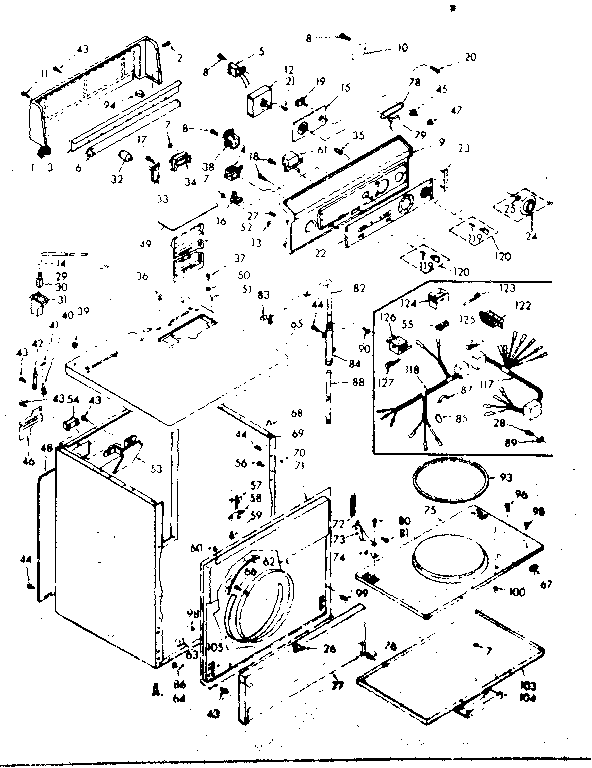

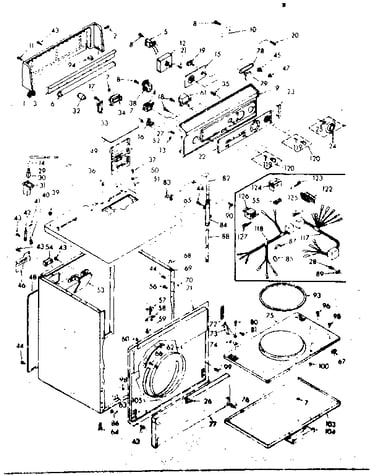

Machine sub-assembly Diagram

Washer lid bumper

Part #238614
$29.06 |
43% OFF MSRP:$51.00

In Stock

Hinge Pad

#41

Machine sub-assembly Diagram

Hinge pad

Part #18849
$12.49

In Stock

Thread-Cutting Screw

#28

Machine sub-assembly Diagram

Thread-cutting screw

Part #STD601005
?
Manufacturer substitution
This part replaces 98242. Substitute parts can look different from the original.
This part replaces 98242
This item is not returnable
$2.54

In Stock

Dryer Screw, #6-20 x 1.25-in

#59

Machine sub-assembly Diagram

Dryer screw, #6-20 x 1.25-in

Part #WP98129
?
Manufacturer substitution
This part replaces 98129. Substitute parts can look different from the original.
This part replaces 98129
This item is not returnable
$2.97 |
10% OFF MSRP:$3.29

In Stock

Screw

#8

Machine sub-assembly Diagram

Screw

Part #98209

The manufacturer no longer makes this part, and there's no substitute part

Starter

#32

Machine sub-assembly Diagram

Starter

Part #92751

The manufacturer no longer makes this part, and there's no substitute part

Screw

#80

Machine sub-assembly Diagram

Screw

Part #98518

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw

#5

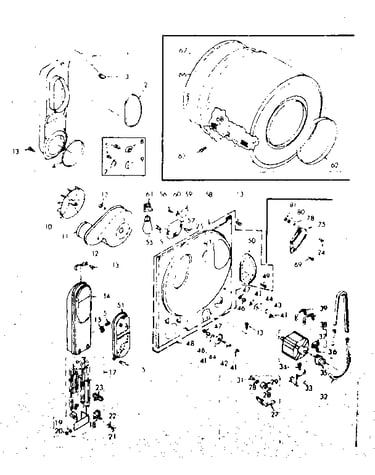

Bulkhead assembly Diagram

Washer screw

Part #WP90767
?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
This part replaces 90767
This item is not returnable
$3.21

In Stock

Thread-Forming Screw, 8-pack

#96

Machine sub-assembly Diagram

Thread-forming screw, 8-pack

Part #STD610805
?
Manufacturer substitution
This part replaces 161859. Substitute parts can look different from the original.
This part replaces 161859
This item is not returnable
$2.55

In Stock

Dryer Motor Bracket Bolt

#34

Bulkhead assembly Diagram

Dryer motor bracket bolt

Part #3400500
?
Manufacturer substitution
This part replaces 172455. Substitute parts can look different from the original.
This part replaces 172455
$10.57 |
15% OFF MSRP:$12.49

In Stock
