Model #DU96CK-20 Magic Chef dishwasher

Here are the repair parts and diagrams for your Magic Chef DU96CK-20 dishwasher.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 129 parts

End Cap Rack

#9

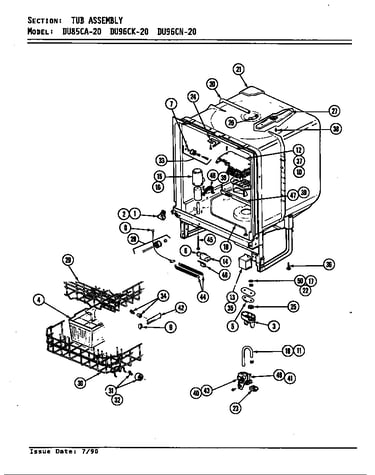

Tub assembly Diagram

End cap rack

Part #2355-0002

$15.99

In Stock

Washer Hose Clamp

#7

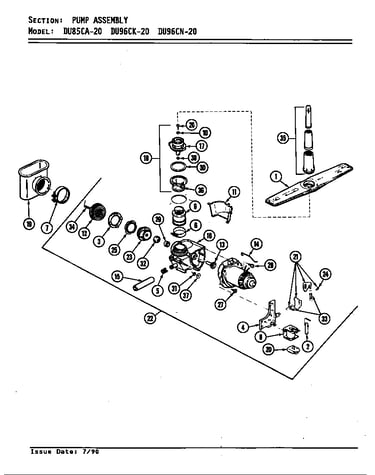

Pump assembly Diagram

Washer hose clamp

Part #WP696392
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  2235-0008
This part replaces 2235-0008
This item is not returnable

$4.29

In Stock

Screw

#25

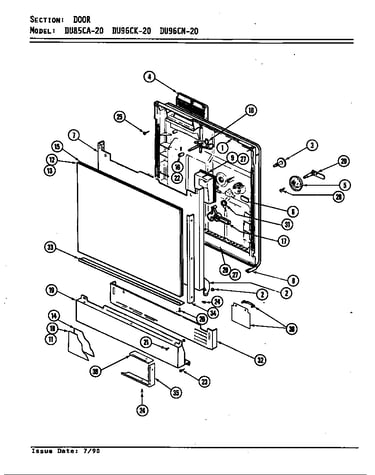

Door Diagram

Screw

Part #910187
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3005-0032
This part replaces 3005-0032
This item is not returnable

$4.99

In Stock

Refrigerator Freezer Door Handle Screw

#23

Door Diagram

Refrigerator freezer door handle screw

Part #61002031
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3005-0033
This part replaces 3005-0033

$24.63

In Stock

Dryer Screw

#40

Tub assembly Diagram

Dryer screw

Part #25-7101
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3005-0046
This part replaces 3005-0046

$12.49

In Stock

Refrigerator Screw

#41

Tub assembly Diagram

Refrigerator screw

Part #WP489483
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3005-0076
This part replaces 3005-0076
This item is not returnable

$7.13

In Stock

Roller

#32

Tub assembly Diagram

Roller

Part #W10882367
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  2955-0008
This part replaces 2955-0008

$106.58

In Stock

Washer Hose Clamp

#6

Pump assembly Diagram

Washer hose clamp

Part #WP696392
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  2235-0007
This part replaces 2235-0007
This item is not returnable

$4.29

In Stock

Dryer Screw

#39

Tub assembly Diagram

Dryer screw

Part #WP3387230
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3005-0027
This part replaces 3005-0027
This item is not returnable

$3.21

In Stock

Lower Access

#19

Door Diagram

Lower access

Part #2800-0022

The manufacturer no longer makes this part, and there's no substitute part
