Model # 358356241 Official Craftsman gas chainsaw

Here are the diagrams and repair parts for Official Craftsman 358356241 gas chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |

Line Kit 530-069247
#4

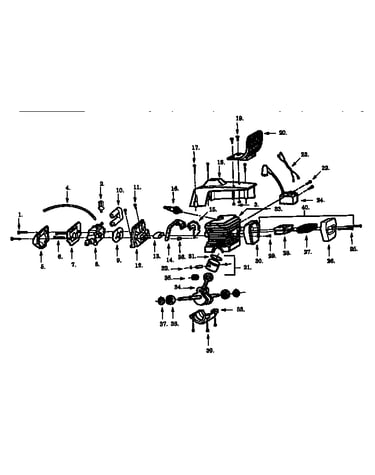

Engine diagram

Line kit

Part #530-069247

Replaced by #530069247

?
Manufacturer substitution
This part replaces 530-069247. Substitute parts can look different from the original.
BEST SELLER
$6.61
13% OFF Phone Price : $7.61
In Stock
Air Filter 530-036141
#5

Engine diagram

Air filter

Part #530-036141

Replaced by #545057701

?
Manufacturer substitution
This part replaces 530-036141. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
In Stock
Drum 530-069315
#19

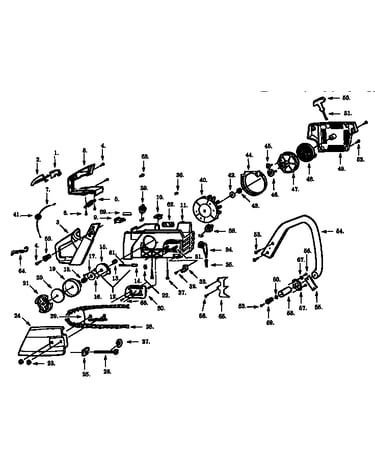

Main frame diagram

Drum

Part #530-069315

Replaced by #530047061

?
Manufacturer substitution
This part replaces 530-069315. Substitute parts can look different from the original.
This item is not returnable
$14.98
12% OFF Phone Price : $16.98
In Stock
Bar 71-36374
#29

Main frame diagram

Bar

Part #71-36374

Replaced by #180SDEA041

?
Manufacturer substitution
This part replaces 71-36374. Substitute parts can look different from the original.
$36.61
20% OFF MSRP : $46.00
In Stock
Carburetor Gasket 530-019172
#9

Engine diagram

Carburetor gasket

Part #530-019172

Replaced by #530019172

?
Manufacturer substitution
This part replaces 530-019172. Substitute parts can look different from the original.
This item is not returnable
In Stock
Diaphragm 530-035166
#4

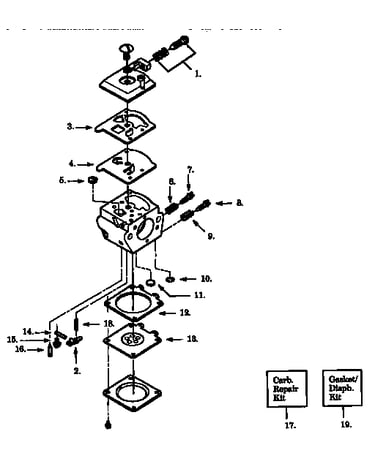

Carburetor diagram

Diaphragm

Part #530-035166

Replaced by #504130807

?
Manufacturer substitution
This part replaces 530-035166. Substitute parts can look different from the original.
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
In Stock
Pump Barrel 530-029834
#14

Main frame diagram

Pump barrel

Part #530-029834

Replaced by #545036801

?
Manufacturer substitution
This part replaces 530-029834. Substitute parts can look different from the original.
This item is not returnable
$16.19
11% OFF Phone Price : $18.19
In Stock
Screw 530-015892
#52

Main frame diagram

Screw

Part #530-015892

Replaced by #530015892

?
Manufacturer substitution
This part replaces 530-015892. Substitute parts can look different from the original.
This item is not returnable
In Stock
Pump Assembly 530-014410
#12

Main frame diagram

Pump assembly

Part #530-014410

Replaced by #545036801

?
Manufacturer substitution
This part replaces 530-014410. Substitute parts can look different from the original.
This item is not returnable
$16.19
11% OFF Phone Price : $18.19
In Stock
Pump Housing 530-029835
#15

Main frame diagram

Pump housing

Part #530-029835

Replaced by #545036801

?
Manufacturer substitution
This part replaces 530-029835. Substitute parts can look different from the original.
This item is not returnable
$16.19
11% OFF Phone Price : $18.19
In Stock
