Craftsman 917255260 36" 8-hp riding lawn tractor with electric start Parts
Here are the diagrams and repair parts for Craftsman 917255260 36" 8-hp riding lawn tractor with electric start, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

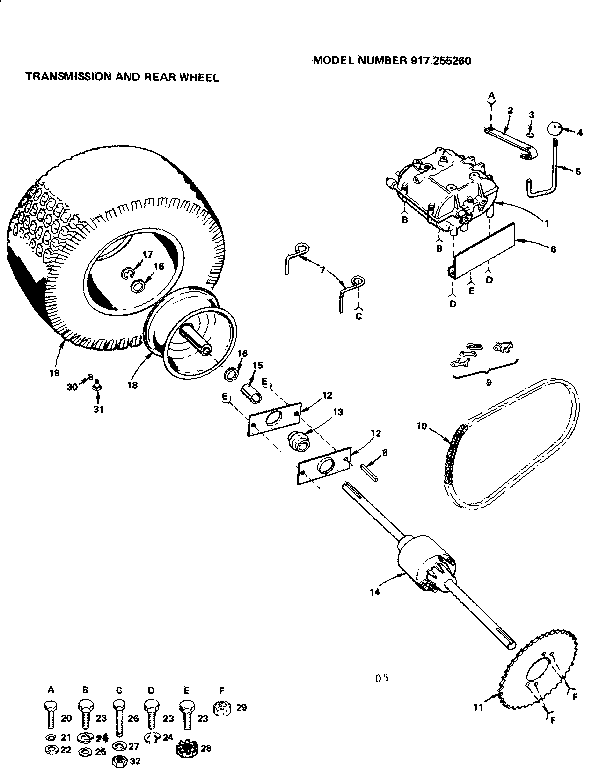

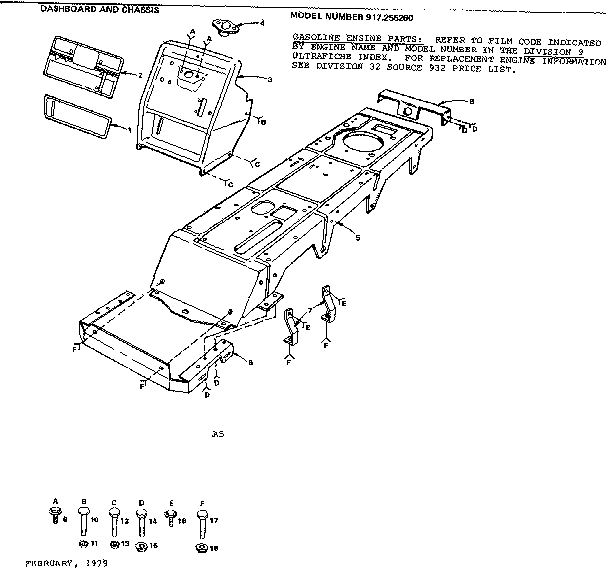

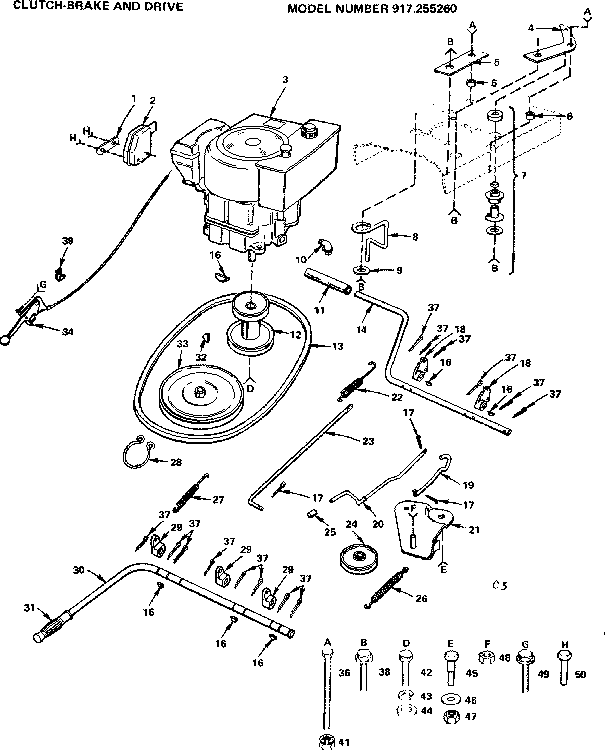

Browse Parts for917255260 Riding Mowers & Tractors

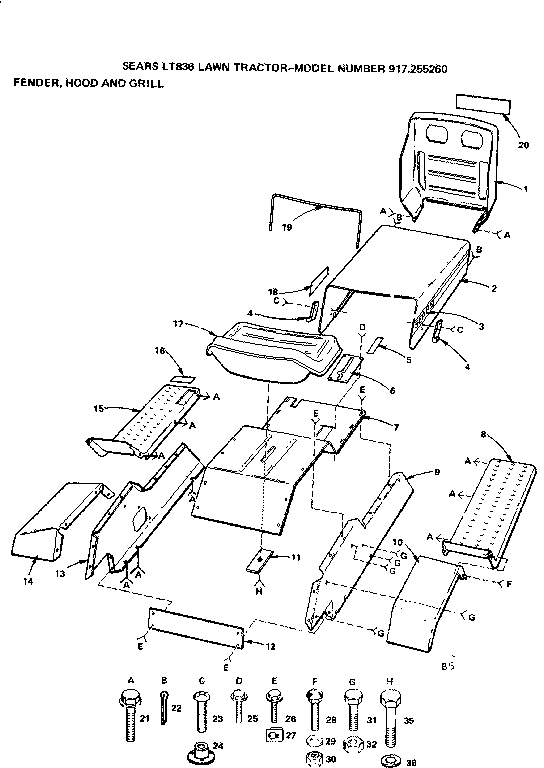

Fender, hood and grill diagram
Hood Latch
Part #8889RReplaced by #532109808
Manufacturer substitutionThis part replaces 8889R. Substitute parts can look different from the original.In Stock$7.3612% OFF Phone Price : $8.36
Qty
Fender, hood and grill diagram
Seat
Part #476JReplaced by #532401042
Manufacturer substitutionThis part replaces 476J. Substitute parts can look different from the original.In Stock$274.07$12.00 OFF Phone Price : $286.07QtyWizard Lawn Tractor Tire Valve Stem
Part #65139
The manufacturer no longer makes this part, and there's no substitute part
Steering and front axle diagram
Bolt
Part #STD523108
The manufacturer no longer makes this part, and there's no substitute part

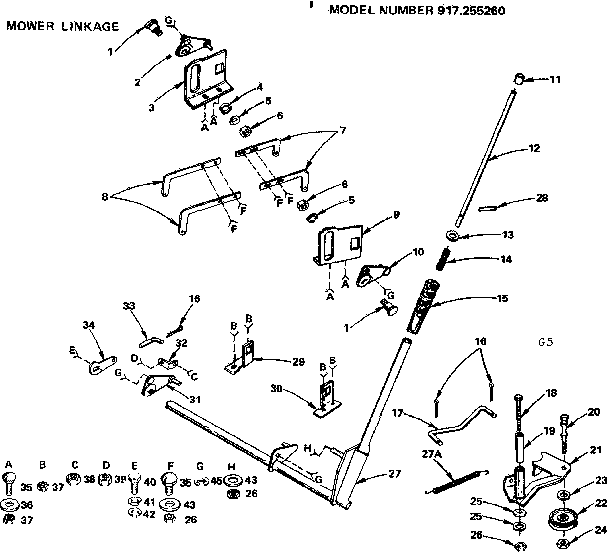

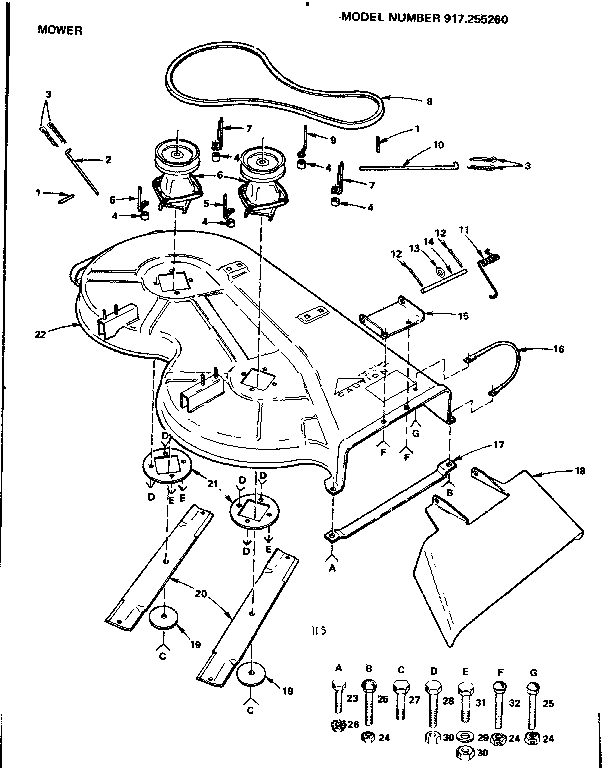

Mower linkage diagram
Washer
Part #1596P
The manufacturer no longer makes this part, and there's no substitute part
Steering and front axle diagram
Hex Nut, 1/2-20
Part #STD541150
The manufacturer no longer makes this part, and there's no substitute part
Fender, hood and grill diagram
Decal
Part #1113J
The manufacturer no longer makes this part, and there's no substitute part
Electrical diagram
Battery Bolt
Part #5072H
The manufacturer no longer makes this part, and there's no substitute part
Mower linkage diagram
Plunger Cap
Part #9479R
The manufacturer no longer makes this part, and there's no substitute part
Hex Head Bolt, 5/16-18 X 1-in, 5-pack
Part #STD523110
The manufacturer no longer makes this part, and there's no substitute part
