What model is my Kenmore vacuum?
Your Kenmore vacuum’s model is printed on the model and serial number plate. For Kenmore model 11631312100, the owner’s manual also lists the supported model family as 116.30412, 116.30512, 116.31212, 116.31312, 116.32212, and 116.32213; match the exact number on your plate to identify your vacuum.
Where to find the model number on the vacuum
Check the model and serial number plate on the vacuum body (not on the hose or attachments). Common places to look:
- On the back of the main vacuum body near the handle
- On the lower rear area near the nozzle base
- Near the dust cover or motor case area
- On a label that also shows a serial number
For diagrams and label references, use the 11631312100 owner's manual.
How to confirm you have the exact model
Use this quick checklist to avoid mixing up similar Kenmore 116-series vacuums:
- Copy the model number exactly as shown (including dots, if present)
- Compare it to the manual’s model list (examples include 116.31312)
- Record the serial number too; it helps when ordering parts or requesting service
- If the label is worn, use a bright light and take a close-up photo to read it
Model number formats you may see
Kenmore vacuums often show the model in one of these formats.
| What you see on the label | What it means | Example |
|---|---|---|
| 11-digit number (no dot) | Full Sears model number | 11631312100 |
| Number with a dot | Series-style model shown in the manual | 116.31312 |
Why it matters
The exact model number ensures you get the right fit for wear items and service parts like dust bags, belts, filters, and headlight bulbs, which can vary across very similar Kenmore upright vacuum cleaner versions.
Last updated: January 2026
Why is my Kenmore vacuum not suctioning?
Loss of suction on your Kenmore upright vacuum cleaner model 11631312100 almost always comes from restricted airflow: a full dust bag, a clogged filter, or a blockage in the hose or base. Start with the dust bag and filters, then check the stretch hose and nozzle for clogs using the steps in the 11631312100 owner's manual.
Quick checks that fix most “no suction” problems
- Replace the dust bag if it is full or packed tight.
- Check the filter area for a clogged filter; clean or replace as directed.
- Inspect the stretch hose for a blockage (coins, socks, hair, debris).
- Check the nozzle and base air path for clogs.
- Confirm the hose is seated correctly at the nozzle connection.

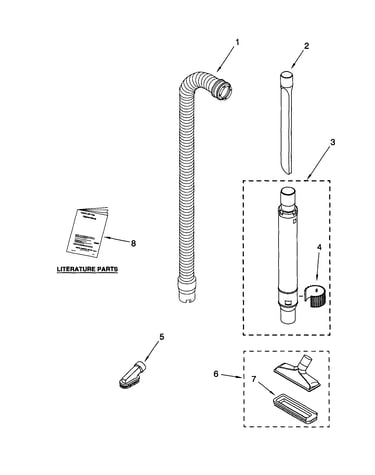

Step-by-step: clear a hose clog (model-specific)
Our manual guidance for this Kenmore design is:
- Unplug the vacuum before servicing.
- If suction seems low, check the dust bag and filter first.
- If those are clear, remove the lower end of the stretch hose by grasping the hose collar, twisting, and pulling straight out.
- Plug in and turn the vacuum on briefly to help confirm airflow through the hose, then turn it off and unplug.
- Visually inspect the hose and base and remove any obstruction.
Symptoms and the most likely cause
| What you notice | Most likely cause | What to do first |
|---|---|---|
| Motor sounds normal but pickup is weak | Full bag or clogged filter | Change bag; service filters |
| Suction at hose is weak | Hose or base clog | Remove and inspect stretch hose |
| Works on hose but not on floor | Nozzle air path clogged | Check nozzle and base passage |
| Suction comes and goes | Partial clog or packed bag | Clear obstruction; replace bag |
Why it matters
Your vacuum’s suction depends on steady airflow through the dust bag, filters, hose, and nozzle. When any section is restricted, the motor can move less air, cleaning performance drops fast, and clogs can lead to overheating or repeated shutdowns.
Last updated: January 2026
How to change the belt on a Kenmore vacuum?
To change the belt on your Kenmore 11631312100 upright vacuum cleaner, unplug the vacuum, remove the nozzle cover, slip the old belt off the motor shaft and agitator, then install the new belt and reassemble. Follow the step-by-step procedure in the 11631312100 owner's manual.
Before you start (safety and setup)
- Unplug the power cord before servicing.
- Work on a flat surface with good lighting.
- Keep hands away from the nozzle opening; the agitator spins fast in carpet mode.
- If you noticed a burning rubber smell, switch the carpet/bare floor selector only with the vacuum turned off.

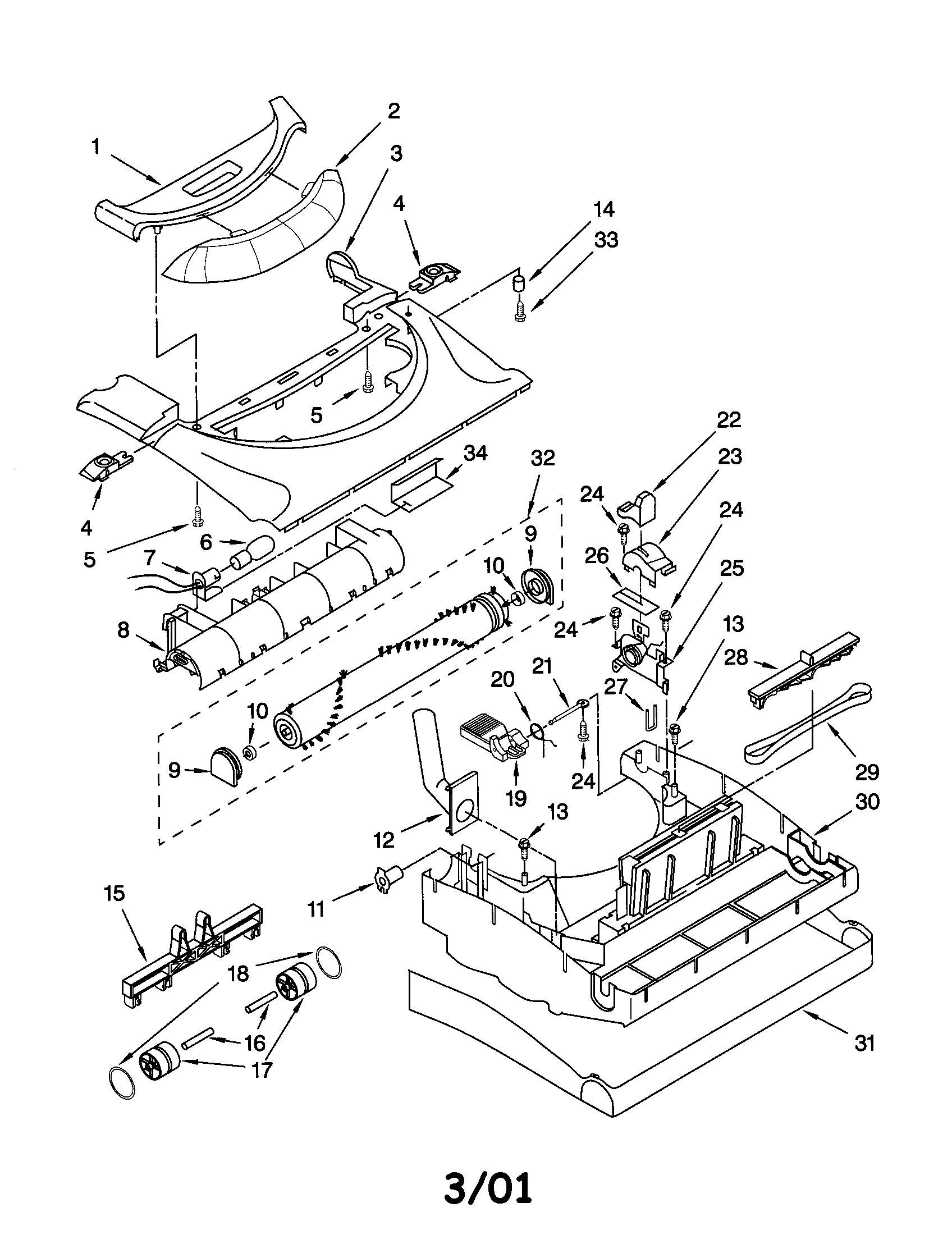

Belt change steps (typical for this Kenmore upright)
- Set the handle upright and unplug the vacuum.
- Turn the vacuum over to access the nozzle base.
- Release the nozzle cover latches and remove the nozzle cover.
- Lift out the agitator (brush roll) and remove the worn belt.
- Loop a new belt around the motor drive shaft, then around the agitator pulley.
- Reinstall the agitator, making sure the belt is centered and not twisted.
- Reinstall the nozzle cover and secure the latches.
- Turn the vacuum back upright and test on carpet mode.
Quick checks if the new belt fails or smells hot
- Confirm the carpet/bare floor selector is fully in the correct position.
- Check for a clog in the hose, bag area, filters, or nozzle air path.
- Clean hair and debris off the agitator ends so it spins freely.
- Make sure the belt is routed on the motor shaft and agitator correctly.
What you will remove and what to inspect
| Area | What you do | What to look for |
|---|---|---|
| Nozzle cover | Unlatch and remove | Cracks, heavy debris buildup |
| Agitator (brush roll) | Lift out for access | Hair wrap, seized end caps |
| Belt path | Replace belt | Twists, rubbing, misalignment |
Why it matters
A worn or misrouted belt reduces brush roll speed, hurts carpet cleaning, and can create a burning rubber smell if it rubs on the selector shaft or binds on the agitator.
Last updated: January 2026
How to open Kenmore Progressive vacuum?
To open a Kenmore Progressive upright vacuum like model 11631312100, we typically open the bag compartment (dust cover) to access and remove the disposable dust bag, then close and latch the cover securely. Use the steps in the 11631312100 owner's manual for the exact latch locations on your version.
Steps to open the bag compartment (dust cover)
- Unplug the vacuum before opening any covers.
- Stand the vacuum upright and lock the handle in the upright position.
- Locate the dust cover or bag door on the main body (bag chamber area).
- Release the door latch and swing the cover open.
- If you are changing the bag: pull the cardboard tab on the dust bag straight out to release it from the bag mount, then lift the bag out.

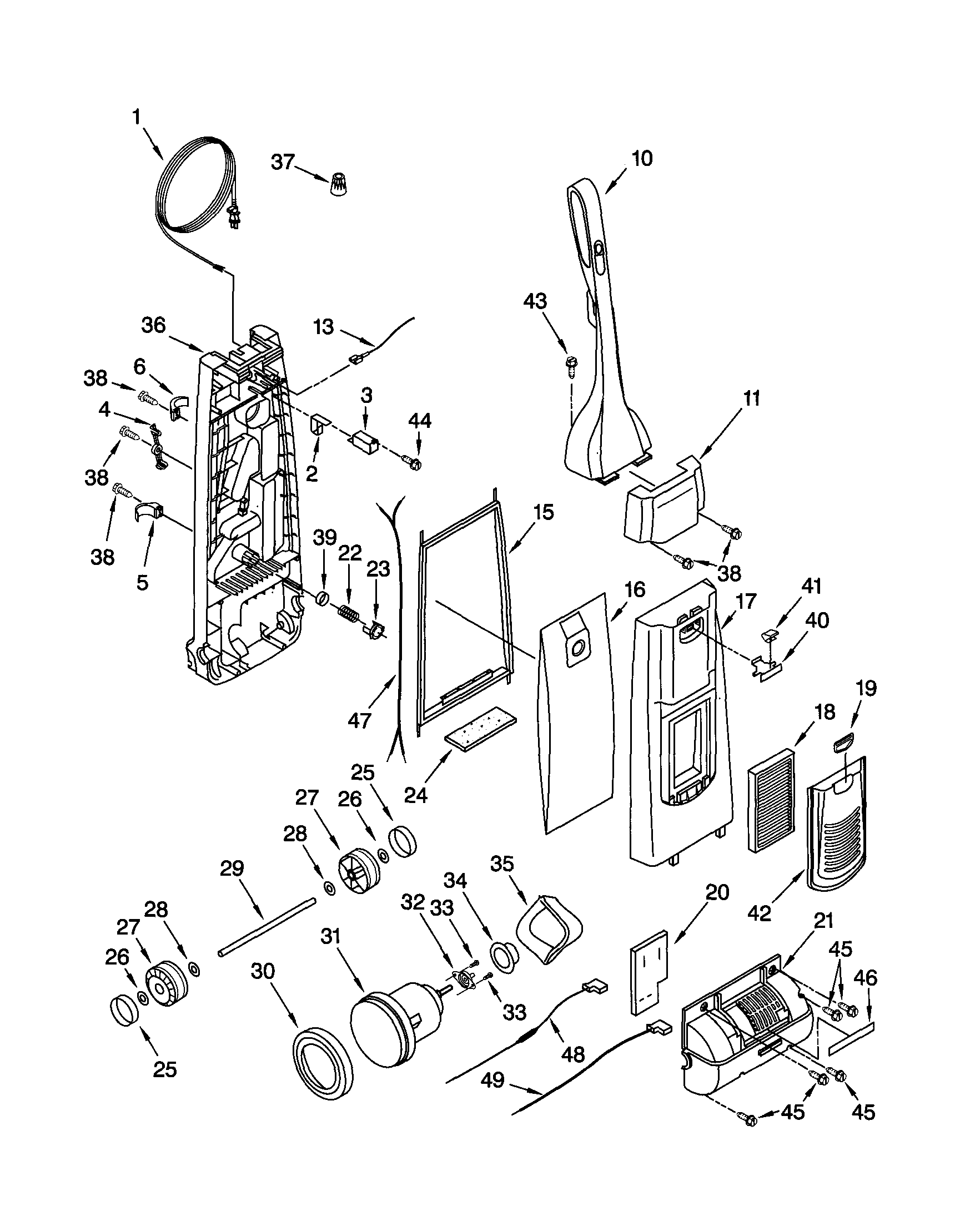

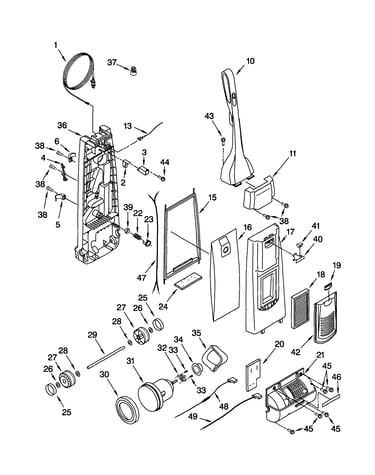

What you should see inside (common parts)
Most Kenmore Progressive uprights in this series have these items in or near the bag chamber:
- Disposable dust bag
- Motor safety filter (protects the motor from fine dust)
- Airflow path leading to the hose connection
- Bag mount or bag holder
If the cover will not open
A stuck bag door is usually caused by a bag that is mis-seated or a latch that is not fully released.
- Press the latch firmly while pulling the door outward
- Reseat the bag by aligning the cardboard collar with the bag mount
- Check for debris around the door edge and hinge
- If suction has been weak, check for clogs in the airflow path (a clog can also trigger the motor protection system)
Quick reference
| Task | What you open | What you remove/check |
|---|---|---|
| Replace bag | Dust cover (bag door) | Dust bag, motor safety filter condition |
| Check clog | Bag door plus hose/nozzle paths | Blockage in airflow passages |
Why it matters
Opening the bag compartment the right way prevents air leaks. Air leaks reduce suction, can make the vacuum sound different, and can contribute to overheating protection events if airflow stays restricted.
Last updated: January 2026
