Singer
Overlock Sewing Machine

Model #14CG754 Singer overlock sewing machine

Here are the diagrams and repair parts for Singer 14CG754 overlock sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 206 parts

    Shft Bshg

    #12

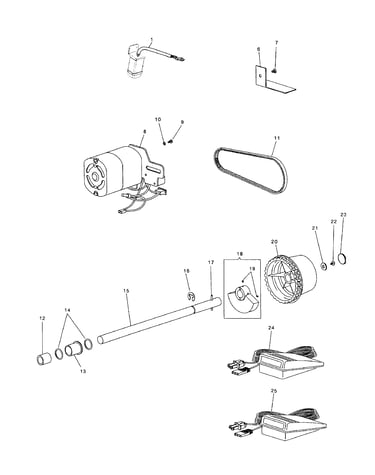

    Motor Diagram

    Shft bshg

    Part #410252

    The manufacturer no longer makes this part, and there's no substitute part

    Rod Stud

    #22

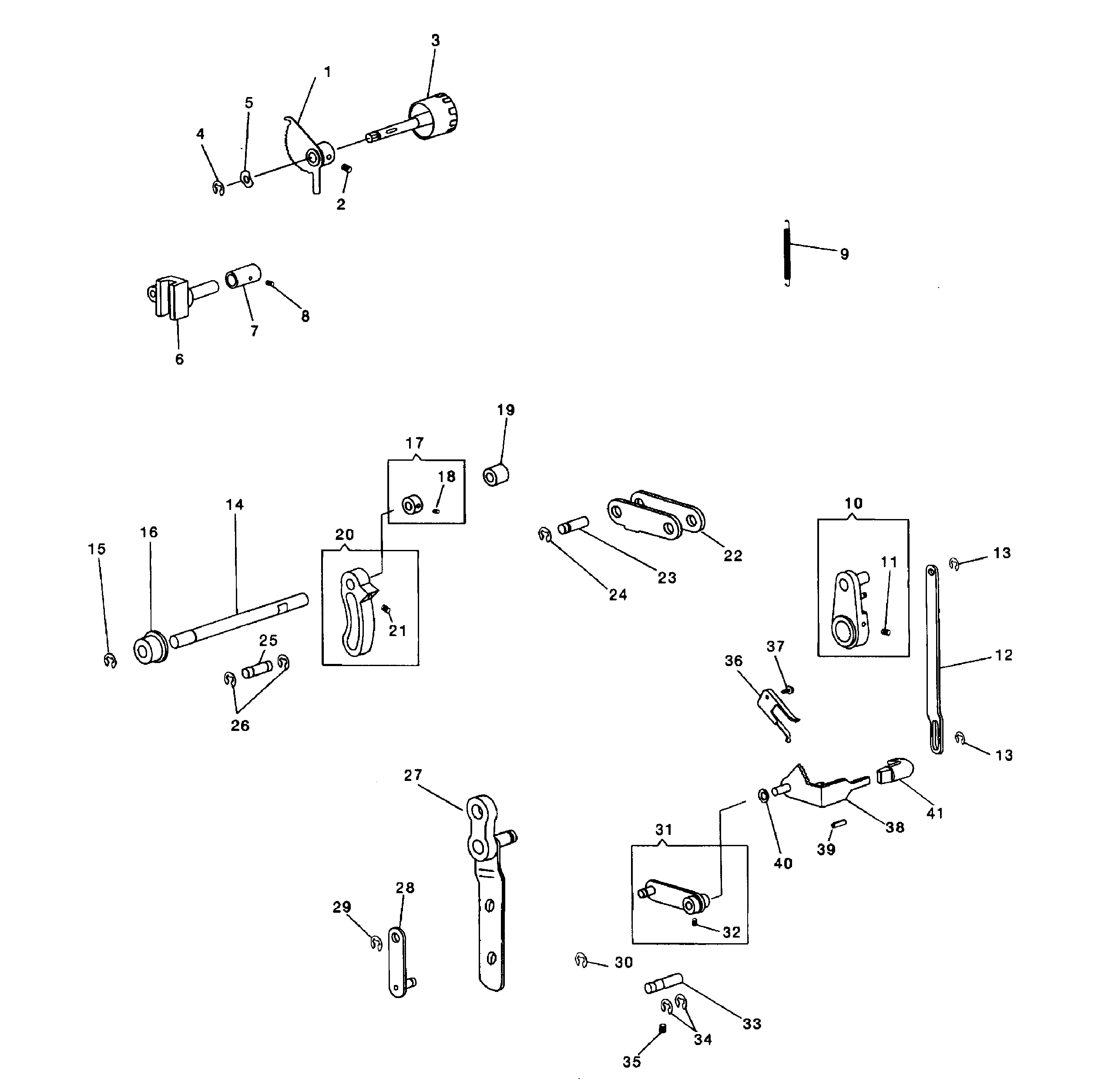

    Feed crank Diagram

    Rod stud

    Part #412635

    The manufacturer no longer makes this part, and there's no substitute part

    Cm Sld Blck

    #36

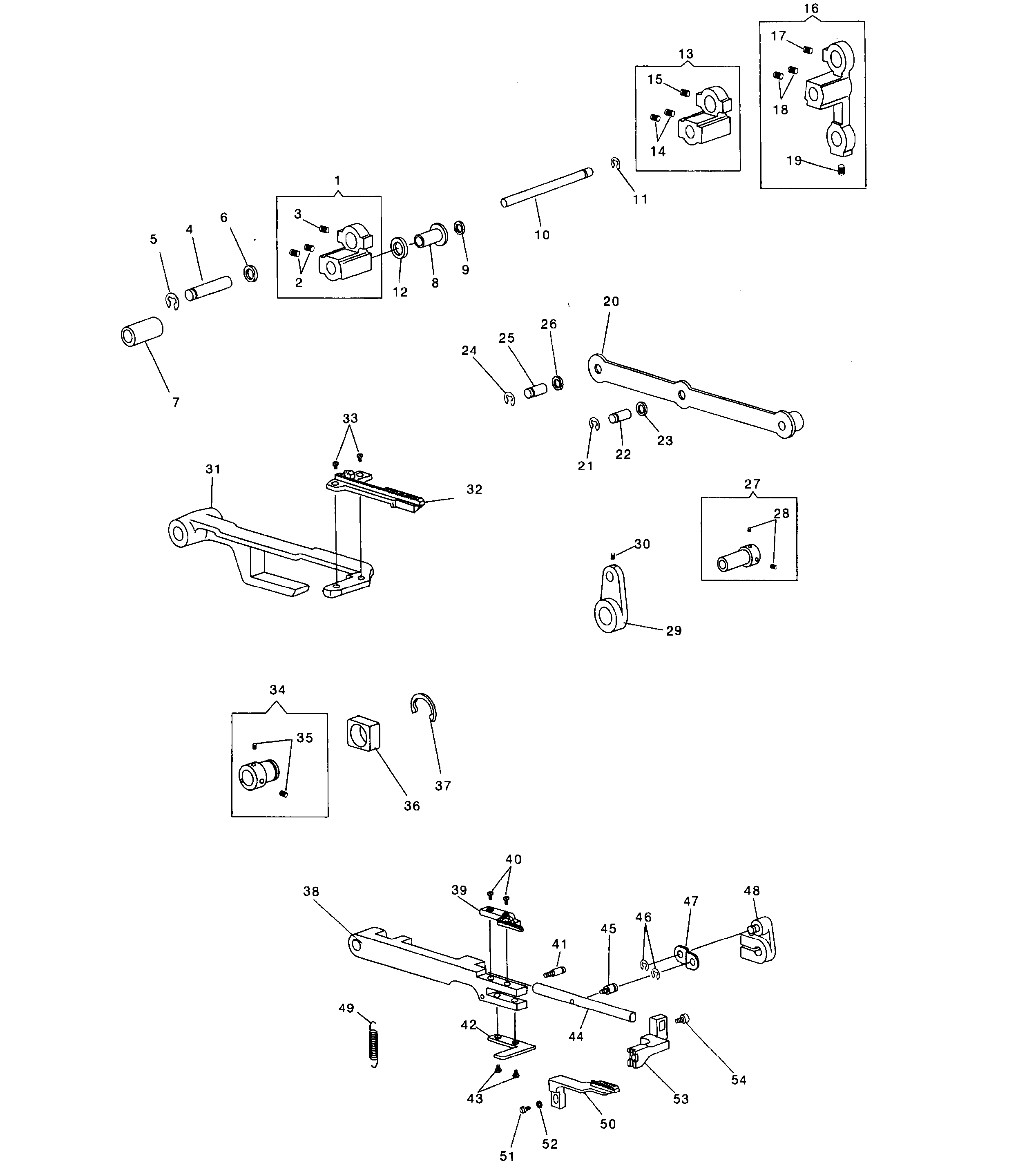

    Feed crank Diagram

    Cm sld blck

    Part #410387

    The manufacturer no longer makes this part, and there's no substitute part

    Thrst Wshr

    #14

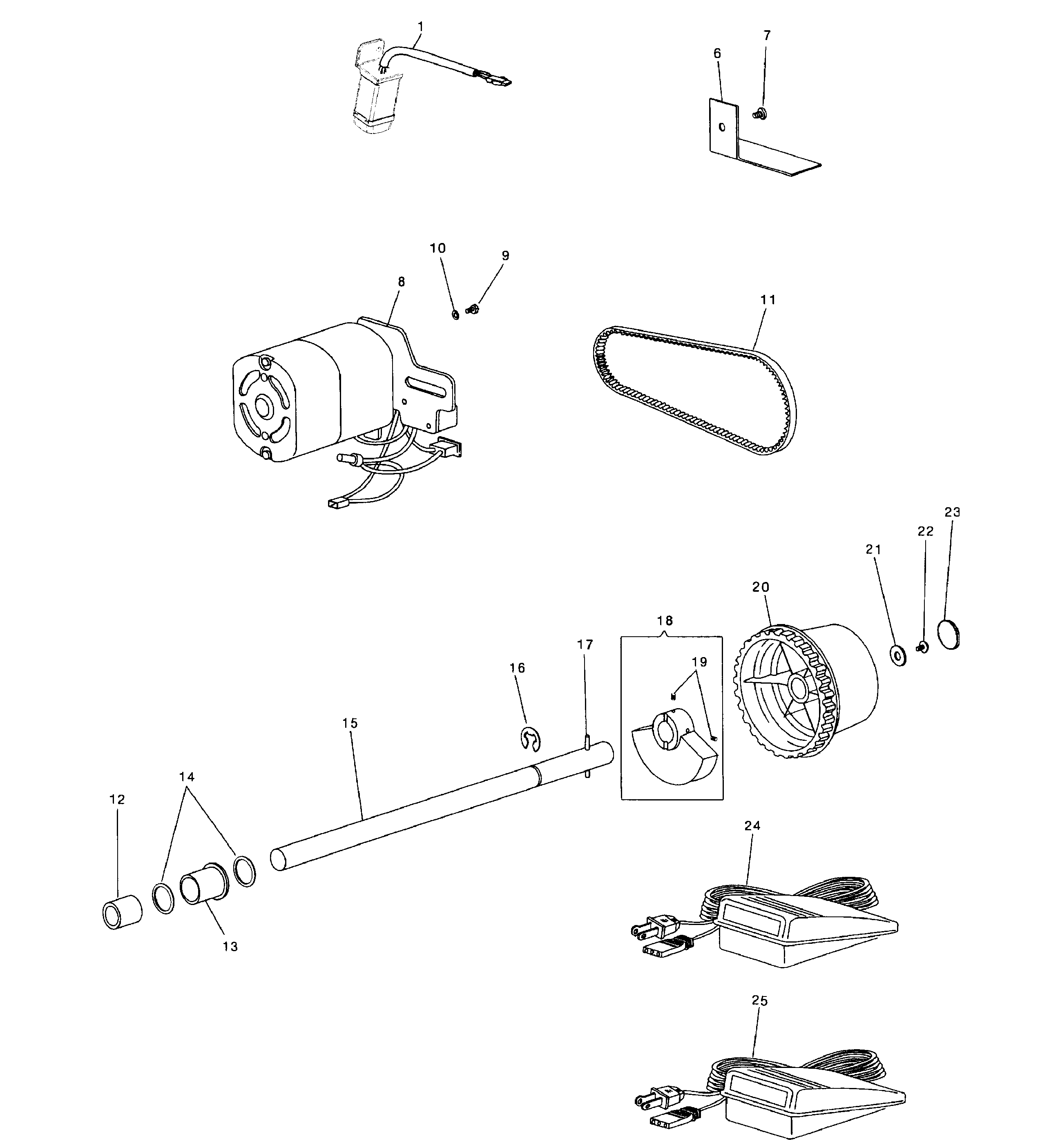

    Motor Diagram

    Thrst wshr

    Part #408730

    The manufacturer no longer makes this part, and there's no substitute part

    L Shft Lev

    #28

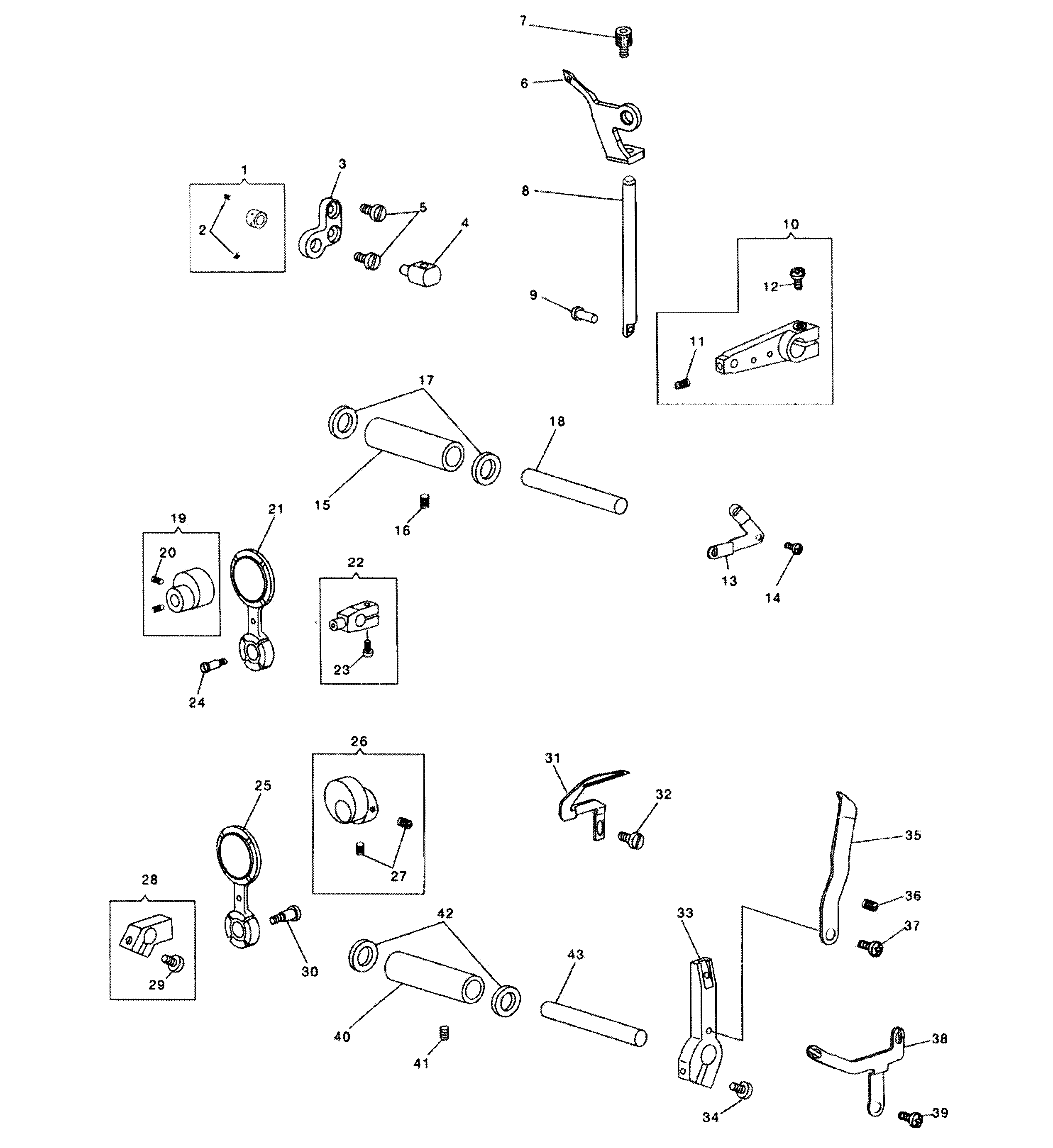

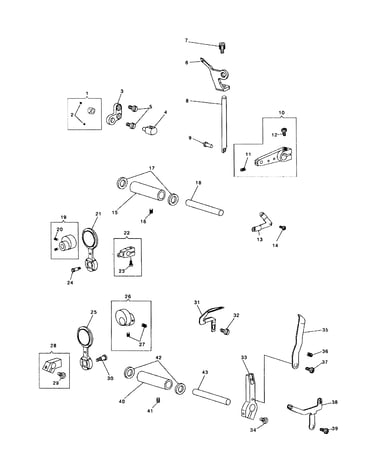

    Looper Diagram

    L shft lev

    Part #412798

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #11

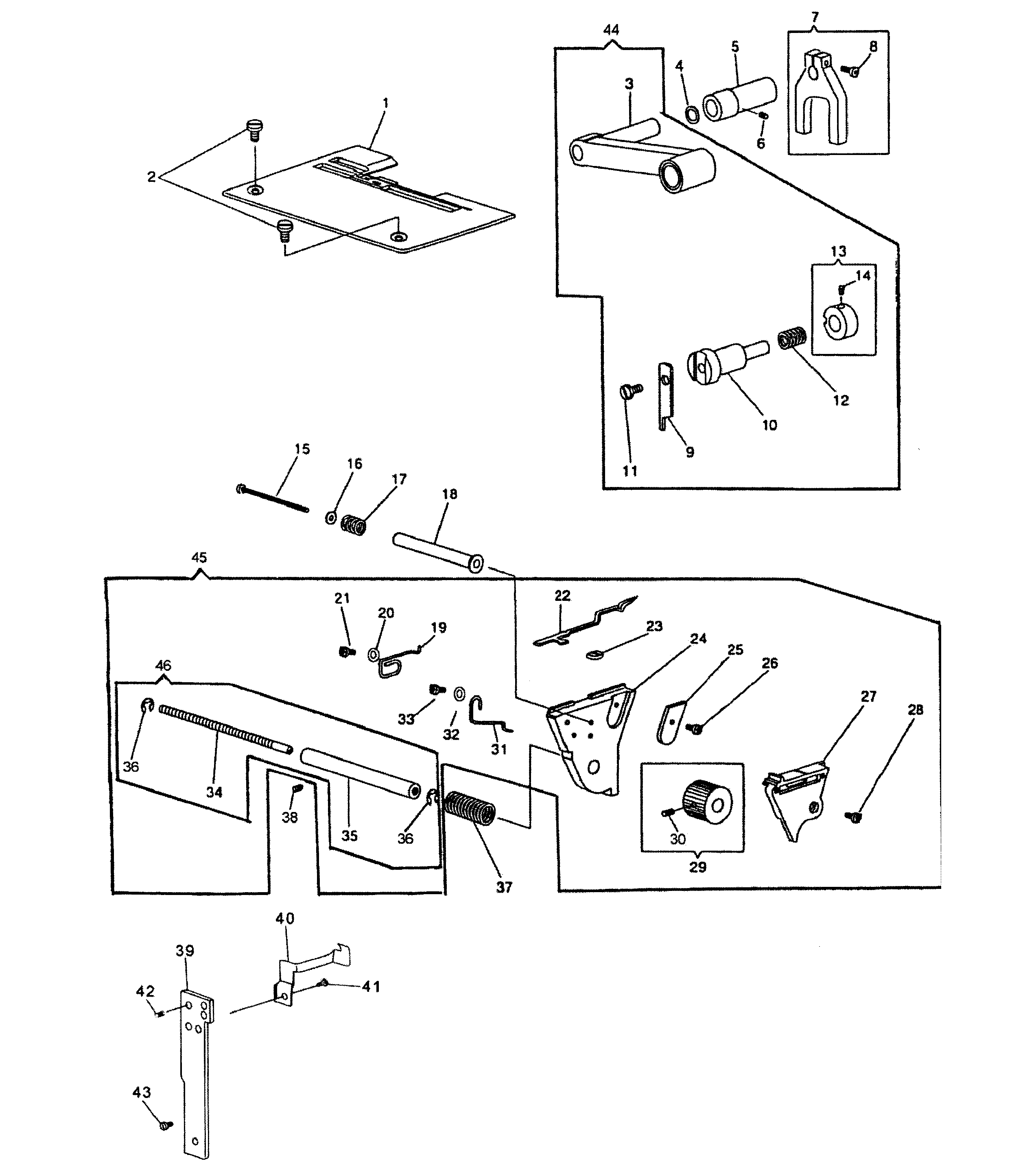

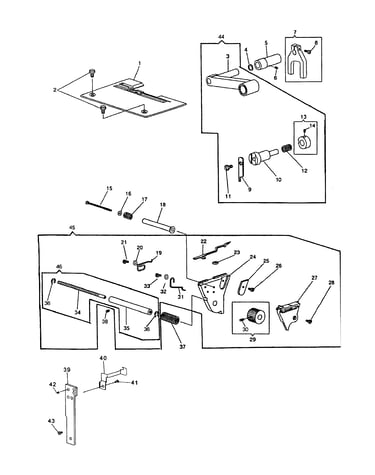

    Knife assy Diagram

    Screw

    Part #544407

    The manufacturer no longer makes this part, and there's no substitute part

    Complete Rod

    #1

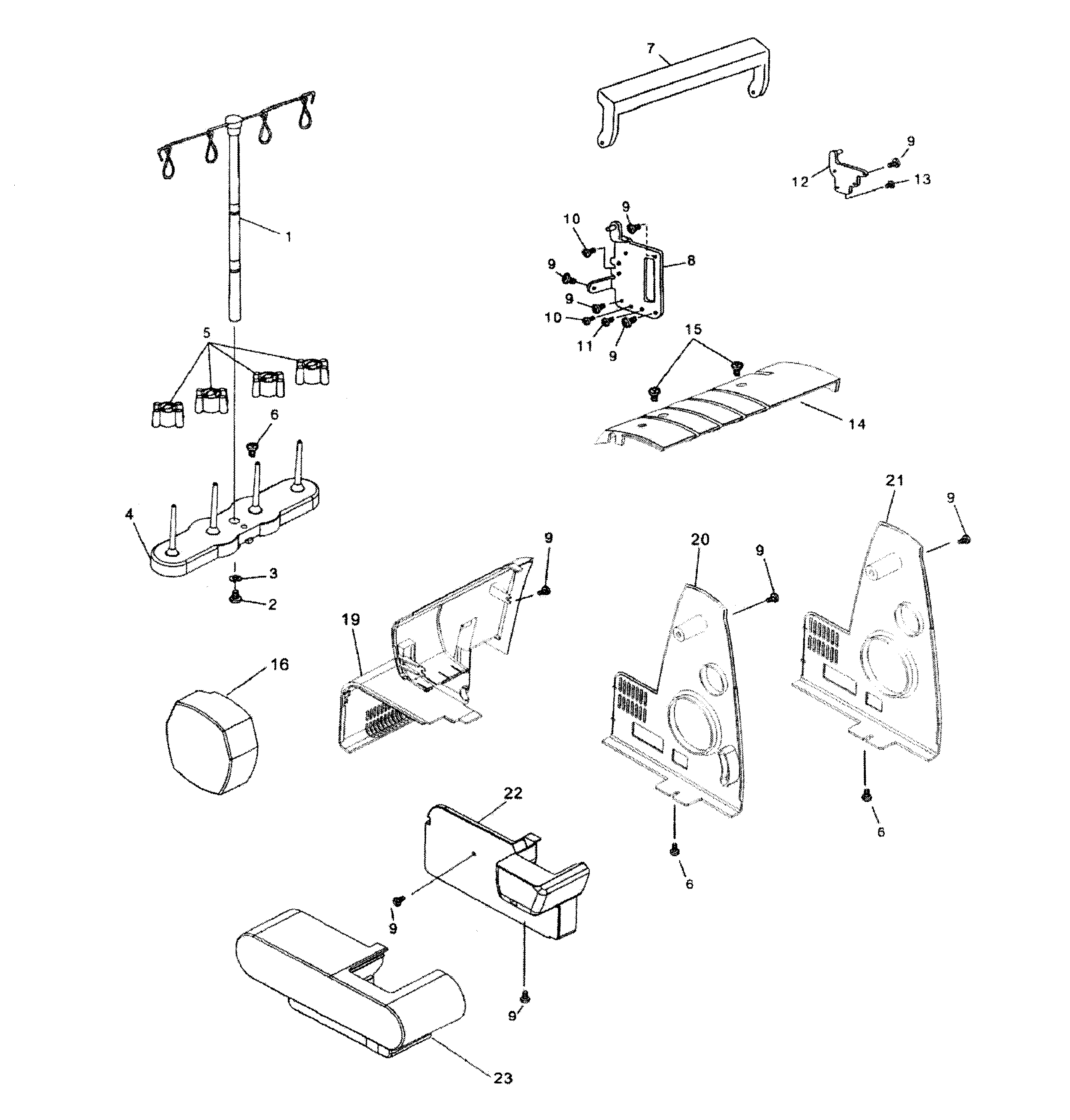

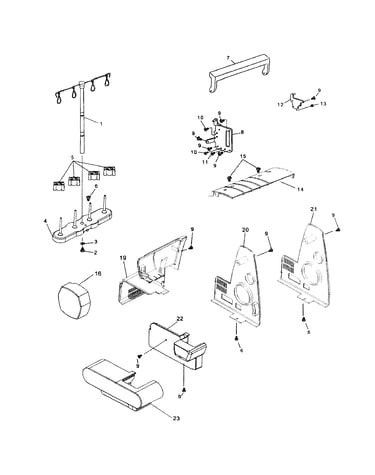

    Cabinet assy Diagram

    Complete rod

    Part #550346-001

    The manufacturer no longer makes this part, and there's no substitute part

    Front Cover

    #10

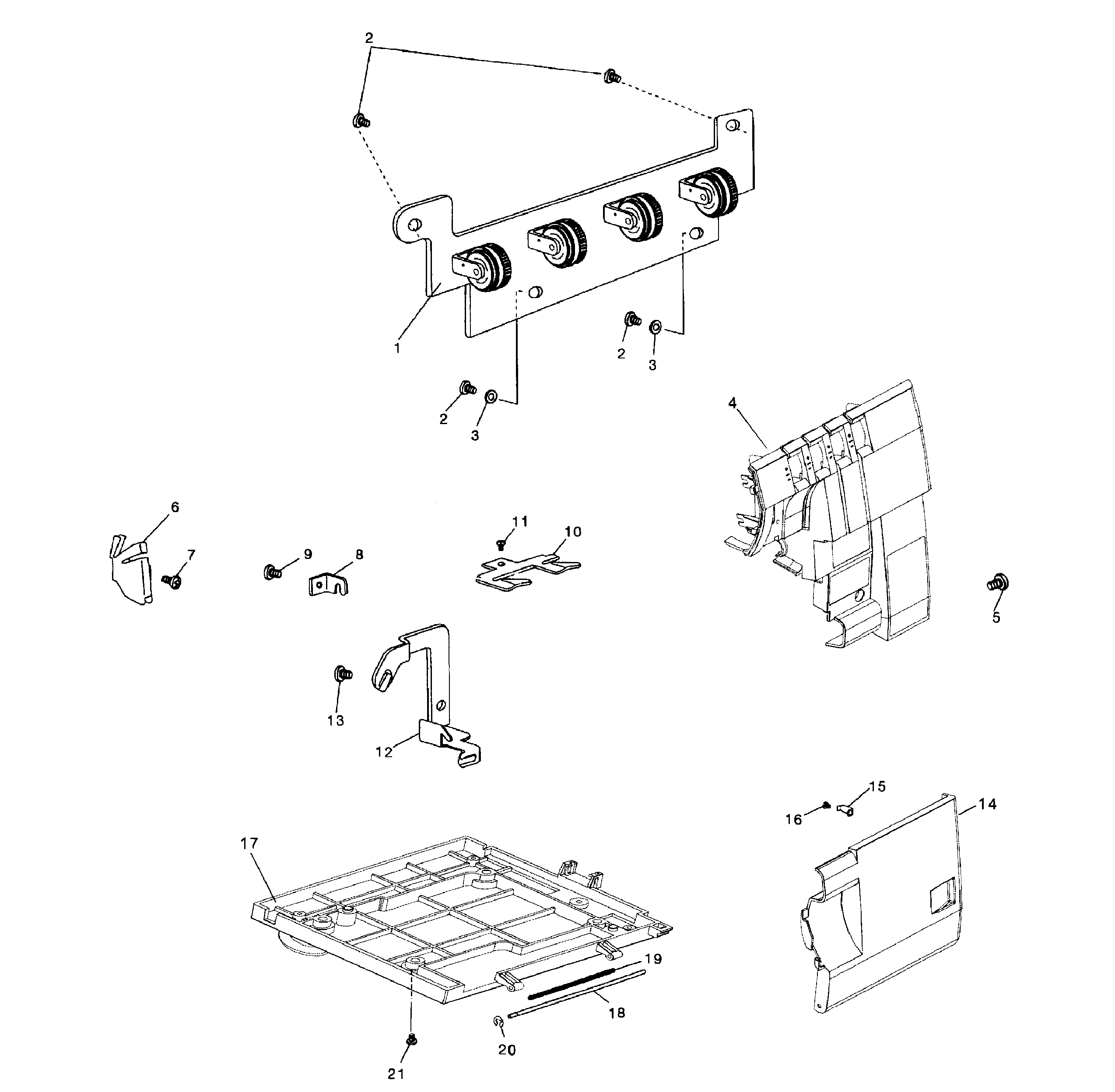

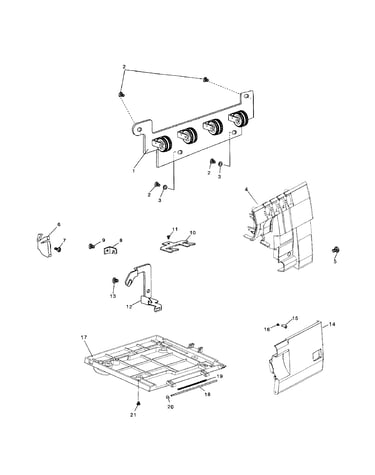

    Tension assy Diagram

    Front cover

    Part #550352

    The manufacturer no longer makes this part, and there's no substitute part

    Thumb

    #22

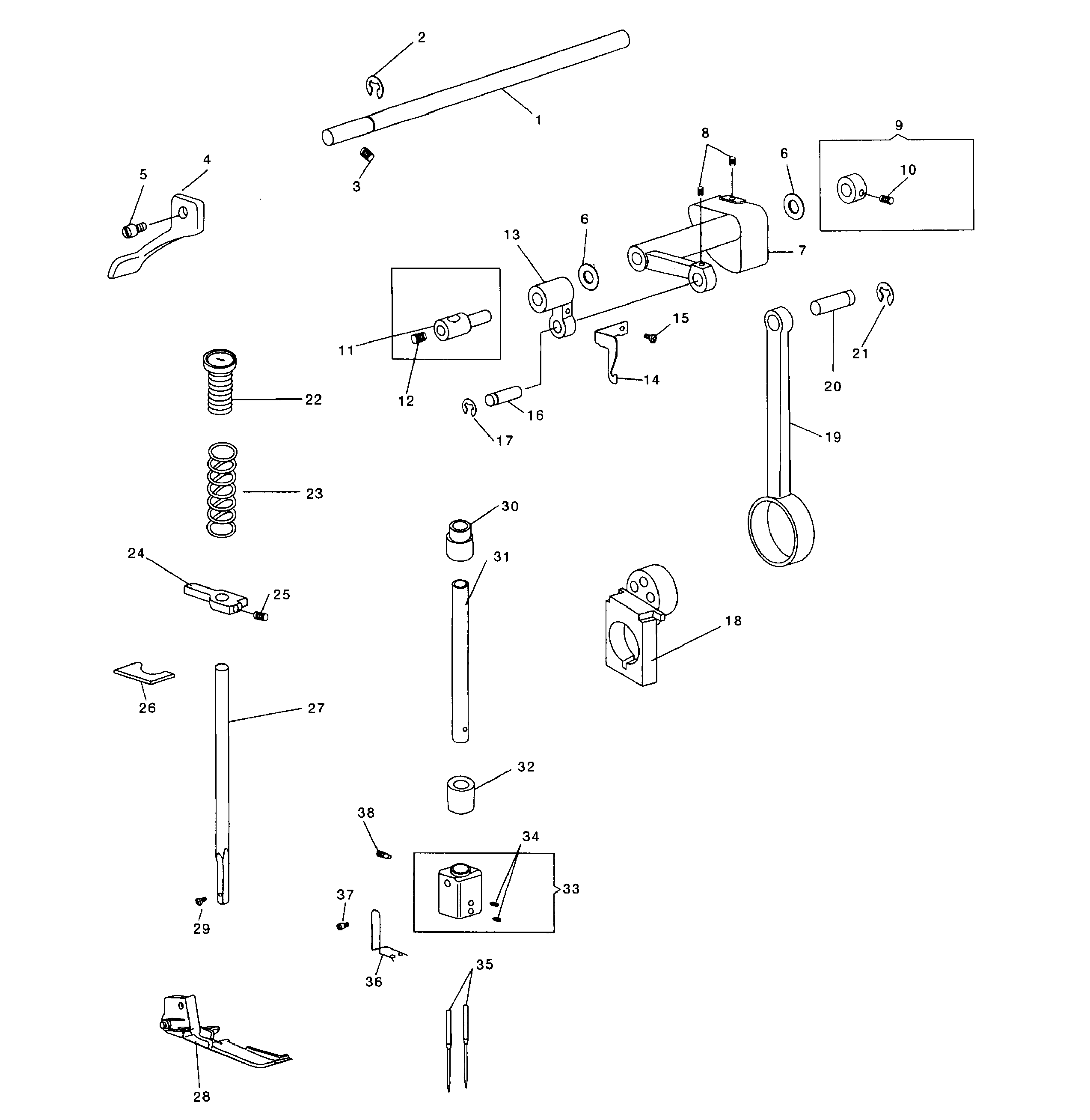

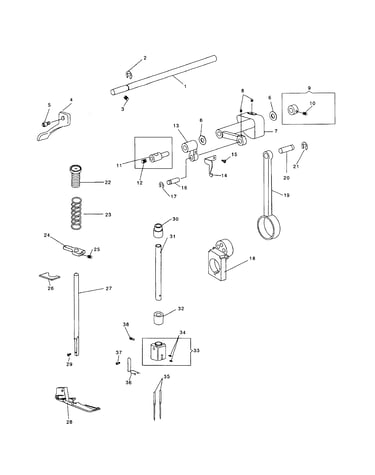

    Shaft assy Diagram

    Thumb

    Part #550370-391

    The manufacturer no longer makes this part, and there's no substitute part

    Clmping Scrw

    #12

    Looper Diagram

    Clmping scrw

    Part #544213-053

    The manufacturer no longer makes this part, and there's no substitute part
