Samsung
Washer

Model # WF520ABP/XAA-01 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF520ABP-XAA-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

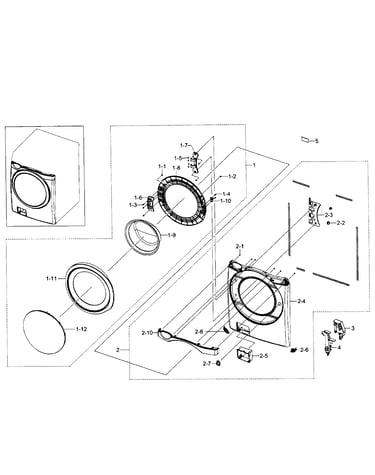

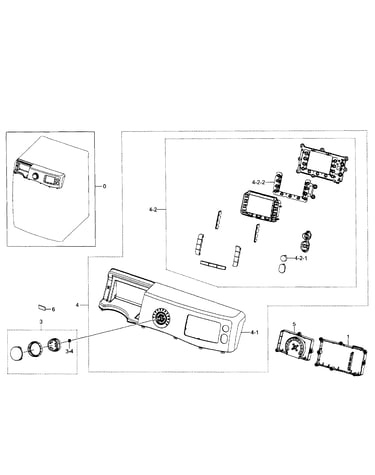

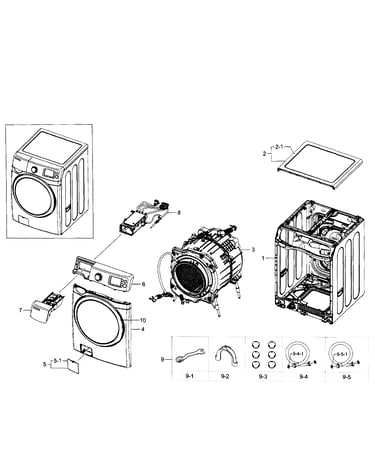

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |

Washer Shock Absorber (replaces Dc66-00650d) DC66-00470A
Washer shock absorber (replaces dc66-00650d)

Part #DC66-00470A

BEST SELLER
$47.63
10% OFF Phone Price : $52.63
In Stock
Washer Bolt (replaces Dc60-40138a) DC97-02412A
#5

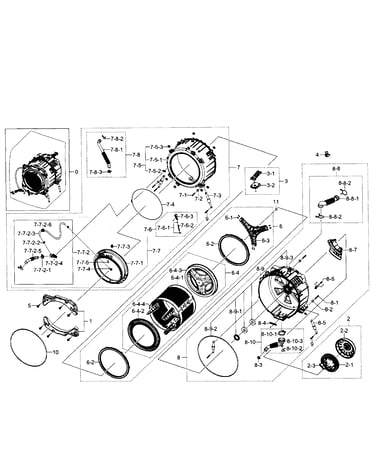

Tub-drum diagram

Washer bolt (replaces dc60-40138a)

Part #DC97-02412A

BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Washer Drain Pump (replaces Dc31-00016a) DC31-00054A
#11-2

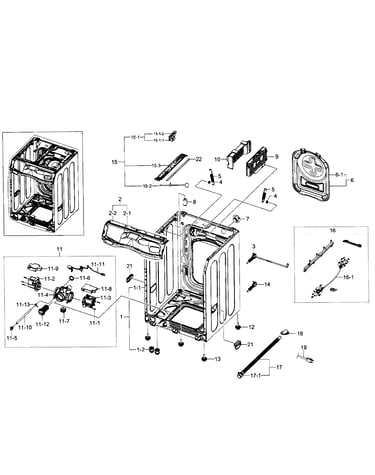

Frame diagram

Washer drain pump (replaces dc31-00016a)

Part #DC31-00054A

BEST SELLER
$134.43
7% OFF Phone Price : $144.43
In Stock
Washer Door Boot Spring Clamp DC97-04973B
#10

Tub-drum diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$11.66
15% OFF Phone Price : $13.66
In Stock
Washer Water Inlet Valve (replaces Dc62-30314h) DC62-30314K
#5

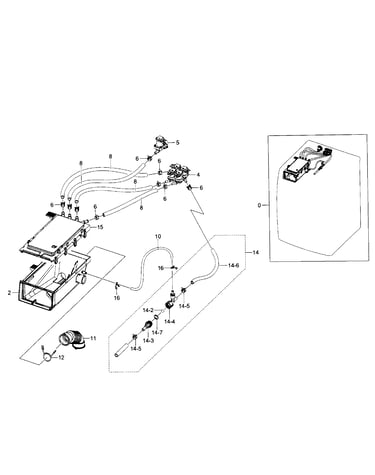

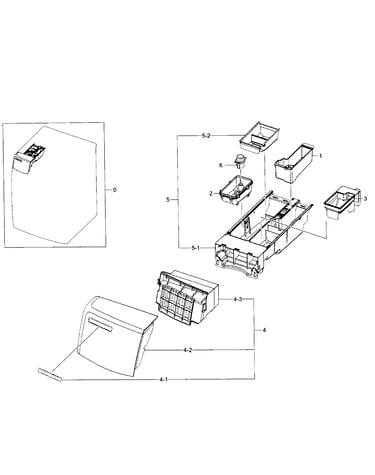

Housing drawer diagram

Washer water inlet valve (replaces dc62-30314h)

Part #DC62-30314K

BEST SELLER
$70.98
7% OFF Phone Price : $75.98
In Stock
Washer Nut DC61-00201A
#7-53

Tub-drum diagram

Washer nut

Part #DC61-00201A

BEST SELLER
This item is not returnable
$3.64
22% OFF Phone Price : $4.64
In Stock
Washer Door Boot Spring Clamp DC97-04981F
#7-4

Tub-drum diagram

Washer door boot spring clamp

Part #DC97-04981F

BEST SELLER
$18.75
10% OFF Phone Price : $20.75
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#6-1

Tub-drum diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.37
11% OFF Phone Price : $9.37
In Stock
Washer Rear Tub Gasket DC62-00156A
#8-91

Tub-drum diagram

Washer rear tub gasket

Part #DC62-00156A

BEST SELLER
This item is not returnable
$30.60
14% OFF Phone Price : $35.60
In Stock
Washer Tub-to-pump Hose DC97-16105A
#8-10

Tub-drum diagram

Washer tub-to-pump hose

Part #DC97-16105A

Replaced by #DC97-16105B

?
Manufacturer substitution
This part replaces DC97-16105A. Substitute parts can look different from the original.
BEST SELLER
$69.65
7% OFF Phone Price : $74.65
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
