Side-By-Side Refrigerator

Model # PSG22SIPDFSS Official GE refrigerator - p series

Here are the diagrams and repair parts for Official GE PSG22SIPDFSS refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

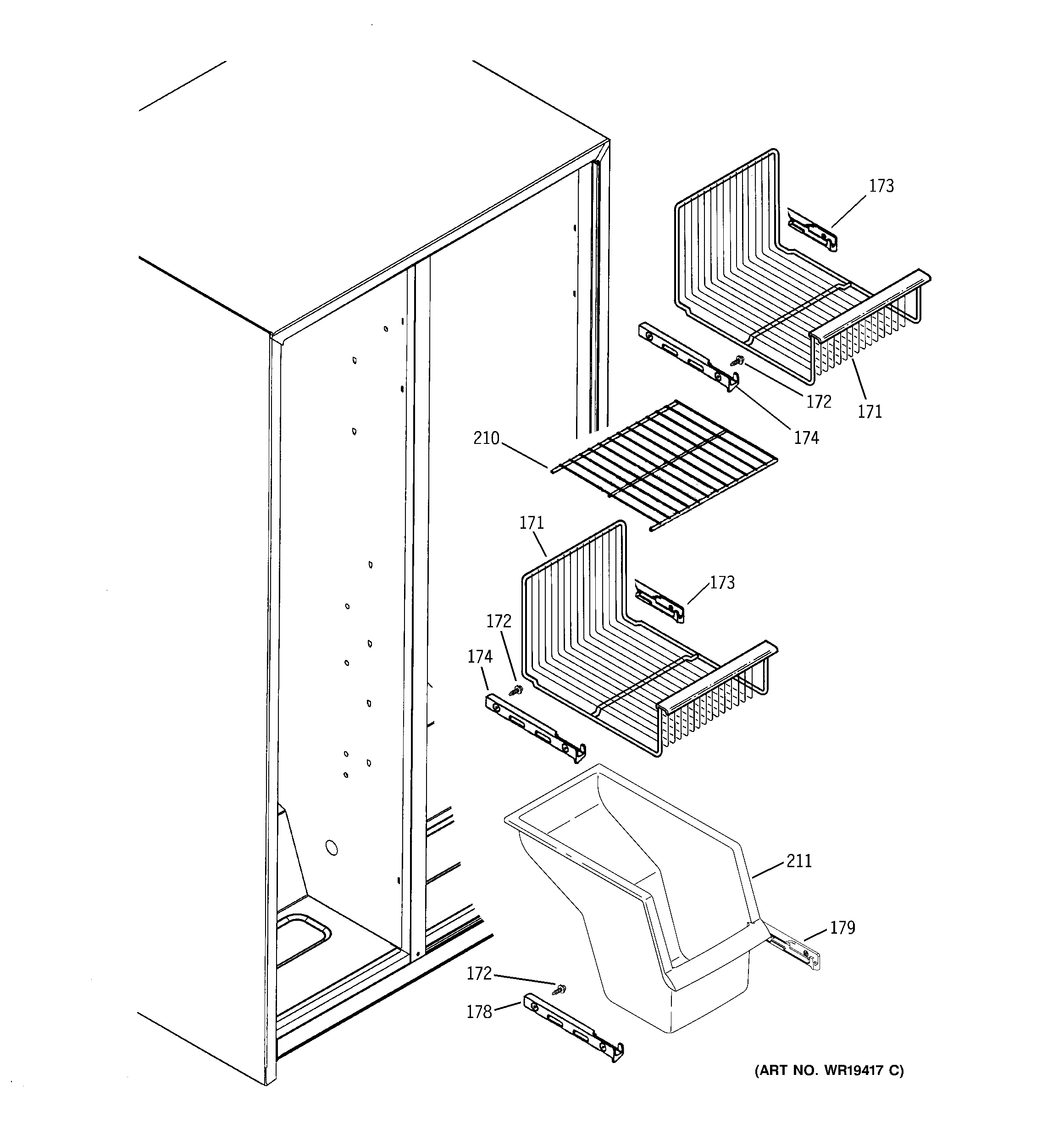

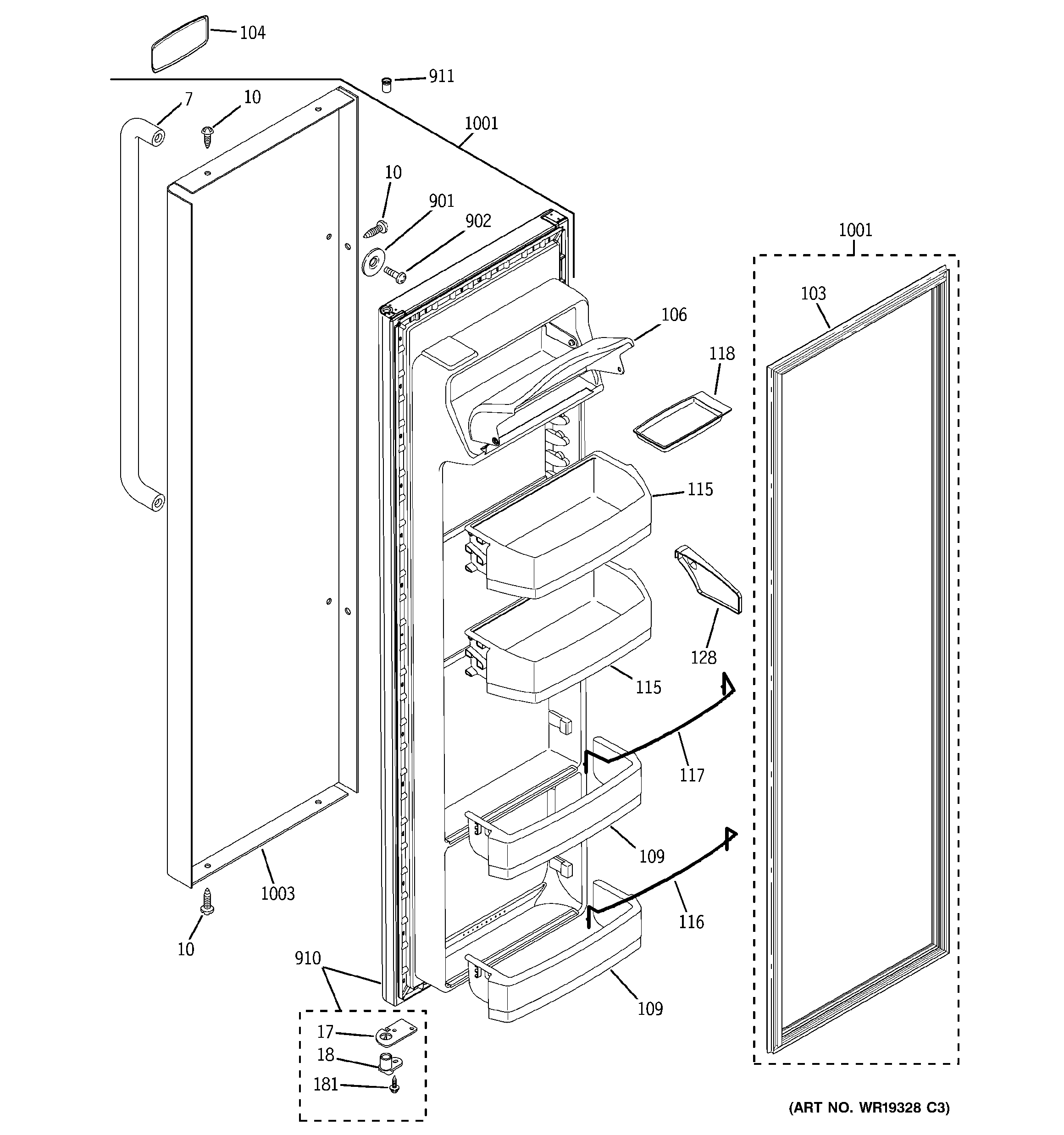

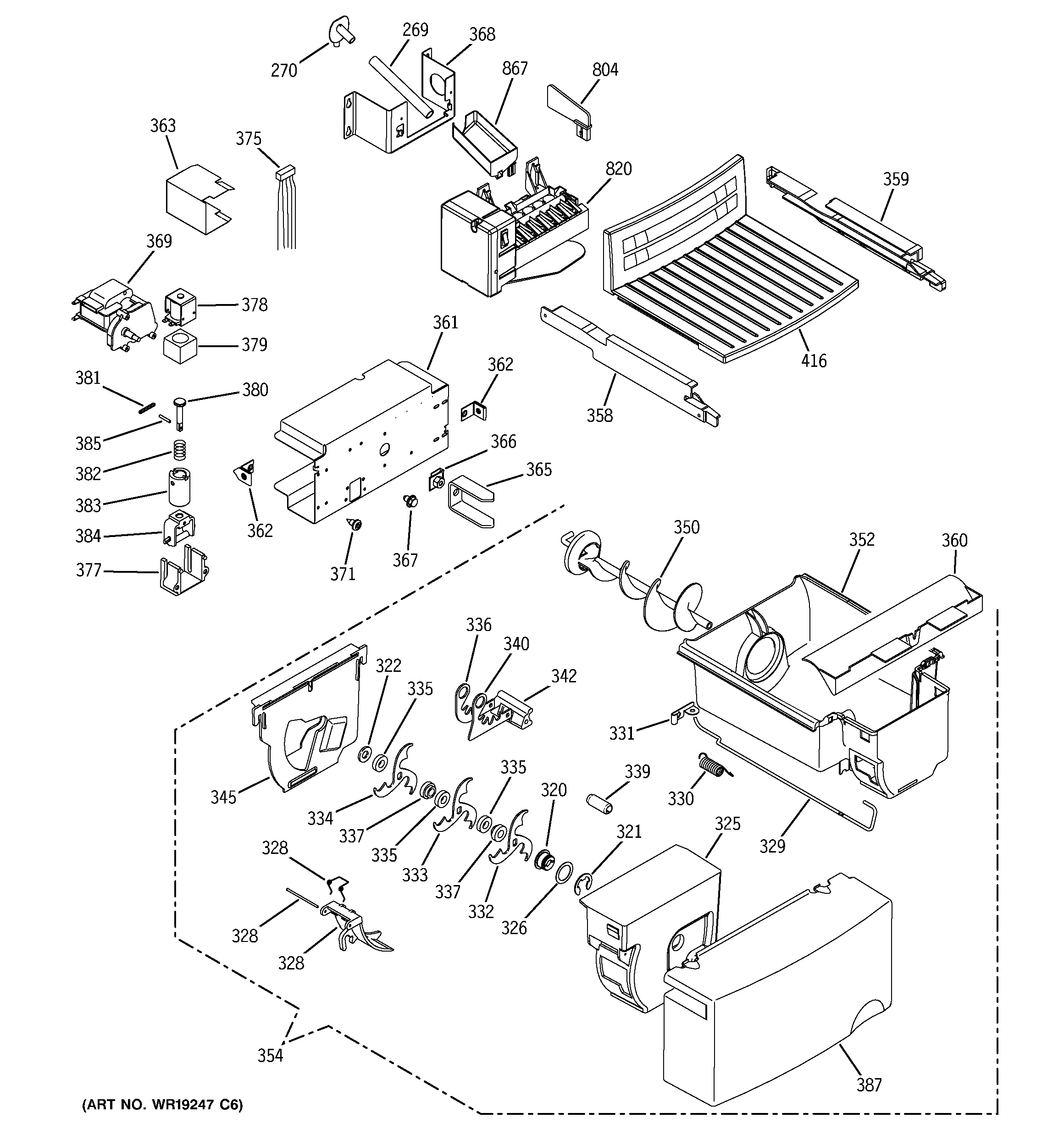

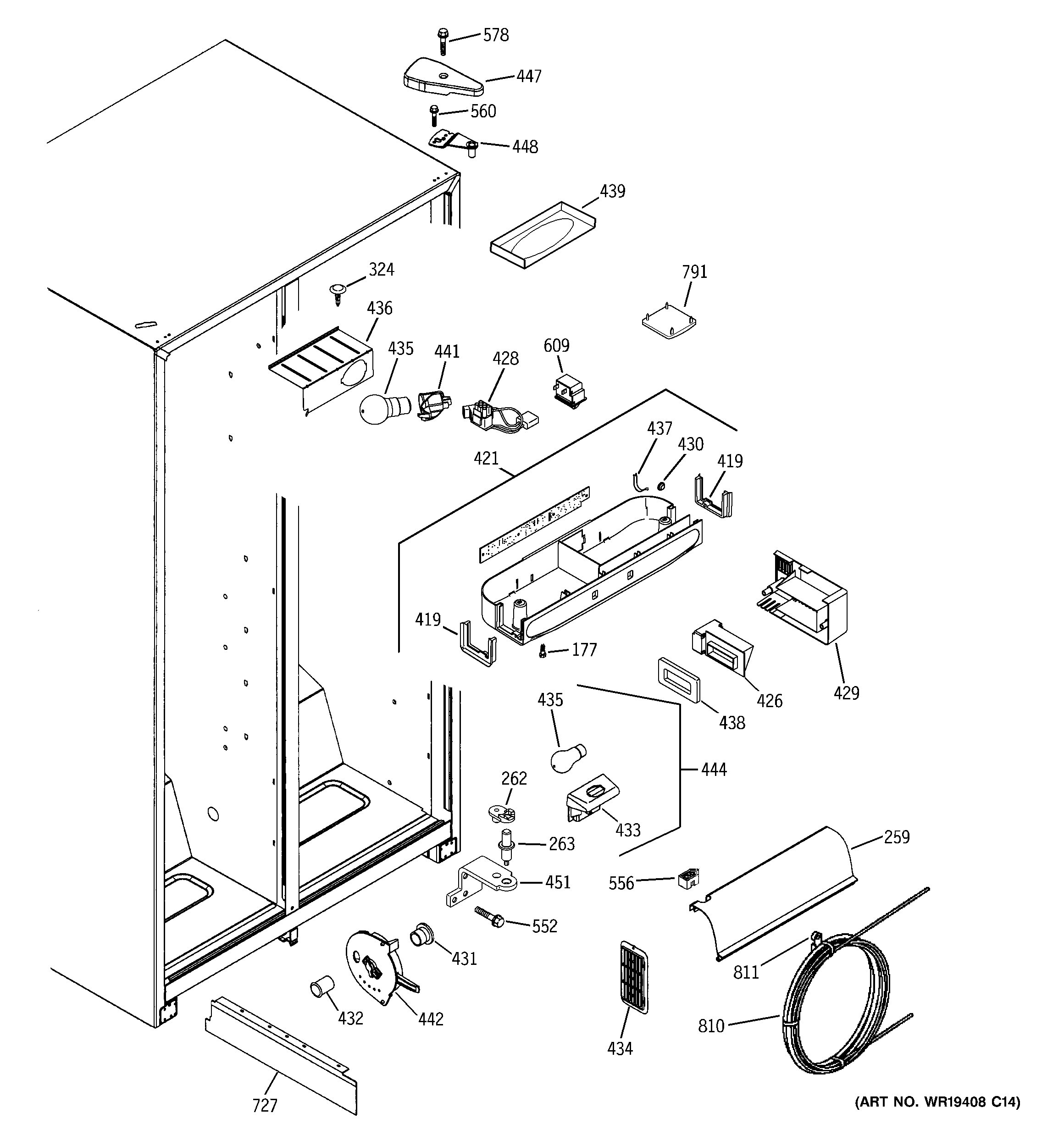

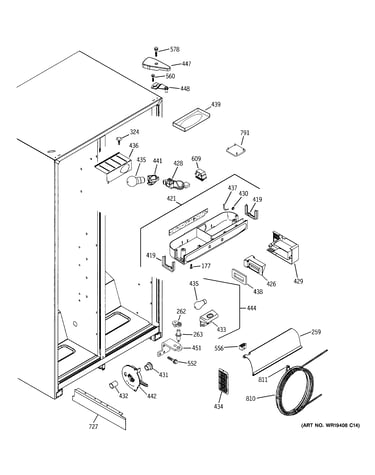

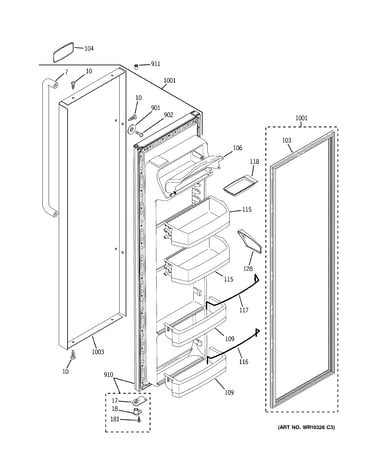

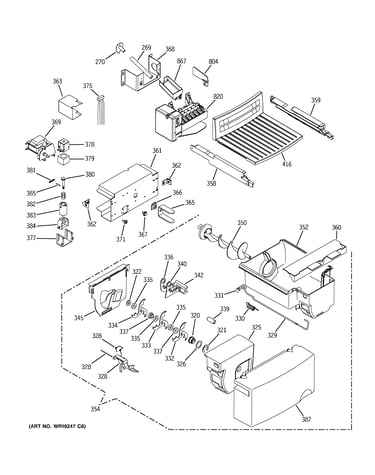

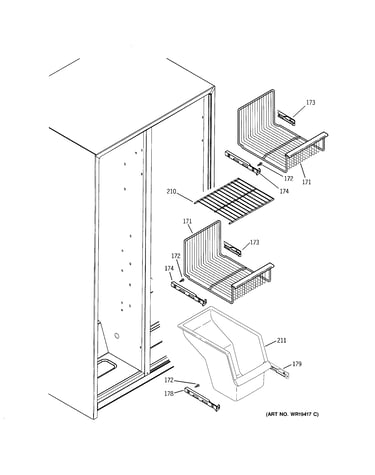

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 294 parts  |

Refrigerator Temperature Sensor WR50X10027
#241

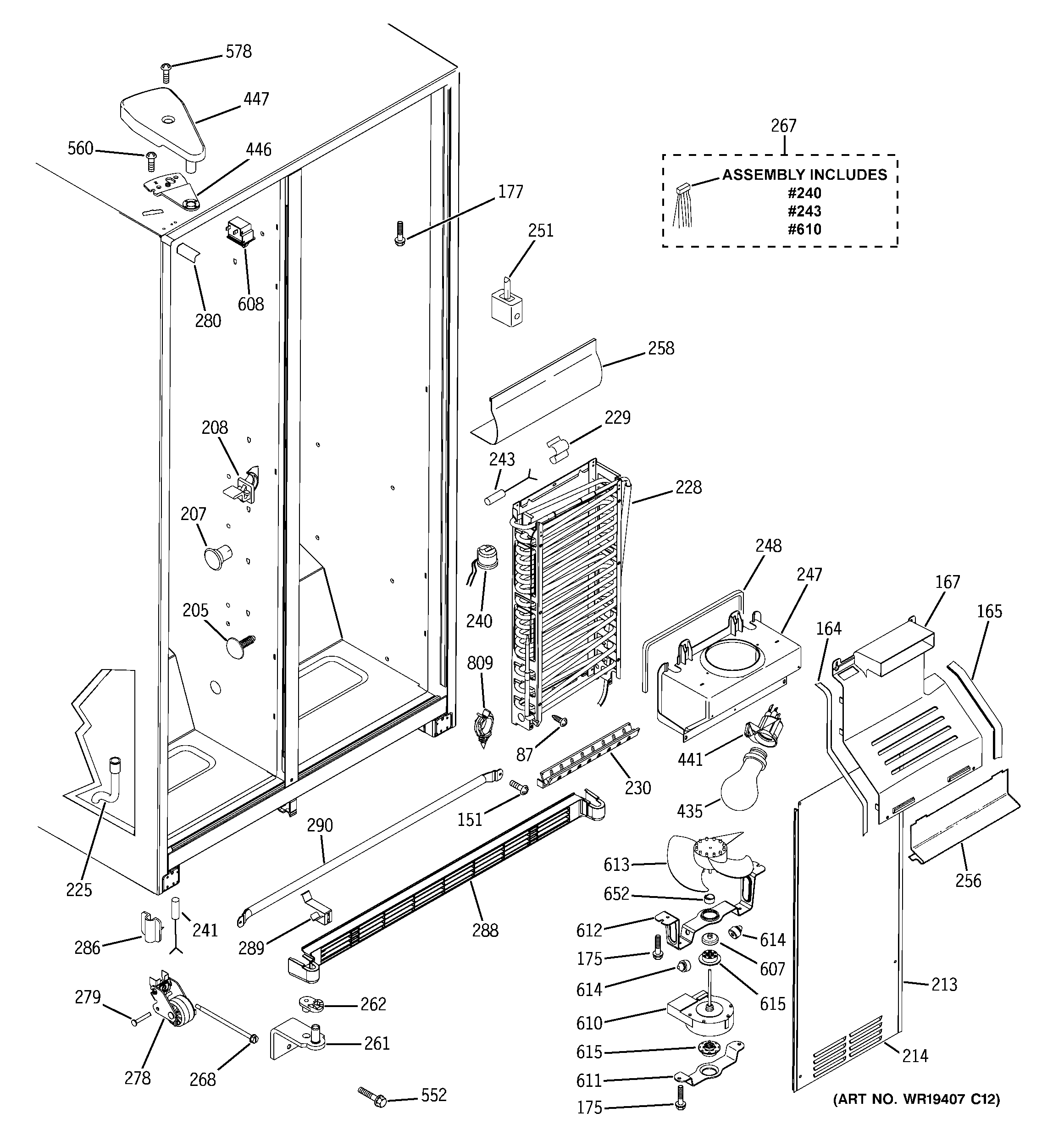

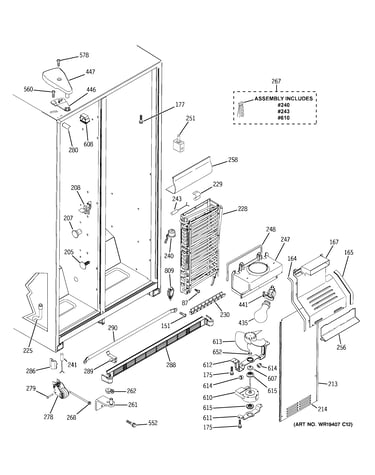

Freezer section diagram

Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$19.29
9% OFF Phone Price : $21.29
In Stock
Damper & The WR50X10034
#242

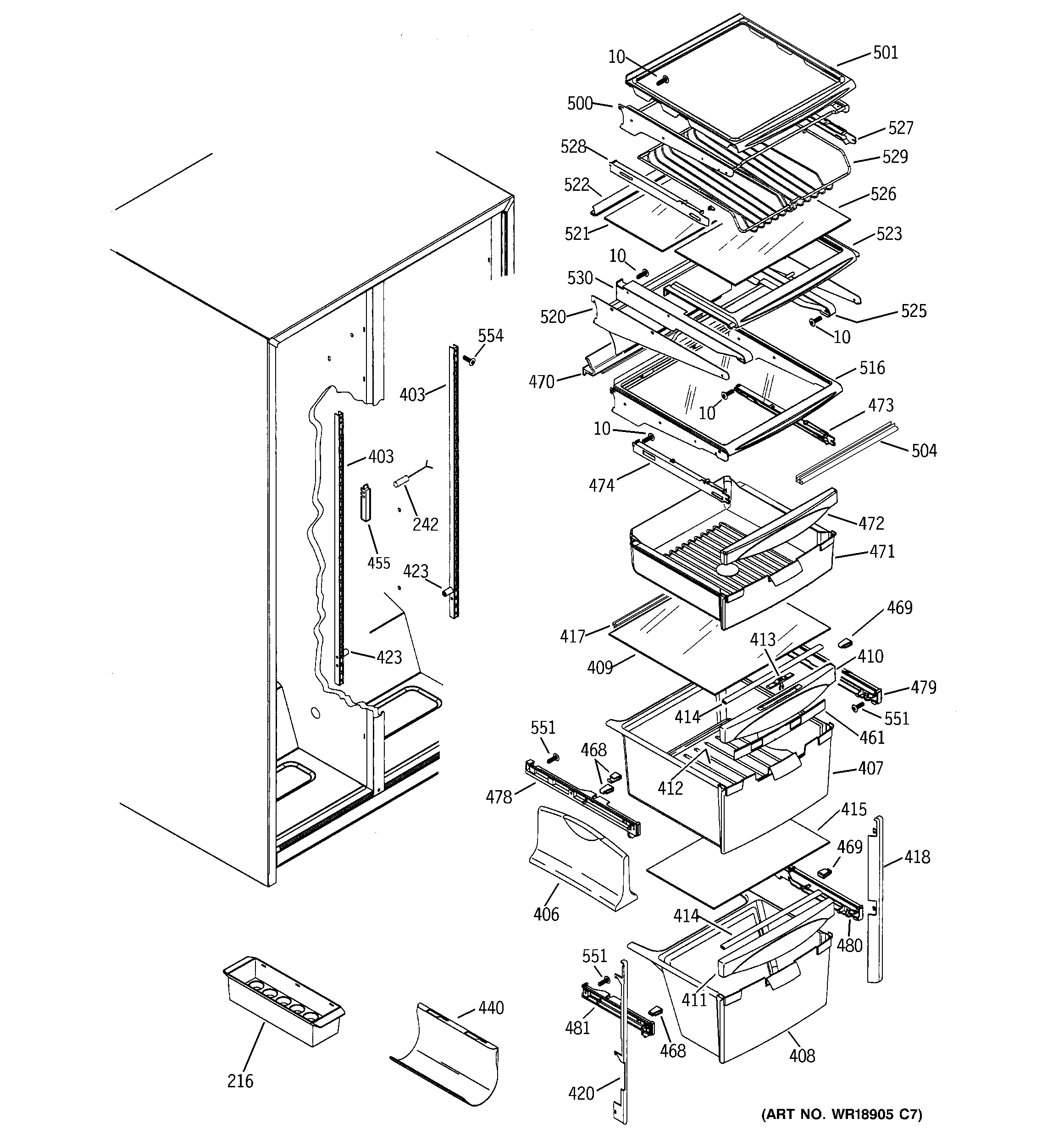

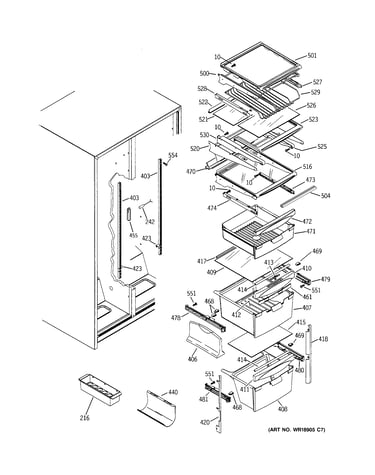

Fresh food shelves diagram

Damper & the

Part #WR50X10034

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10034. Substitute parts can look different from the original.
BEST SELLER
$19.29
9% OFF Phone Price : $21.29
In Stock
Refrigerator Filter Dryer WR86X96
#740

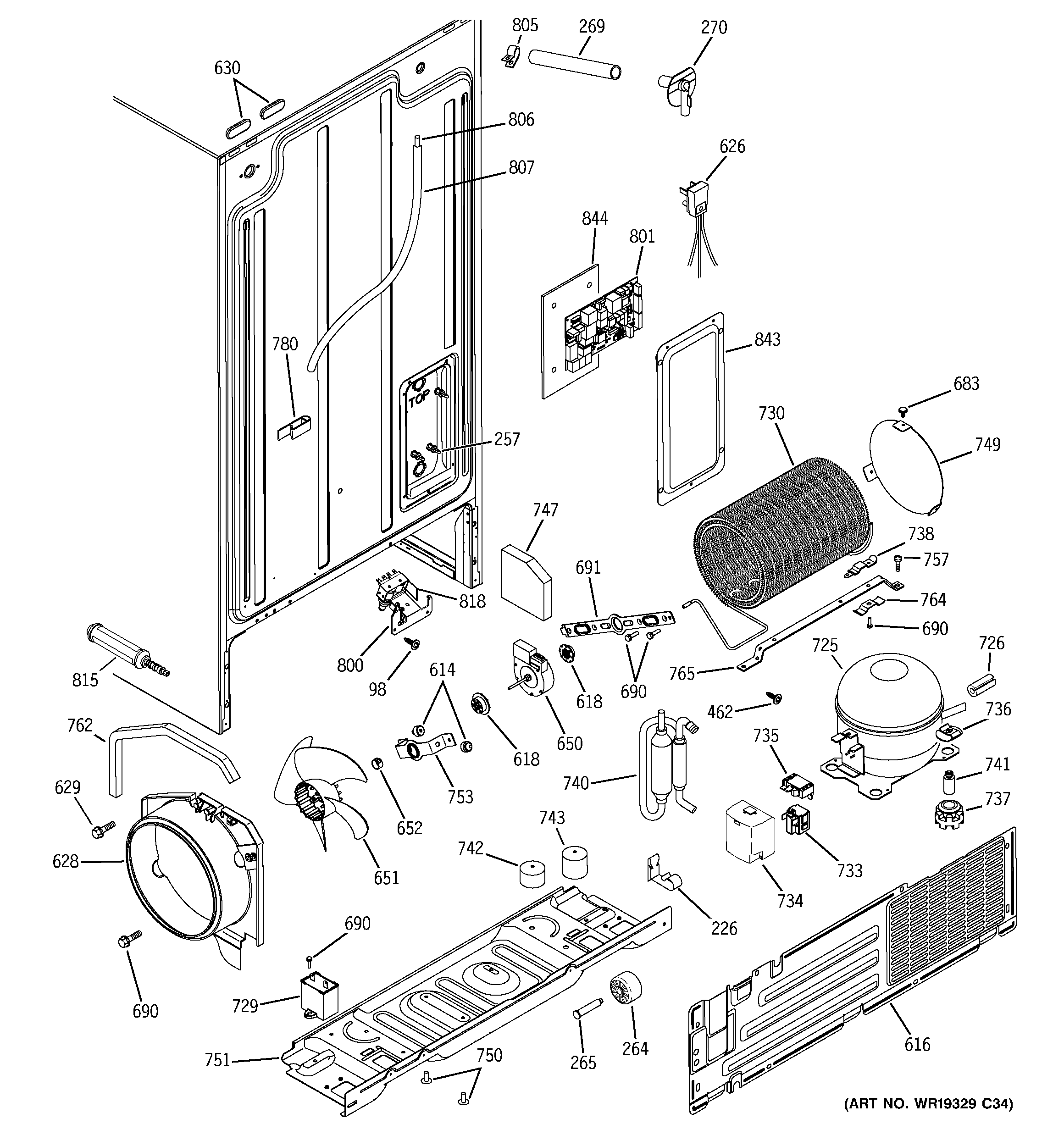

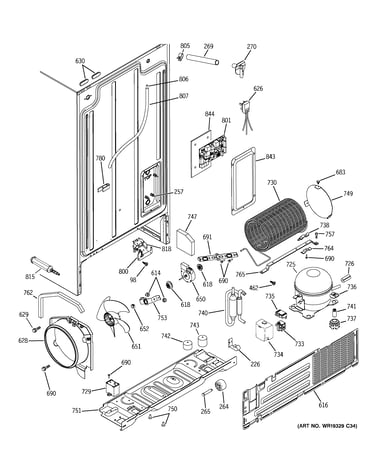

Sealed system & mother board diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18
6% OFF Phone Price : $84.18
In Stock
Freezer Door Harness WR23X10353
#267

Freezer section diagram

Freezer door harness

Part #WR23X10353

Replaced by #WR60X10185

?
Manufacturer substitution
This part replaces WR23X10353. Substitute parts can look different from the original.
BEST SELLER
$100.62
9% OFF Phone Price : $110.62
In Stock
Evaporator Motor WR60X10154
#610

Freezer section diagram

Evaporator motor

Part #WR60X10154

Replaced by #WR60X10185

?
Manufacturer substitution
This part replaces WR60X10154. Substitute parts can look different from the original.
BEST SELLER
$100.62
9% OFF Phone Price : $110.62
In Stock
Refrigerator Defrost Thermostat WR50X10054
#240

Freezer section diagram

Refrigerator defrost thermostat

Part #WR50X10054

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10054. Substitute parts can look different from the original.
BEST SELLER
$20.93
19% OFF Phone Price : $25.93
In Stock
Refrigerator Dispenser Ice Chute Door Kit (replaces Wr17x3093) WR17X11653
#62

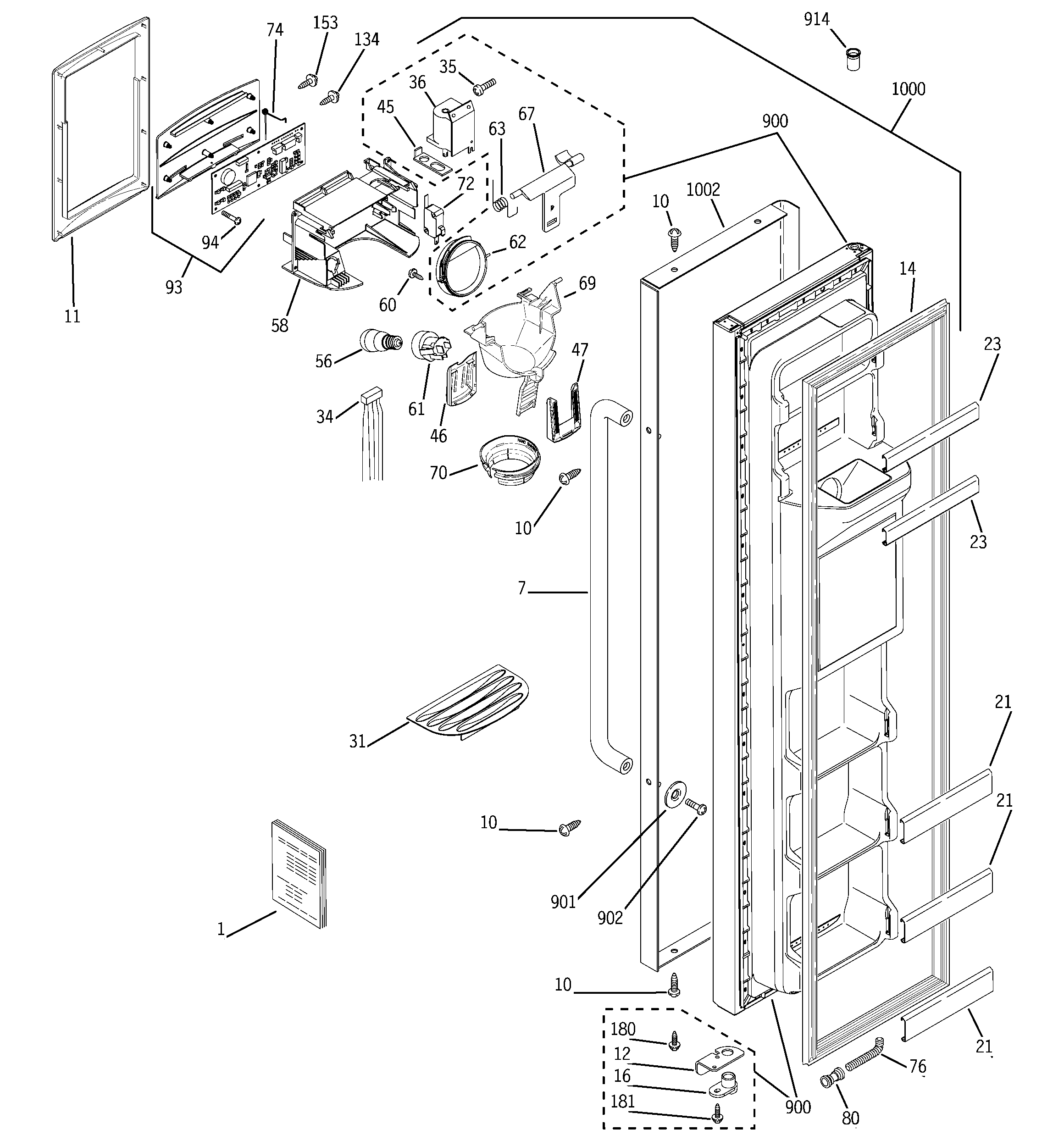

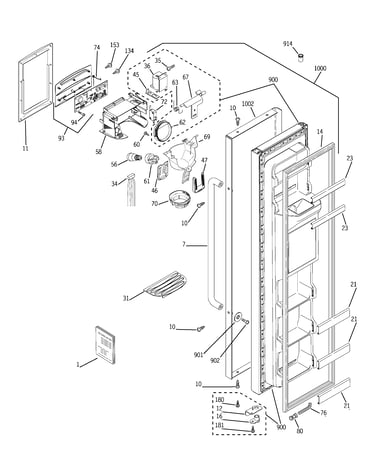

Freezer door diagram

Refrigerator dispenser ice chute door kit (replaces wr17x3093)

Part #WR17X11653

BEST SELLER
$12.76
14% OFF Phone Price : $14.76
In Stock
Refrigerator Solenoid WR62X10020
#36

Freezer door diagram

Refrigerator solenoid

Part #WR62X10020

Replaced by #WR62X10055

?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
$54.06
8% OFF Phone Price : $59.06
In Stock
Refrigerator Evaporator Blade WR60X10075
#613

Freezer section diagram

Refrigerator evaporator blade

Part #WR60X10075

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10075. Substitute parts can look different from the original.
BEST SELLER
$85.08
6% OFF Phone Price : $90.08
In Stock
Refrigerator Dispenser Ice Chute Door Crank WR17X10706
#67

Freezer door diagram

Refrigerator dispenser ice chute door crank

Part #WR17X10706

BEST SELLER
This item is not returnable
$6.86
13% OFF Phone Price : $7.86
In Stock
