Maytag LAW2400AAE washer/dryer Parts
Here are the diagrams and repair parts for Maytag LAW2400AAE washer/dryer, as well as links to manuals and error code tables, if available.

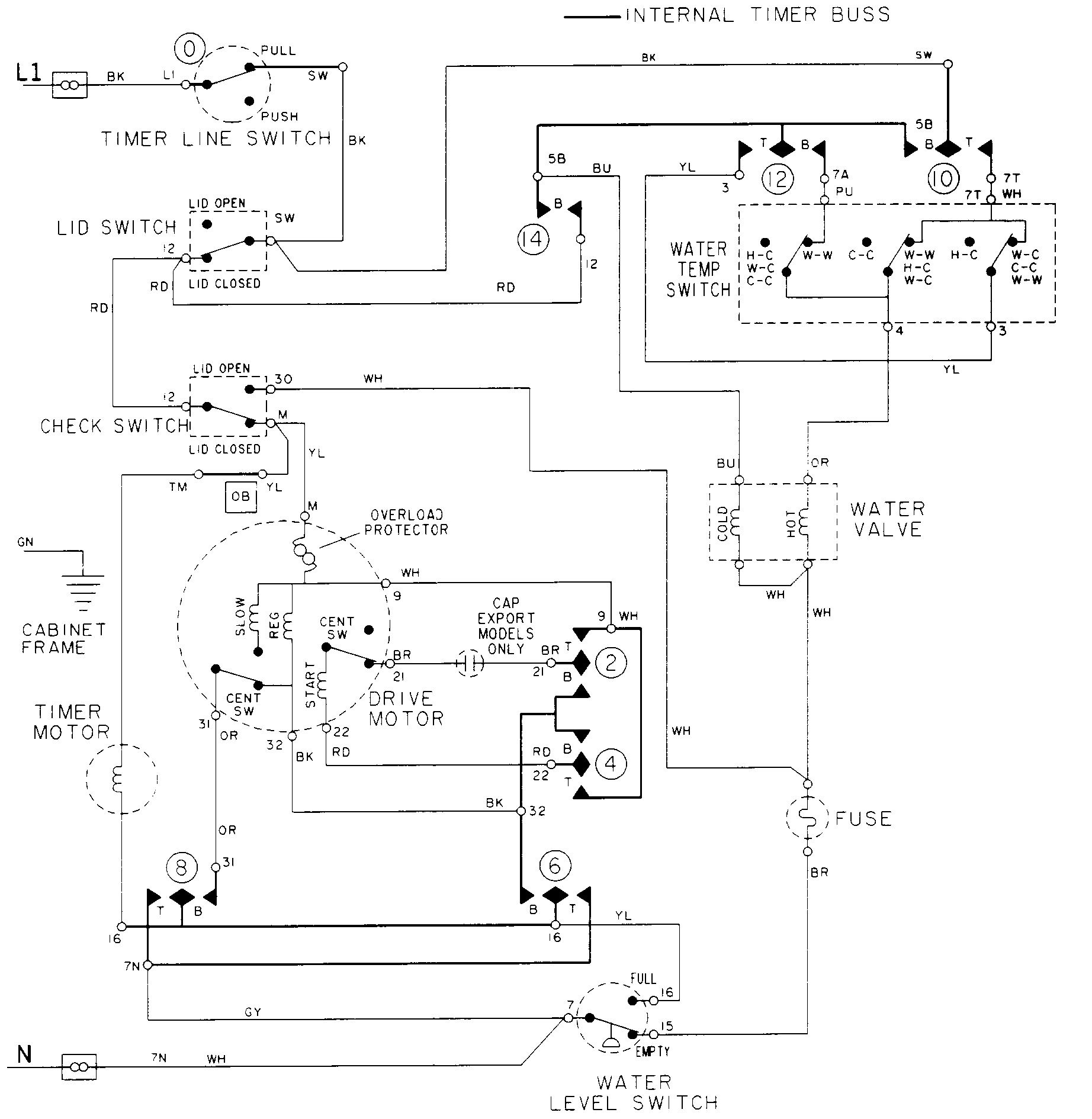

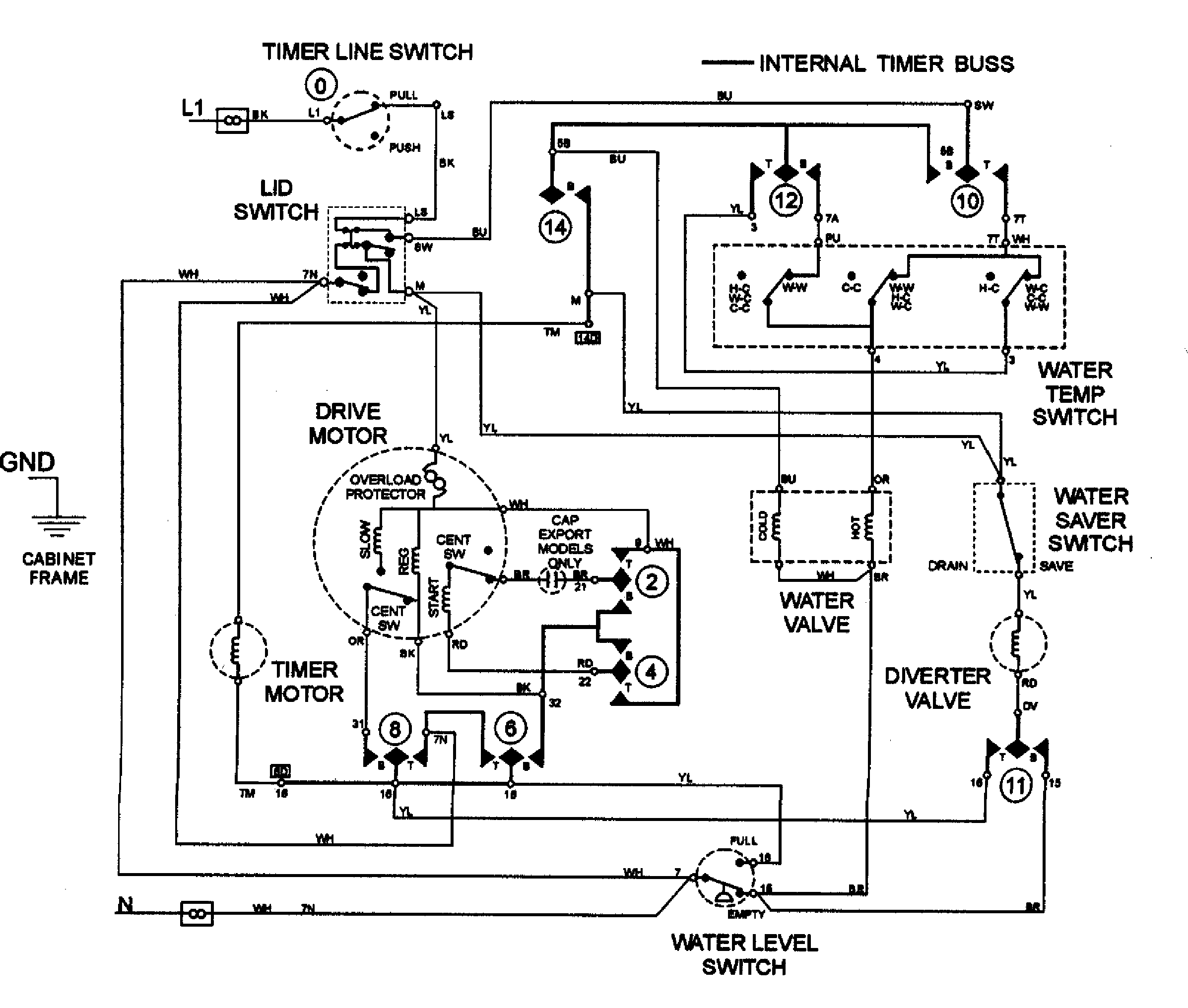

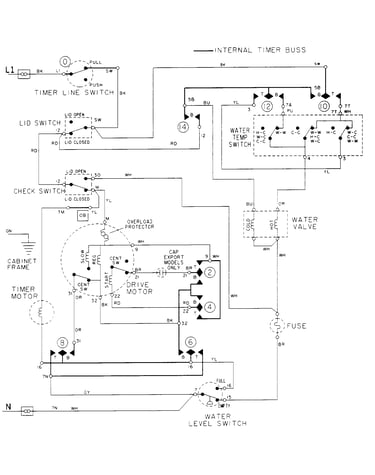

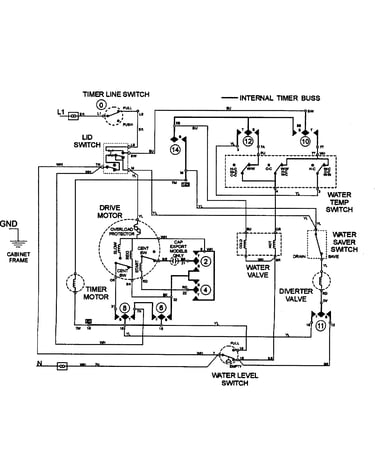

Error CodesBy Schematic
By Part

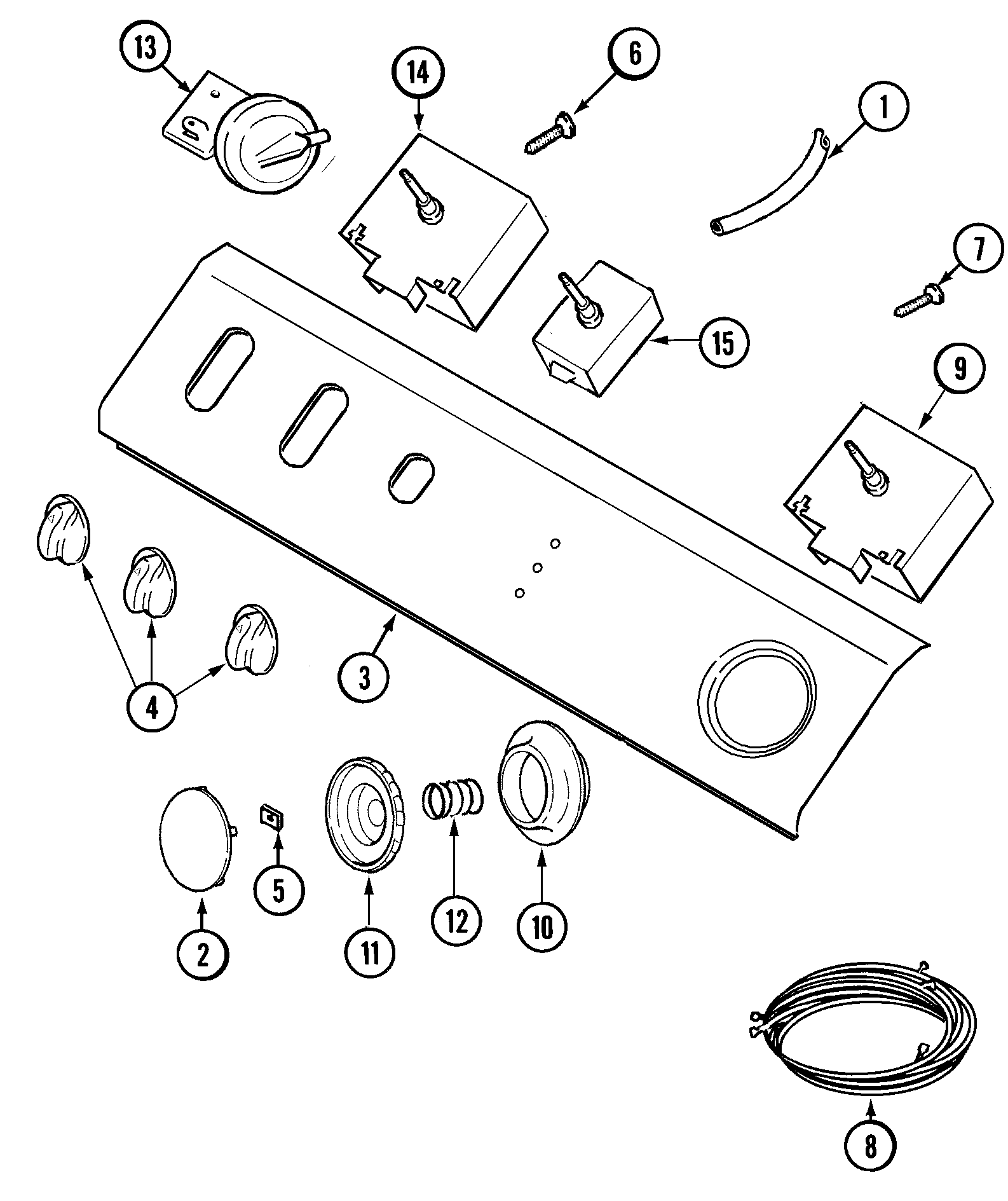

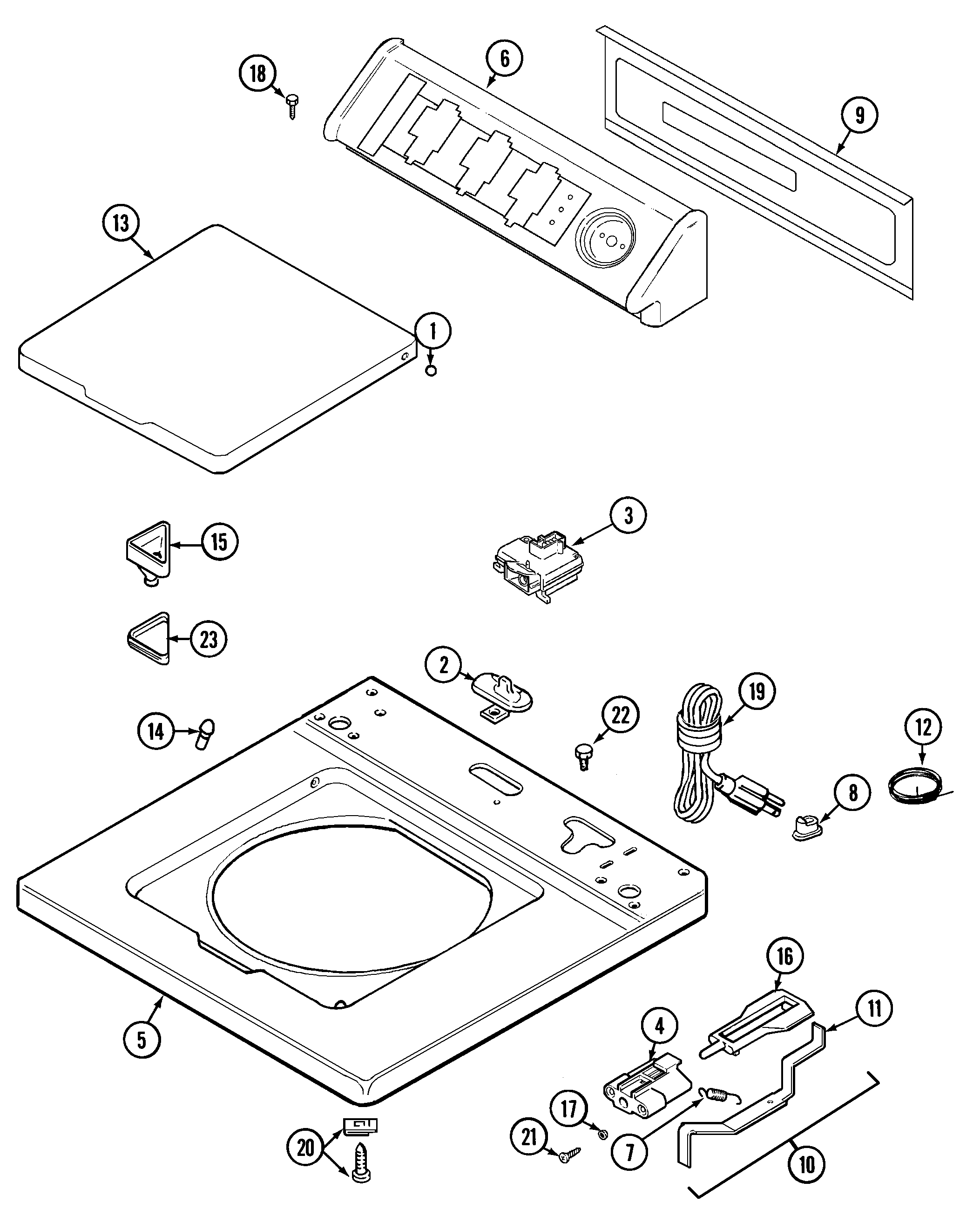

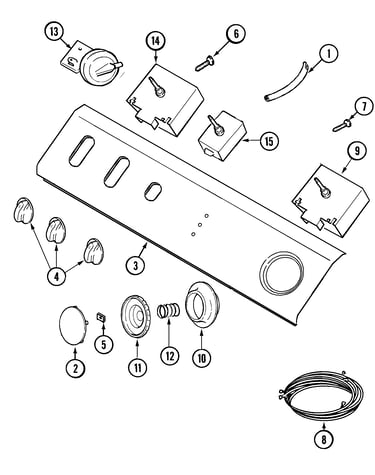

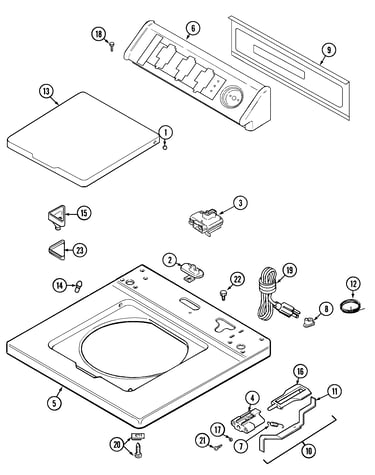

SELECT DIAGRAM
Browse Parts for LAW2400AAE Washer/Dryer

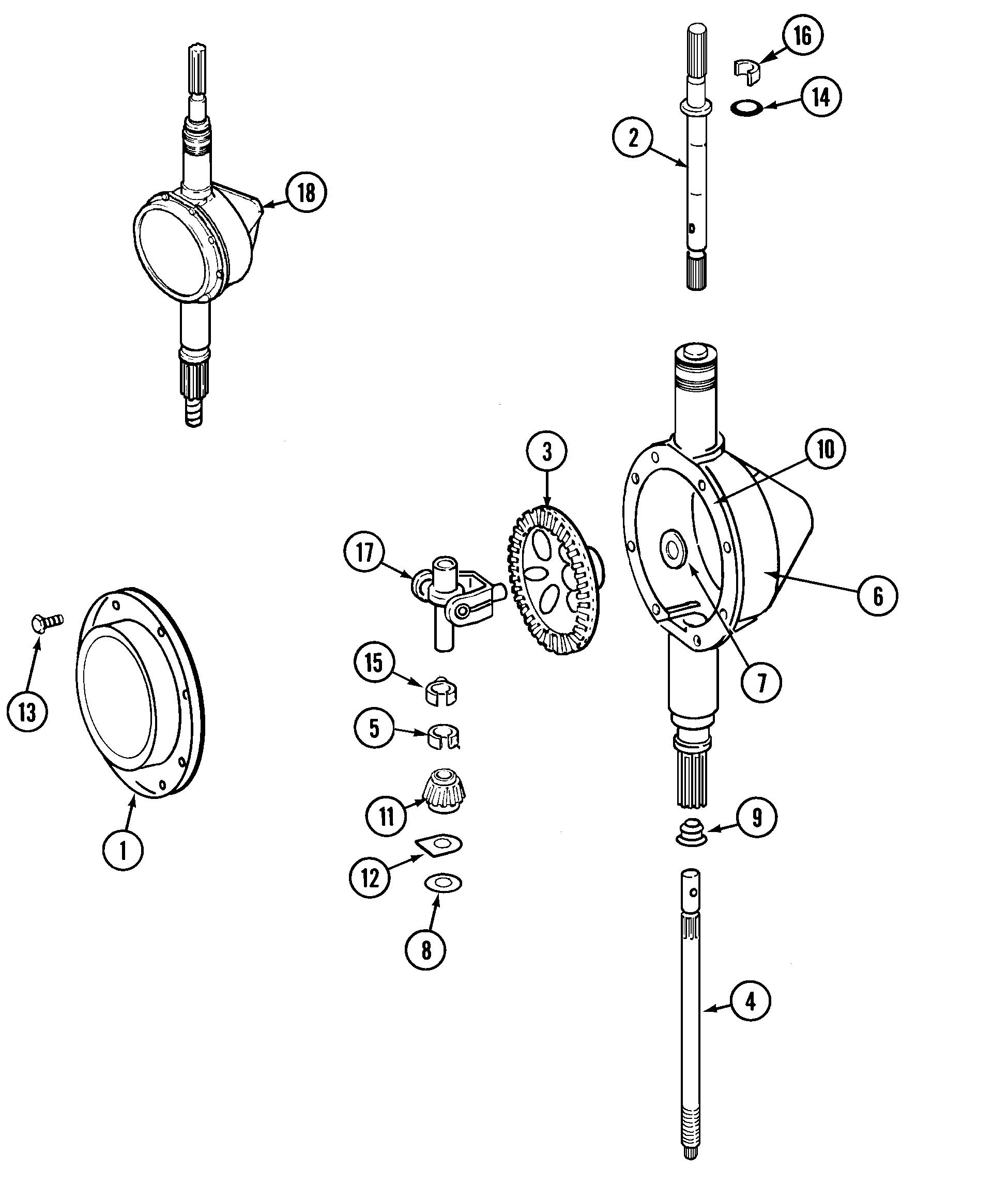

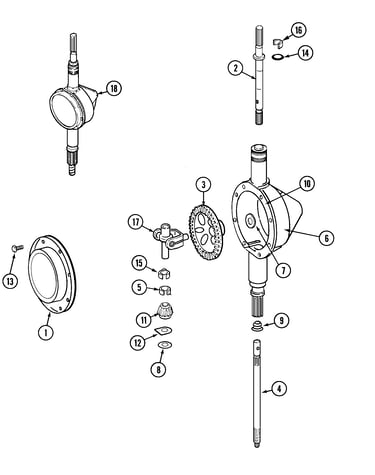

Transmission diagram
Silastic,adh
Part #058700Replaced by #W10841140
Manufacturer substitutionThis part replaces 058700. Substitute parts can look different from the original.In Stock$16.1411% OFF Phone Price : $18.14
Qty
Base diagram
Washer Drive Belt
Part #211125Replaced by #12112425
Manufacturer substitutionThis part replaces 211125. Substitute parts can look different from the original.In Stock$36.1414% OFF Phone Price : $42.14QtyBase diagram
Washer Pump Drive Belt
Part #211124Replaced by #12112425

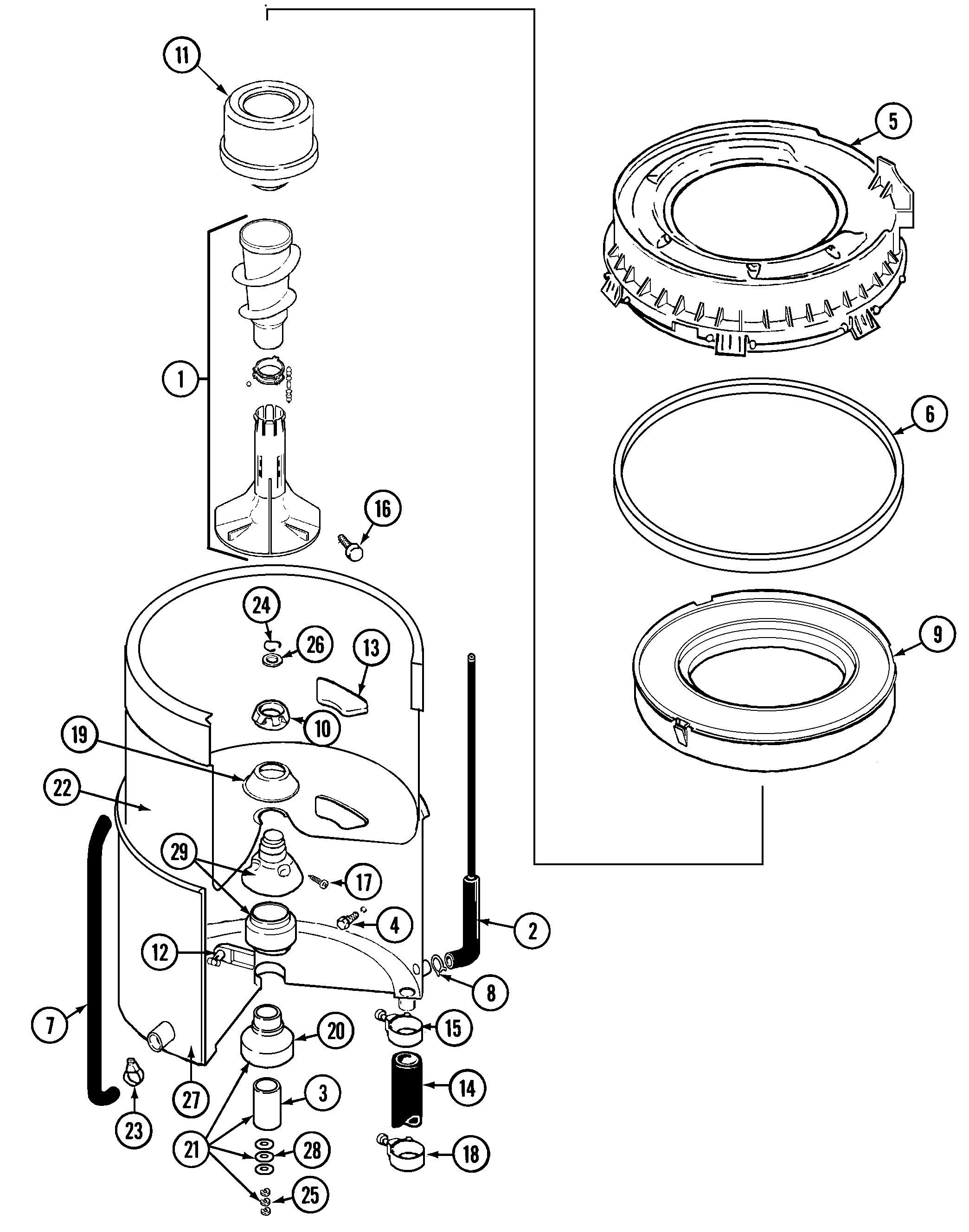

Manufacturer substitutionThis part replaces 211124. Substitute parts can look different from the original.In Stock$36.1414% OFF Phone Price : $42.14QtyTub diagram
Clamp
Part #211641Replaced by #WP285655
Manufacturer substitutionThis part replaces 211641. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyHose Clamp
Part #22001640Replaced by #WP285655
Manufacturer substitutionThis part replaces 22001640. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyHose Clamp
Part #22001820Replaced by #WP285655

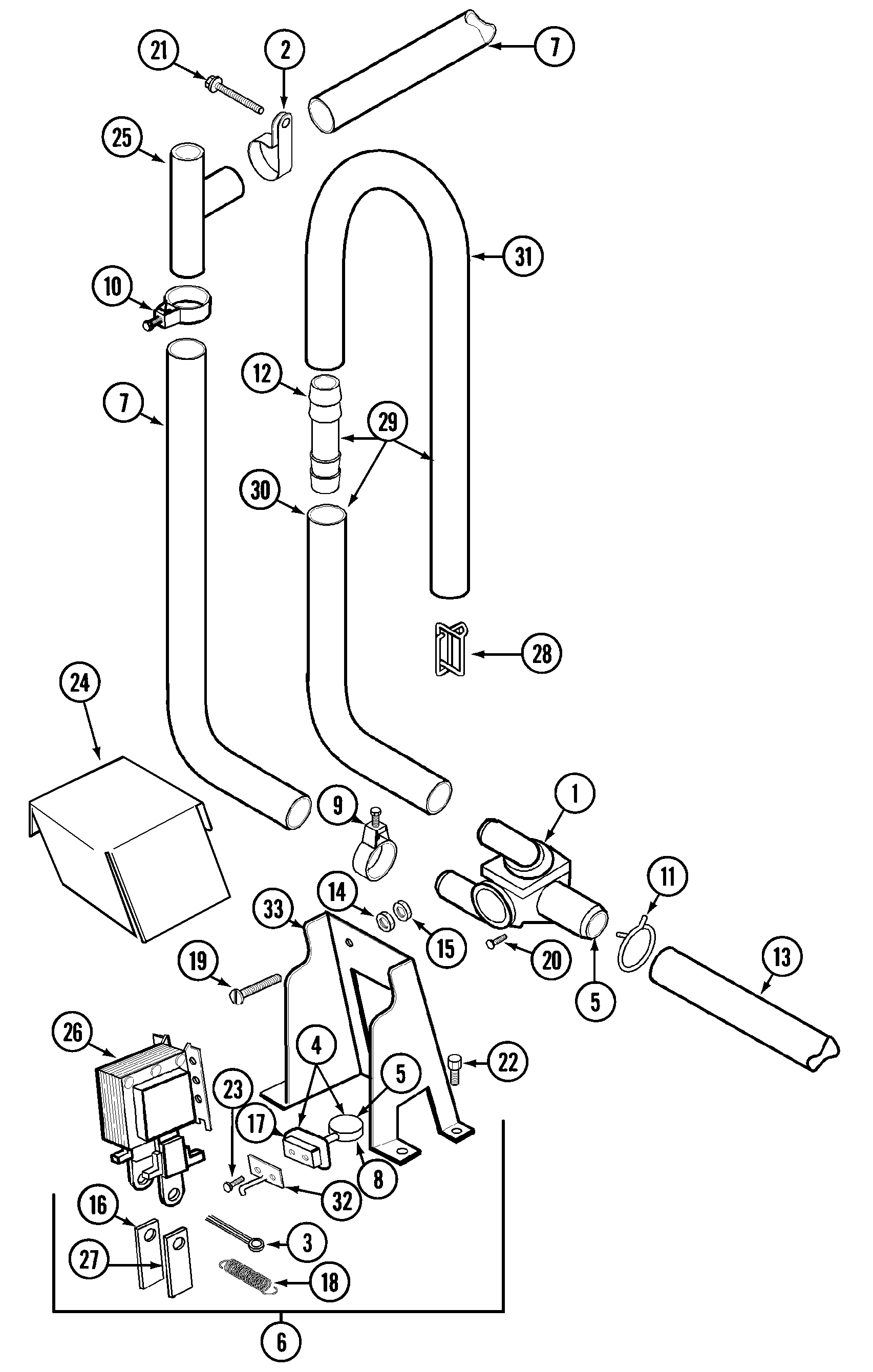

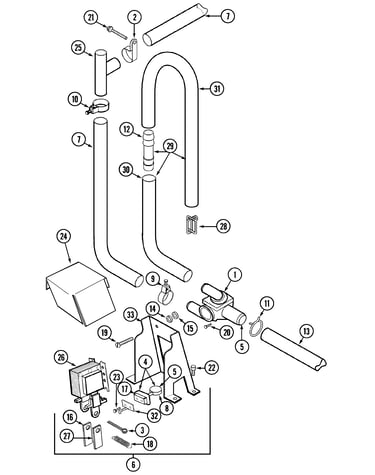

Manufacturer substitutionThis part replaces 22001820. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyWater saver components diagram
Hose Clamp
Part #200461Replaced by #WP285655

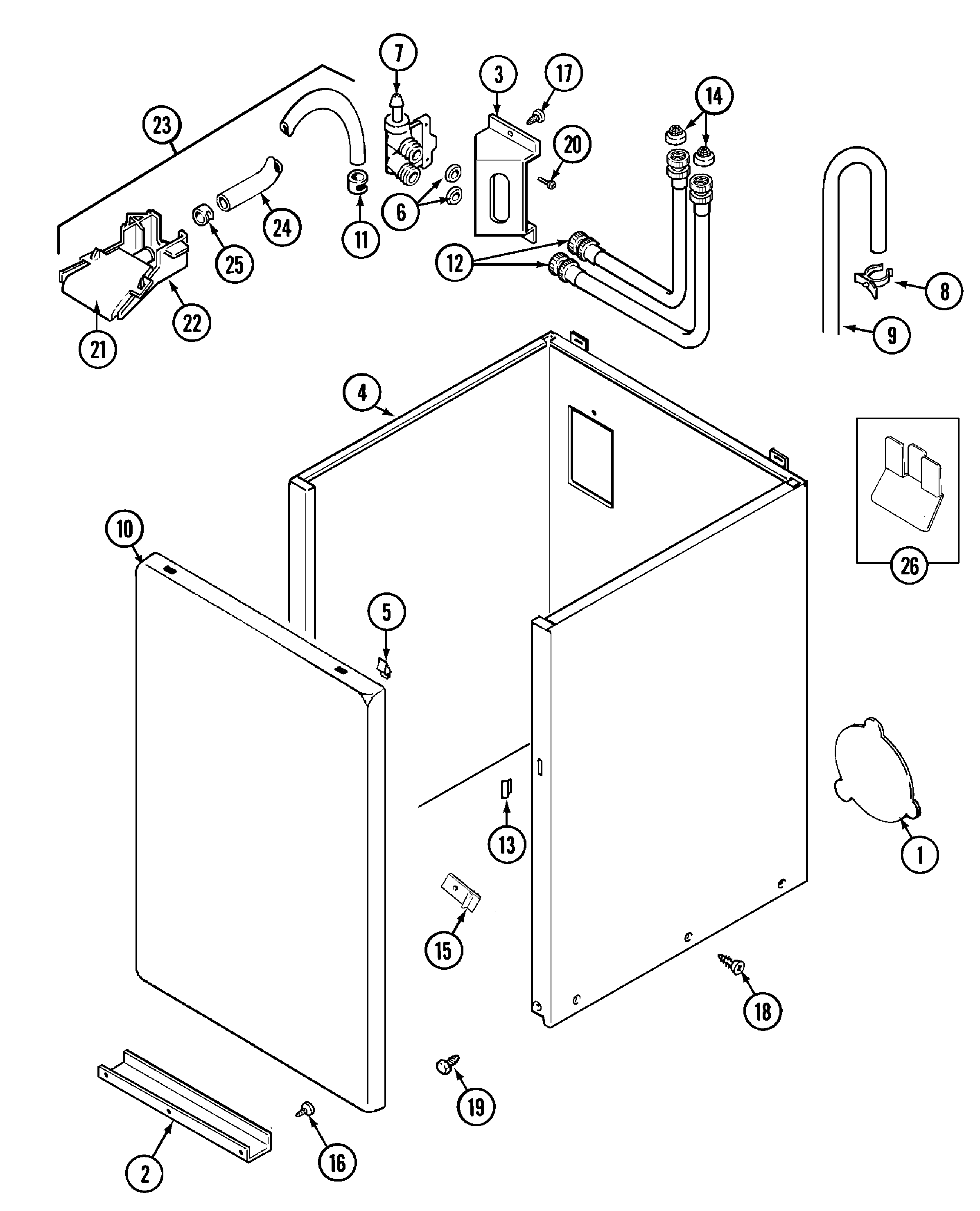

Manufacturer substitutionThis part replaces 200461. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyCabinet diagram
Washer Screw
Part #22001995Replaced by #W11573574
Manufacturer substitutionThis part replaces 22001995. Substitute parts can look different from the original.In Stock$48.64QtyCabinet diagram
Inlet Hose
Part #33-7891Replaced by #WP89503
Manufacturer substitutionThis part replaces 33-7891. Substitute parts can look different from the original.In Stock$15.9011% OFF Phone Price : $17.90QtyWasher Screw
Part #211294Replaced by #WP90767
Manufacturer substitutionThis part replaces 211294. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88Qty
