Model # 920727690 Official Kenmore 3-burner deluxe folding cookstove

Here are the diagrams and repair parts for Official Kenmore 920727690 3-burner deluxe folding cookstove, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Top Cover 34-1358
#13

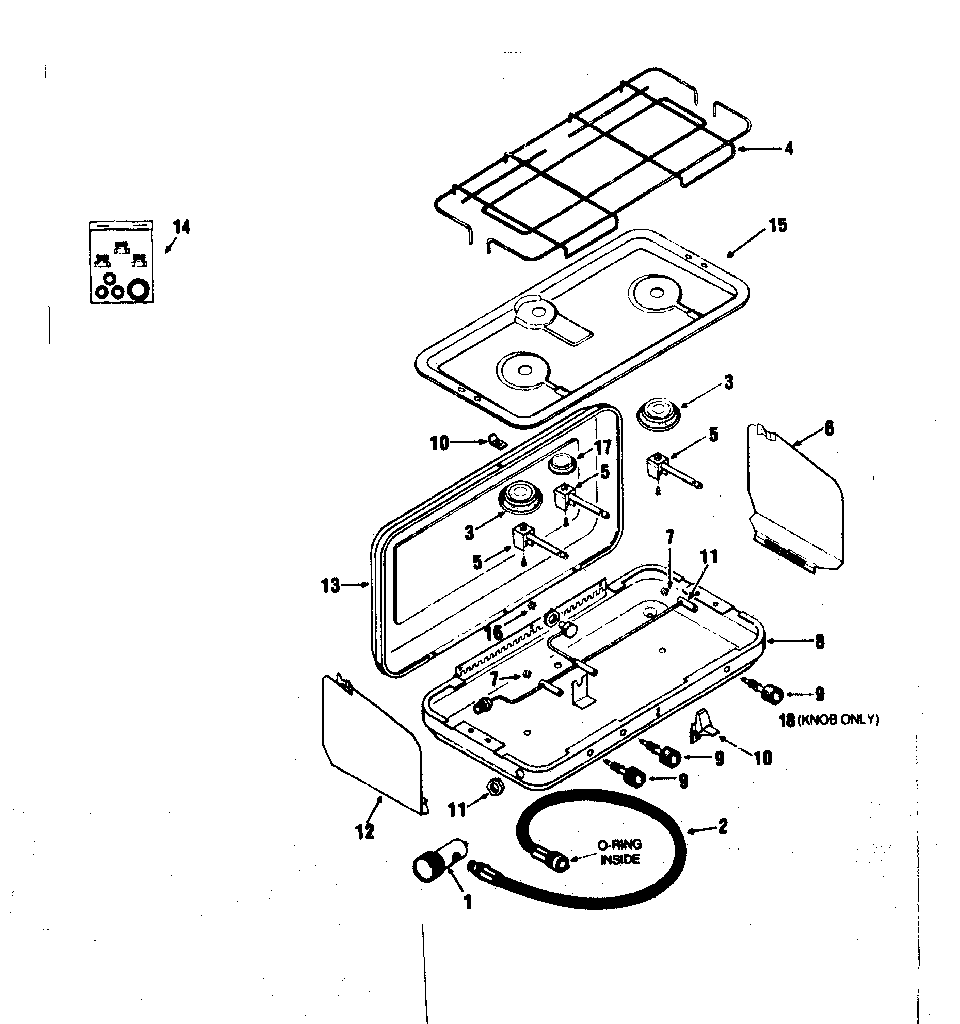

Unit parts diagram

Top cover

Part #34-1358

The manufacturer no longer makes this part, and there's no substitute part

Bottom Assembly 5237-52
#8

Unit parts diagram

Bottom assembly

Part #5237-52

The manufacturer no longer makes this part, and there's no substitute part

Windscreen 35-1363
#12

Unit parts diagram

Windscreen

Part #35-1363

The manufacturer no longer makes this part, and there's no substitute part

Latch Group 40-0988
#10

Unit parts diagram

Latch group

Part #40-0988

The manufacturer no longer makes this part, and there's no substitute part

Orifice Kit 40-0973
#7

Unit parts diagram

Orifice kit

Part #40-0973

The manufacturer no longer makes this part, and there's no substitute part

Kit 5217-38
#14

Unit parts diagram

Kit

Part #5217-38

The manufacturer no longer makes this part, and there's no substitute part

Sm Orifice 40-0970
#16

Unit parts diagram

Sm orifice

Part #40-0970

The manufacturer no longer makes this part, and there's no substitute part

Windscreen 35-1362
#6

Unit parts diagram

Windscreen

Part #35-1362

The manufacturer no longer makes this part, and there's no substitute part

Burner 5207-10
#17

Unit parts diagram

Burner

Part #5207-10

The manufacturer no longer makes this part, and there's no substitute part

Large Burner 5207-21
#3

Unit parts diagram

Large burner

Part #5207-21

The manufacturer no longer makes this part, and there's no substitute part
