Model #LTG5243DT5 Whirlpool laundry center

Here are the diagrams and repair parts for Whirlpool LTG5243DT5 laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 333 parts

    Dryer Terminal Block Wire Set

    #42

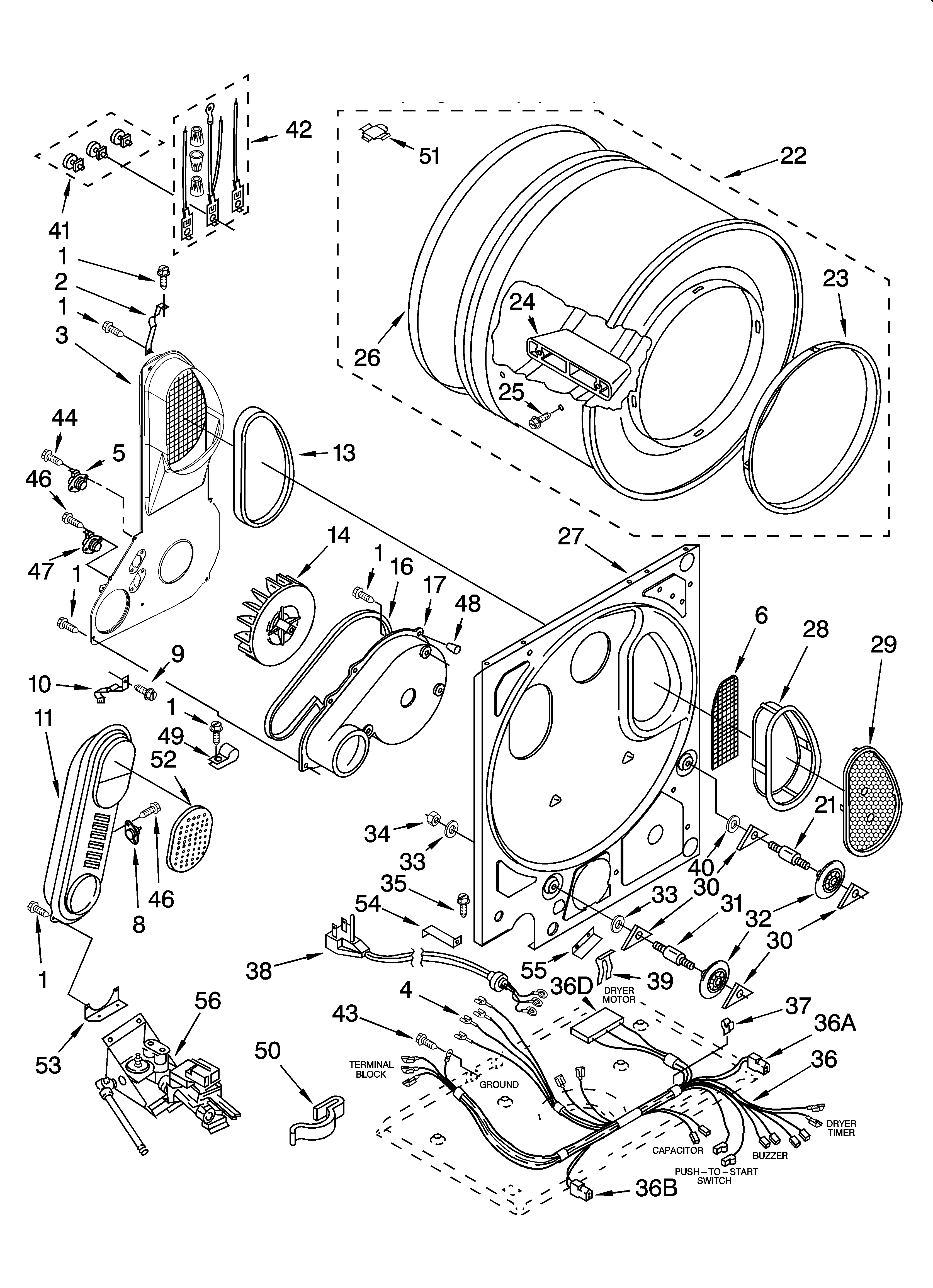

    Dryer bulkhead parts Diagram

    $44.99

    In Stock

    Appliance Touch-Up Paint, 0.6-oz (Biscuit)

    #NI

    3402856 burner assembly, optional parts (not included) Diagram

    $11.99

    In Stock

    Dryer Terminal Block Screw and Nut Set

    #41

    Dryer bulkhead parts Diagram

    $32.99

    In Stock

    Washer Gear Case Oil Seal

    #21

    Gearcase parts Diagram

    $25.99 |
    26% OFF
    MSRP: $35.00

    In Stock

    Washer Drain Hose Coupling Kit

    #10

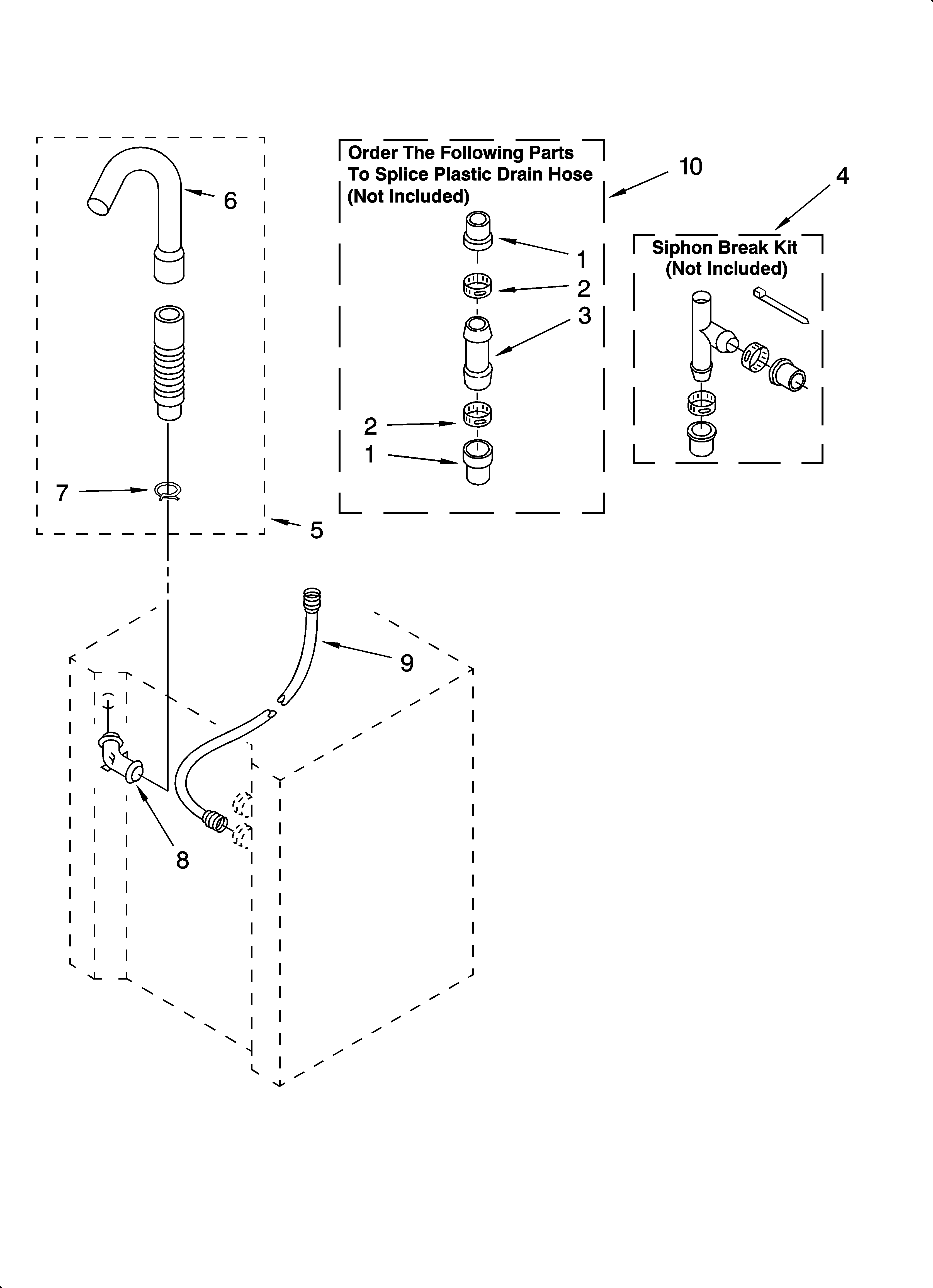

    Water system parts Diagram

    $37.99

    In Stock

    Washer Siphon Break Kit

    #4

    Water system parts Diagram

    $24.99 |
    26% OFF
    MSRP: $33.78

    In Stock

    Dryer Motor Wire Harness Connector

    #36D

    Dryer bulkhead parts Diagram

    $23.99 |
    20% OFF
    MSRP: $30.00

    In Stock

    Appliance Spray Paint (Gray Primer)

    #NI

    3402856 burner assembly, optional parts (not included) Diagram

    $30.99

    In Stock

    Washer Control Knob

    #27A

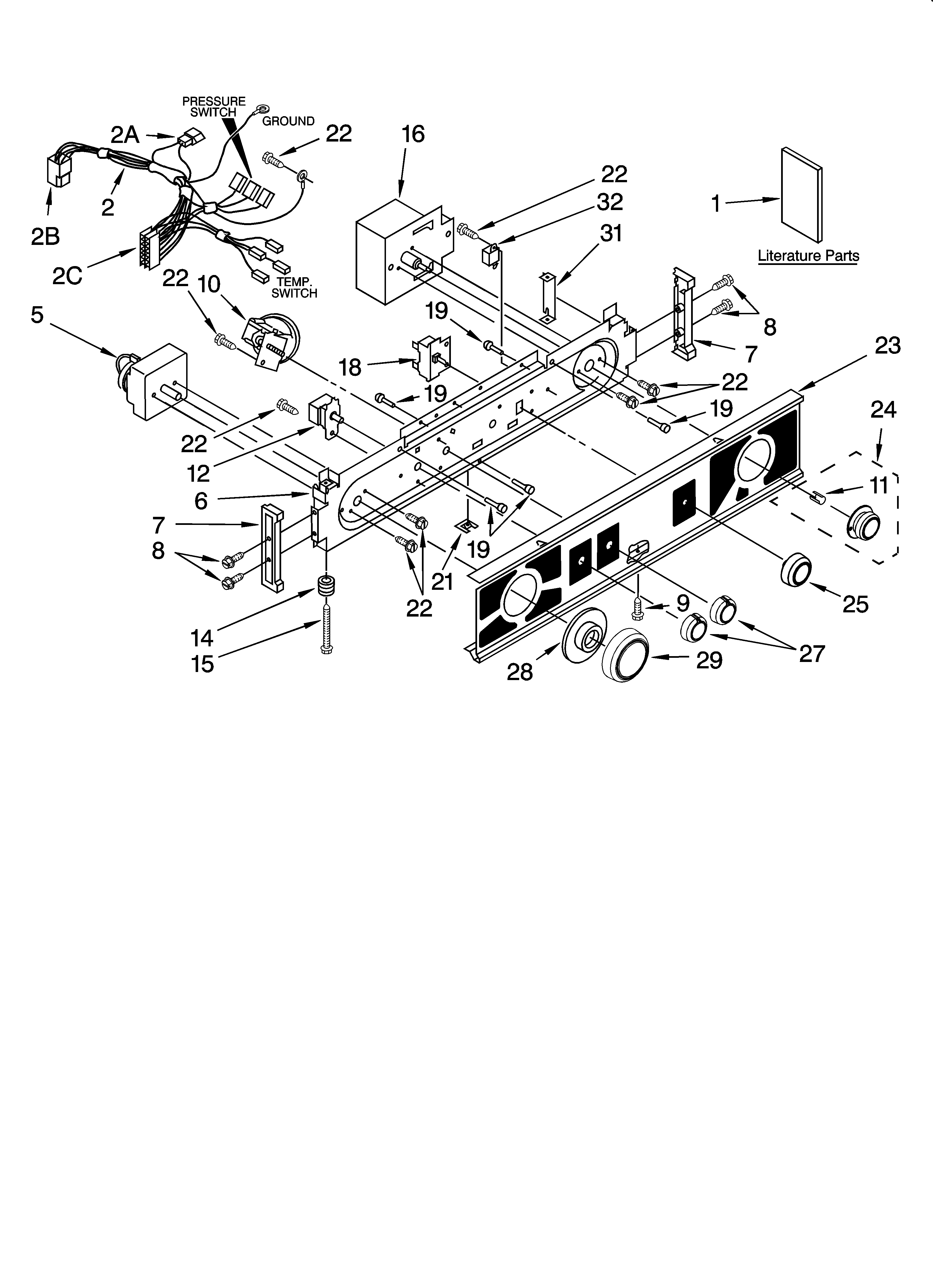

    Washer/dryer control panel parts Diagram

    Washer control knob

    Part #3957797
    $21.56 |
    20% OFF
    MSRP: $27.00

    In Stock

    Washer Screw

    #24

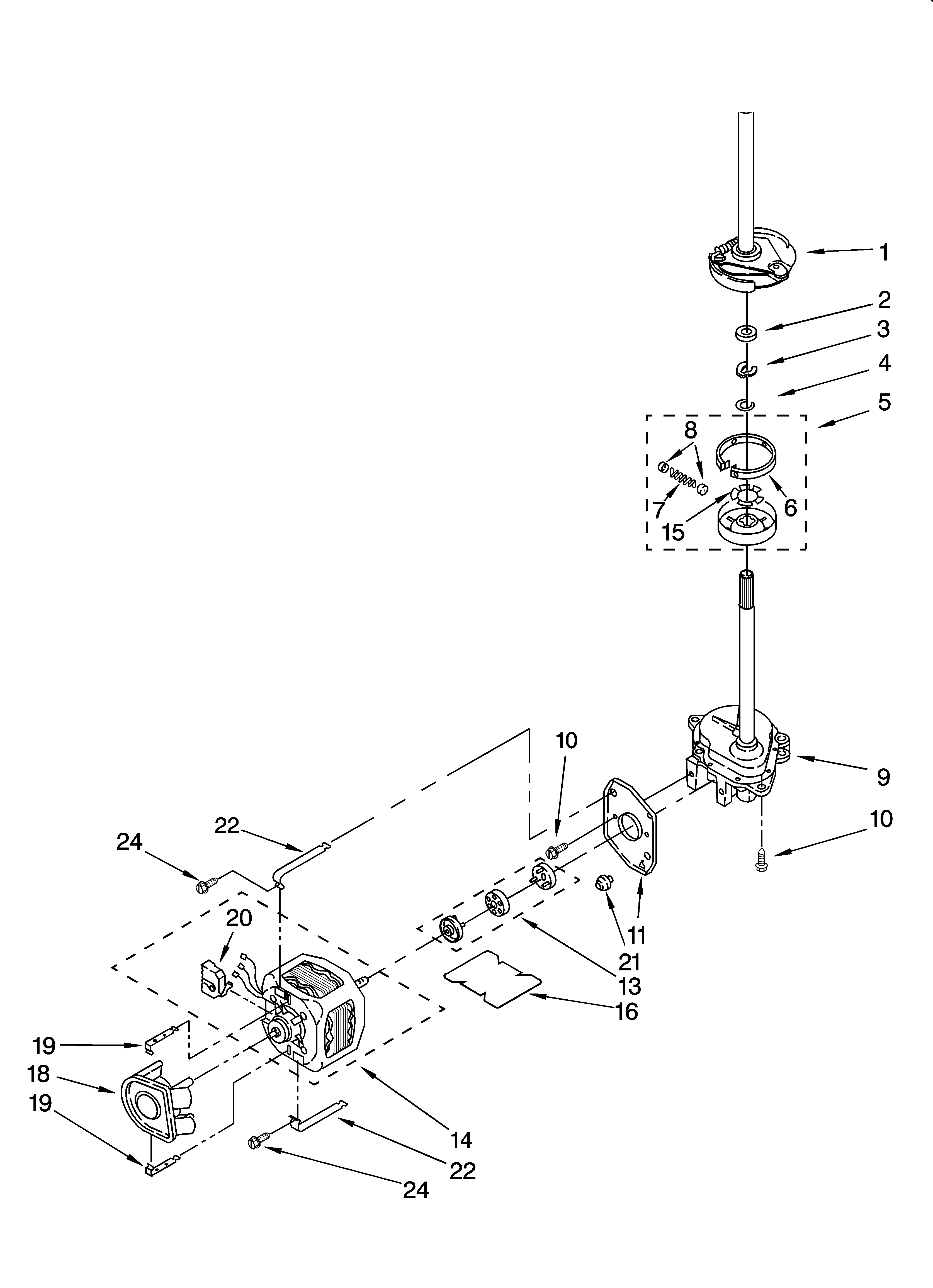

    Brake, clutch, gearcase, motor and pump parts Diagram

    Washer screw

    Part #3387485
    This item is not returnable
    $4.69

    In Stock
