Miter Saw

Model # 315212040 Official Craftsman 10" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 315212040 10" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

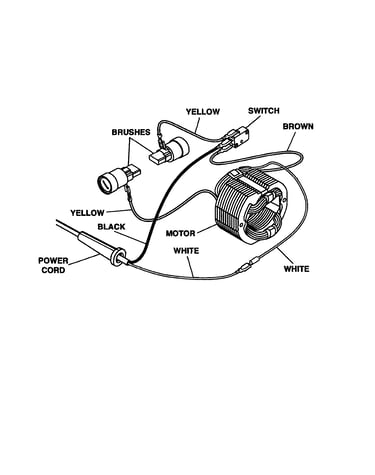

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Miter Saw Dust Bag Elbow 595026002
#20

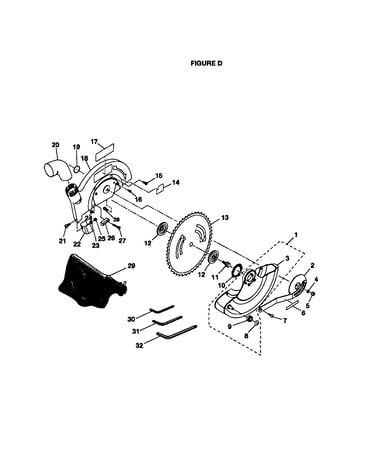

Blade/lower guard diagram

Miter saw dust bag elbow

Part #595026002

The manufacturer no longer makes this part, and there's no substitute part

Blade 511512000
#13

Blade/lower guard diagram

Blade

Part #511512000

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Bevel Lock Support Bracket 511D04020
#1

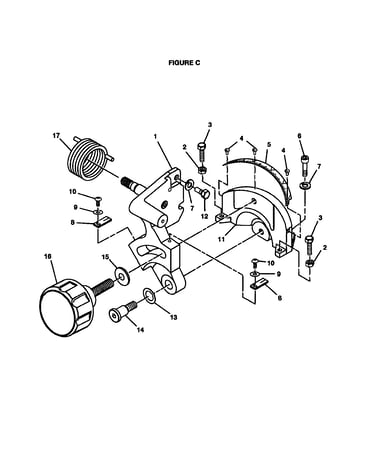

Bevel scale/support bracket diagram

Miter saw bevel lock support bracket

Part #511D04020

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Washer A35010616105
#4

Blade/lower guard diagram

Miter saw washer

Part #A35010616105

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Flange 588035105
#12

Blade/lower guard diagram

Miter saw blade flange

Part #588035105

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut A31703010008
#8

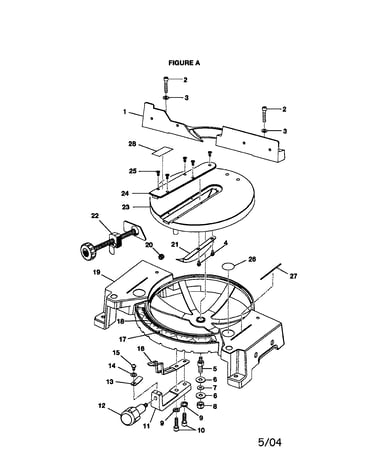

Base and table assembly diagram

Lock nut

Part #A31703010008

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly S51100400
#28

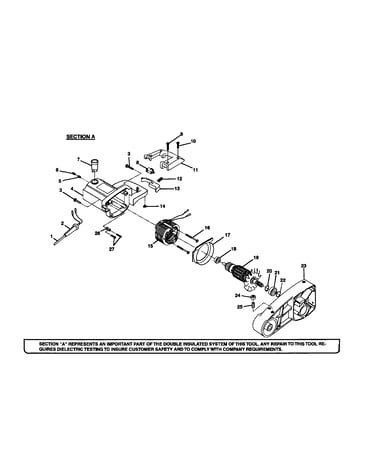

Motor and motor housing diagram

Motor assembly

Part #S51100400

The manufacturer no longer makes this part, and there's no substitute part

O-ring A63000000051
#20

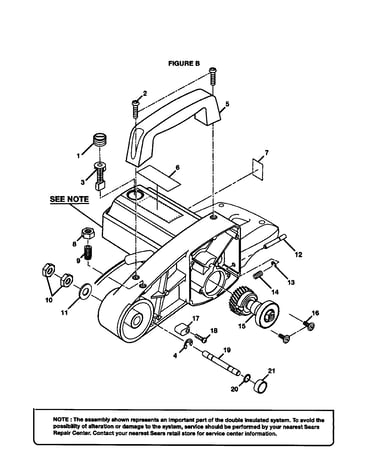

Handle/brush/arbor diagram

O-ring

Part #A63000000051

The manufacturer no longer makes this part, and there's no substitute part

Screw A18003100206
Screw

Part #A18003100206

The manufacturer no longer makes this part, and there's no substitute part

Bearing A50060020056
#21

Motor and motor housing diagram

Bearing

Part #A50060020056

The manufacturer no longer makes this part, and there's no substitute part
