Model # JN322*J1 Official GE range hood

Here are the diagrams and repair parts for Official GE JN322J1 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

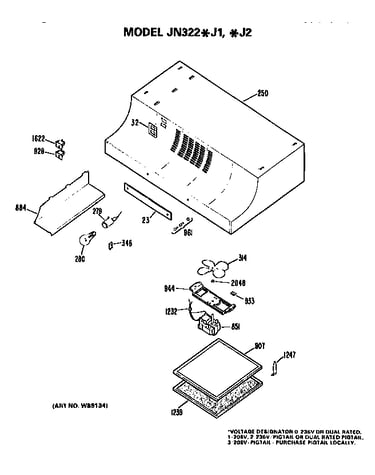

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Refrigerator Fan Blade WR2X3198

#613

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03
12% OFF Phone Price : $17.03
In Stock
Use And Care Guide 49-4786

#LITR

All parts diagram

Use and care guide

Part #49-4786

In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Fustat 15amp Type S OBT LOCAL

#741

All parts diagram

Fustat 15amp type s

Part #OBT LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fan Blade WB2X2128

#NI

All parts diagram

Range hood fan blade

Part #WB2X2128

The manufacturer no longer makes this part, and there's no substitute part

Speed Switch WB24X375

#929

All parts diagram

Speed switch

Part #WB24X375

The manufacturer no longer makes this part, and there's no substitute part

Ground Pl WB2X646

#348

All parts diagram

Ground pl

Part #WB2X646

The manufacturer no longer makes this part, and there's no substitute part

Strain Release WB2X7373

#1232

All parts diagram

Strain release

Part #WB2X7373

The manufacturer no longer makes this part, and there's no substitute part

Light Switch WB24X374

#1622

All parts diagram

Light switch

Part #WB24X374

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket WB8X259

#279

All parts diagram

Lamp socket

Part #WB8X259

The manufacturer no longer makes this part, and there's no substitute part
