Samsung NE58K9500SG/AA-00 electric slide-in range Parts

For the Samsung NE58K9500SG electric slide-in range, the reliable reset is a power reset: turn the range circuit breaker OFF for about 1 minute, then turn it back ON. This clears many control glitches on glass touch control panels without requiring a Menu button or dial.

• Turn all surface burner knobs to OFF.
• Switch the double-pole range breaker to OFF.
• Wait 60 seconds (up to 5 minutes if the display was frozen).
• Switch the breaker back ON.
• Set the clock if prompted.

Because reset options can differ by control-board version, we use the power reset first on NE58K9500SG. If problems continue:

• Try a longer power reset (breaker OFF 5 minutes).
• Make sure the control panel is clean and dry; moisture can cause false touches.
• If the display is blank after reset, check the breaker is fully seated and not tripped.
• If an error code returns, write it down; troubleshooting is usually code-specific.

A breaker reset is the fastest safe step to clear a temporary electronic “lockup” before you spend time diagnosing bake, broil, convection, or temperature problems that may actually be a control glitch.

For model-specific operating steps and control features, use the NE58K9500SG manual.

Last updated: January 2026

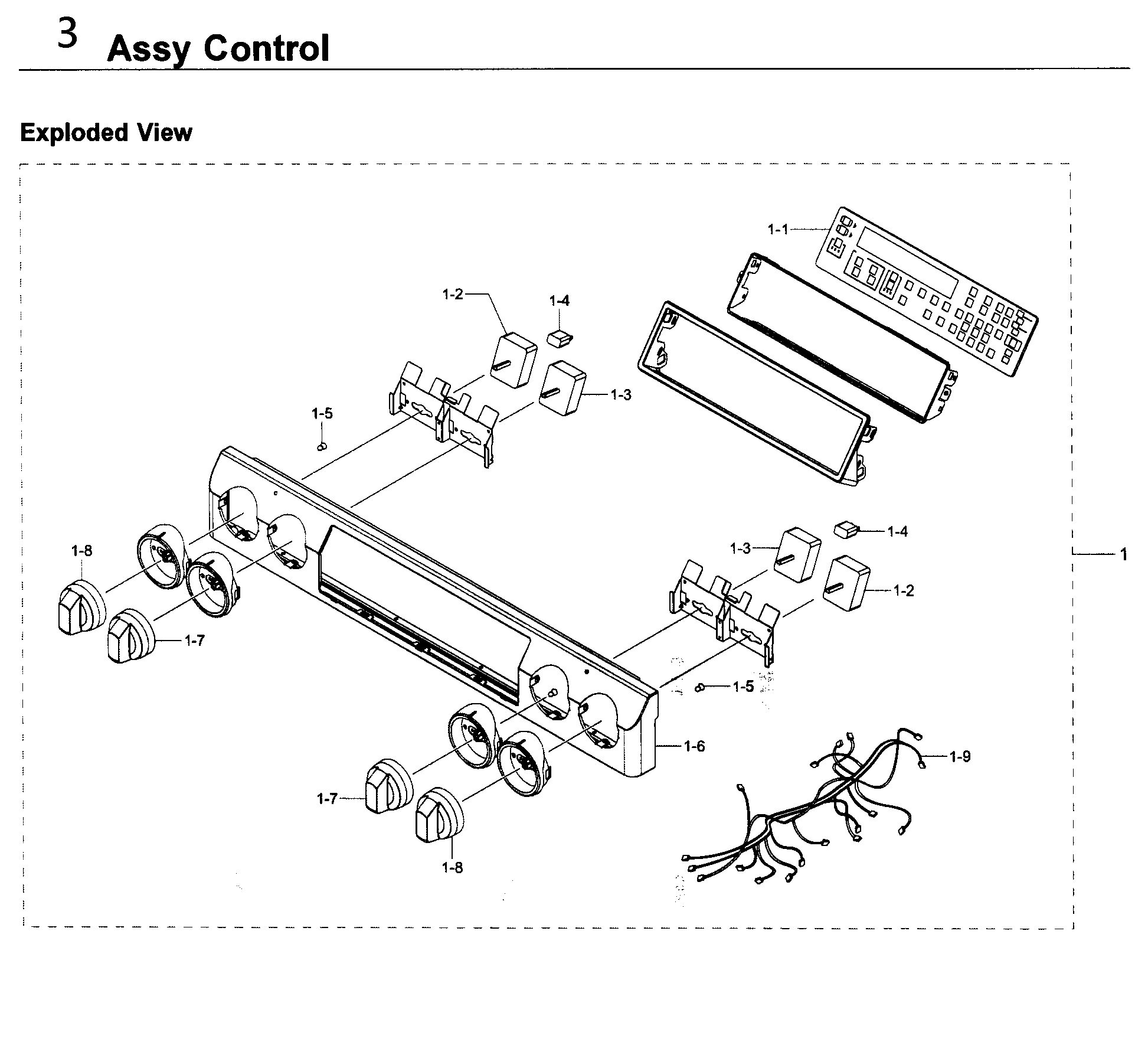

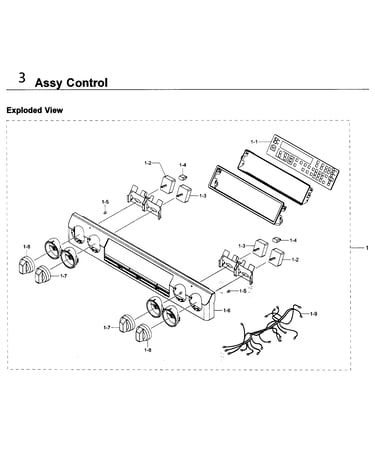

On the Samsung NE58K9500SG electric slide-in range, a touchpad that will not respond is most often caused by grease or moisture on the glass/control area, a stuck key condition, a loose ribbon connection, or a failing touchpad or electronic oven control (control board).

• Power the range off at the breaker for 2 to 5 minutes, then restore power (this resets the control).
• Clean and dry the control panel surface; use a lightly damp microfiber cloth, then dry immediately.
• Remove any protective film, residue, or cleaner overspray around the touch keys.
• Confirm the control lock feature is not enabled (check the lock indicator and the lock/unlock steps in the NE58K9500SG user manual).
• If only one key fails, it is often a localized touchpad issue; if all keys fail, suspect power, wiring, or the control board.

Before opening the range, shut off power at the breaker.

• Ribbon cable connection: A loose or oxidized ribbon connector between the touchpad and control board can cause intermittent or dead keys.
• Moisture intrusion: Steam from the oven or aggressive cleaning can migrate behind the panel and temporarily disable touch sensing.
• Failed touchpad membrane: If the display works but keys do not, the touchpad layer is a common failure point.
• Failed electronic oven control: If the panel is blank, beeps randomly, or behaves erratically, the control board can be the cause.

A non-working touchpad can prevent safe operation of bake, broil, and timed cooking. Addressing contamination and connection issues early can prevent repeated lockups and reduce the chance of control damage.

Last updated: January 2026

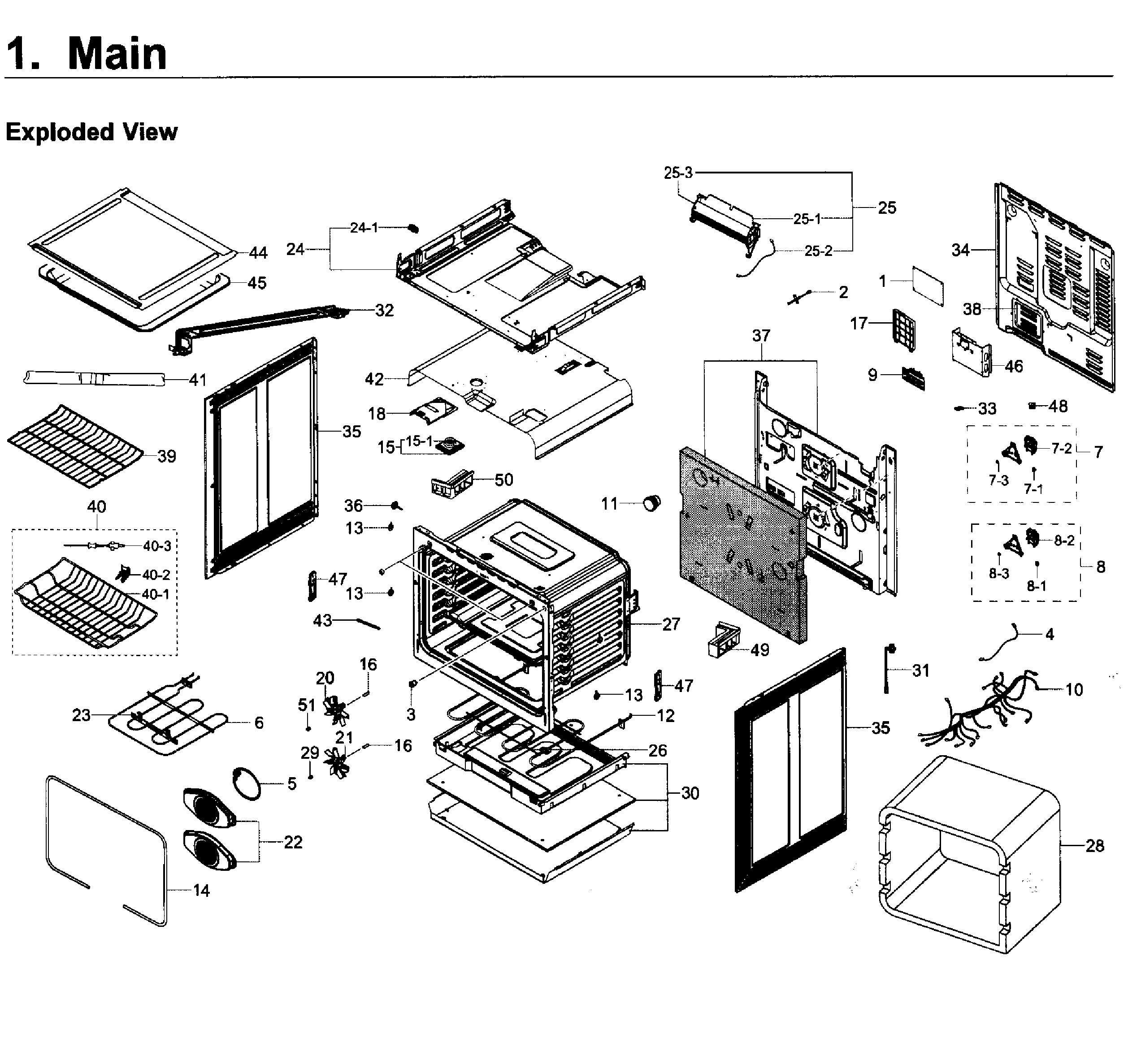

If the oven on your Samsung NE58K9500SG electric slide-in range is not working, the most common causes are a tripped breaker (loss of one 120V leg), a failed bake or broil heating element, a bad oven temperature sensor, or a control problem. Use the wiring and diagnostic guidance in the NE58K9500SG manual to pinpoint the failure safely.

• Confirm the range has full power; an electric oven needs 240V, and a half-tripped breaker can leave the cooktop working while the oven will not heat.
• Check for an error code or locked controls on the display; clear the condition if your model supports it.
• Try Bake and Broil separately; if one works and the other does not, the failed function often points to a single heating element.

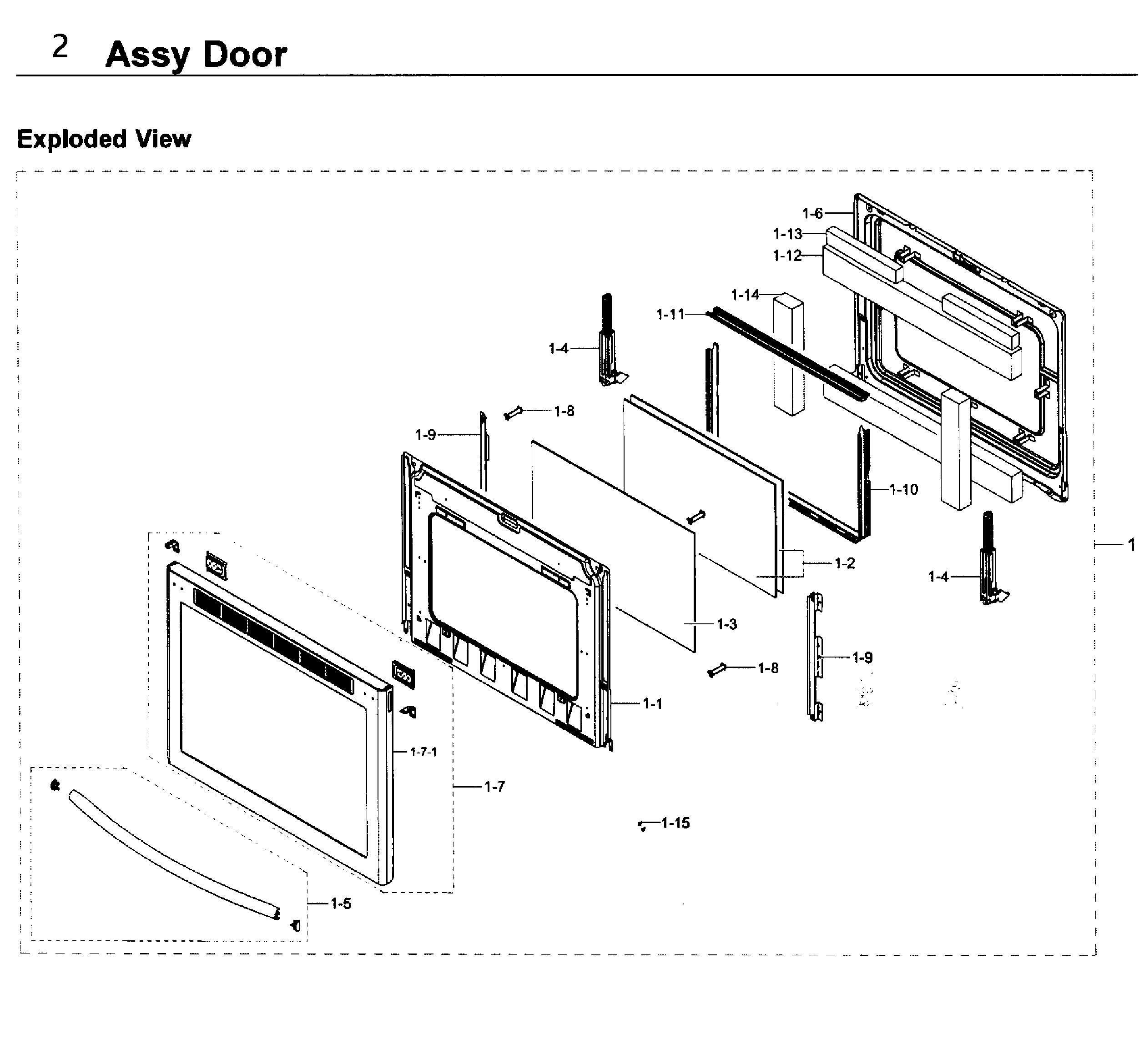

• Verify the oven door is fully closed; some modes will not start if the door switch logic thinks the door is open.

Turn off the breaker before opening panels or testing continuity.

• Bake element: a broken or blistered element usually means it needs replacement.
• Broil element: same checks as bake.
• Oven temperature sensor: if it is open/shorted, the control may prevent heating or heat erratically.
• Thermal cutout or fuse (if equipped): if open, the oven can appear dead even though the display works.
• Wiring and terminals: burned connectors at the element or control can stop power flow.

If you are not comfortable testing live voltage, we recommend having a technician verify power at the terminal block and control outputs.

An oven that will not heat is often a simple power or heating-element failure, but continuing to run the range with loose or burned wiring can damage the control and create a safety hazard. Accurate diagnosis helps you replace only the part that failed.

Last updated: January 2026
