GE GSE22ETHCCC refrigerator

GE GSE22ETHCCC refrigerator Parts

Here are the diagrams and repair parts for GE GSE22ETHCCC refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

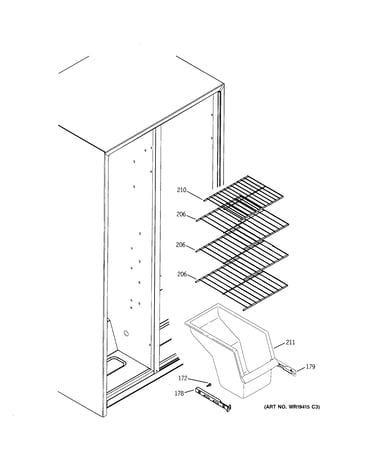

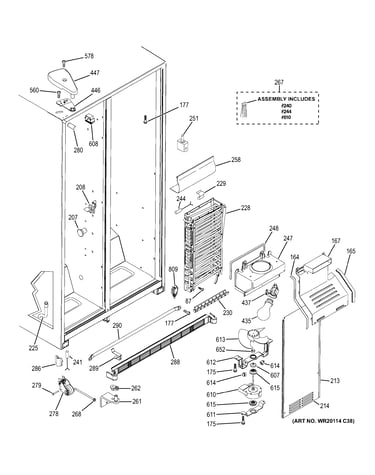

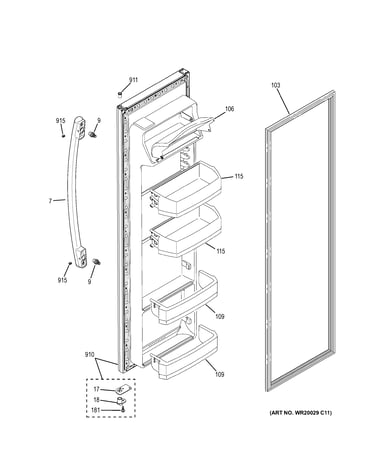

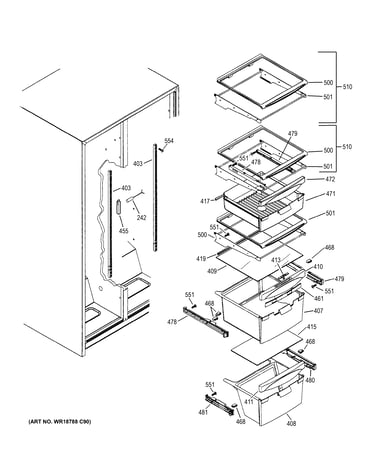

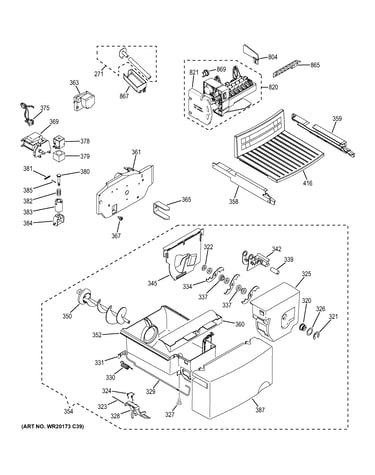

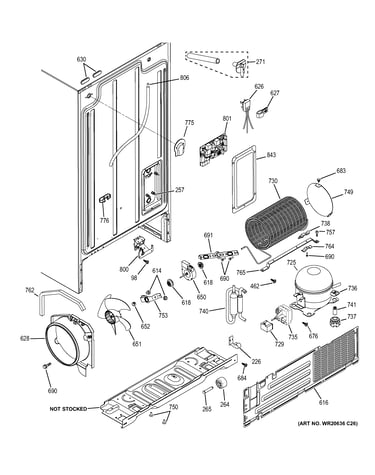

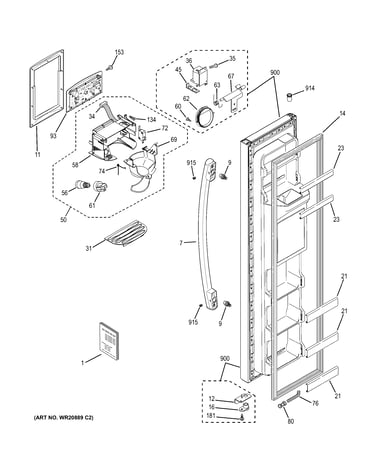

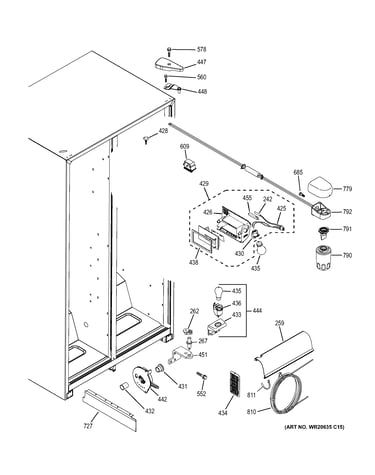

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GSE22ETHCCC Refrigerators

GE Refrigerator GSE22ETHCCC FAQs

To reset your GE GSE22ETHCCC side-by-side refrigerator, we recommend a simple power reset: unplug the refrigerator (or turn off the breaker) for about 5 minutes, then restore power. This clears many control glitches and restarts the electronic control.

Reset steps (safe and effective)
  • Unplug the refrigerator from the wall outlet, or switch the circuit breaker off.
  • Wait 5 minutes (this lets the control board fully power down).
  • Plug it back in, or turn the breaker back on.
  • Wait 1 to 2 minutes for the control to boot up.
  • Confirm cooling resumes; you should hear fans or the compressor cycle on later.
If the reset does not fix the issue

A reset helps with temporary electronic hiccups. If symptoms return, focus on the system tied to the problem.

  • No cooling or warm temperatures: check airflow and consider a failed sensor or fan.
  • Ice maker or dispenser issues: check for a frozen fill tube, low water pressure, or a valve problem.
  • Water dispenser slow or not dispensing: replace the filter and purge air from the line.
Common parts related to “won’t cool” or “no ice” symptoms
Symptom What to check next Example part for GSE22ETHCCC
Fridge/freezer temps off Temperature sensing and control response Refrigerator temperature sensor WR55X10025
No ice, no water fill Water supply into the unit Refrigerator water valve WR57X33326

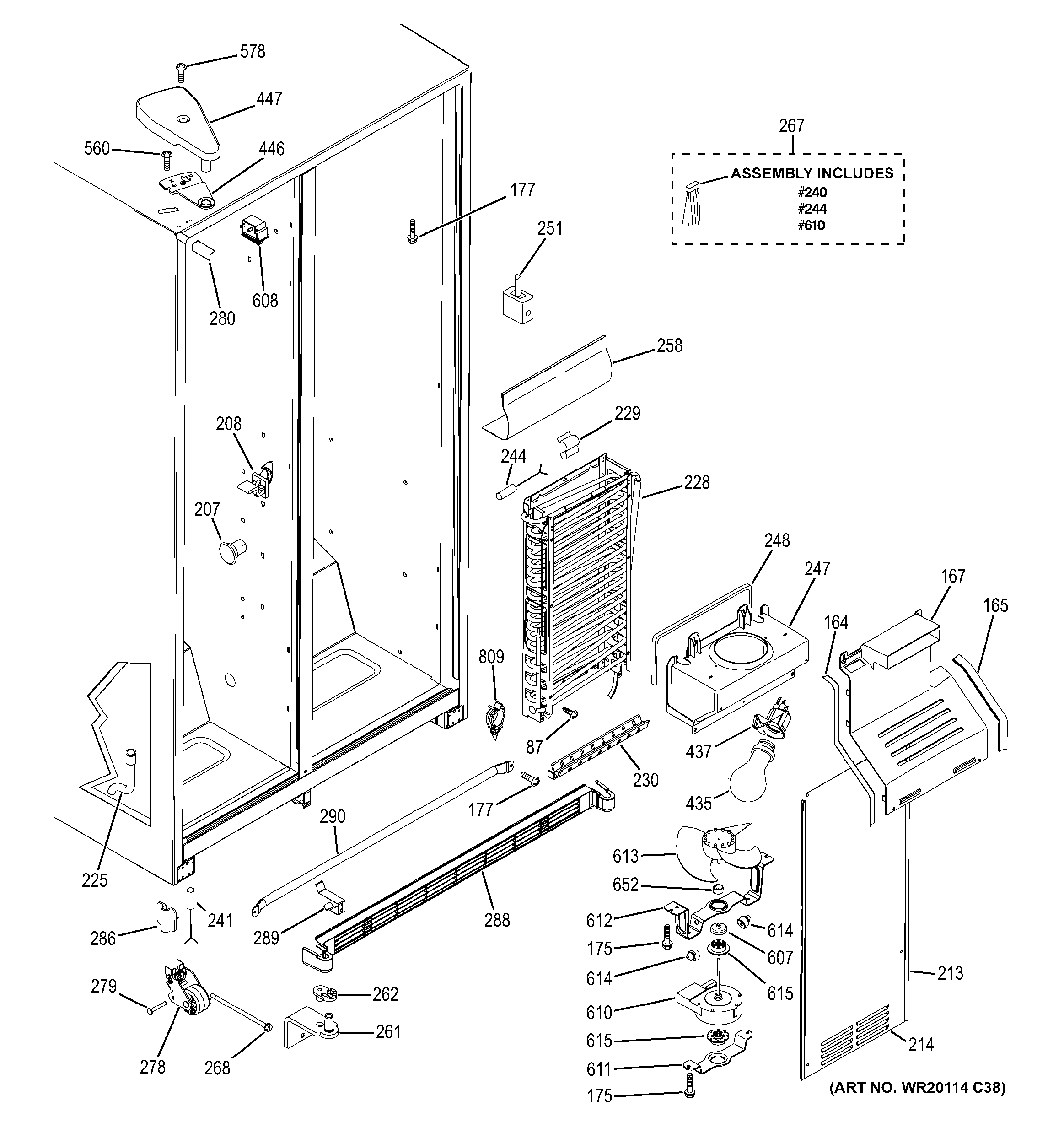

Poor airflow, warm fridge Evaporator fan operation Rca refrigerator evaporator fan motor WR60X10185
Why it matters

On GE side-by-side refrigerators like model GSE22ETHCCC, the electronic control board manages cooling, defrost timing, and dispenser functions. Power cycling is the fastest way to clear a locked-up control state before replacing parts.

Helpful DIY guidance

Last updated: January 2026

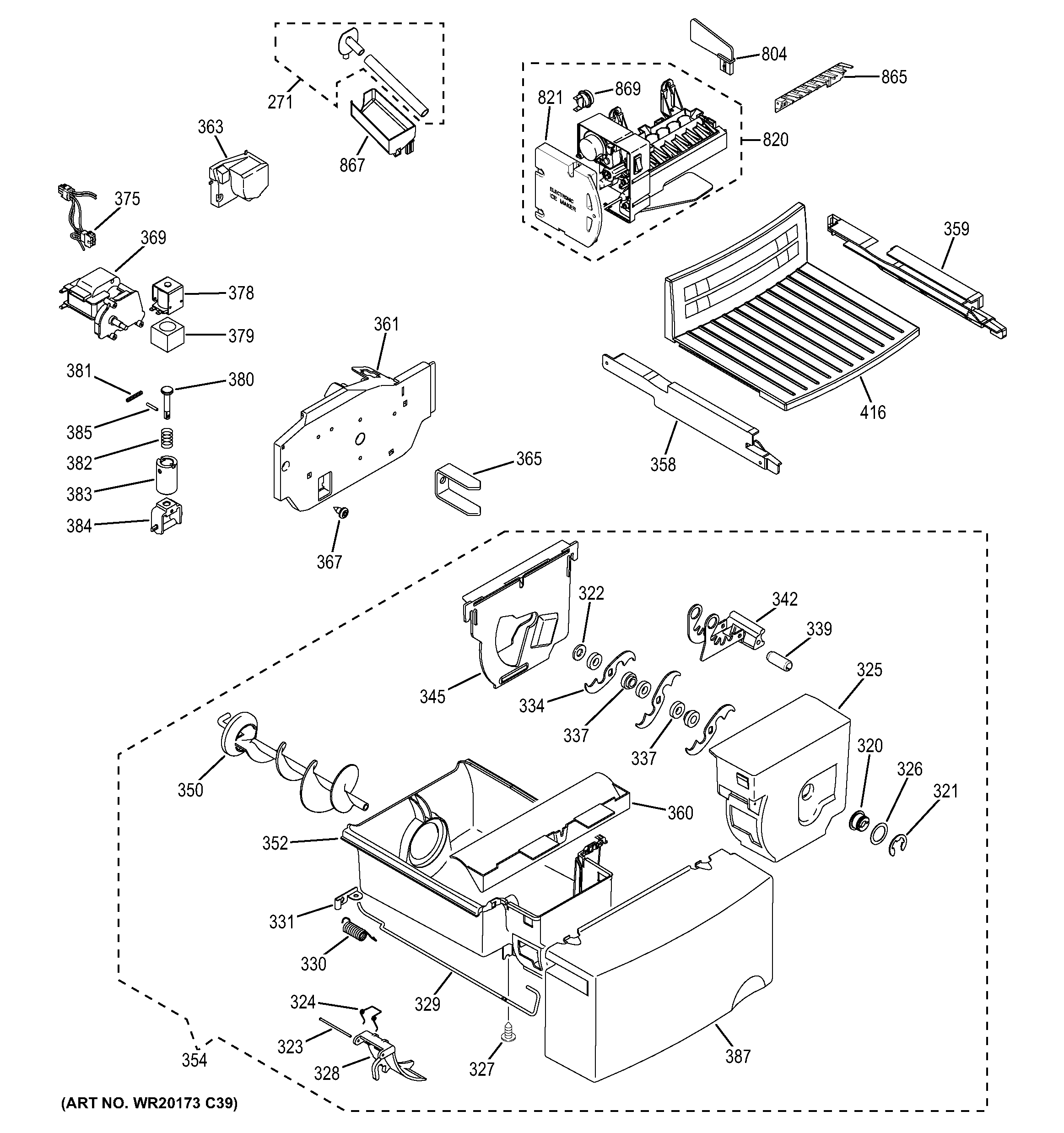

On the GE GSE22ETHCCC side-by-side refrigerator, the most common ice maker issue is simply no ice production because water is not getting to the ice maker. In most cases, the root cause is a restricted water supply (often a clogged filter) or freezer temperature that is too warm.

Quick checks we recommend first
  • Confirm the freezer is cold enough; target 0°F (ice makers often stop working reliably above about 10°F).
  • Make sure the ice bin is seated correctly and not jammed with clumped ice.
  • Replace the water filter if it is overdue or water flow at the dispenser is weak; use the GE refrigerator water filter MWFP.
  • Verify the household shutoff valve is fully open and the supply line is not kinked.
  • If the ice maker has an on-off switch or arm, confirm it is in the ON (down) position.
Most common causes and what they look like
Symptom Most likely cause What to do next
No ice, water dispenser also slow Clogged filter or low water pressure Replace filter; purge air; confirm pressure and valve open
No ice, dispenser water OK Ice maker not cycling or fill issue Check for frozen fill tube; test ice maker operation
Small cubes or hollow cubes Restricted water flow Replace filter; check inlet valve and supply line
Ice clumps or jams Warm freezer or door not sealing Set temp colder; check door seal and airflow
Parts that commonly fix “no ice” on this model

If the quick checks do not restore ice production, these parts are frequent culprits on side-by-side GE units like GSE22ETHCCC:

Why it matters

An ice maker depends on two basics: cold enough freezer temperature and steady water flow. Fixing restrictions early helps prevent repeat clogs, slow fill, and premature wear on the inlet valve and ice maker.

Related help: how to replace the water filter in a GE refrigerator, common refrigerator ice maker problems and solutions.

Last updated: January 2026

GE side-by-side refrigerators, including GE model GSE22ETHCCC, are good for everyday use because they deliver consistent cooling, easy access to fresh and frozen foods, and convenient ice and water features. Overall satisfaction comes from basic upkeep (airflow, seals, filters) and replacing wear parts when symptoms start.

What “good” means for a side-by-side

A side-by-side is performing well when it holds steady temperatures, the doors seal tightly, and the dispenser system runs without leaks or frost buildup.

Common strengths

  • Flexible storage with adjustable shelves and door bins
  • Narrower door swing than many French door models
  • Freezer items are easier to reach at eye level
  • Ice and water dispensing is convenient when water flow is strong

Common tradeoffs

  • Narrow freezer section can limit wide boxes
  • Ice makers make noise during harvest cycles
  • Dispenser performance drops when the filter is restricted
Maintenance that keeps GSE22ETHCCC running well
  • Replace the water filter on schedule to maintain water flow and ice production
  • Keep vents clear so cold air circulates evenly
  • Check door gaskets for gaps that cause frost and temperature swings
  • Clean the condenser area periodically to reduce compressor run time
  • Fix dispenser sealing issues early to prevent ice clumps and frost

A simple first step for taste, flow, and ice output is replacing the refrigerator water filter MWFP.

Quick symptom guide
Symptom Most likely cause Good first check
Slow or hollow ice Restricted water flow Filter, supply valve fully open
Frost around dispenser Chute door not sealing Chute door closing tightly
Warm spots or temp swings Airflow or sensor issue Vents, door seal, sensor wiring
No ice production Ice maker or fill issue Ice maker on, fill tube not frozen

If you suspect an ice maker issue, the refrigerator ice maker WR30X10093 is the common repair part for this model family.

Why it matters

Stable temperatures protect food safety and reduce energy use. Small issues like a clogged filter or leaky door seal can force longer run times and add wear to the evaporator fan motor and compressor.

Last updated: January 2026
