Model #25316922103 Official Kenmore freezer

Here are the diagrams and repair parts for Kenmore 25316922103 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes
?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 53 parts

Freezer Door Key (replaces 216702900, 7297147700)#5

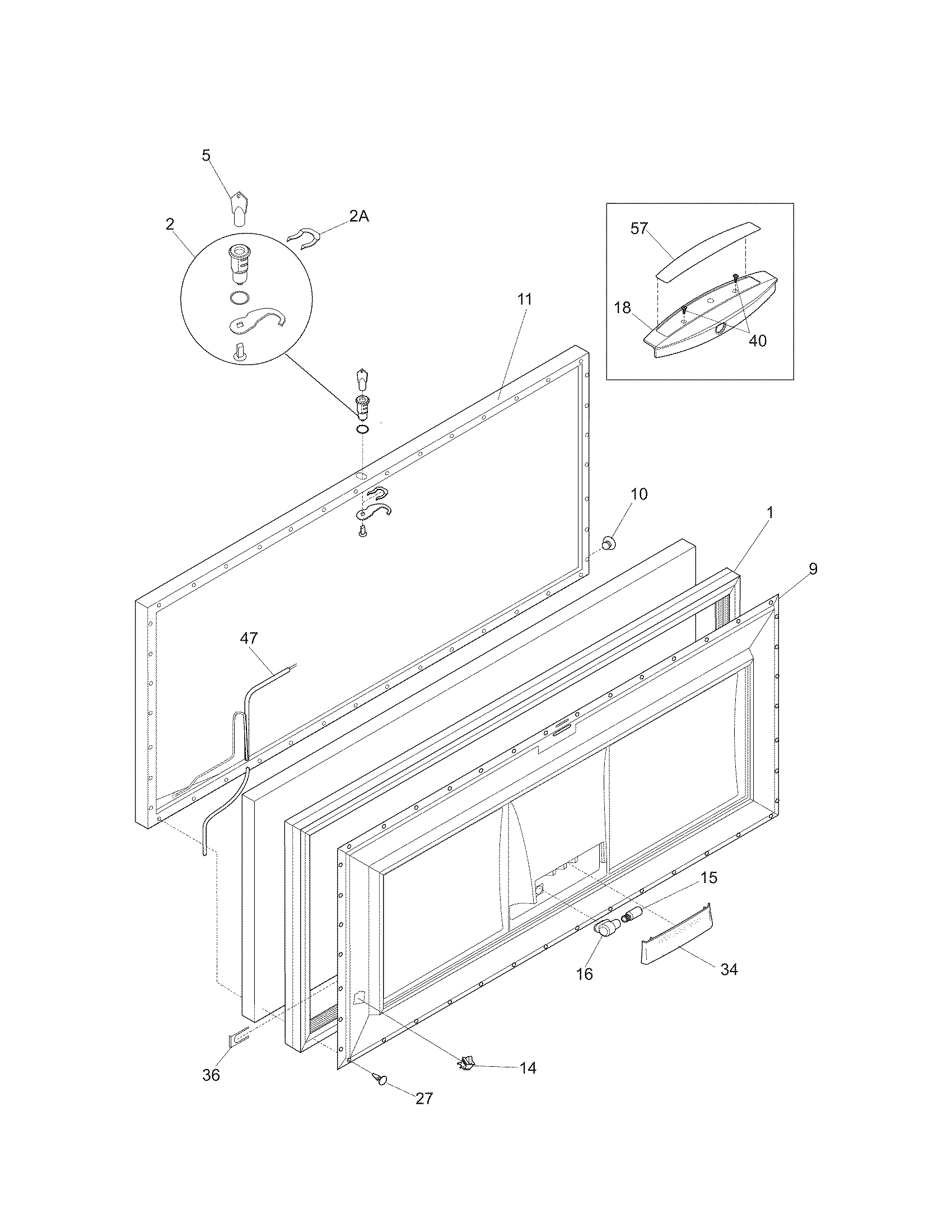

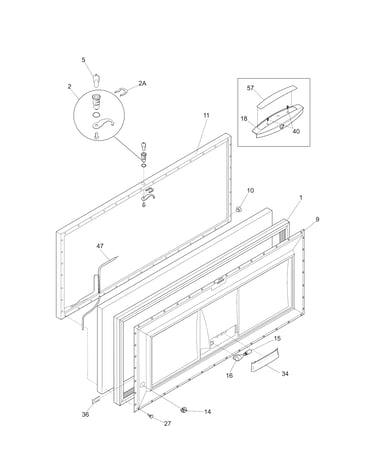

Door Diagram

Freezer door key (replaces 216702900, 7297147700)

Part #297147700
BEST SELLER
This item is not returnable
In Stock
$6.55 |
13% OFF
Phone Price: $7.55
Freezer Basket (replaces 216848202, 216848205)#59

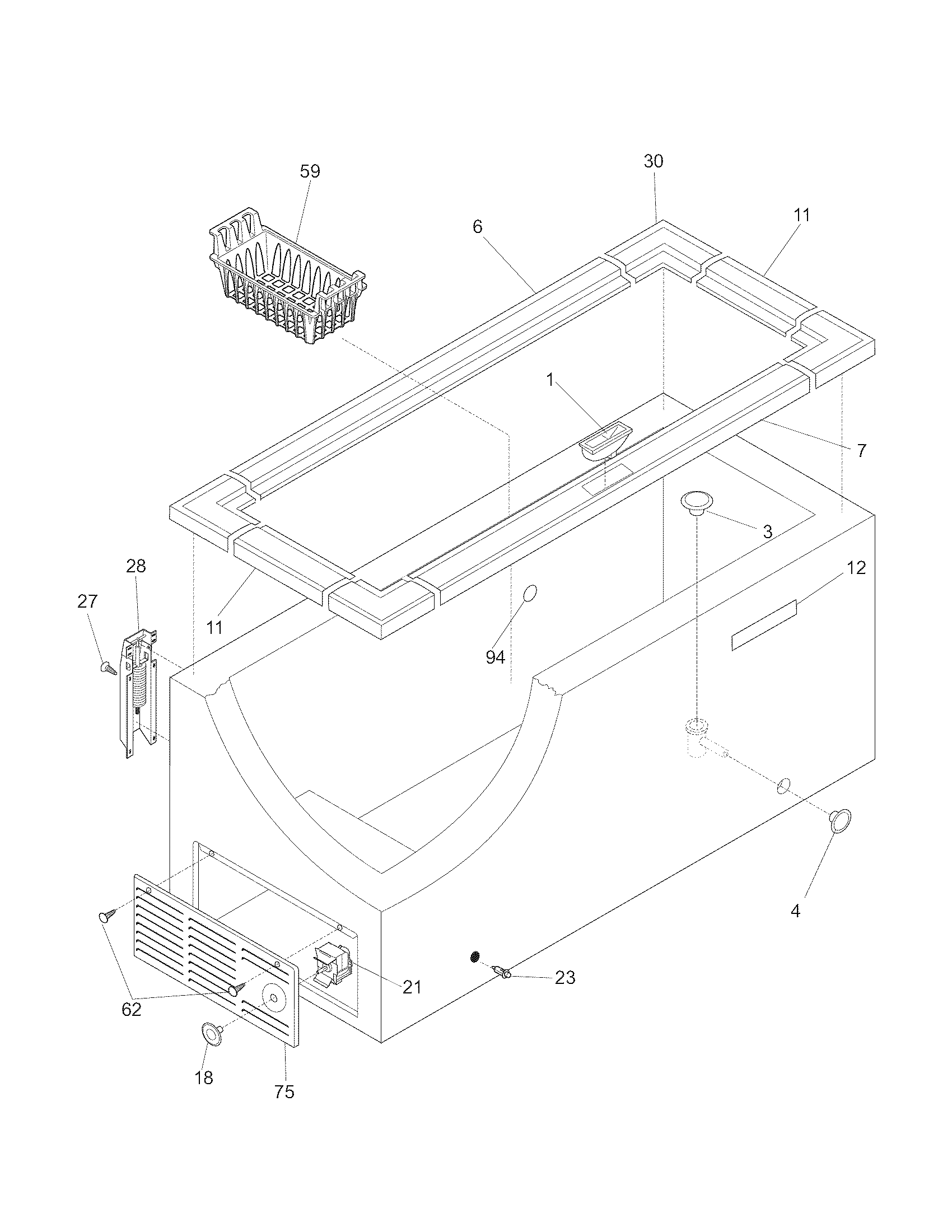

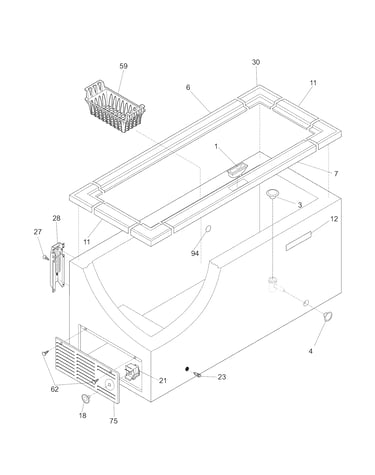

Cabinet Diagram

Freezer basket (replaces 216848202, 216848205)

Part #216848200
BEST SELLER
In Stock
$31.00 |
14% OFF
Phone Price: $36.00
Freezer Door Switch (replaces 216998000, 7216822900)#14

Door Diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900
BEST SELLER
In Stock
$59.56 |
8% OFF
Phone Price: $64.56
Freezer Lid Gasket (replaces 216481003, 216481011, 3018999, 3200692, 3201115, 5300301163, 5300301164, 5304400866, F114263, F114263-1, F122447-1, F122447-2, F126493, F129788, F129789, F301163, F301164, R000901010)#1

Door Diagram

Freezer lid gasket (replaces 216481003, 216481011, 3018999, 3200692, 3201115, 5300301163, 5300301164, 5304400866, f114263, f114263-1, f122447-1, f122447-2, f126493, f129788, f129789, f301163, f301164, r000901010)

Part #216481001
BEST SELLER
In Stock
$135.88 |
7% OFF
Phone Price: $145.88
Freezer Door Hinge (replaces 216478800, 3201160)#28

Cabinet Diagram

Hinge assembly

Part #216478800
Replaced by #297313200
?
Manufacturer substitution
This part replaces 216478800. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.99 |
9% OFF
Phone Price: $56.99
Refrigerator Filter Dryer#4

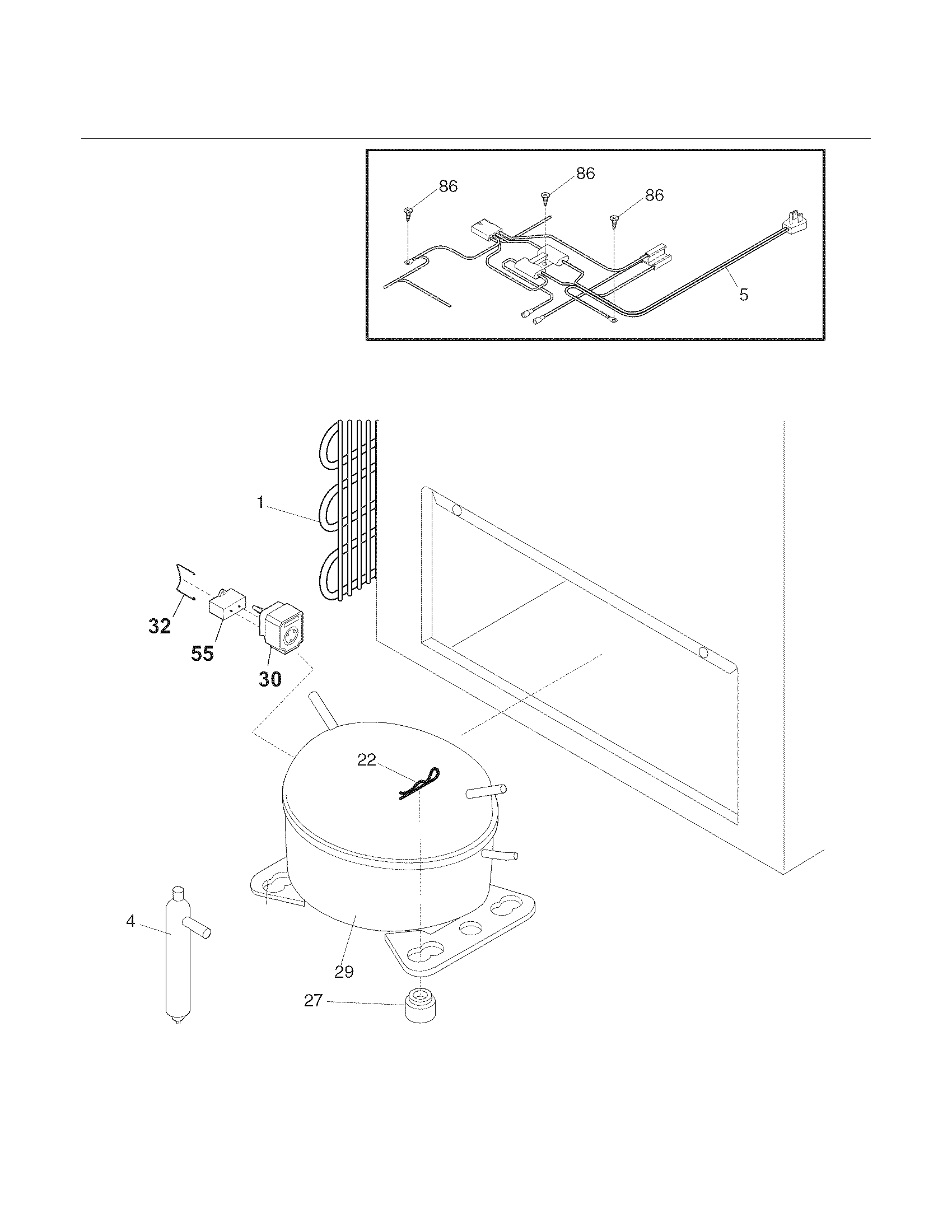

System Diagram

Filter drier

Part #216987500
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 216987500. Substitute parts can look different from the original.
BEST SELLER
In Stock
$11.44 |
30% OFF
MSRP: $16.34
Freezer Inner Door Panel Rivet#27

Door Diagram

Freezer inner door panel rivet

Part #5303212828
In Stock
$19.49 |
9% OFF
Phone Price: $21.49
Refrigerator Run Capacitor (replaces 216985000)#55

System Diagram

Chest freezer run capacitor

Part #218909911
Replaced by #297286801
?
Manufacturer substitution
This part replaces 218909911. Substitute parts can look different from the original.
Back Order
$34.69 |
13% OFF
Phone Price: $39.69
Freezer Light Socket (replaces 216688600, 216817600, 7297139501)#16

Door Diagram

Light socket

Part #216817600
Replaced by #297139501
?
Manufacturer substitution
This part replaces 216817600. Substitute parts can look different from the original.
This item is not returnable
In Stock
$19.99 |
9% OFF
Phone Price: $21.99
Refrigerator Door Insulation#NI

Door Diagram

Refrigerator door insulation

Part #5303917276
In Stock
$212.89 |
$10.00 OFF
Phone Price: $222.89
