Kenmore
Side-By-Side Refrigerator

Model # 36350622000 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 36350622000 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

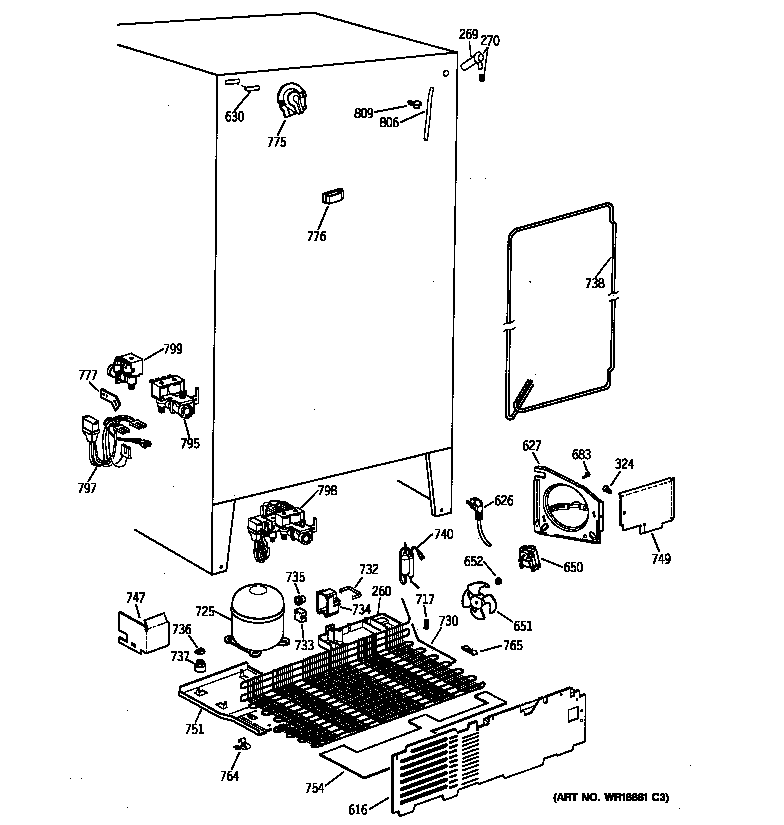

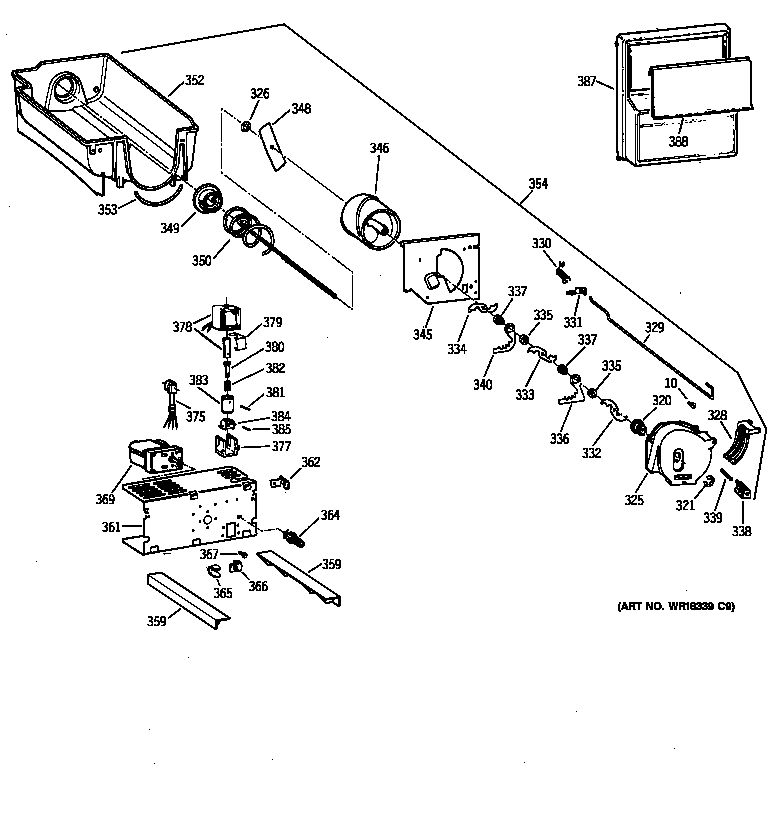

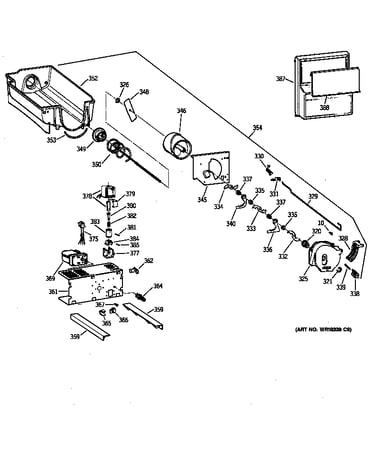

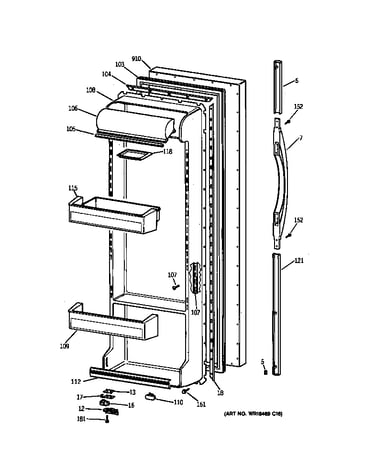

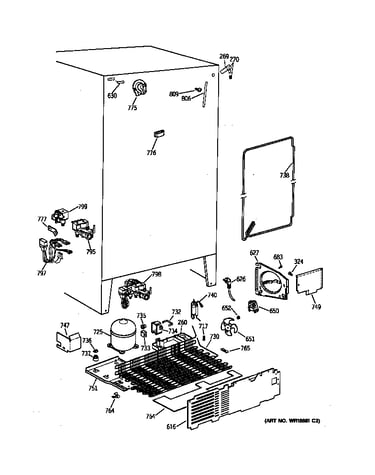

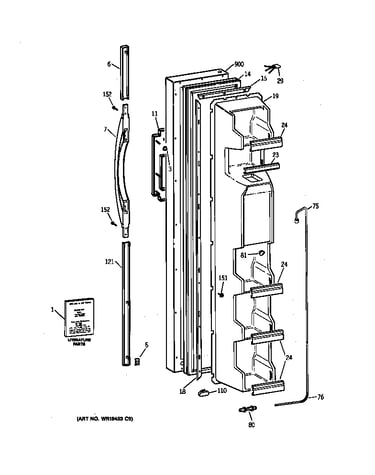

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 351 parts  |
Refrigerator Water Filter 995
#790

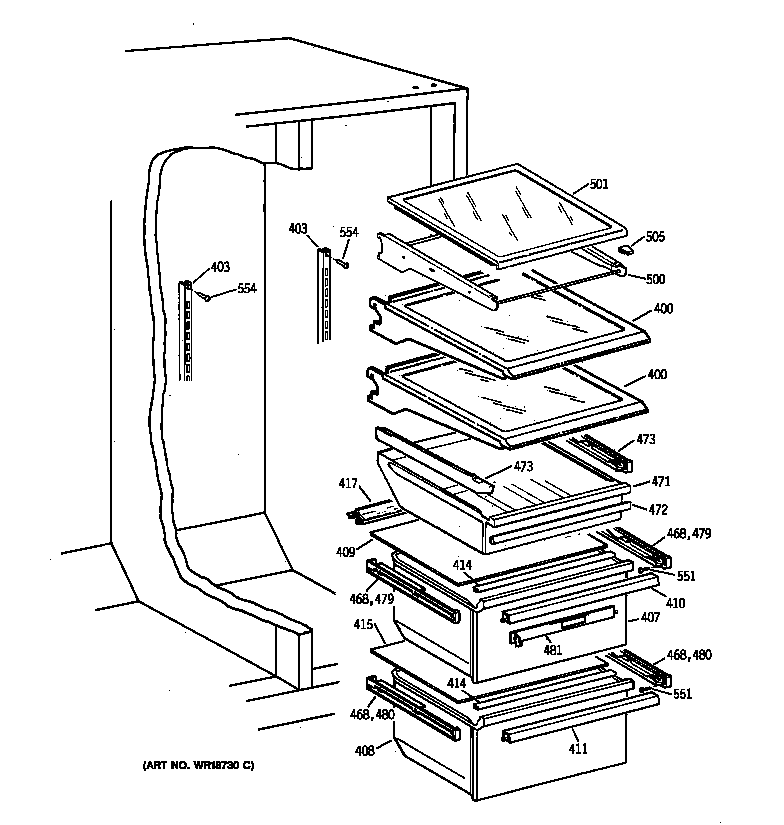

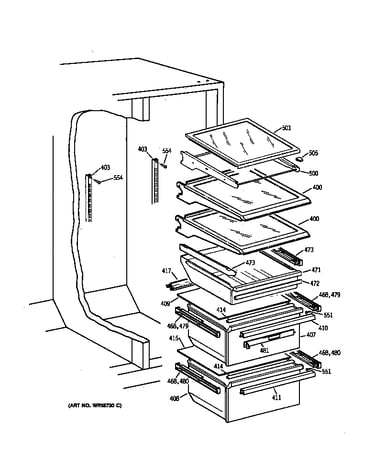

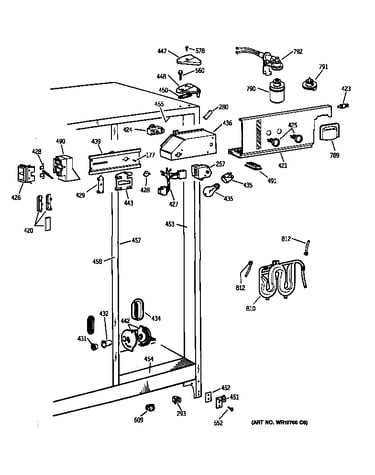

Fresh food section diagram

Refrigerator water filter

Part #995

Replaced by #MWF

?
Manufacturer substitution
This part replaces 995. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Refrigerator Water Filter 9905
#790

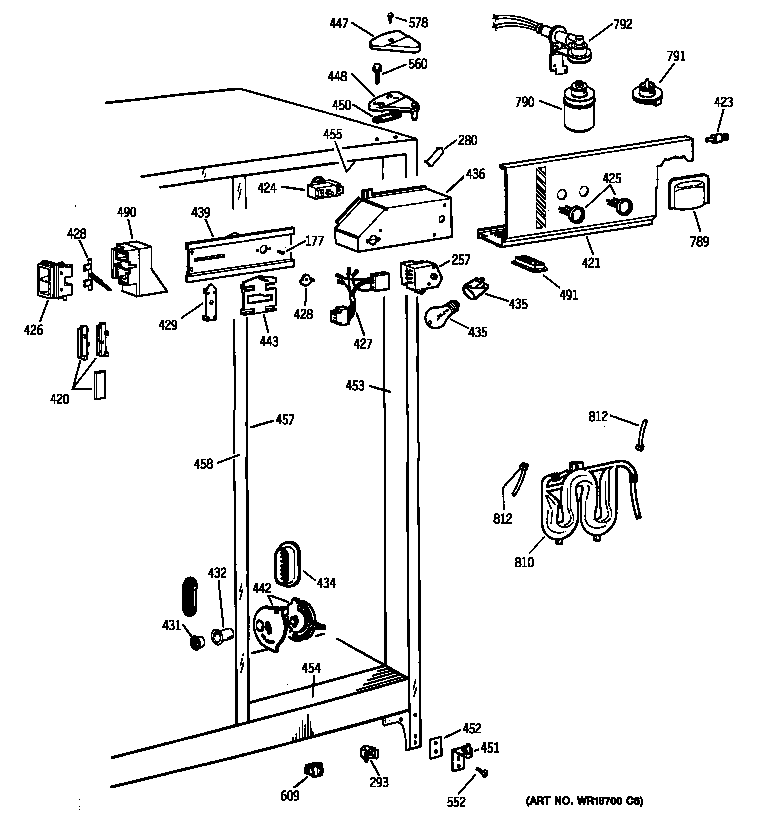

Fresh food section diagram

Refrigerator water filter

Part #9905

Replaced by #MWF

?
Manufacturer substitution
This part replaces 9905. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Refrigerator Heater Bracket WR51X10030
#230A

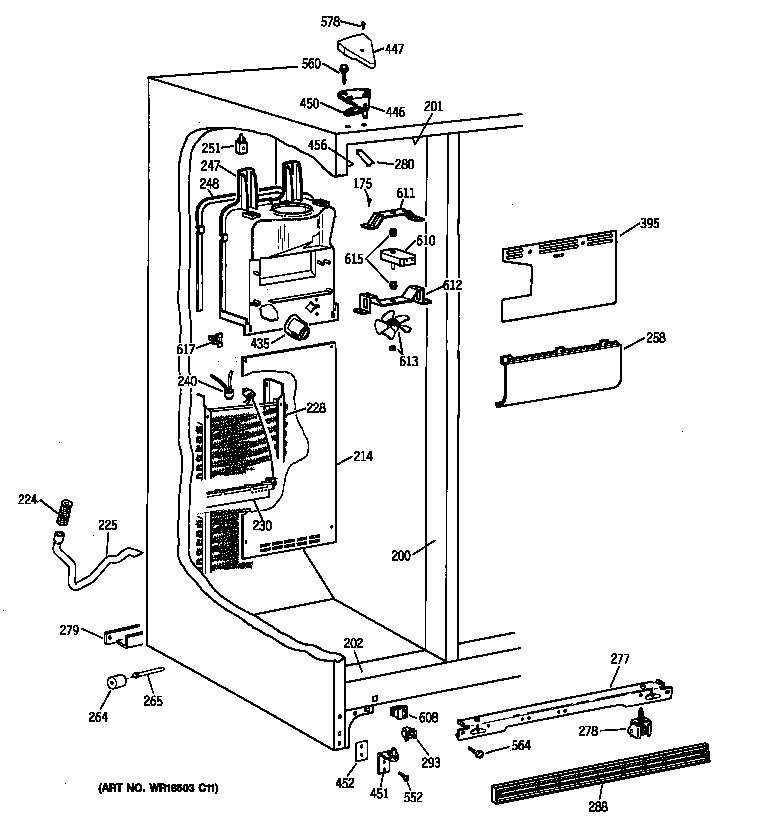

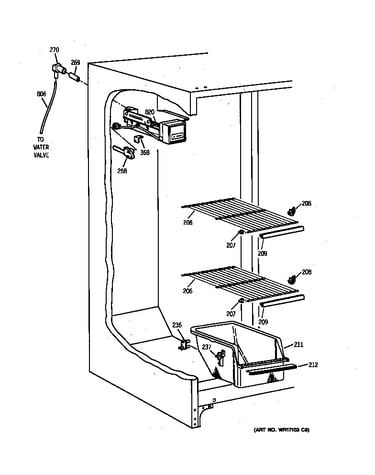

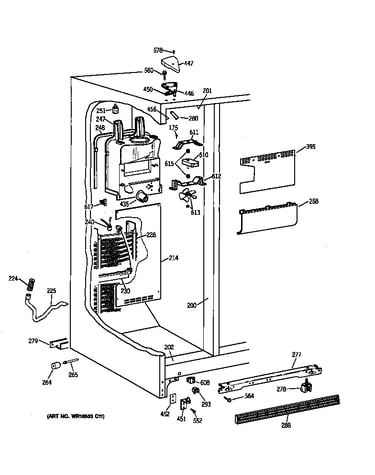

Freezer section diagram

Refrigerator heater bracket

Part #WR51X10030

Replaced by #WR51X10055

?
Manufacturer substitution
This part replaces WR51X10030. Substitute parts can look different from the original.
BEST SELLER
$92.94 |
6% OFF Phone Price : $98.94
In Stock
Plate WR29X5114
#860

Icemaker wr30x0327 diagram

Plate

Part #WR29X5114

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X5114. Substitute parts can look different from the original.
BEST SELLER
$200.94 |
6% OFF Phone Price : $212.94
In Stock
Refrigerator Gear WR29X5110
#851

Icemaker wr30x0327 diagram

Refrigerator gear

Part #WR29X5110

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X5110. Substitute parts can look different from the original.
BEST SELLER
$200.94 |
6% OFF Phone Price : $212.94
In Stock
Refrigerator Ice Maker WR30X327
#820

Freezer section diagram

Refrigerator ice maker

Part #WR30X327

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X327. Substitute parts can look different from the original.
BEST SELLER
$200.94 |
6% OFF Phone Price : $212.94
In Stock
Refrigerator Ice Maker Module Housing WR29X183
#864

Icemaker wr30x0327 diagram

Refrigerator ice maker module housing

Part #WR29X183

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X183. Substitute parts can look different from the original.
BEST SELLER
$200.94 |
6% OFF Phone Price : $212.94
In Stock
Beam Spring WR29X10002
#854

Icemaker wr30x0327 diagram

Beam spring

Part #WR29X10002

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X10002. Substitute parts can look different from the original.
BEST SELLER
$200.94 |
6% OFF Phone Price : $212.94
In Stock
Refrigerator Spring WR29X5130
#875A

Icemaker wr30x0327 diagram

Refrigerator spring

Part #WR29X5130

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X5130. Substitute parts can look different from the original.
BEST SELLER
$200.94 |
6% OFF Phone Price : $212.94
In Stock
Arm Lever WR29X5121
#863

Icemaker wr30x0327 diagram

Arm lever

Part #WR29X5121

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X5121. Substitute parts can look different from the original.
BEST SELLER
$200.94 |
6% OFF Phone Price : $212.94
In Stock
