Model #EWMGD65HTS1 Electrolux dryer

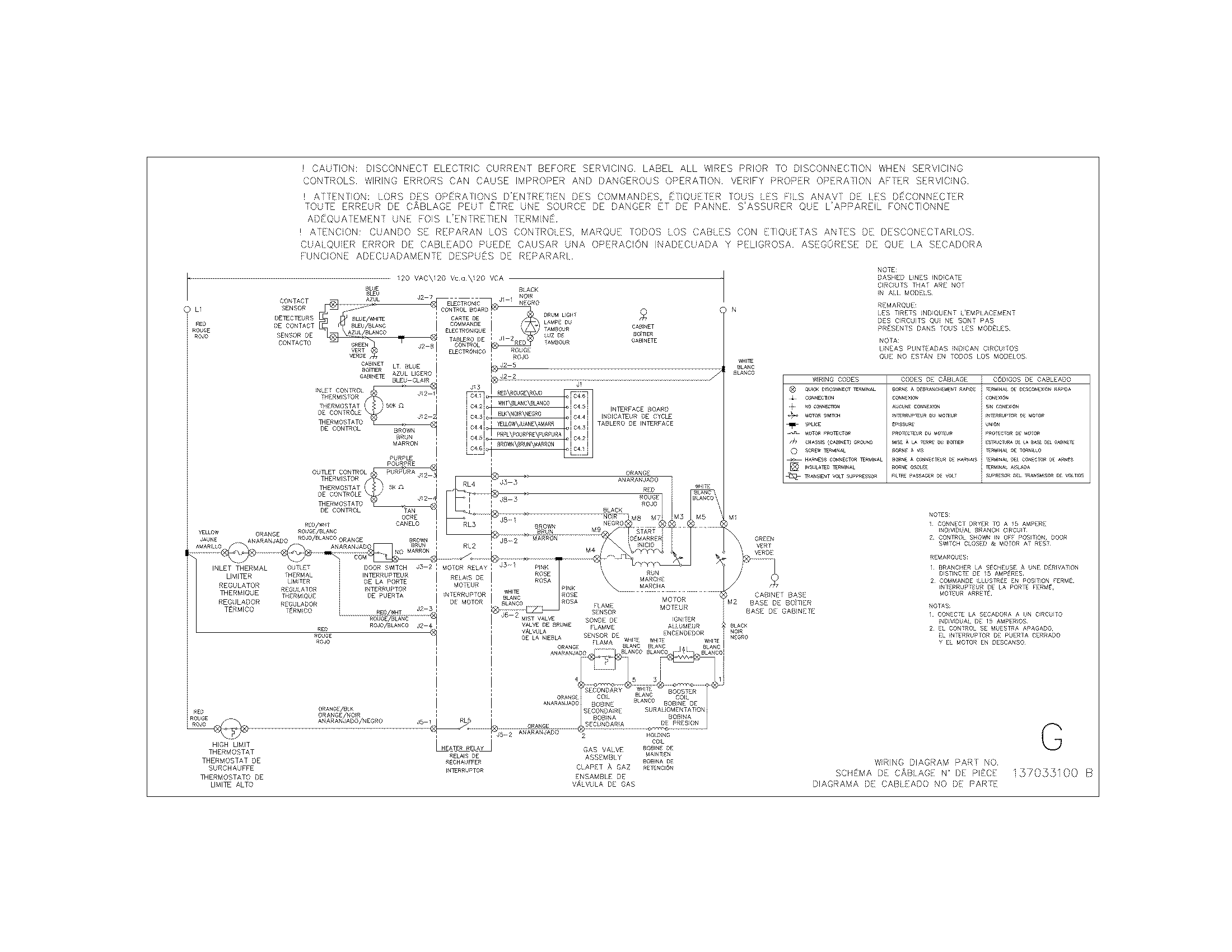

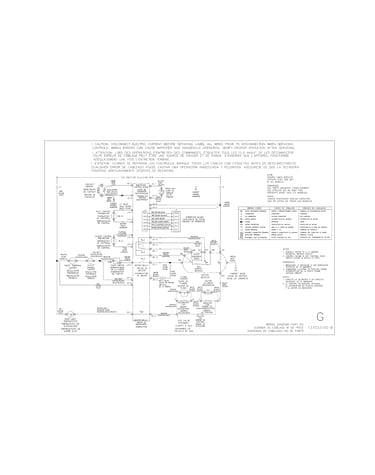

Here are the diagrams and repair parts for Electrolux EWMGD65HTS1 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 136 parts

    Dryer Bolt, 0.25-20 x 1.25-in

    #20

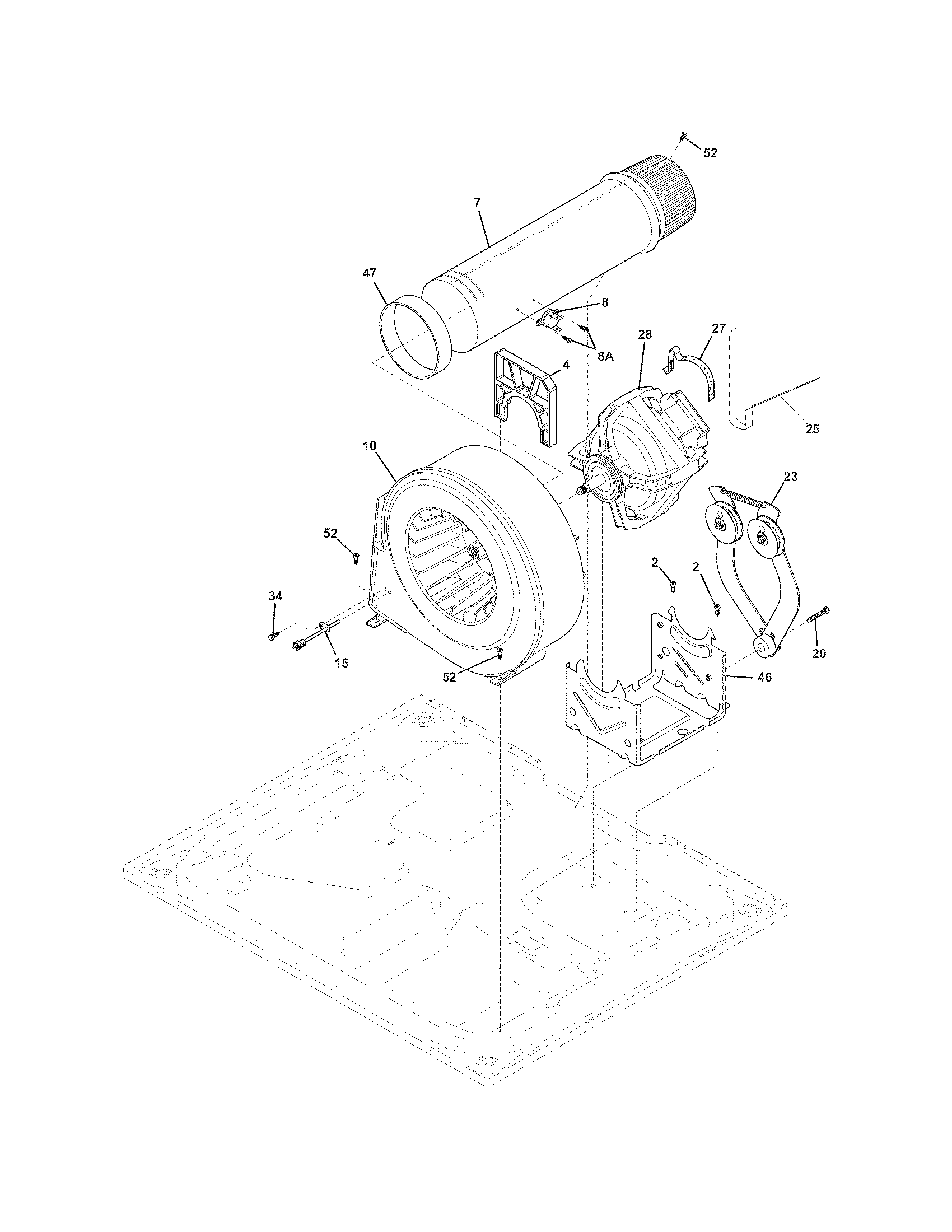

    Motor Diagram

    Dryer bolt, 0.25-20 x 1.25-in

    Part #131017900
    ?
    Manufacturer substitution
    This part replaces 7131017900. Substitute parts can look different from the original.
    This part replaces 7131017900
    $8.02 |
    14% OFF
    MSRP: $9.30

    In Stock

    Laundry Appliance Screw, #10-16 x 5/8-in

    #52

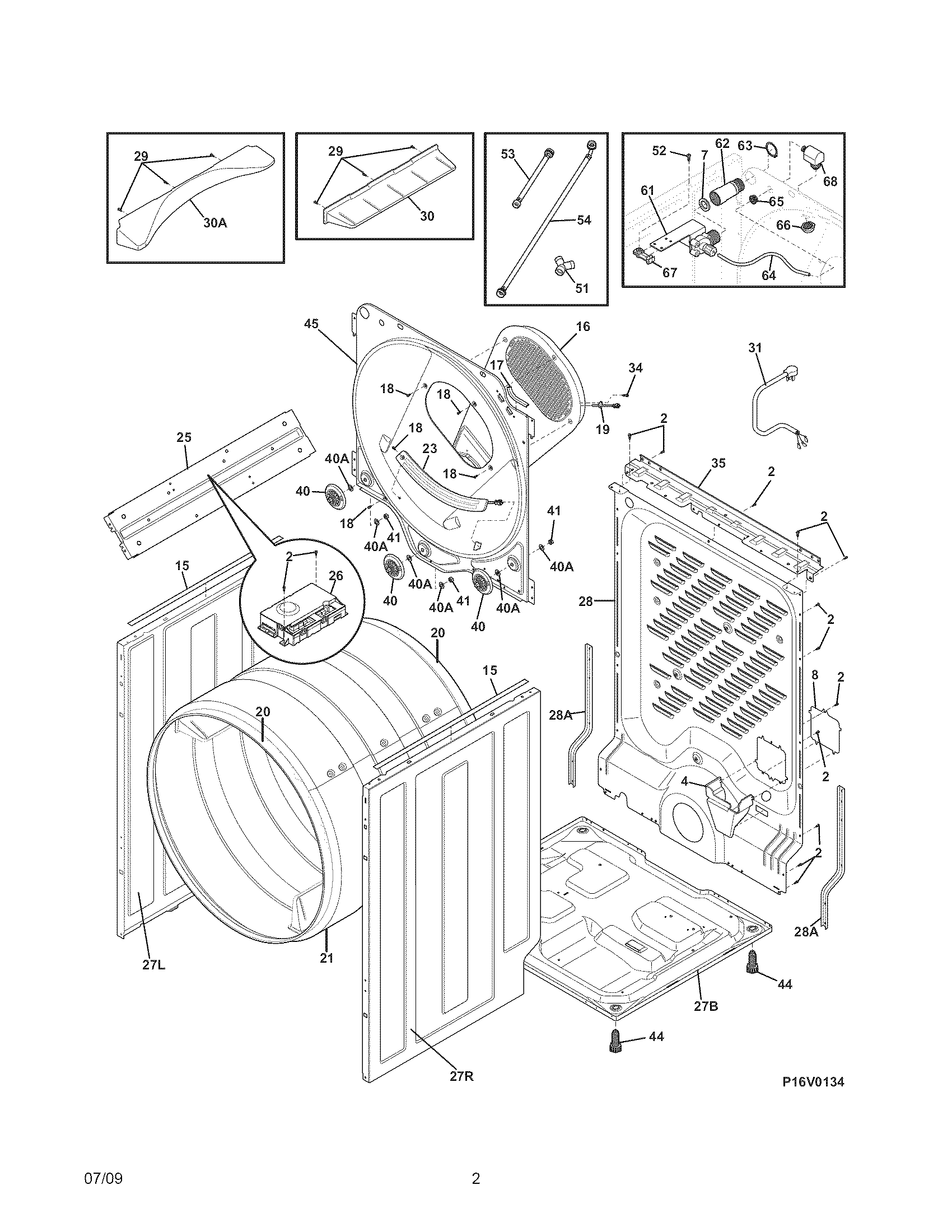

    Cabinet/drum Diagram

    Laundry appliance screw, #10-16 x 5/8-in

    Part #131202300
    ?
    Manufacturer substitution
    This part replaces 7131202300. Substitute parts can look different from the original.
    This part replaces 7131202300
    This item is not returnable
    $7.49 |
    17% OFF
    MSRP: $9.00

    In Stock

    Dryer Wire Harness

    #79A

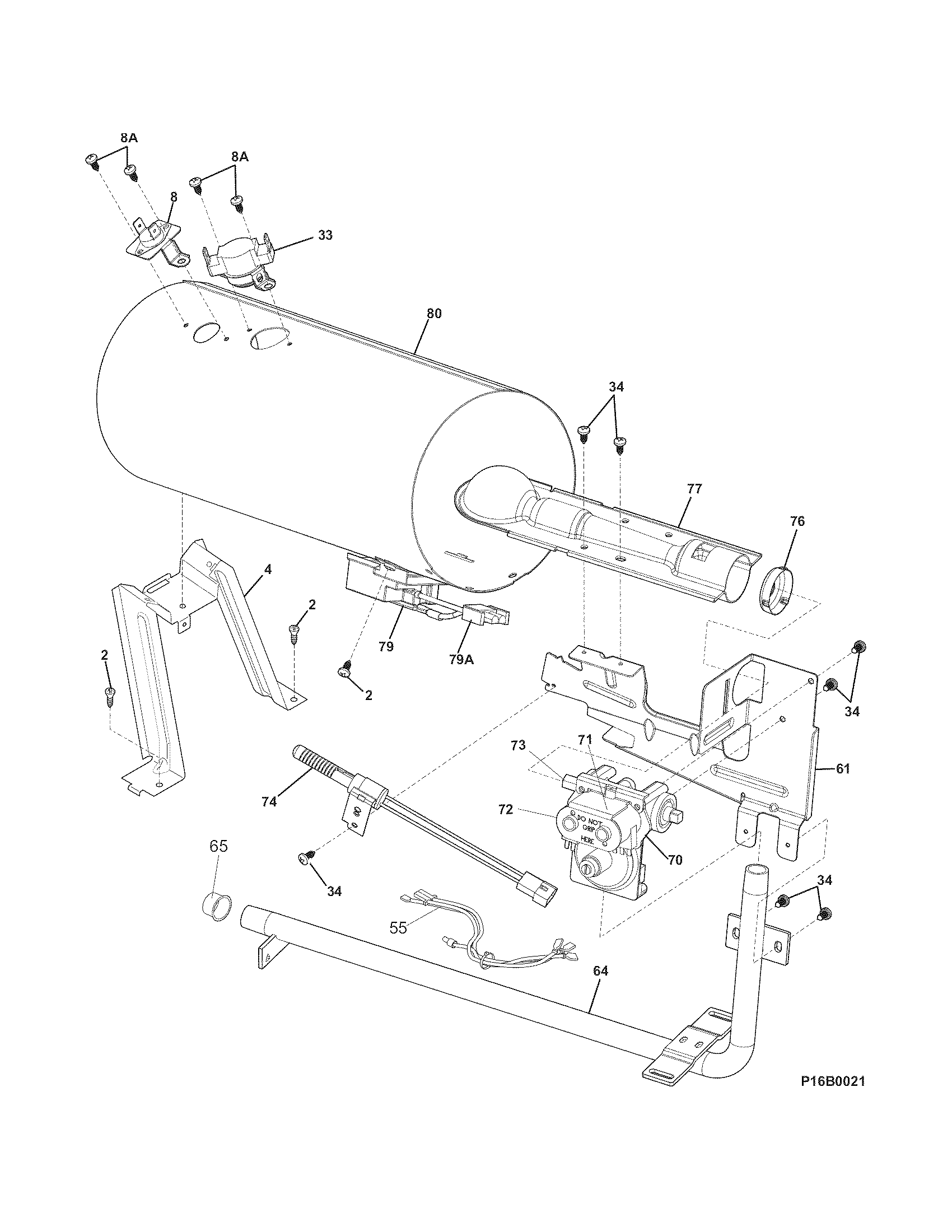

    Burner Diagram

    Dryer wire harness

    Part #134259100
    ?
    Manufacturer substitution
    This part replaces 7134259100. Substitute parts can look different from the original.
    This part replaces 7134259100
    $13.13

    In Stock

    Washer Screw

    #NI

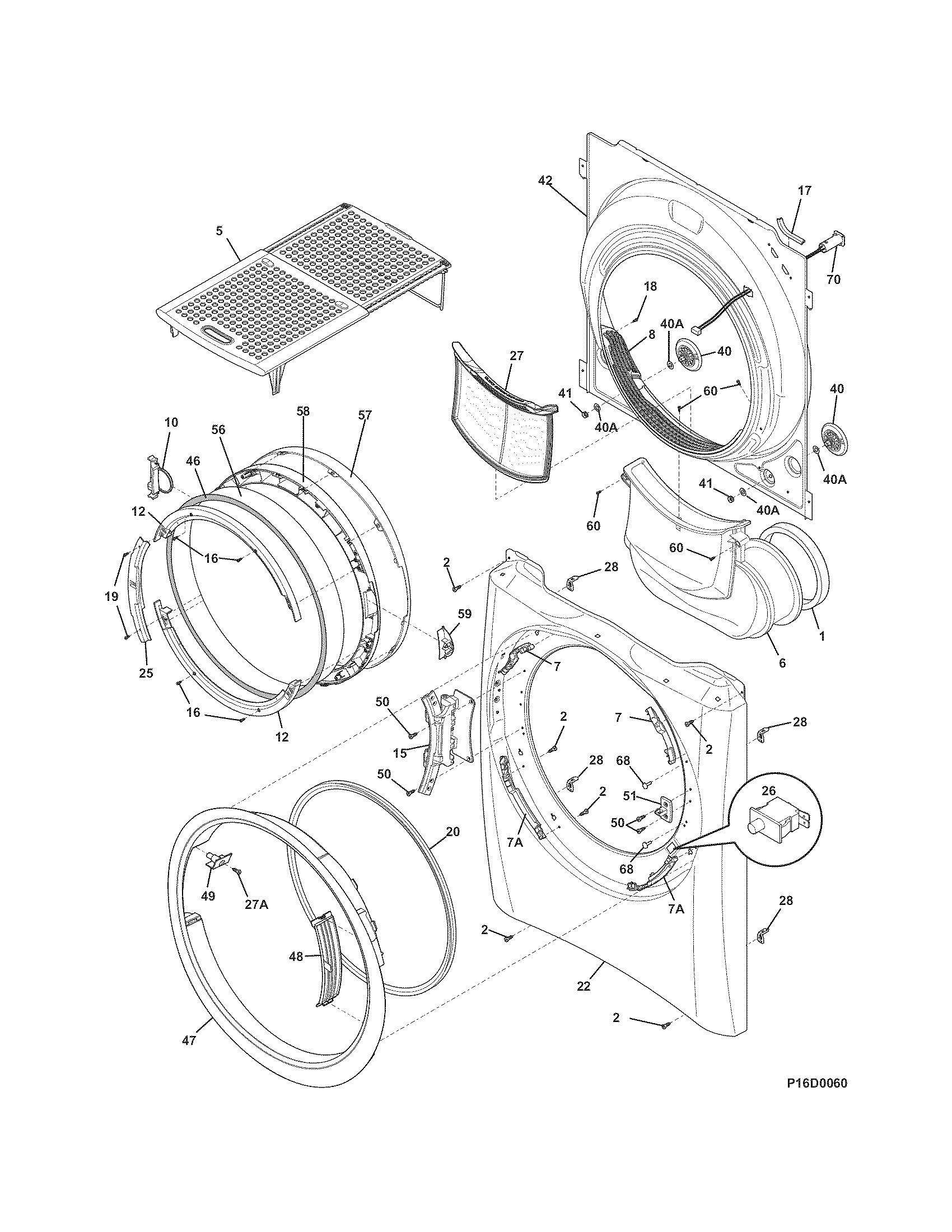

    Front panel/lint filter Diagram

    Washer screw

    Part #137380600
    ?
    Manufacturer substitution
    This part replaces 7134601900. Substitute parts can look different from the original.
    This part replaces 7134601900
    This item is not returnable
    $6.29

    In Stock

    Laundry Appliance Screw, #8-18 x 31/100-in

    #18

    Front panel/lint filter Diagram

    Laundry appliance screw, #8-18 x 31/100-in

    Part #131168200
    ?
    Manufacturer substitution
    This part replaces 7131477000. Substitute parts can look different from the original.
    This part replaces 7131477000
    $14.99

    In Stock

    Laundry Appliance Screw, #6-19 x 13/20-in

    #19

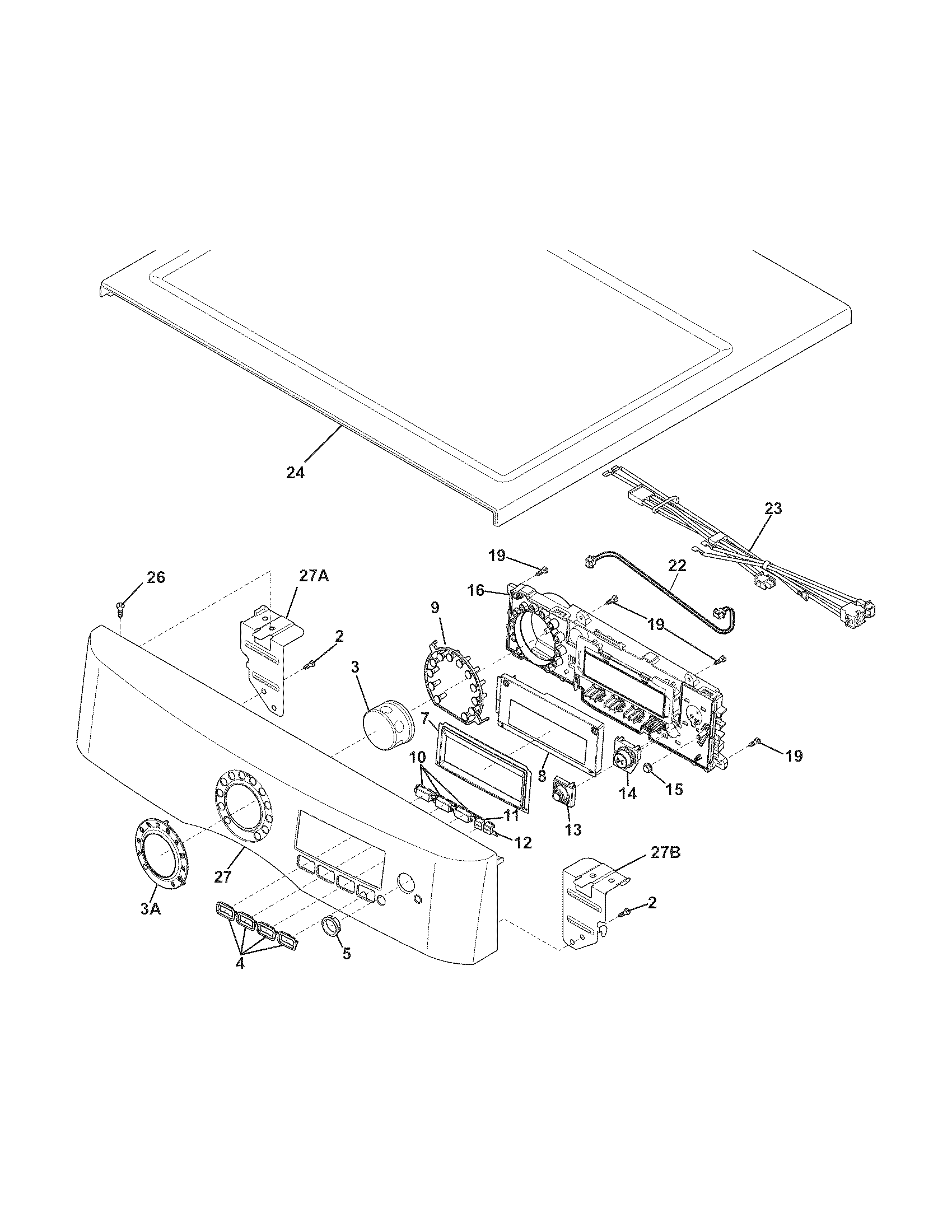

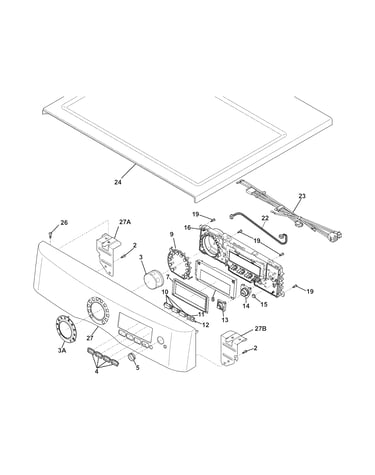

    Controls/top panel Diagram

    Laundry appliance screw, #6-19 x 13/20-in

    Part #134402900
    ?
    Manufacturer substitution
    This part replaces 7134402900. Substitute parts can look different from the original.
    This part replaces 7134402900
    $20.43

    In Stock

    Washer Door Trim Ring

    #47

    Front panel/lint filter Diagram

    Washer door trim ring

    Part #5304505715
    ?
    Manufacturer substitution
    This part replaces 7134618800. Substitute parts can look different from the original.
    This part replaces 7134618800
    $149.81 |
    45% OFF
    MSRP: $270.00

    In Stock

    Dryer Lint Screen

    #27

    Front panel/lint filter Diagram

    Dryer lint screen

    Part #134793600
    ?
    Manufacturer substitution
    This part replaces 7134793600. Substitute parts can look different from the original.
    This part replaces 7134793600
    $63.99

    In Stock

    Bracket

    #25

    Cabinet/drum Diagram

    Bracket

    Part #137567001
    ?
    Manufacturer substitution
    This part replaces 7134909700. Substitute parts can look different from the original.
    This part replaces 7134909700
    $20.15

    In Stock

    Dryer Drying Rack

    #5

    Front panel/lint filter Diagram

    Dryer drying rack

    Part #134912700
    ?
    Manufacturer substitution
    This part replaces 7134912700. Substitute parts can look different from the original.
    This part replaces 7134912700
    $129.99 |
    28% OFF
    MSRP: $180.00

    Back Order
