Model #SGE53U56UC/B3 Bosch dishwasher

Here are the diagrams and repair parts for Bosch SGE53U56UC-B3 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 128 parts

    Dishwasher Circulation Pump Micro Filter

    #472

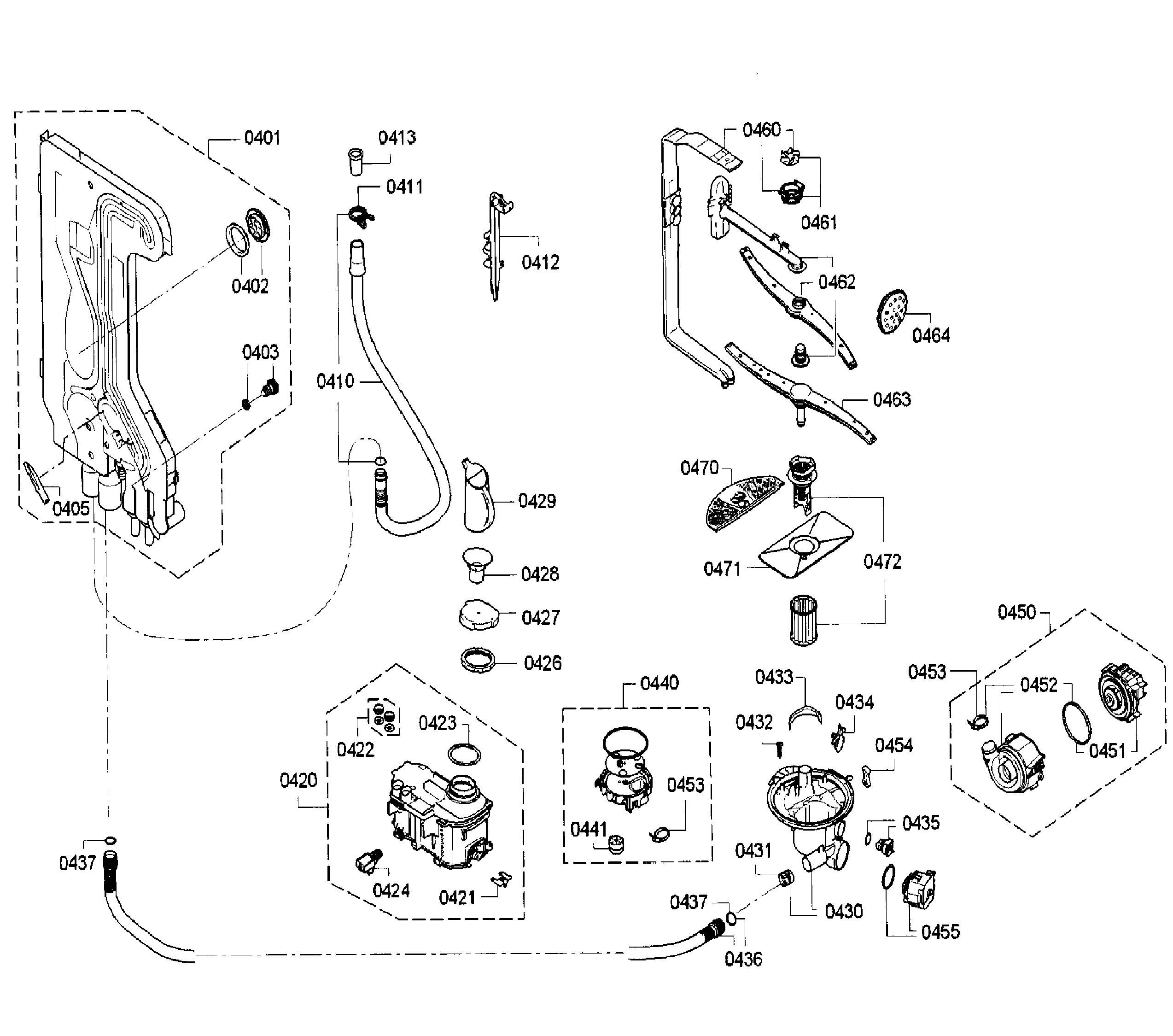

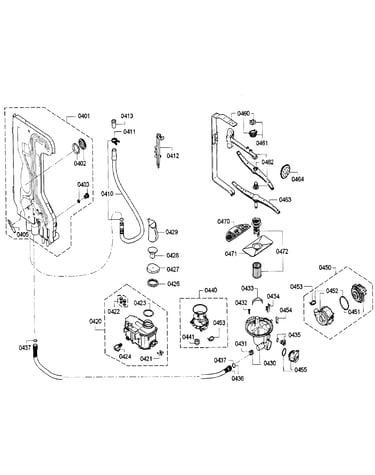

    Pump Diagram

    $33.99

    In Stock

    Dishwasher Turbidity Sensor

    #435

    Pump Diagram

    $34.99

    In Stock

    Dishwasher Door Cable Roller

    #622

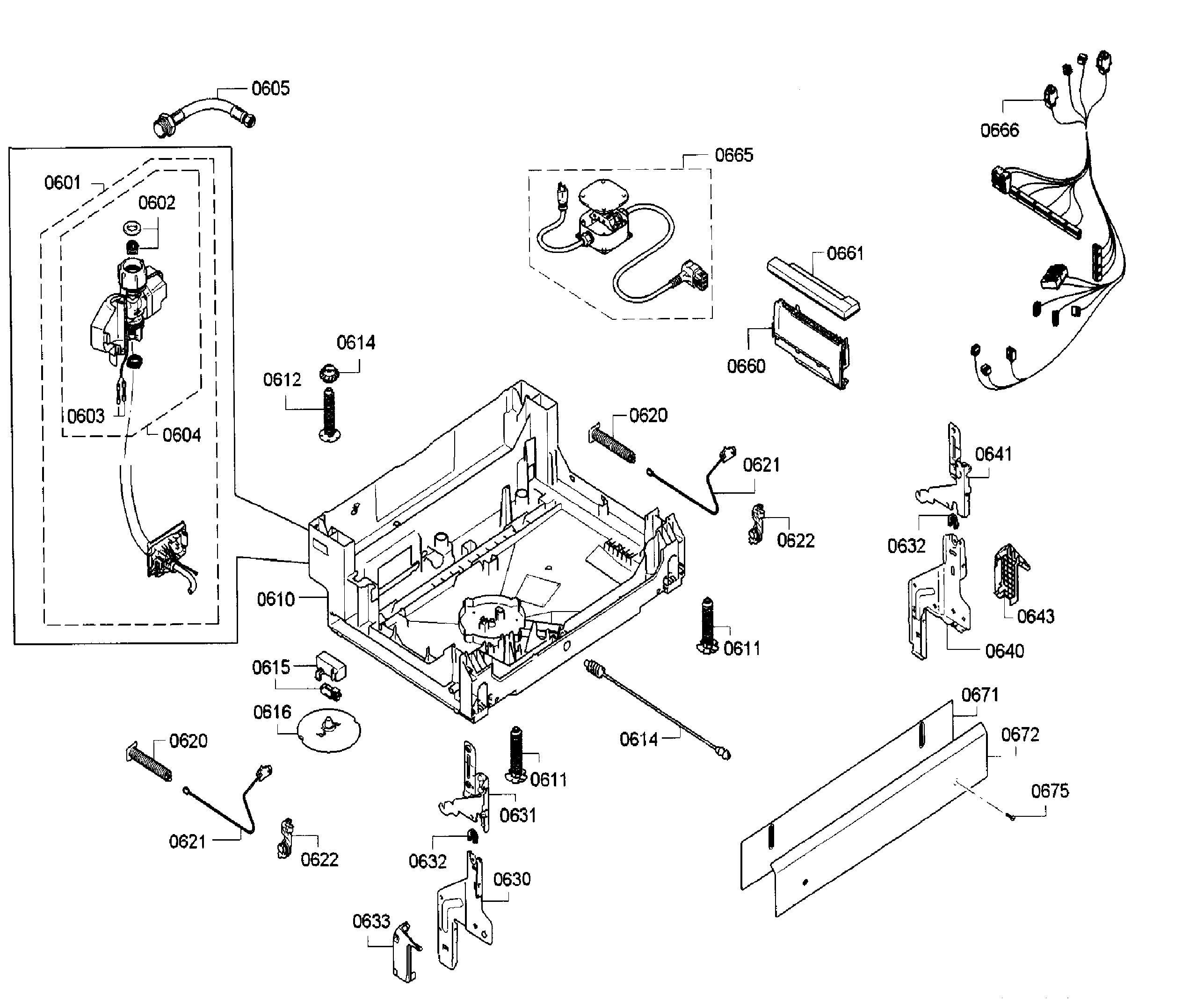

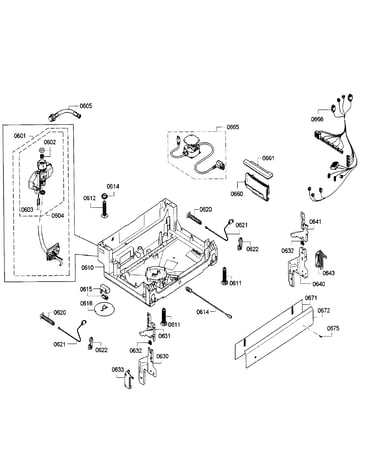

    Base Diagram

    $14.99

    In Stock

    Dishwasher Sump Hose

    #436

    Pump Diagram

    Dishwasher sump hose

    Part #00668104
    This item is not returnable
    $4.19

    In Stock

    Dishwasher On/Off Switch

    #125

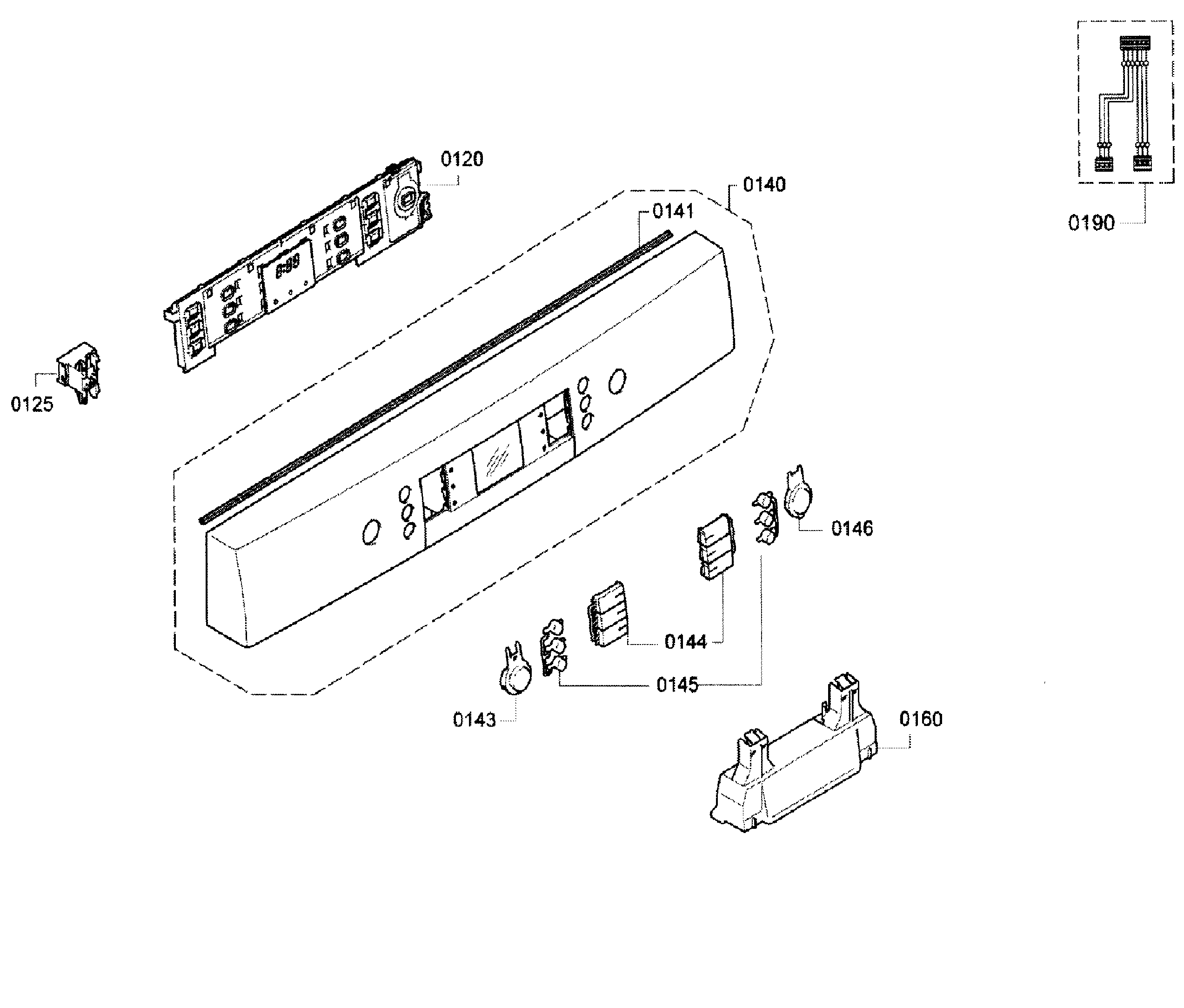

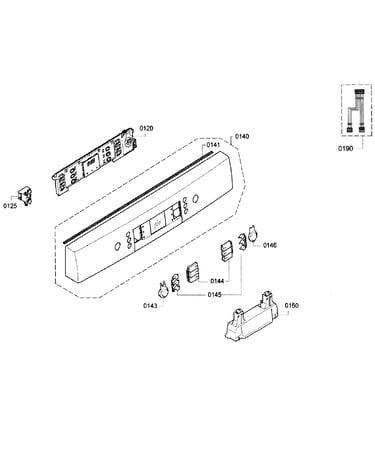

    Control panel Diagram

    $30.99

    In Stock

    Dishwasher Float Assembly

    #616

    Base Diagram

    $15.99

    In Stock

    Dishwasher Door Seal

    #310

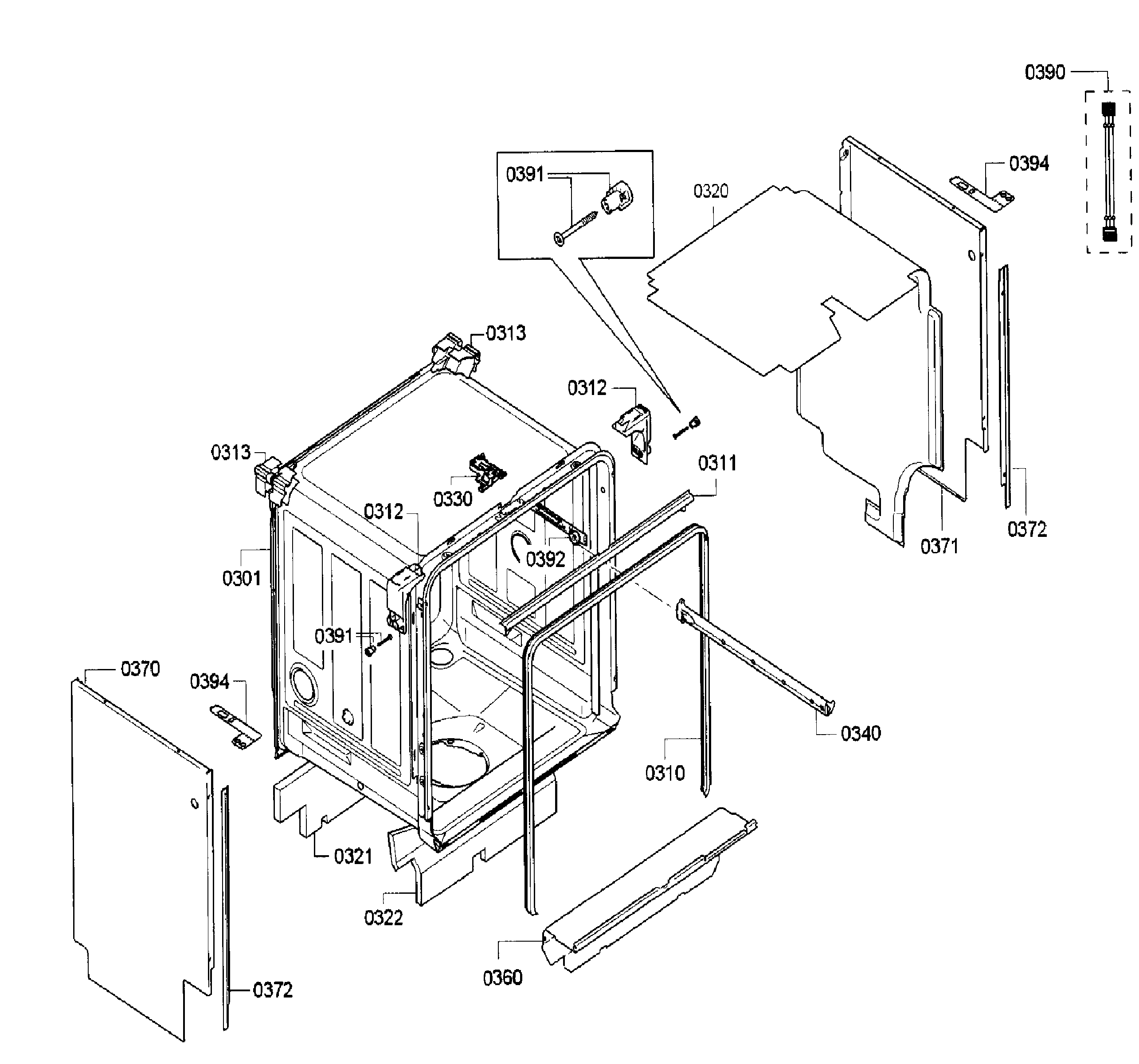

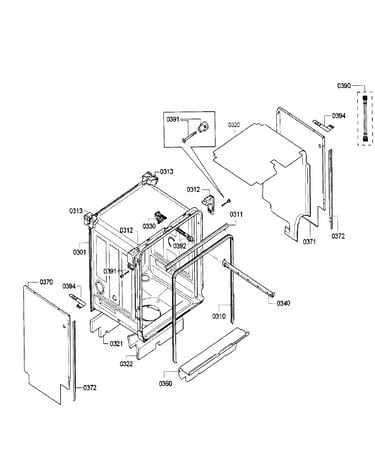

    Cabinet Diagram

    Dishwasher door seal

    Part #00263096
    $54.06

    In Stock

    Dishwasher Drain Hose

    #410

    Pump Diagram

    Dishwasher drain hose

    Part #00668114
    $15.99

    In Stock

    Dishwasher AquaStop Assembly

    #601A

    Base Diagram

    $149.99

    In Stock

    Dishwasher Sump

    #430

    Pump Diagram

    Dishwasher sump

    Part #00668102
    $85.99

    In Stock
