GE
Dryer

Model # DDG7287RCL Official GE gas dryer

Here are the diagrams and repair parts for Official GE DDG7287RCL gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |

Dryer Idler Pulley (replaces WE12X0083, WE12X80, WE12X92)
#216

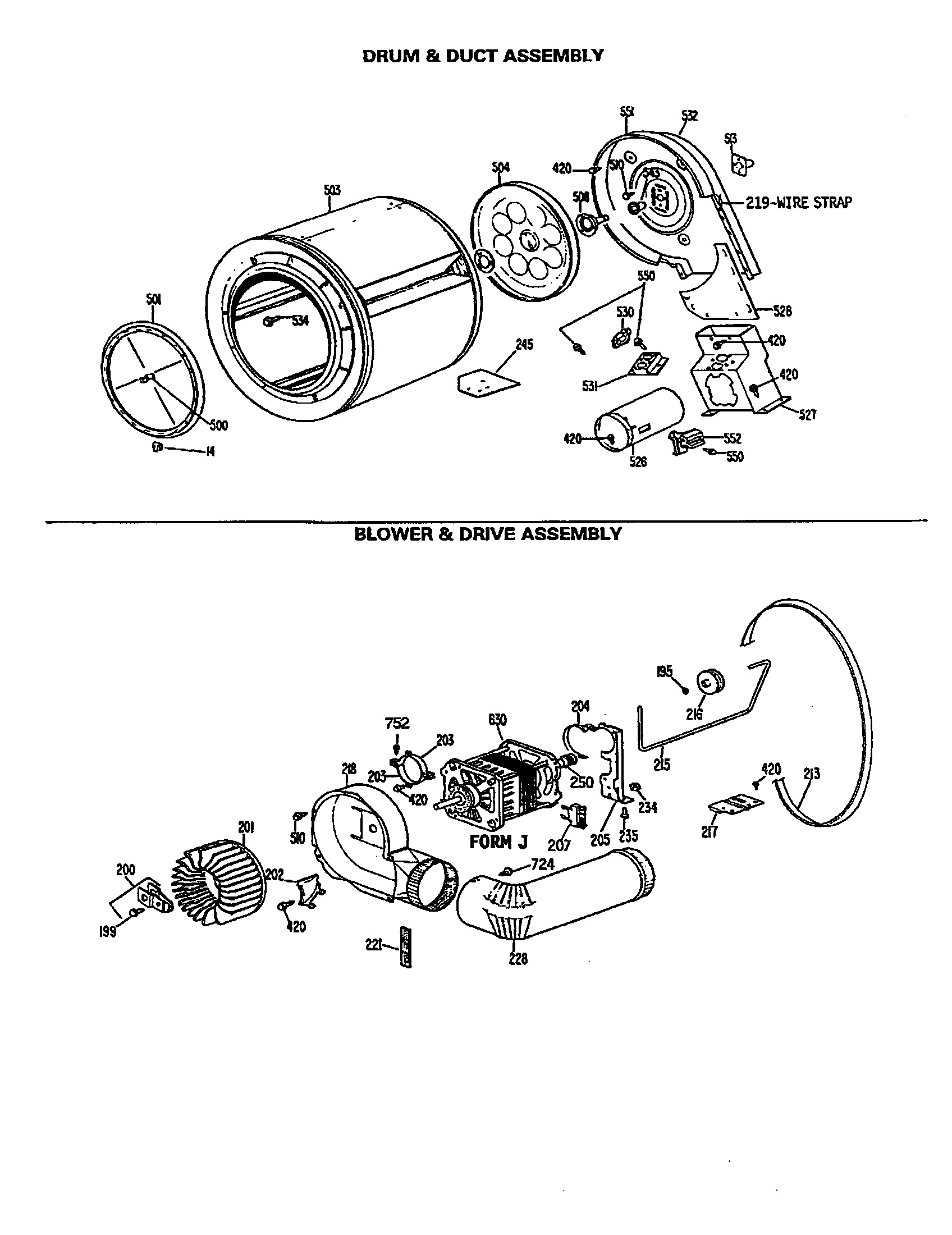

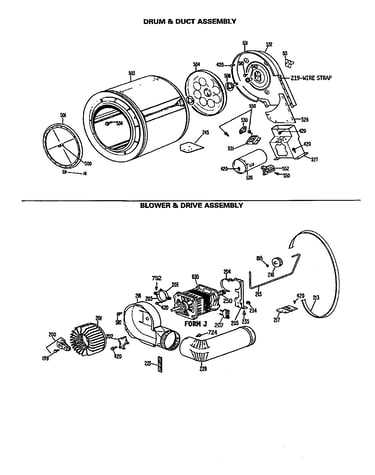

Drum/duct/blower/drive diagram

Idler pulley

Part #WE12X0083

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12X0083. Substitute parts can look different from the original.
BEST SELLER
$29.40
15% OFF Phone Price : $34.40
In Stock
Dryer Door Catch (replaces WE01M1011, WE1M536)
#232

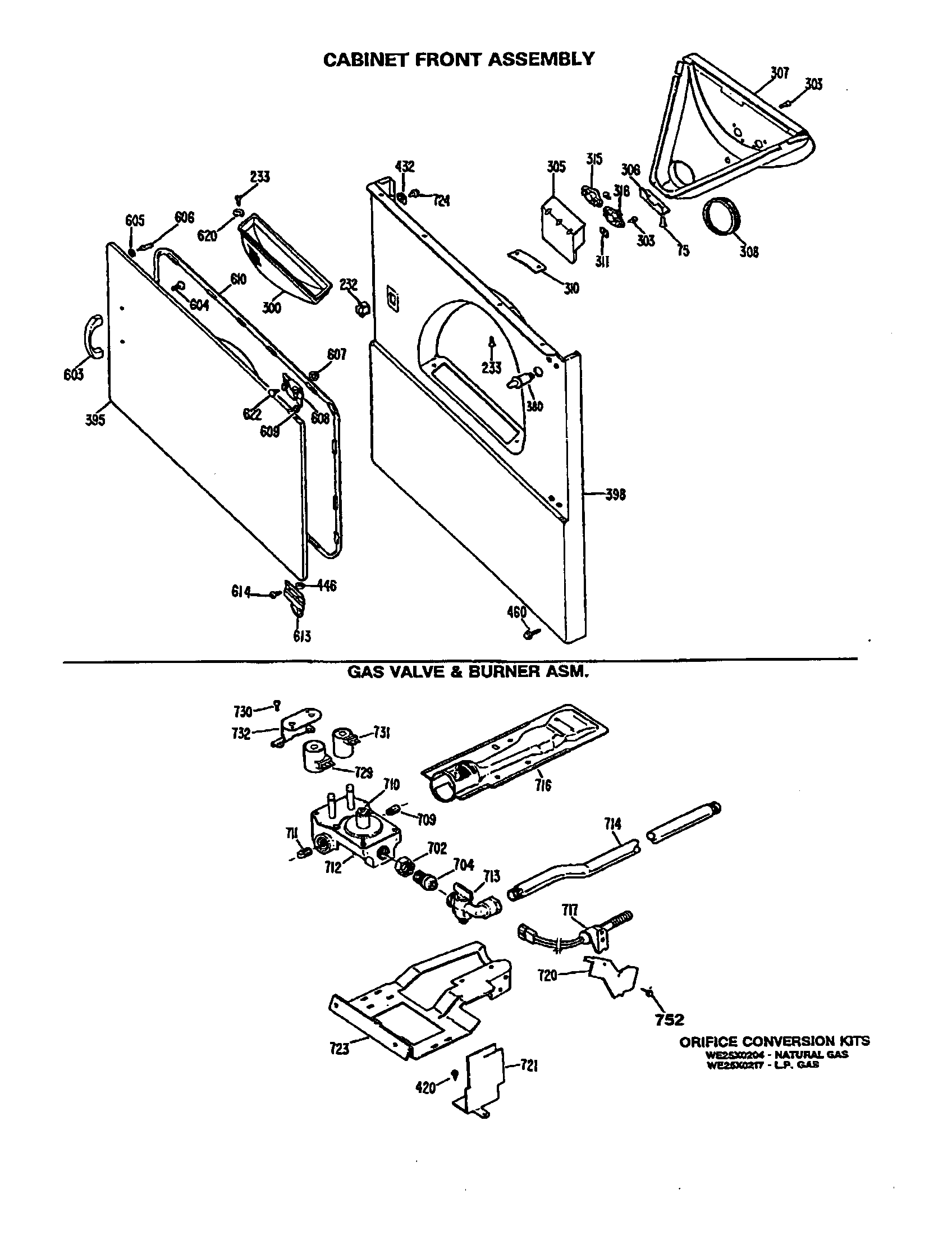

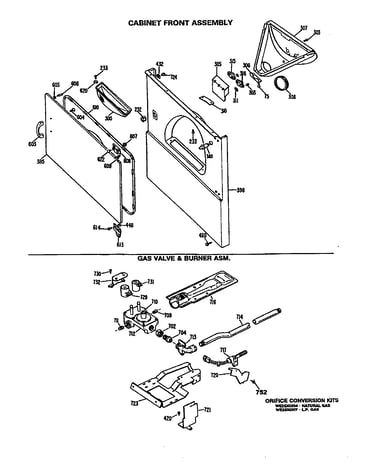

Cabinet front/gas valve/burner diagram

Latch clip

Part #WE01X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE01X1032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55
16% OFF Phone Price : $12.55
In Stock
Dryer Drum Belt (replaces WE12X82)
#213

Drum/duct/blower/drive diagram

Dryer drive belt

Part #WE12X0082

Replaced by #WE12X10014

?
Manufacturer substitution
This part replaces WE12X0082. Substitute parts can look different from the original.
BEST SELLER
$20.46
20% OFF Phone Price : $25.46
In Stock
Dryer Drum Bearing
#543

Drum/duct/blower/drive diagram

Drum bearing

Part #WE03X0075

Replaced by #WE3X75

?
Manufacturer substitution
This part replaces WE03X0075. Substitute parts can look different from the original.
This item is not returnable
$6.82
13% OFF Phone Price : $7.82
In Stock
Dryer Burner
#716

Cabinet front/gas valve/burner diagram

Burner

Part #WE14X0217

Replaced by #WE14M104

?
Manufacturer substitution
This part replaces WE14X0217. Substitute parts can look different from the original.
$46.41
10% OFF Phone Price : $51.41
In Stock
Dryer Gas Valve Assembly (replaces WE14X0215, WE14X214)
#712

Cabinet front/gas valve/burner diagram

Gas valve

Part #WE14X0215

Replaced by #WE14X215

?
Manufacturer substitution
This part replaces WE14X0215. Substitute parts can look different from the original.
$106.85
9% OFF Phone Price : $116.85
In Stock
Dryer Leveling Leg (replaces WE01M0642, WE2X355)
#236

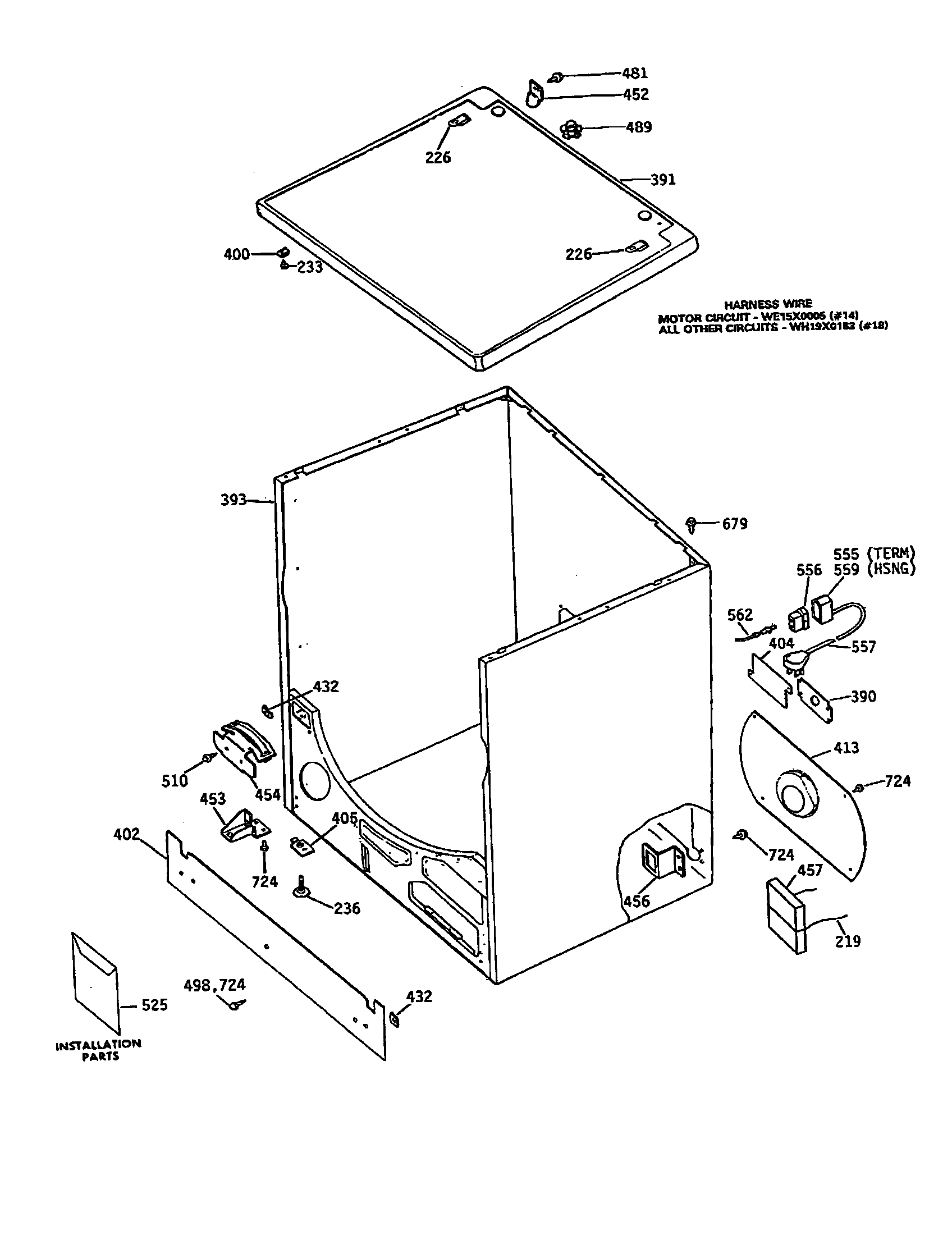

Cabinet assembly diagram

Dryer level screw

Part #WE02X0355

Replaced by #WE1M642

?
Manufacturer substitution
This part replaces WE02X0355. Substitute parts can look different from the original.
This item is not returnable
$7.92
11% OFF Phone Price : $8.92
In Stock
Laundry Appliance Screw, 12-pack
#510

Cabinet assembly diagram

Laundry appliance screw, 12-pack

Part #WE2X263D

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Laundry Appliance Screw, #8-32 x 3/8-in, 12-pack
#461

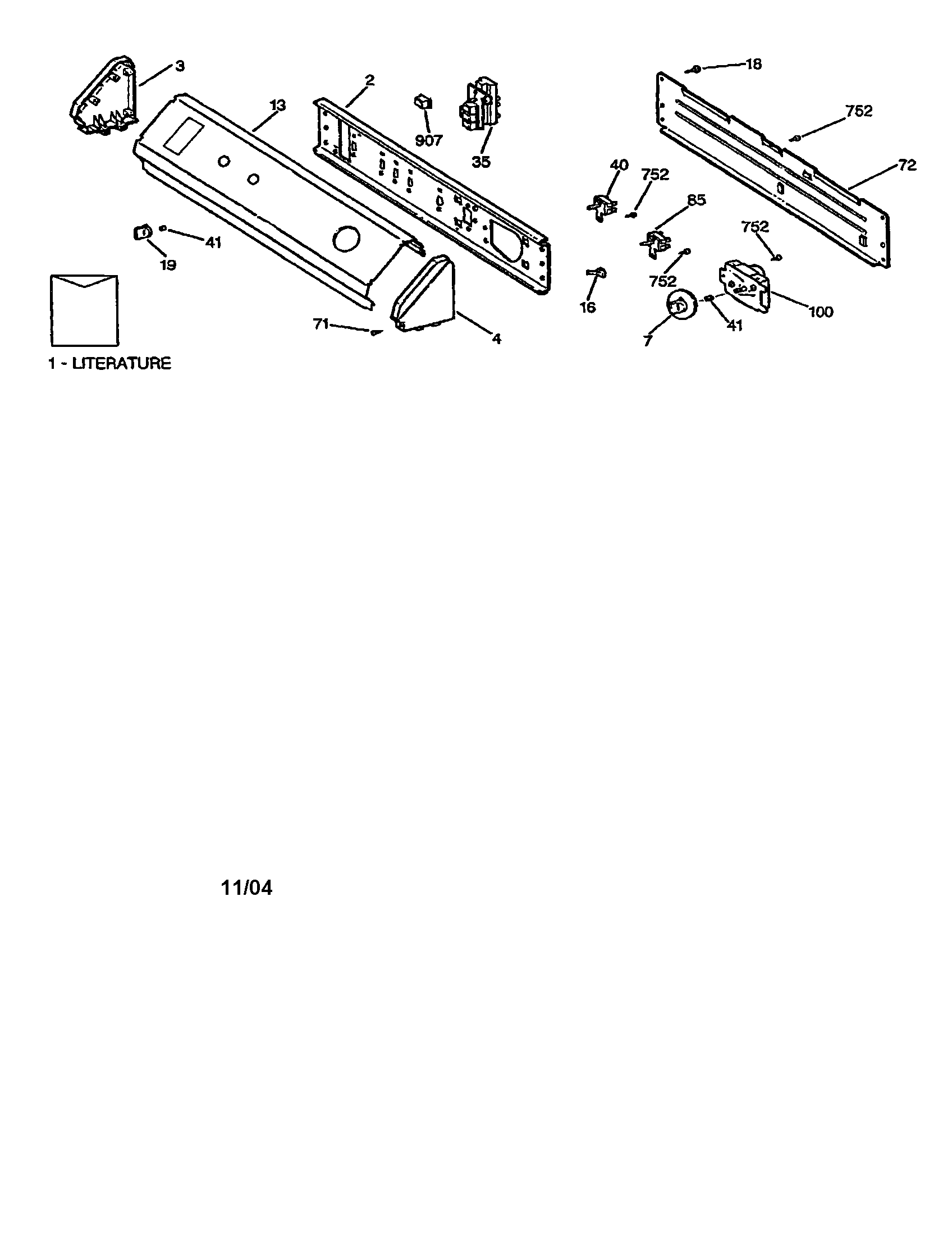

Backsplash assembly diagram

Laundry appliance screw, #8-32 x 3/8-in, 12-pack

Part #WZ5X158D

$34.63
13% OFF Phone Price : $39.63
In Stock
Dryer Burner Orifice
#709

Cabinet front/gas valve/burner diagram

Orifice

Part #WE01X1148

Replaced by #WE1X1148

?
Manufacturer substitution
This part replaces WE01X1148. Substitute parts can look different from the original.
In Stock
