Bosch SHX3AR75UC/22 dishwasher Parts

Yes, we can usually repair a Bosch SHX3AR75UC dishwasher E15 error at home because it typically points to water in the base (leak protection activated). The fix is to stop the leak, dry the base, then test a short cycle to confirm the code stays cleared; use the SHX3AR75UC owner's manual for model-specific reset and safety steps.

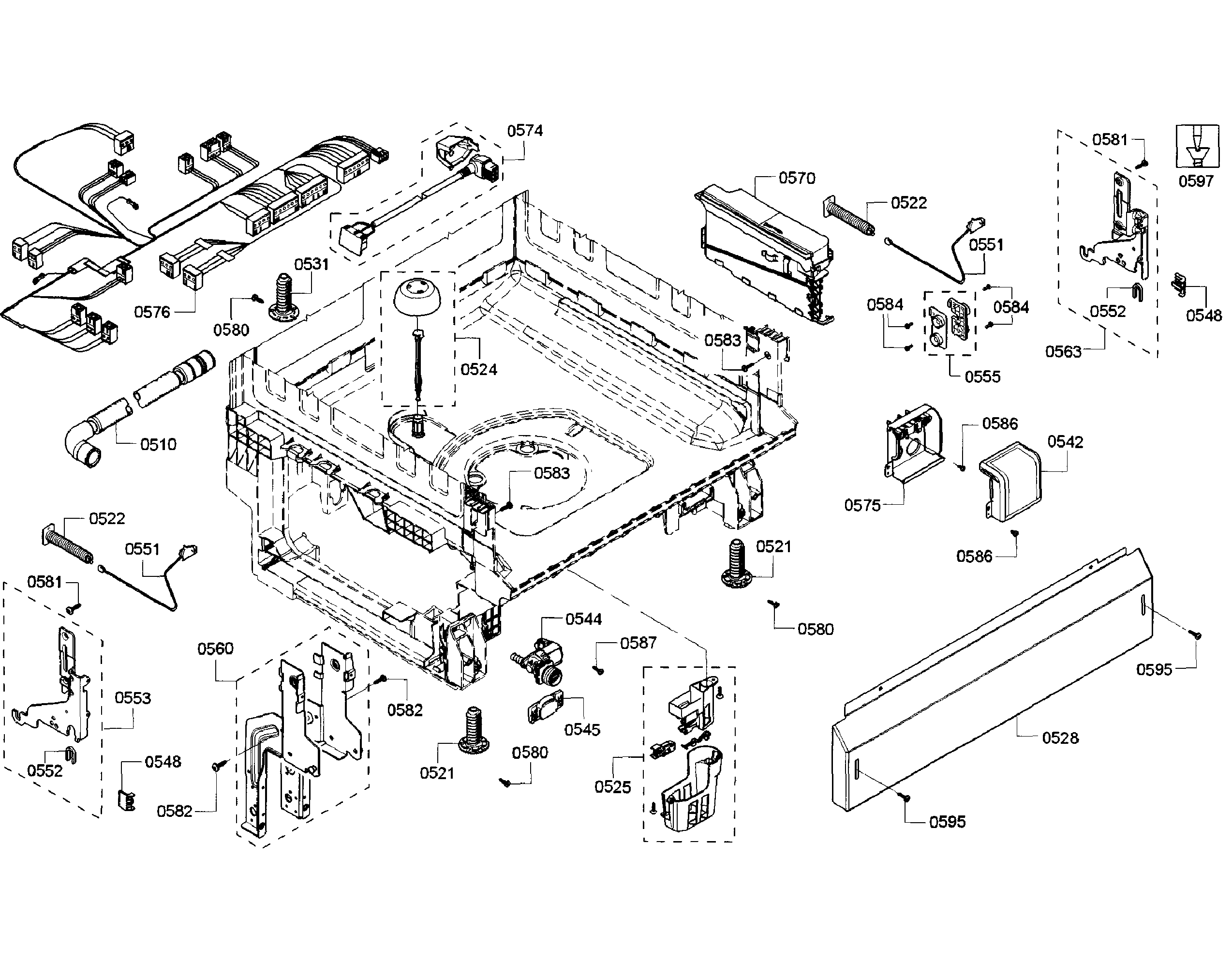

E15 commonly indicates the leak protection system has detected water in the bottom pan, which triggers a drain and prevents normal operation until the condition is corrected.

• Turn off power at the breaker and shut off the water supply.
• Pull the dishwasher out slightly and look for signs of leaking at the front corners and under the unit.
• Check the door seal for tears, flattening, or debris; replace if damaged.
• Inspect the drain hose routing for kinks and loose clamps.
• Clean the filter area and remove standing water or debris that can cause overflow.

If you find leaking, poor draining, or the unit runs the drain pump continuously, these model-matched parts are common fixes:

After correcting the leak source and drying any water in the base, restore power and run a short cycle. If E15 returns quickly, focus on active leaks (door seal, hoses) and drain issues (pump, blockage). For code interpretation and next steps, use Bosch dishwasher error codes.

E15 is a protection response; clearing the code without fixing the leak can lead to repeat shutdowns, poor cleaning, and water damage under the dishwasher.

Last updated: February 2026

Yes, repairing a Bosch dishwasher like model SHX3AR75UC is usually worth it when the unit is under about 10 years old and the repair is a single, clear failure (not multiple major components). We typically recommend repairing when the total repair cost stays under about 50% of the price of a comparable new dishwasher.

• Age: Under 6 to 10 years old is the sweet spot for repair value.
• Problem scope: One symptom and one failed part is a good repair candidate.
• Cost rule: Parts plus labor under 50% of replacement cost.
• Performance history: If it has cleaned and drained well until recently, repair makes sense.
• Leak or electrical issues: Fix promptly to prevent secondary damage.

These are typical single-part fixes that often restore normal operation:

Replacement usually makes more sense when:

• The dishwasher is 10+ years old and needs a high-cost repair.
• You have multiple failures at once (for example, draining plus heating plus controls).

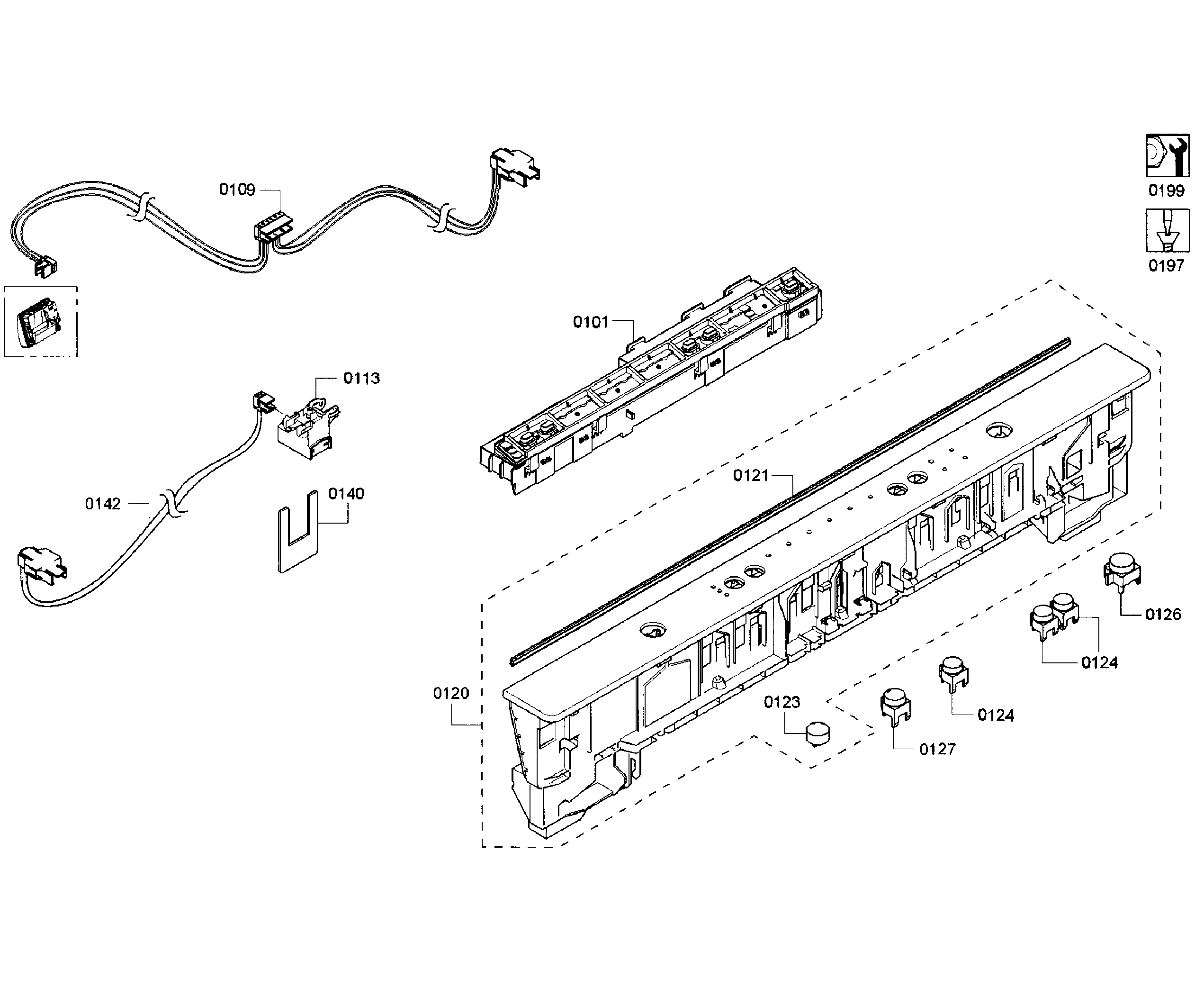

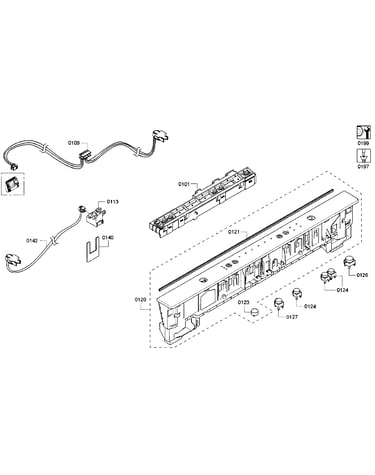

• A major electronic repair is needed, such as a control issue involving the dishwasher power control board 12010638.

A Bosch dishwasher is built to be serviced; replacing a targeted part (pump, dispenser, door lock, valve) often restores reliability for far less than the cost and hassle of a full replacement. Use the SHX3AR75UC owner's manual to confirm symptoms, cycle behavior, and any indicator lights before ordering parts.

Last updated: February 2026

Drainage trouble is the most common issue we see on Bosch dishwashers like model SHX3AR75UC: water left in the tub at the end of the cycle. In most cases, the fix is clearing a clogged filter area or drain path; less often, a drain component needs replacement.

• Standing water in the bottom: clogged filter, blocked drain hose, or a weak drain pump
• Gurgling or slow drain: partial blockage in the drain hose or sink/disposer connection
• Bad odor: debris trapped in the filter/sump area
• Poor cleaning plus water left behind: restricted circulation and drainage (filters, spray arms, sump)
• Intermittent drain errors: drain path restriction or a failing pump

1. Turn off power to the dishwasher at the breaker.
2. Remove and clean the filter area (rinse debris, check for glass or labels).
3. Inspect the drain hose routing for kinks and make sure the high loop/air gap setup is correct.
4. Check the sink/disposer inlet where the dishwasher hose connects (common clog point).
5. Run a short cycle and listen for the drain portion; a loud hum with little water movement points to a pump or blockage.

For model-specific access points and filter removal steps, use the SHX3AR75UC owner's manual.

If the drain path is clear and the dishwasher still will not drain, these parts are common suspects:

A restricted drain system can leave dirty water in the tub, cause odors, and reduce cleaning performance because the dishwasher cannot properly flush soil away during the cycle.

If you’re seeing an error code, our Bosch dishwasher error codes guide helps you match the code to the most likely drain or fill cause.

Last updated: February 2026

Yes. You can buy replacement parts for a dishwasher, including model-specific parts for your Bosch SHX3AR75UC, so you can fix common problems like not draining, not filling, leaks, or poor cleaning without replacing the whole appliance. Use the SHX3AR75UC owner's manual to confirm the correct part and access steps.

For the Bosch SHX3AR75UC, these are some of the most frequently replaced items (depending on the symptom):

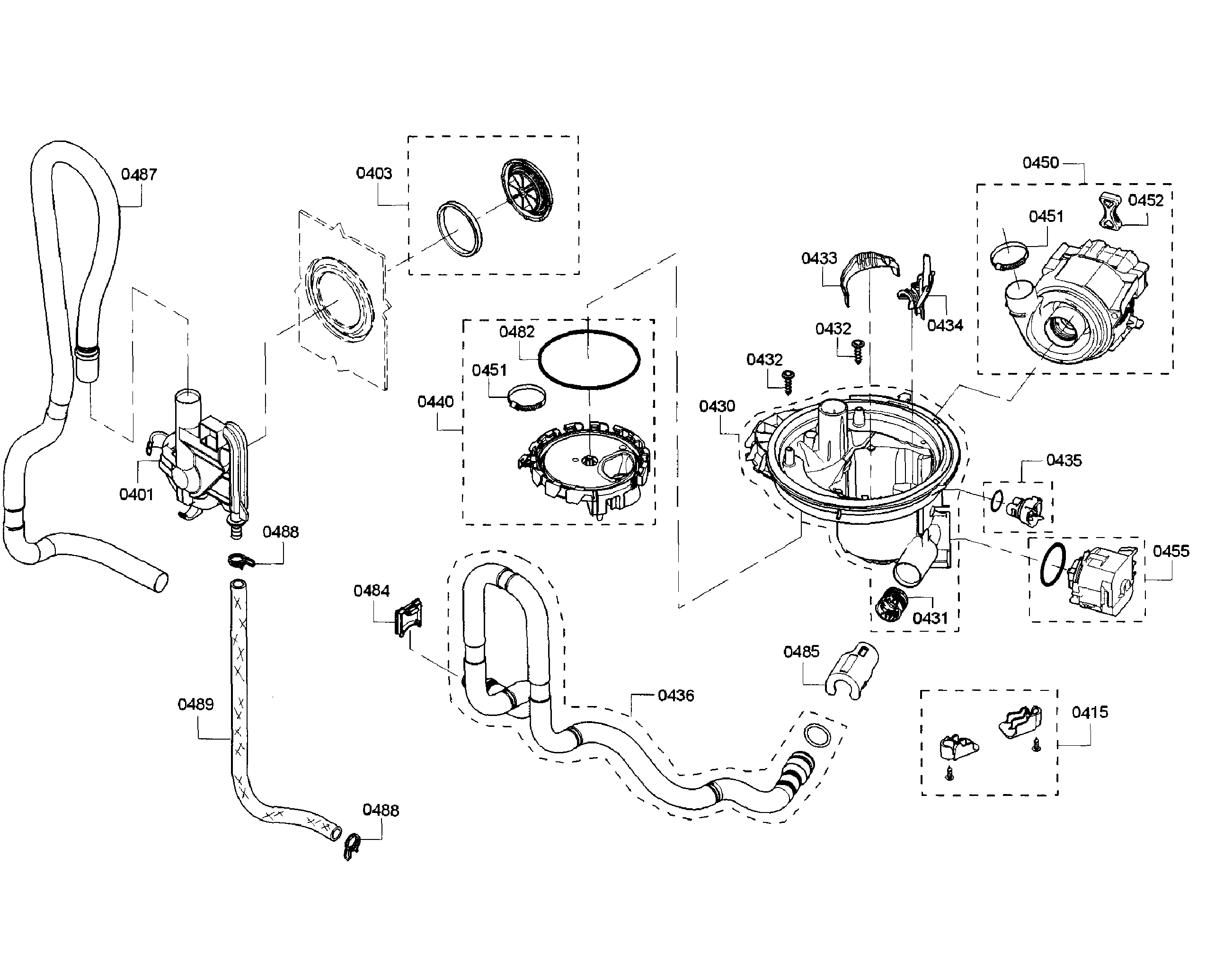

• Drain components (for standing water): dishwasher drain pump 00631200, drain hose
• Wash and heat components (for poor cleaning or cold water): circulation pump with heater
• Detergent and dispensing (for soap not releasing): detergent dispenser assembly

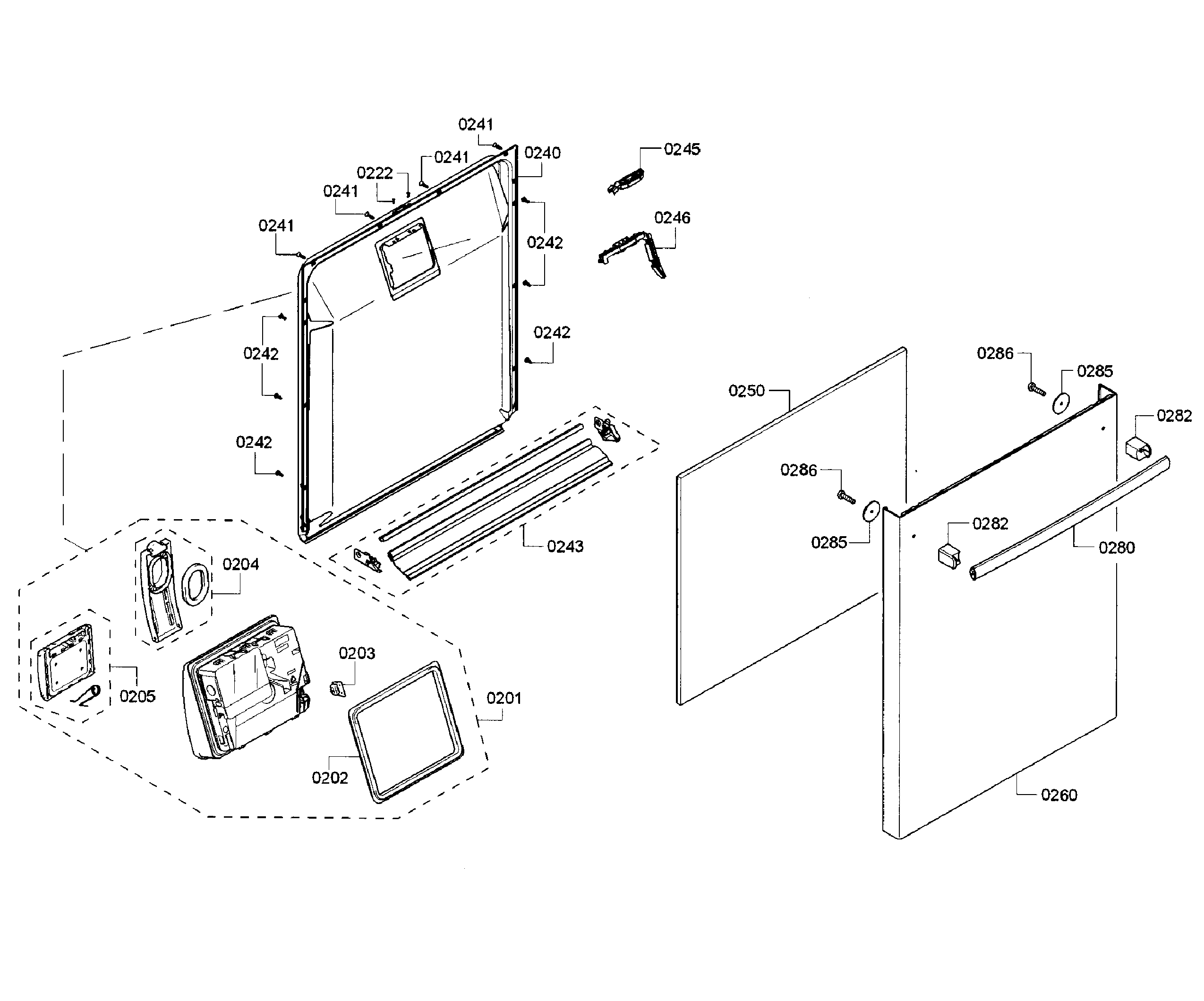

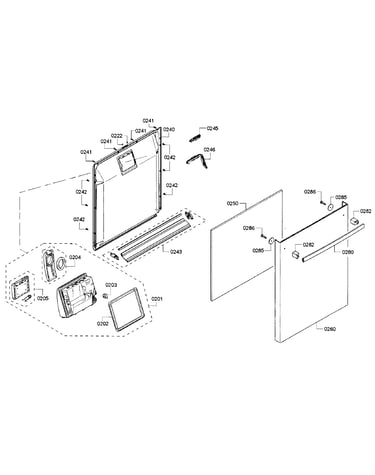

• Door and leak prevention (for leaks or door issues): door seal, door lock
• Sensors and controls (for odd behavior or error codes): turbidity sensor, control board

Dishwasher parts can look similar across Bosch models, so we recommend matching by model and part ID.

• Confirm the full model number on the rating label: SHX3AR75UC
• Match the symptom to the system (drain, fill, wash, heat, door)
• Compare the part ID and description, not just the photo
• Check whether you need related items (clamps, seals, hoses) during the same repair
• Follow the disassembly steps and safety notes in the SHX3AR75UC installation guide

Using the correct Bosch SHX3AR75UC replacement part helps restore proper wash pressure, heating, and draining. That prevents repeat breakdowns, reduces leaks, and keeps cycle times and cleaning performance where they should be.

Last updated: February 2026

Most Bosch dishwashers, including the Bosch SHX3AR75UC, typically last 10 to 15 years with normal household use. Consistent cleaning, correct installation, and avoiding chronic drain or fill problems are the biggest factors that keep a dishwasher running longer.

A dishwasher’s service life is usually determined by how hard it works and how clean the water path stays.

• Usage frequency: 1 load per day wears parts faster than 3 to 4 loads per week.
• Water quality: hard water speeds up mineral buildup on the heater and inside the sump.
• Maintenance habits: routine filter and spray-arm cleaning prevents circulation strain.
• Installation quality: proper leveling and drain routing reduce leaks and drain faults.
• Detergent and rinse aid: correct dosing helps prevent residue that can clog the wash system.

We recommend these habits to help your SHX3AR75UC reach the high end of the 10 to 15 year range:

• Clean the filter area regularly; remove debris before it reaches the pump.
• Run a dishwasher cleaner or descaling cycle periodically (especially with hard water).
• Keep spray-arm holes clear so water pressure stays strong.
• Scrape, do not pre-wash; heavy grease and seeds are what cause most clogs.
• Check the door seal for tears or flattening if you notice moisture at the bottom edge.

These are some of the most common parts that determine whether a dishwasher is worth repairing as it ages.

Knowing the typical lifespan helps you decide when maintenance is enough versus when a major repair (like a circulation pump or control board) makes sense. If your dishwasher is already near 10 to 15 years old, preventing clogs and leaks is the easiest way to avoid expensive failures.

For model-specific care and cleaning intervals, follow the SHX3AR75UC owner’s manual.

Last updated: February 2026

In a Bosch dishwasher like model SHX3AR75UC, the most commonly replaced parts are the drain and circulation pumps, door sealing and latching parts, the water inlet valve, and the detergent dispenser. These parts typically fail from normal wear, clogs, leaks, or electrical issues, while rack accessories often break from daily loading.

• Drain components (pump and drain hose) when the unit will not drain or leaves standing water
• Circulation pump and heater when cleaning is weak or water is not heating
• Door seal and door lock when you see leaks or the dishwasher will not start
• Water inlet valve when the dishwasher will not fill or fills slowly
• Detergent dispenser when the soap door will not open or does not dispense

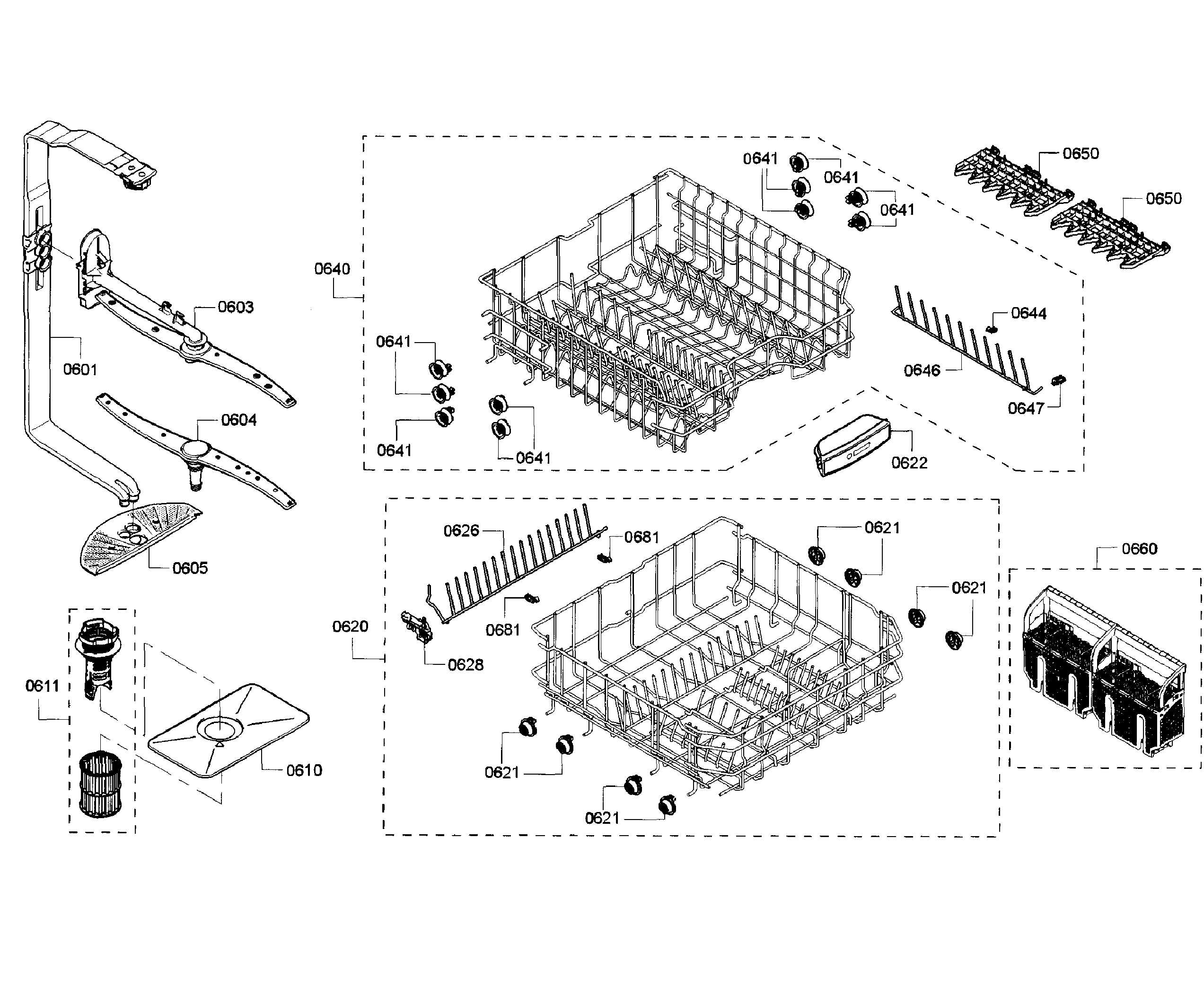

• Rack accessories (tine retainers, pivot clips, silverware basket) when racks snag, collapse, or crack

• Clean the filter area regularly and remove debris before it reaches the pump
• Verify the drain hose routing is not kinked and has a proper high loop
• Load dishes so they do not block the detergent cup or spray arms
• Use the correct detergent amount; too much can cause excess suds and leaks
• If the dishwasher stops mid-cycle or shows a code, look up the meaning before replacing parts

Replacing the correct “failure point” part saves time and prevents repeat problems. For example, a clog in the drain path can mimic a bad pump, and a misloaded rack can mimic a dispenser failure.

• Use the SHX3AR75UC owner's manual for part locations, cleaning steps, and operating tips.
• If you see a fault code, use Bosch dishwasher error codes to narrow the problem to the right system.

Last updated: February 2026
