Model #GSD1150T62 GE dishwasher

Here are the diagrams and repair parts for GE GSD1150T62 dishwasher, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileInstallation guide

    Showing 10 of 168 parts

    Dishwasher Detergent Dispenser Shaft

    #823

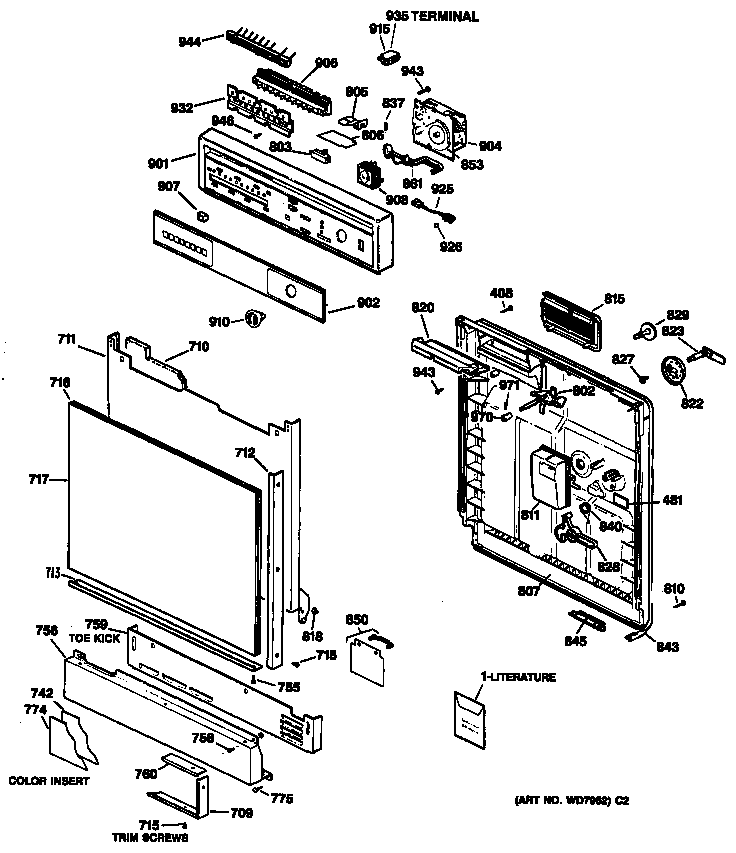

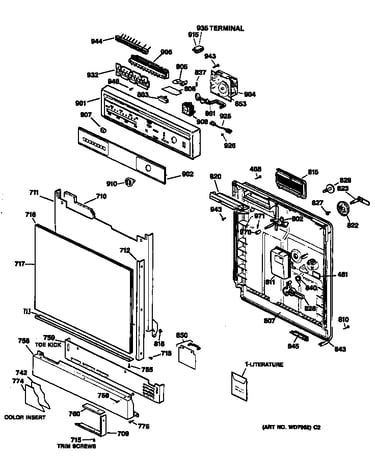

    Control panel/door Diagram

    $13.08

    In Stock

    Dishwasher Lower Spray Arm Pivot Shaft

    #455

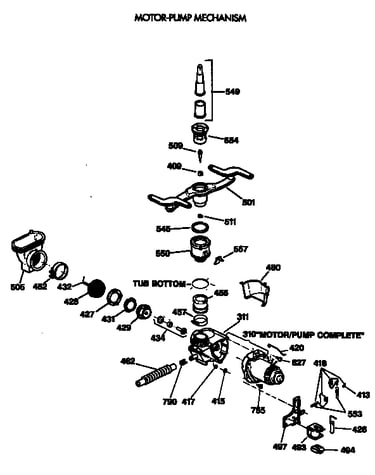

    Motor-pump mechanism Diagram

    $15.30

    In Stock

    Dishwasher Dishrack Track Roller

    #654

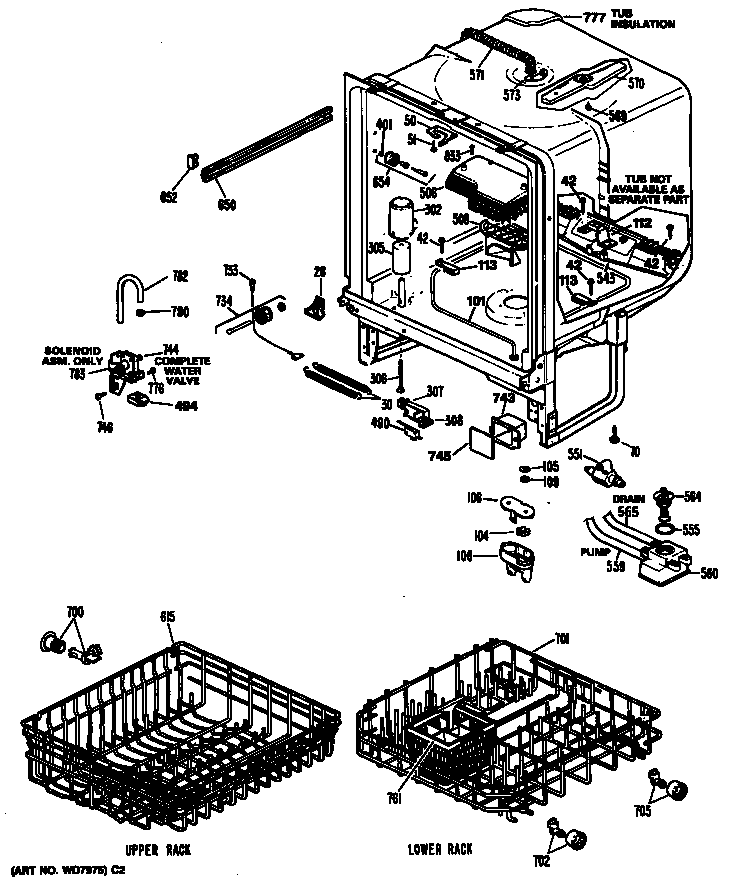

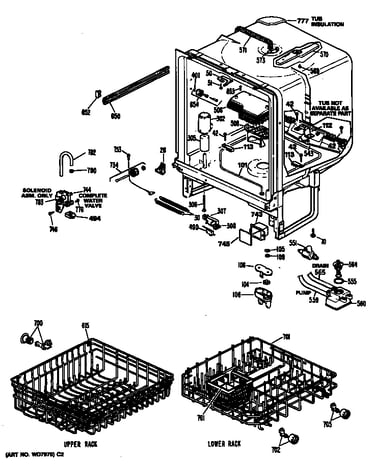

    Tub assembly/racks Diagram
