Model #SHE44C06UC/38 Official Bosch dishwasher

Here are the diagrams and repair parts for Bosch SHE44C06UC-38 dishwasher, as well as links to manuals and error code tables, if available.

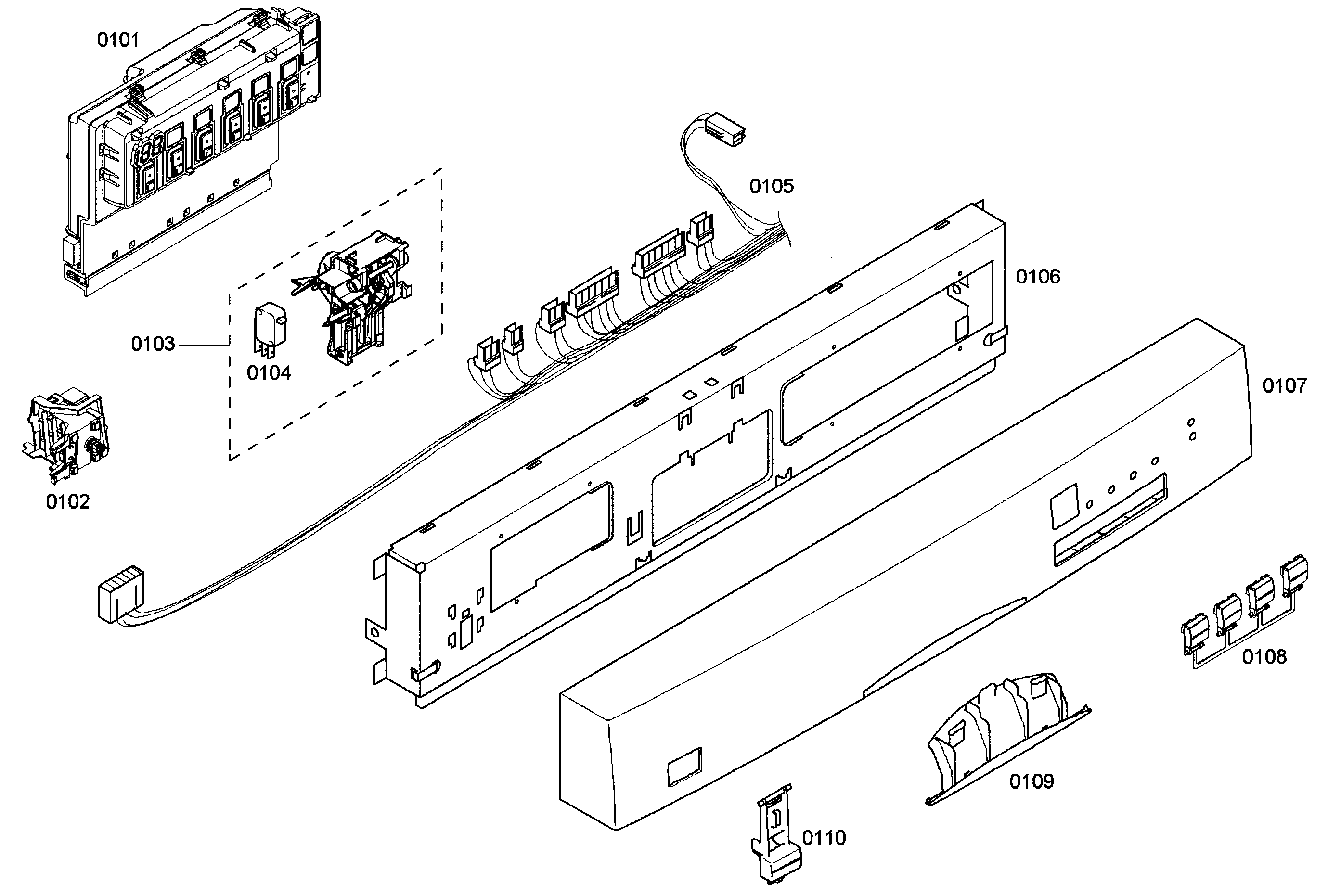

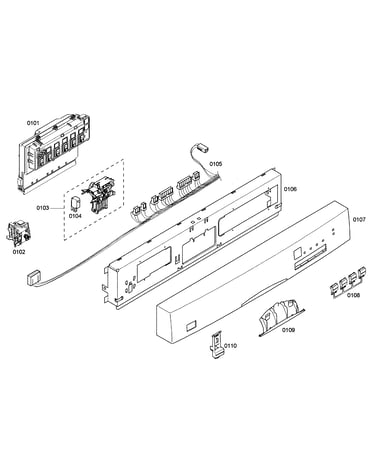

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 149 parts

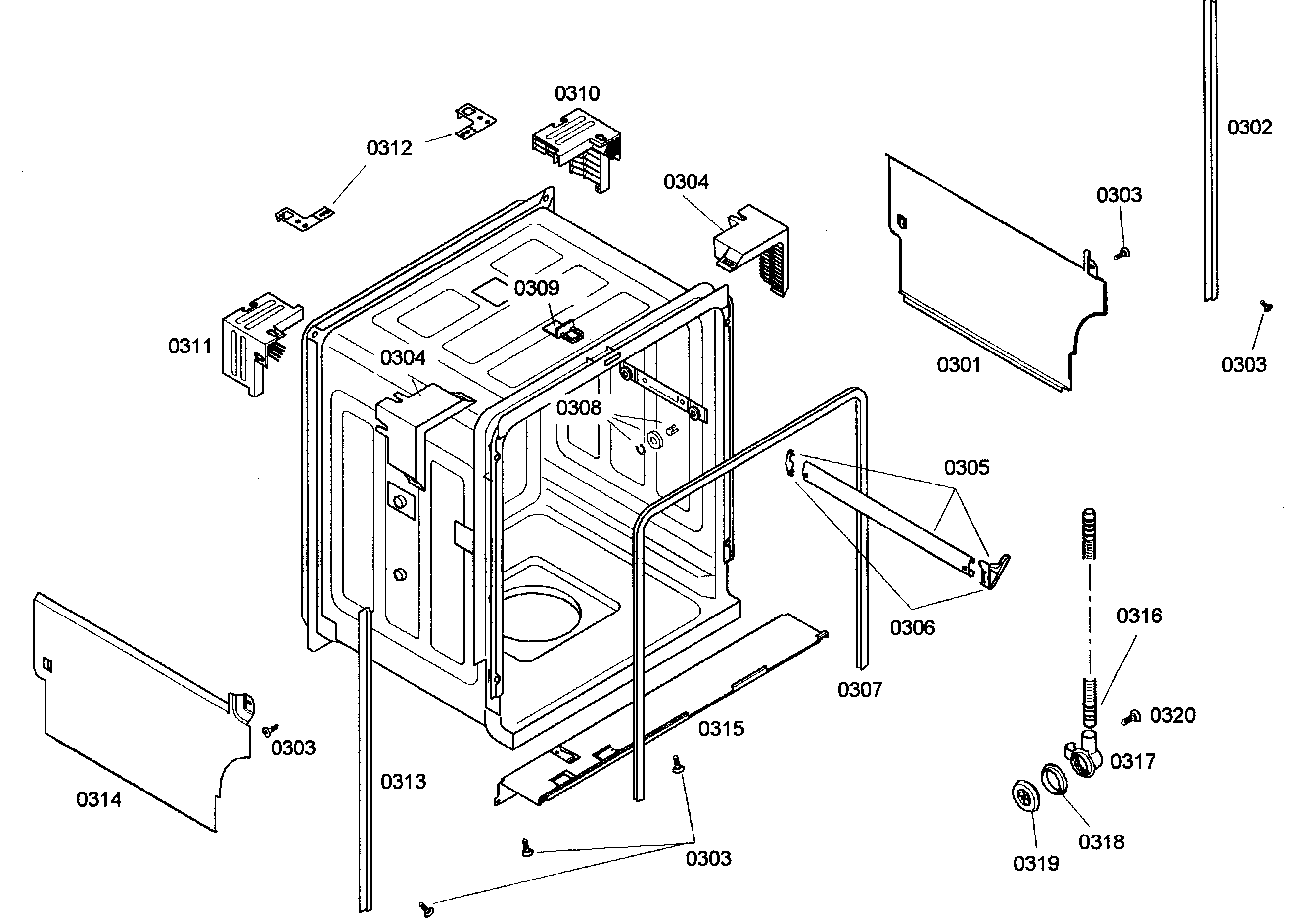

    Dishwasher Door Seal#307

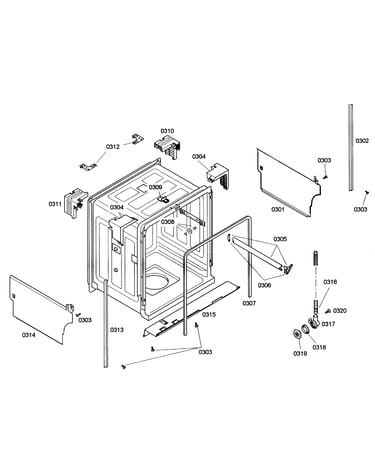

    Cabinet Diagram

    Door gasket

    Part #494772
    Replaced by #00494772
    ?
    Manufacturer substitution
    This part replaces 494772. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $30.99 |
    14% OFF
    Phone Price: $35.99

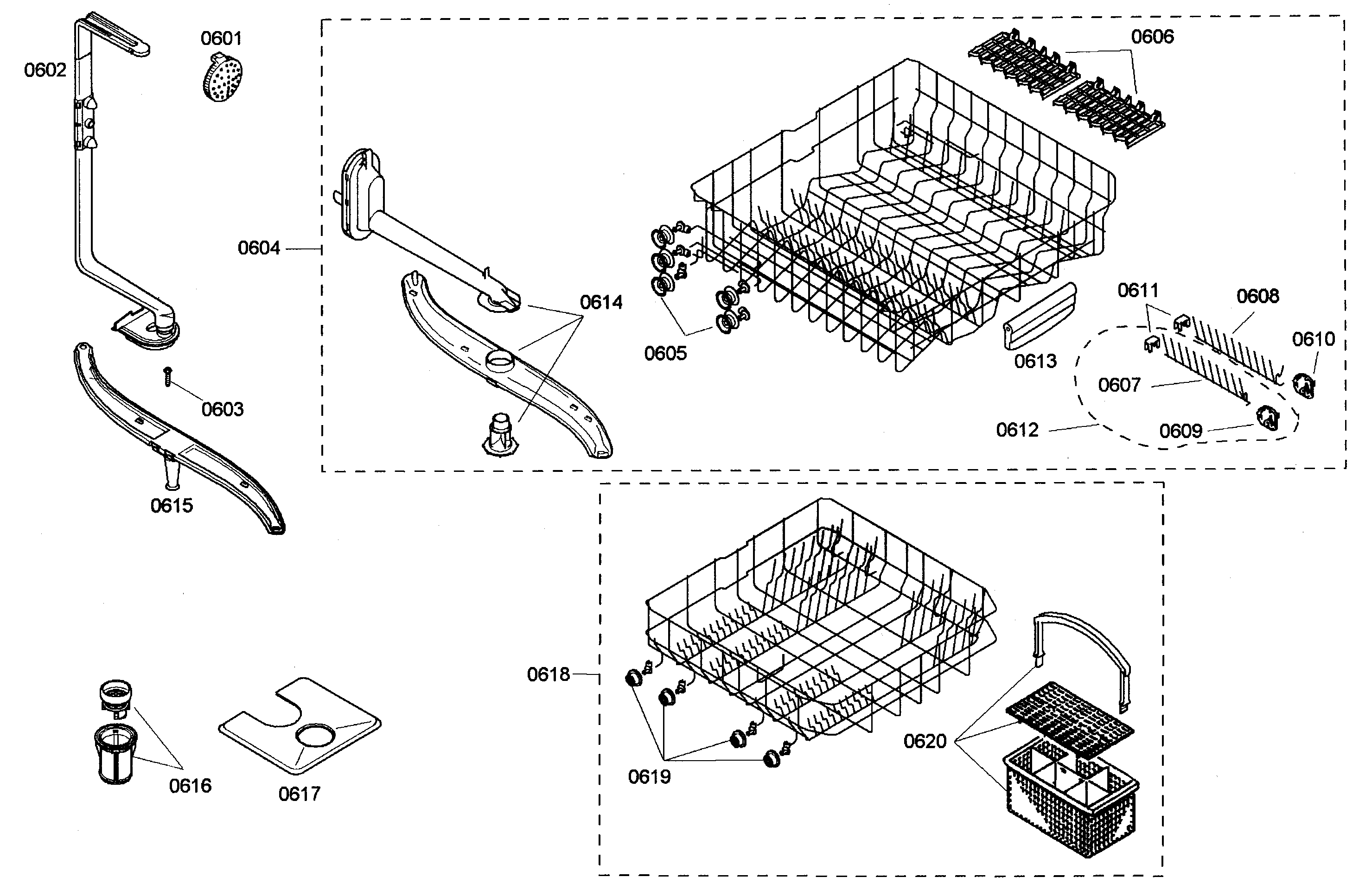

    Dishwasher Dishrack, Lower#618A

    Baskets Diagram

    Dishwasher lower rack

    Part #249276
    Replaced by #00249276
    ?
    Manufacturer substitution
    This part replaces 249276. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $252.80
    Dishwasher Dishrack, Lower#618

    Baskets Diagram

    Lower rack

    Part #434647
    Replaced by #00249276
    ?
    Manufacturer substitution
    This part replaces 434647. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $252.80

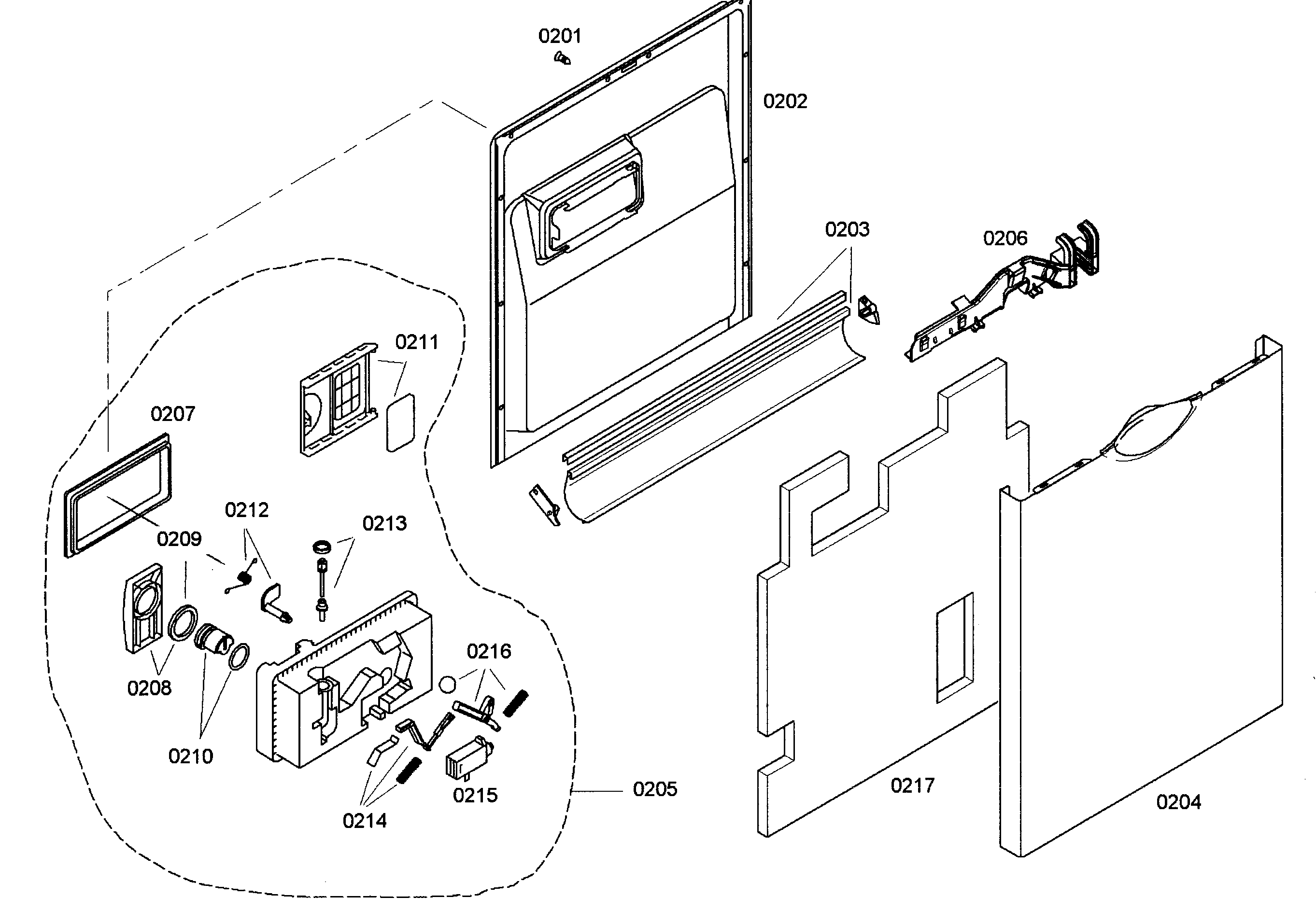

    Dishwasher Door Seal, Lower#203

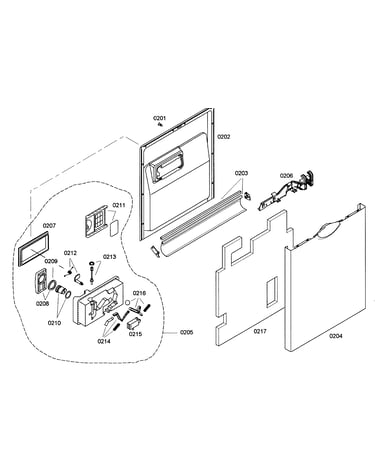

    Door assy Diagram

    Door seal

    Part #432490
    Replaced by #00432490
    ?
    Manufacturer substitution
    This part replaces 432490. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $34.39 |
    13% OFF
    Phone Price: $39.39
    Dishwasher Spray Arm, Upper#614

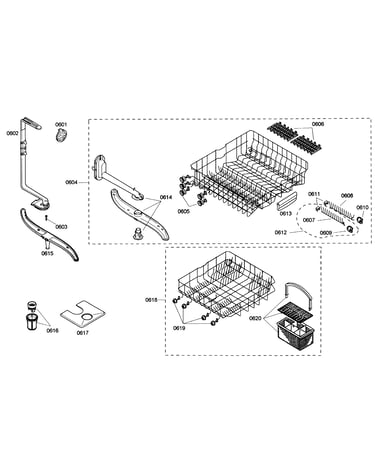

    Baskets Diagram

    Dishwasher spray arm assembly, upper

    Part #359976
    Replaced by #00359976
    ?
    Manufacturer substitution
    This part replaces 359976. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $65.39 |
    7% OFF
    Phone Price: $70.39
    Dishwasher Dishrack Roller#619

    Baskets Diagram

    Dishwasher lower rack wheels

    Part #165314
    Replaced by #00165314
    ?
    Manufacturer substitution
    This part replaces 165314. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $11.49 |
    15% OFF
    Phone Price: $13.49
    Dishwasher Detergent Dispenser Assembly#205

    Door assy Diagram

    Dispenser

    Part #490472
    Replaced by #00490467
    ?
    Manufacturer substitution
    This part replaces 490472. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $131.20
    Dishwasher Detergent Dispenser Assembly#205A

    Door assy Diagram

    Dishwasher detergent dispenser assembly

    Part #490467
    Replaced by #00490467
    ?
    Manufacturer substitution
    This part replaces 490467. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $131.20

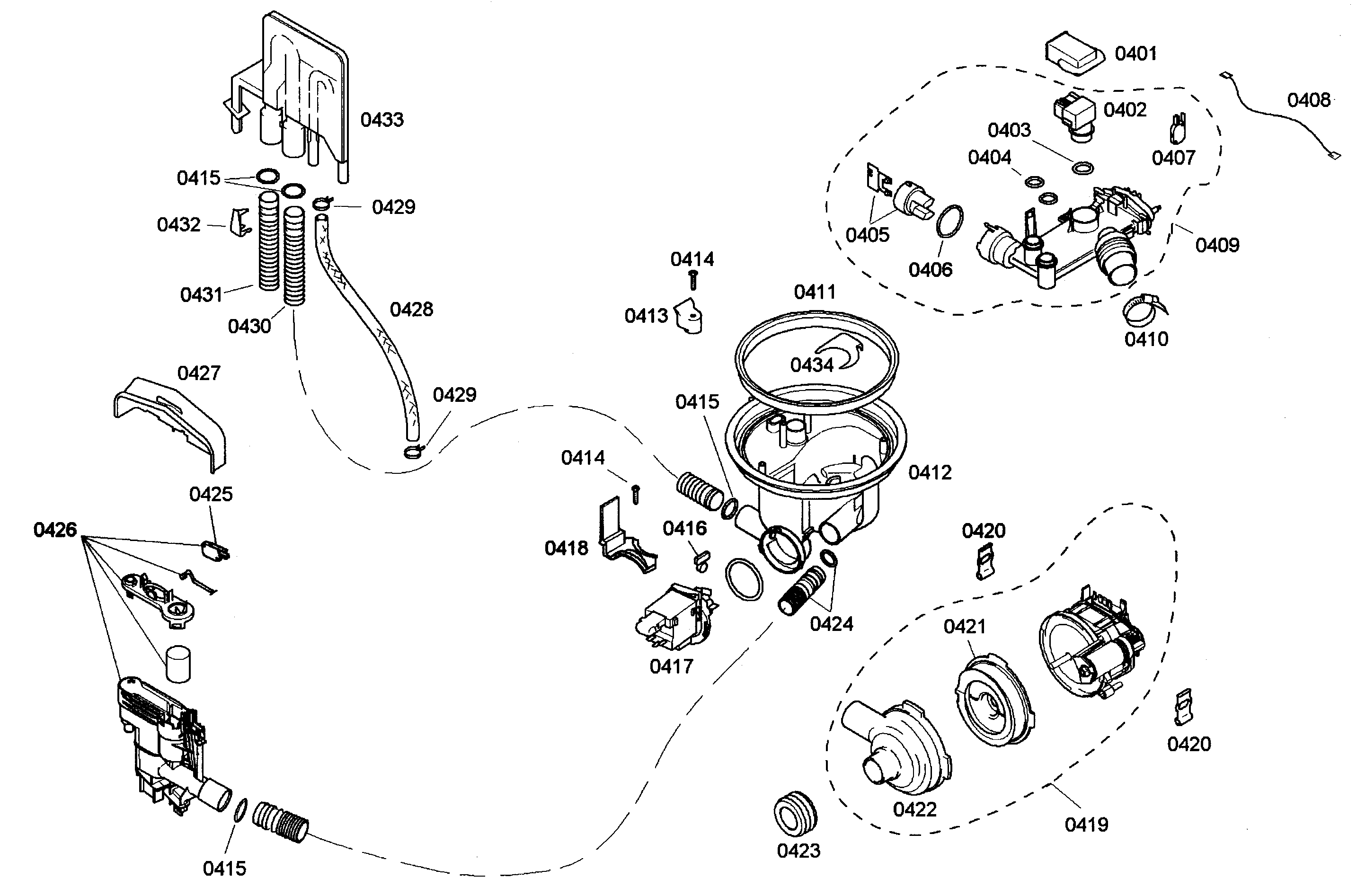

    Motor#417

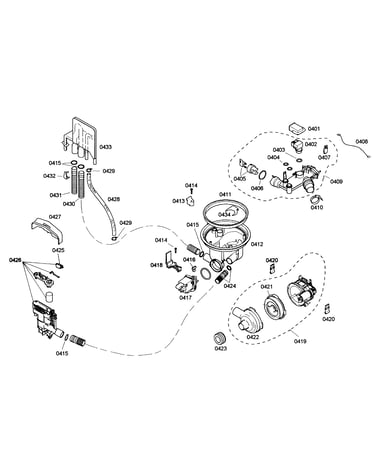

    Pump Diagram

    Motor

    Part #167082

    The manufacturer no longer makes this part, and there's no substitute part

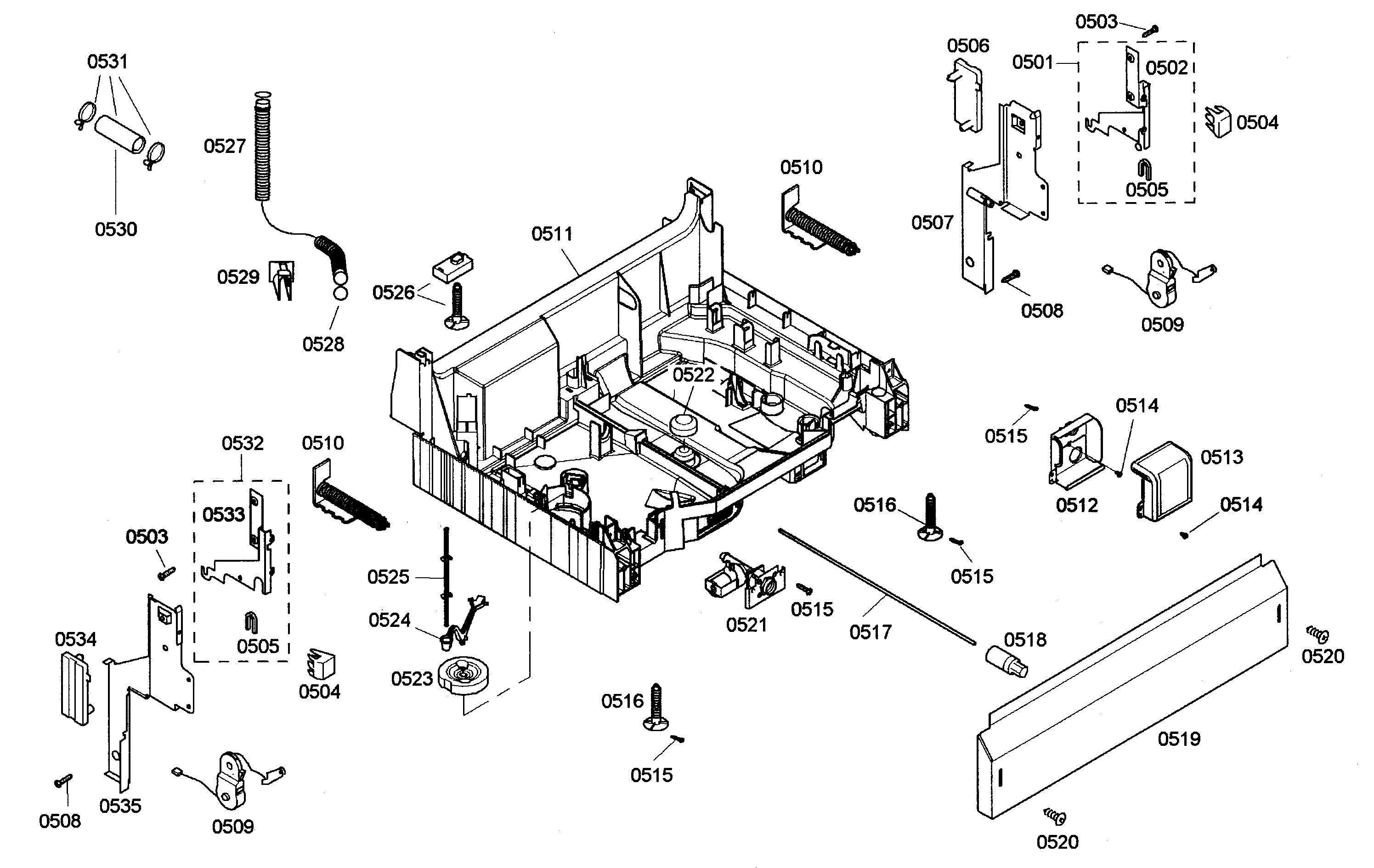

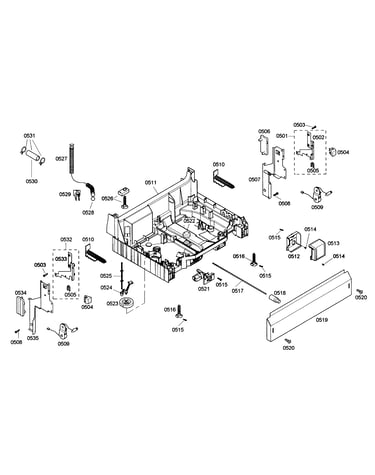

    Dishwasher Water Inlet Valve#521

    Base assy Diagram

    Dishwasher water inlet valve

    Part #425458
    Replaced by #00425458
    ?
    Manufacturer substitution
    This part replaces 425458. Substitute parts can look different from the original.
    Back Order
    $54.01 |
    23% OFF
    Phone Price: $70.29
