How to hard reset a whirlpool dryer?
To hard reset a Whirlpool dryer like model LG7801XSW1, we recommend a full power reset: disconnect power for 5 minutes, then restore power and start a cycle. This clears many control glitches without changing any settings.
Hard reset steps (power reset)
- Turn the dryer OFF.
- Unplug the power cord (or switch the dryer breaker OFF).
- Wait 5 minutes.
- Restore power.
- Open and close the door, then select a timed cycle and press Start.
If it still will not run after the reset
A reset will not fix a failed part. These checks narrow down common no-start causes on Whirlpool dryers:
- Confirm the door closes firmly; a bad door switch can prevent starting.
- Check for a broken drum belt; some designs stop the motor if the belt breaks.
- Listen for motor hum with no drum movement (belt, idler pulley, or motor issue).
- If it is a gas dryer, ignition parts can fail even when the motor runs.
- If the dryer stops mid-cycle, airflow restriction can trigger safety shutoff.
Parts that commonly relate to “won’t start” or “runs but won’t tumble”
| Symptom | Most common area | Example part for LG7801XSW1 |
|---|---|---|
| Won’t start, door feels loose | Door interlock | Dryer door switch W10820036 |
| Runs but drum does not turn | Drive system | Belt 341241, dryer idler pulley WP691366 |
| Hums, then stops | Motor or jammed drum | Motor 279827 |
Why it matters
A hard reset is fast and safe, but repeated resets usually mean an underlying issue (door switch, belt, idler pulley, or motor). Fixing the root cause prevents repeat shutdowns and protects the drive motor.
Last updated: February 2026
How to remove dryer panel whirlpool?
To remove the main panels on a Whirlpool dryer like model LG7801XSW1, we typically lift off the top first, then remove the front panel, and only then access the control console area. Always unplug the dryer (and shut off gas if it is a gas model) before starting.
Before you start (safety and setup)
- Unplug the power cord from the outlet.
- If you have a gas dryer, close the gas shutoff valve.
- Pull the dryer forward so you can reach the back and sides.
- Have a container ready for screws so nothing gets lost.
- Use cut-resistant gloves; cabinet edges are sharp.

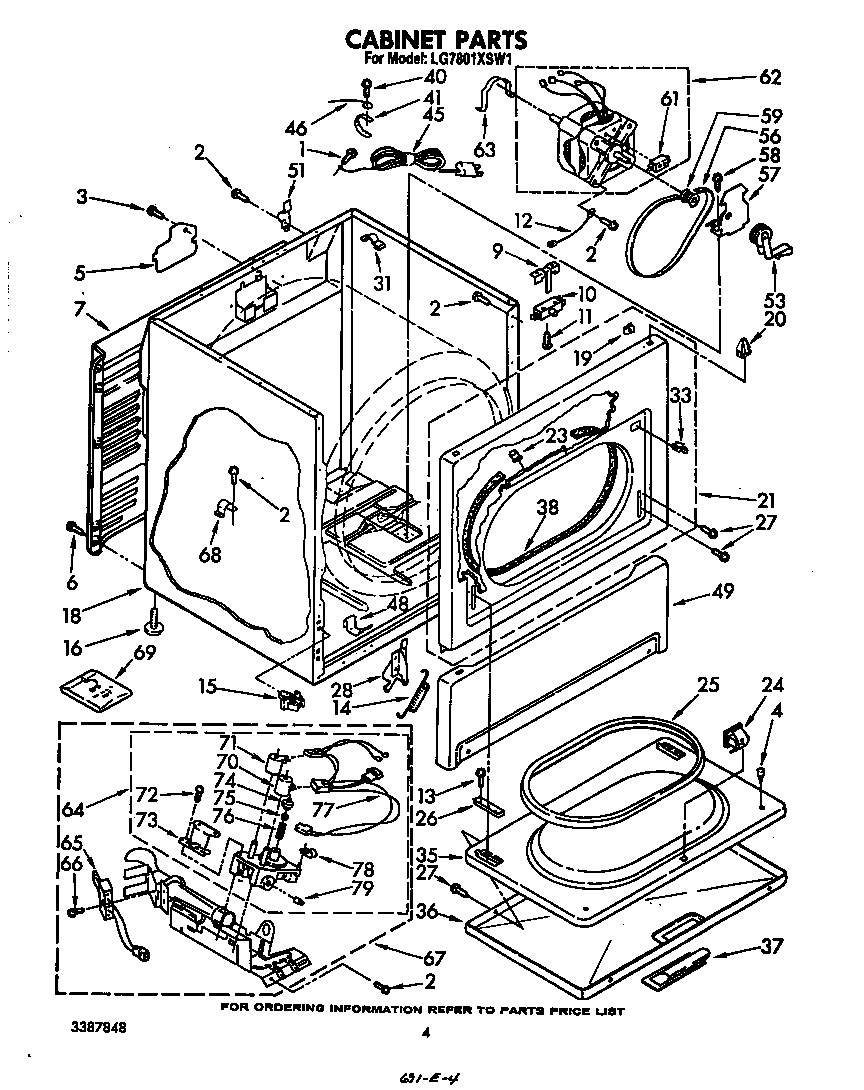

Common Whirlpool top and front panel removal steps
- Remove the lint screen (if it is in the top) and take out the screws in the lint screen housing (if present).
- Release the top:
- Remove screws at the back edge of the top (common on many Whirlpool designs), or
- Insert a putty knife/flat blade under the front corners of the top to release spring clips.
- Lift the top up and support it.
- Remove the front panel:
- Disconnect the door switch wiring harness.
- Remove the screws securing the front panel to the cabinet.
- Lift the front panel up and off the lower retaining tabs.

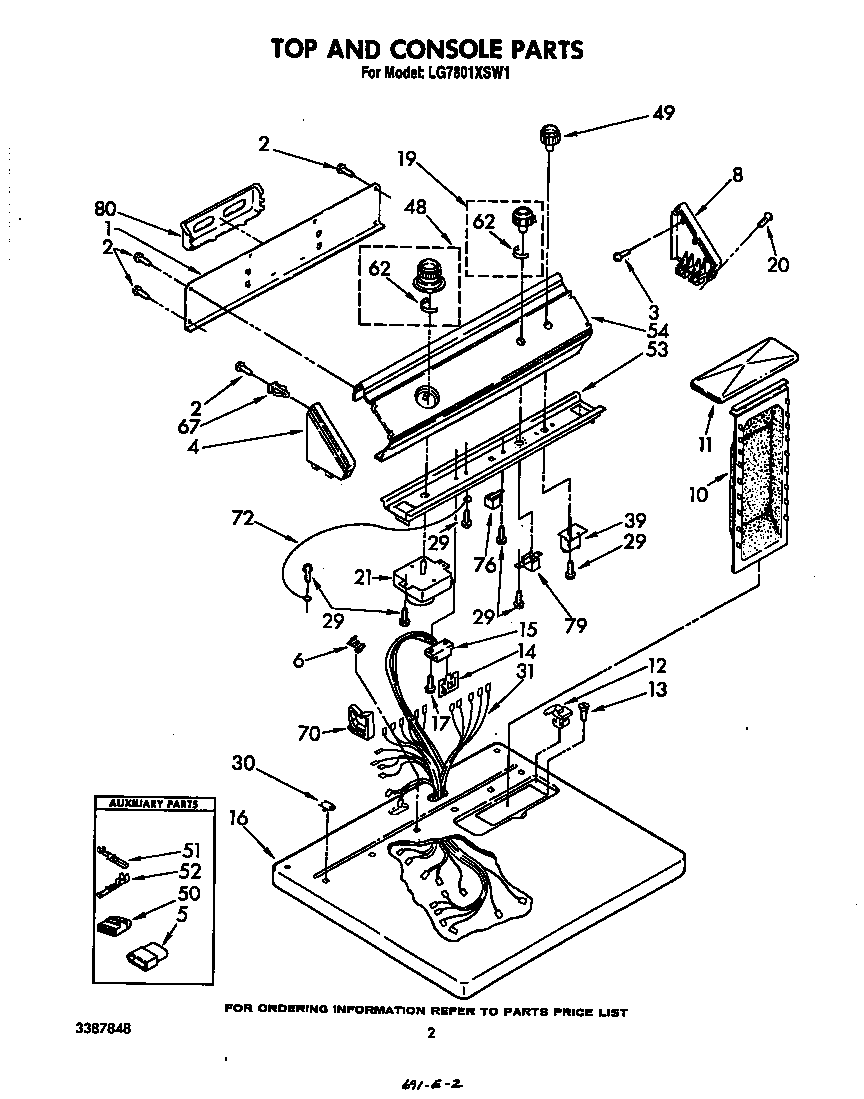

If you are removing the control panel (console)
On many Whirlpool dryers, the console is held by screws on the back or inside the top area after the top is lifted.
- Remove console mounting screws.
- Tilt the console forward or lift it up (depending on design).
- Label and disconnect wire connectors only as needed.
What you can access after the panel is off
Once the front is removed, these parts are commonly in reach for inspection or replacement:
| What you see | What it affects | Example part for LG7801XSW1 |
|---|---|---|
| Drum belt and idler area | Drum turning, squealing | Belt 341241, dryer idler pulley WP691366 |

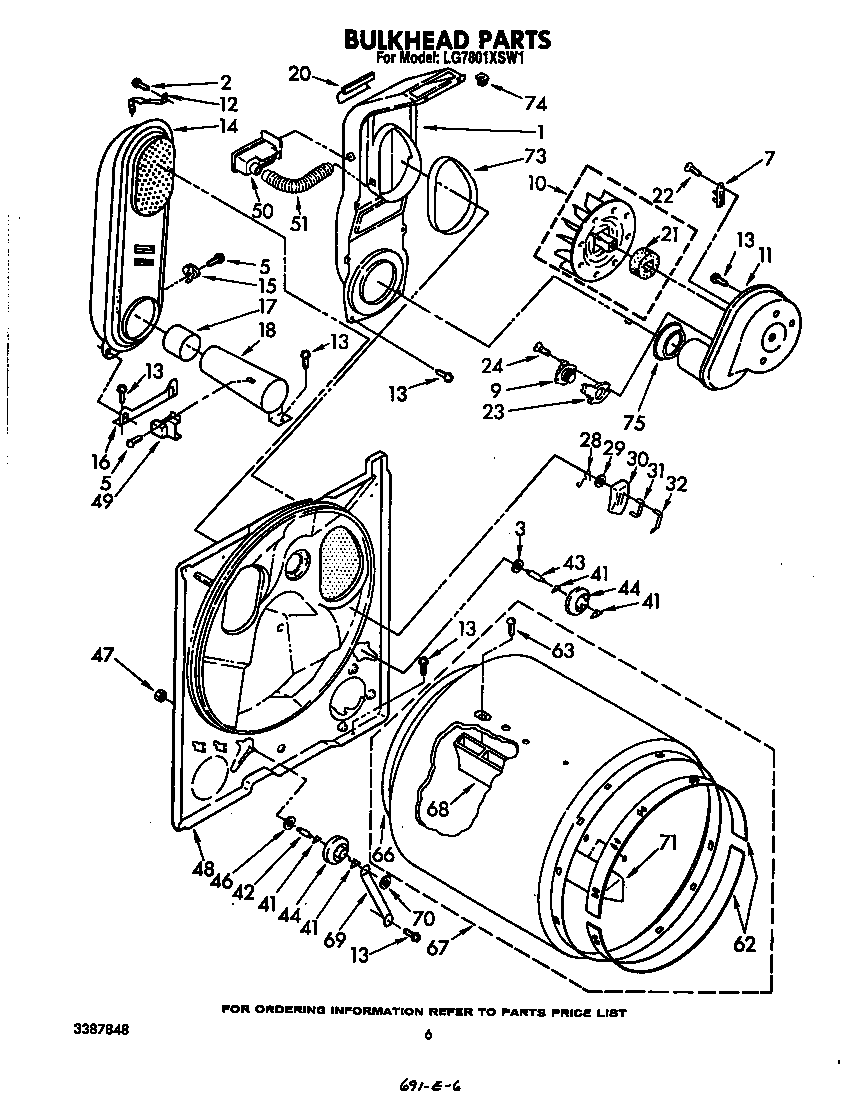

| Blower housing area | Airflow, rumbling noise | Dryer blower wheel WP694089 |
| Door switch area | Dryer starting and stopping | Dryer door switch W10820036 |
Why it matters
Removing panels in the right order prevents bent cabinet metal, broken clips, and pinched wiring. It also helps you correctly diagnose common issues like a drum that will not turn (belt/idler) or a dryer that will not start (door switch).
Last updated: February 2026
What does F-01 mean on a whirlpool dryer?
F-01 on a Whirlpool dryer (including model LG7801XSW1) points to a problem with the electronic control board (main control) or its wiring connections. In most cases, the fix is reseating wire connectors to the control; if the code returns, the control typically needs replacement.
What to do first (safe, quick checks)
- Unplug the dryer (or switch off the breaker) for 2 minutes, then restore power and retry.
- If the code comes back, disconnect power again and access the control area.
- Take a clear photo of all wire connections before moving anything.
- Reseat each connector: unplug it, inspect for corrosion or heat damage, then plug it back in firmly.
- Check the harness routing for pinched wires or rubbed insulation.
Why F-01 happens
F-01 is commonly triggered when the control detects an internal failure or it loses reliable communication through the wiring harness. Heat, vibration, and a loose connector can all cause intermittent faults that show up as an error code.
Parts that are often involved
Even though F-01 is a control-related code, these related items can contribute to symptoms that look like a control failure (no start, stopping mid-cycle, odd behavior):
| Symptom you notice | Common area to inspect | Example part for this model |
|---|---|---|
| Dryer will not start or stops quickly | Door circuit and switch | Dryer door switch W10820036 |
| Hums but drum will not turn | Drive system | Belt 341241 and dryer idler pulley WP691366 |
| Runs but has unusual airflow noise | Blower housing area | Dryer blower wheel WP694089 |
Why it matters
If you keep running the dryer with an F-01 condition, the dryer can shut down mid-cycle or fail to start, and repeated power cycling can mask a loose-connection issue that is easy to correct early.
Helpful reference
For Whirlpool dryer code definitions and what to check next, use our Whirlpool duet dryer error codes guide.
Last updated: February 2026
What does E1 mean on a whirlpool dryer?
On Whirlpool dryer model LG7801XSW1, an E1 code is a control-detected fault that varies by dryer platform; the most reliable fix path is to treat it as an airflow, heat, or sensor circuit problem and troubleshoot the basics first before replacing parts.
What to check first (fast, high-impact)
- Reset power: unplug for 2 minutes, then restore power and retry a cycle.
- Clean the lint screen completely; wash off fabric softener residue and dry it.
- Confirm strong airflow at the outside vent hood while the dryer runs.
- Inspect the vent run for kinks, crushed flex duct, long runs, or heavy lint buildup.
- If the code returns quickly, stop using the dryer until you verify venting and heat operation.
Common causes tied to E1-style faults
E1-style faults are commonly triggered by conditions that make the control see abnormal operation:
- Restricted exhaust airflow causing overheating or unstable temperatures
- Loose or damaged wiring at the control, motor, or heat circuit
- Gas ignition problems on gas models (igniter, coils, flame sensing)
- Failed components that affect airflow or heat stability
Parts to consider if symptoms match
Use symptoms to guide parts inspection; do not replace parts until you confirm the failure.
| Symptom you see | What it often points to | Model-matched part to inspect |
|---|---|---|
| Weak airflow, rumbling, poor drying | Blower wheel slipping or damaged | Dryer blower wheel WP694089 |

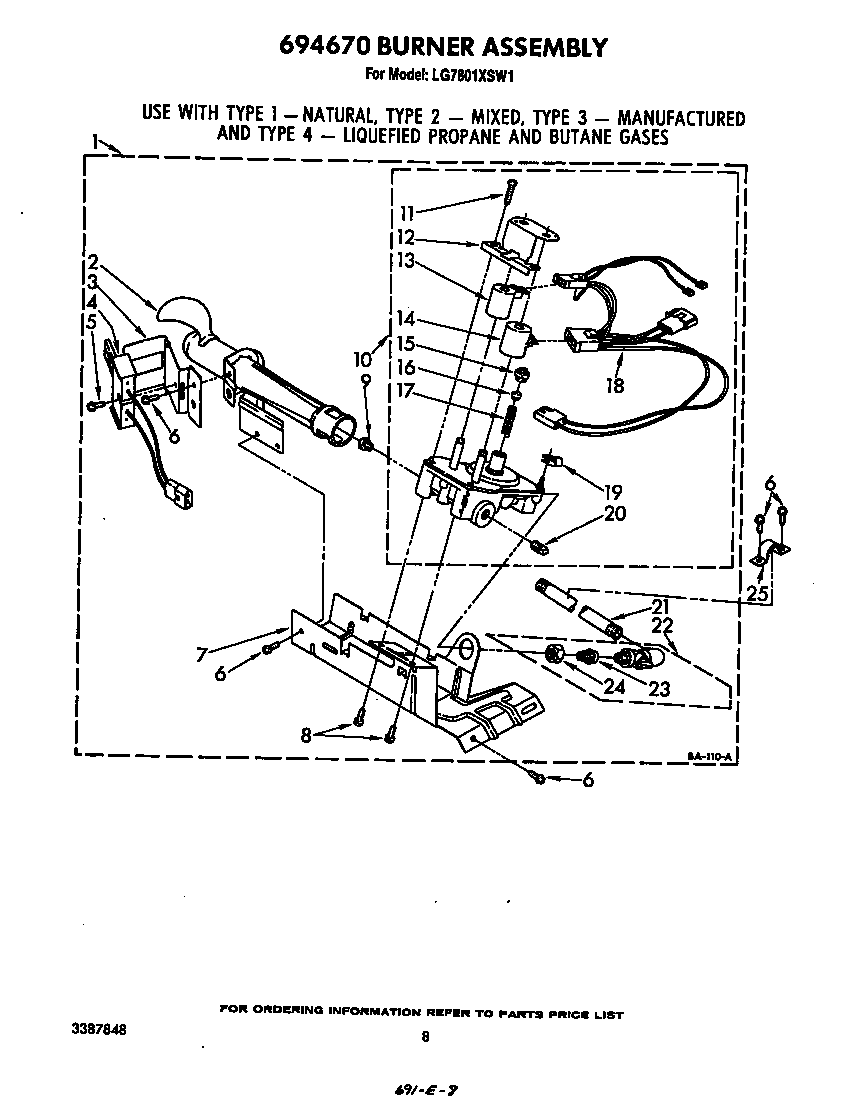

| Gas dryer heats then stops heating | Gas valve coils weakening when hot | Dryer gas valve coil kit 279834 |
| Gas dryer does not ignite at all | Igniter not glowing or open | Dryer igniter 279311 |
Why it matters
When venting is restricted or heat is unstable, the dryer can overheat, shut heat off, or stop mid-cycle. Restoring proper airflow and stable ignition/heat prevents repeat fault codes and improves dry times.
Last updated: February 2026
