Kenmore Elite 66513762K602 dishwasher Parts

Kenmore Elite dishwashers are typically designed to run in the low-to-mid 40 dBA range, but the exact decibel rating depends on the specific model and configuration. For your Kenmore Elite 66513762K602, the most reliable place to confirm the published sound rating is the 66513762K602 owner's manual.

We recommend checking the model-specific literature first because “Kenmore Elite” covers multiple platforms and noise packages.

• Look for a section labeled Specifications, Features, or Sound rating
• Check the model/serial tag inside the tub (door edge) to confirm you are matching the correct model number
• If your manual lists multiple variants, match the full model number exactly: 66513762K602
• If you are comparing units, use dBA (not “dB”) since dishwasher ratings are typically A-weighted

Dishwasher sound ratings are measured in dBA; lower is quieter.

Even a quiet Kenmore Elite dishwasher can sound louder if installation or loading issues amplify vibration.

• Toe panel not secured tightly (vibration)
• Dishwasher not leveled or not shimmed correctly
• Dishes or spray arms contacting racks
• Drain hose touching the cabinet or vibrating against the sink base
• Pump noise from debris or restricted draining (a drain issue can point toward the dishwasher drain pump WPW10348269)

The dBA rating helps you compare dishwashers accurately, but real-world noise is also affected by installation, leveling, and how water drains. Verifying the published rating for 66513762K602 gives you a true apples-to-apples comparison.

Last updated: January 2026

On the Kenmore Elite dishwasher model 66513762K602, the most reliable “hard reset” is to cancel the current cycle and let the dishwasher drain, then restart a fresh cycle. This clears active options and gets the control ready to run normally (it is the same outcome most people want from a reset). See the 66513762K602 owner's manual for the exact button sequence.

Use the method that matches what your dishwasher is doing.

• Stuck mid-cycle or acting odd: press CANCEL/DRAIN and let it complete the drain.
• You want to clear lights/options before starting over: press CANCEL/DRAIN before selecting a new cycle.
• Controls not responding because they are locked: press and hold HEATED DRY for 4 seconds to toggle Lock On off.

1. Close the door fully.
2. Press CANCEL/DRAIN.
3. Let the dishwasher run the drain (about 2 minutes if needed).
4. When it stops, select your new cycle and options.
5. Press START/RESUME.

These checks solve most “reset didn’t work” situations.

• Confirm the door is fully latched (Start/Resume typically flashes when the door is open).
• Refill detergent if you canceled after the cycle began.
• Run hot water at the sink nearest the dishwasher so wash water enters hot (target 120°F / 49°C).
• If you see an error code, use the Kenmore 665 model dishwasher error codes guide to match the code to the fix.

A true “hard reset” on a dishwasher is usually about getting the control out of a confused state and safely draining water. Using CANCEL/DRAIN protects the pump system and prevents starting a new cycle with standing water.

Last updated: January 2026

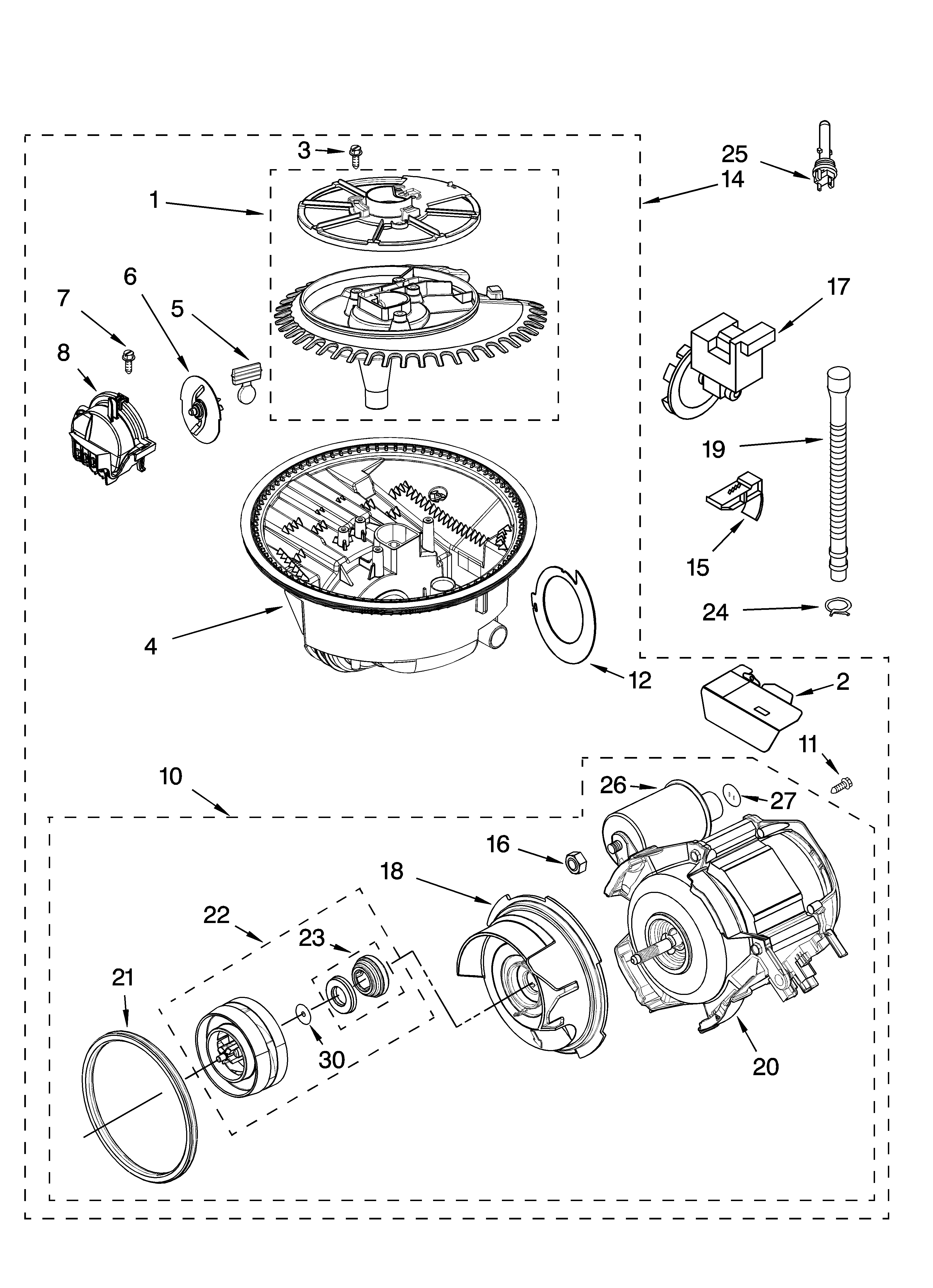

On the Kenmore Elite 66513762K602 dishwasher, the F4E1 service code points to a wash (circulation) motor or wash pump problem that prevents proper water circulation during the cycle. After correcting the cause, run the model’s diagnostic or reset procedure shown in the 66513762K602 owner's manual.

You will typically notice one or more of these issues when the wash system is not circulating water correctly:

• Dishes come out dirty because spray arms are not moving strongly
• You hear a hum or grinding sound but little to no washing action
• The cycle may stop mid-cycle or drain early
• Water may fill, but you do not hear the normal wash “swishing” sound
• The unit may display the code again soon after restarting

Turn off power at the breaker before opening panels or handling wiring.

• Confirm the dishwasher is getting water (house shutoff valve fully open)
• Clean the filter area and remove debris that can jam the pump/impeller
• Check that spray arms spin freely and are not clogged
• Cancel/drain the cycle and restart to see if circulation returns
• If the code returns, focus on the wash motor circuit and pump components

If basic cleaning and restart steps do not help, these parts are common suspects on this platform:

The wash motor is what creates spray pressure. When it cannot run, detergent does not dissolve correctly, soil is not removed, and the dishwasher may protect itself by stopping the cycle and posting a service code.

Last updated: January 2026
