Maytag LAT2300AAE washer/dryer Parts
Here are the diagrams and repair parts for Maytag LAT2300AAE washer/dryer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for LAT2300AAE Washer/Dryer
Clutch & brake diagram
Screw,hex He
Part #211000Replaced by #WP8281227
Manufacturer substitutionThis part replaces 211000. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4810% OFF Phone Price : $10.48
Qty

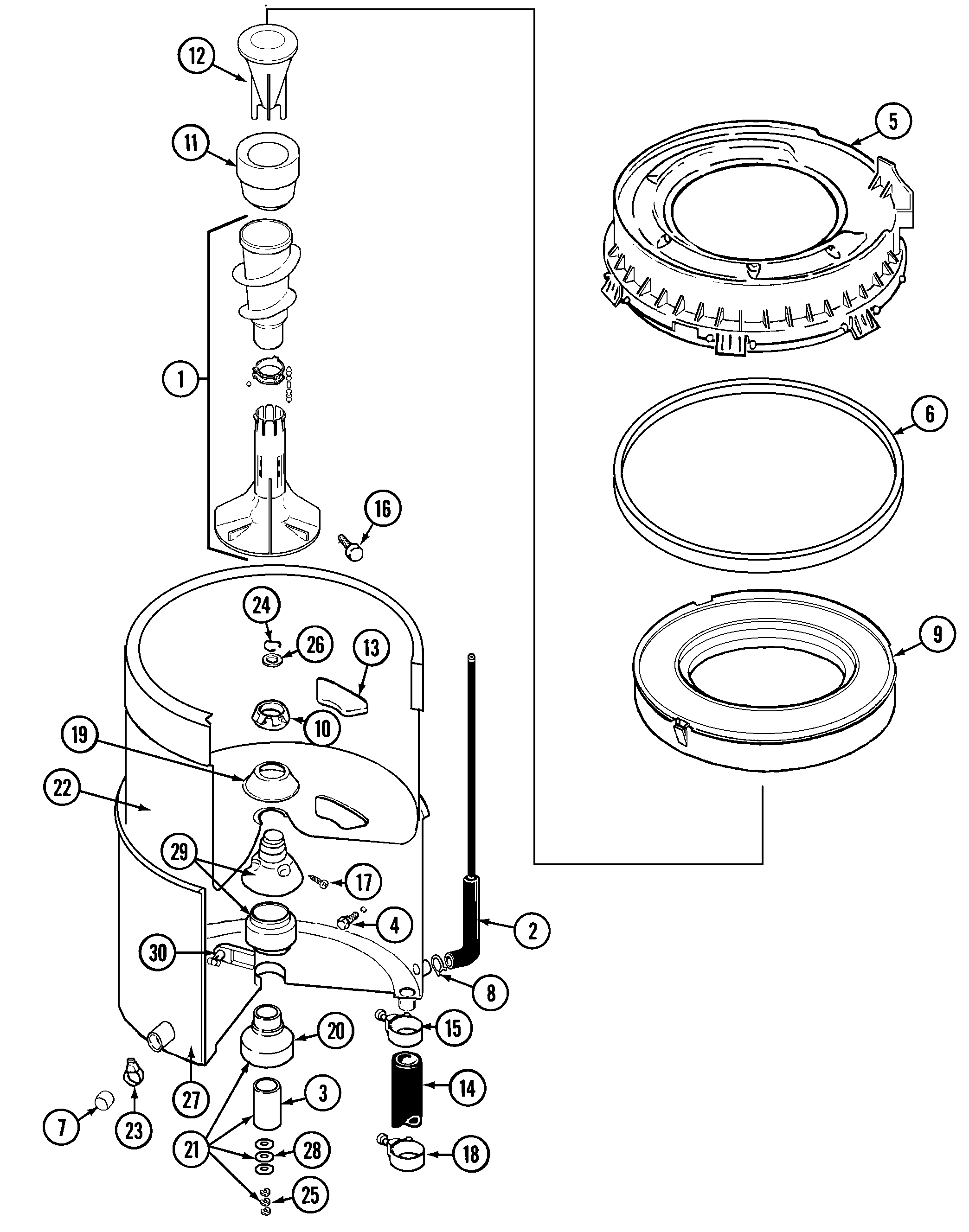

Tub (lat2200aae) diagram
Housing, Dis
Part #22001805Replaced by #WP21001905
Manufacturer substitutionThis part replaces 22001805. Substitute parts can look different from the original.In Stock$67.138% OFF Phone Price : $73.13QtyClutch & brake diagram
Ball Bearing
Part #200720Replaced by #WP22003441

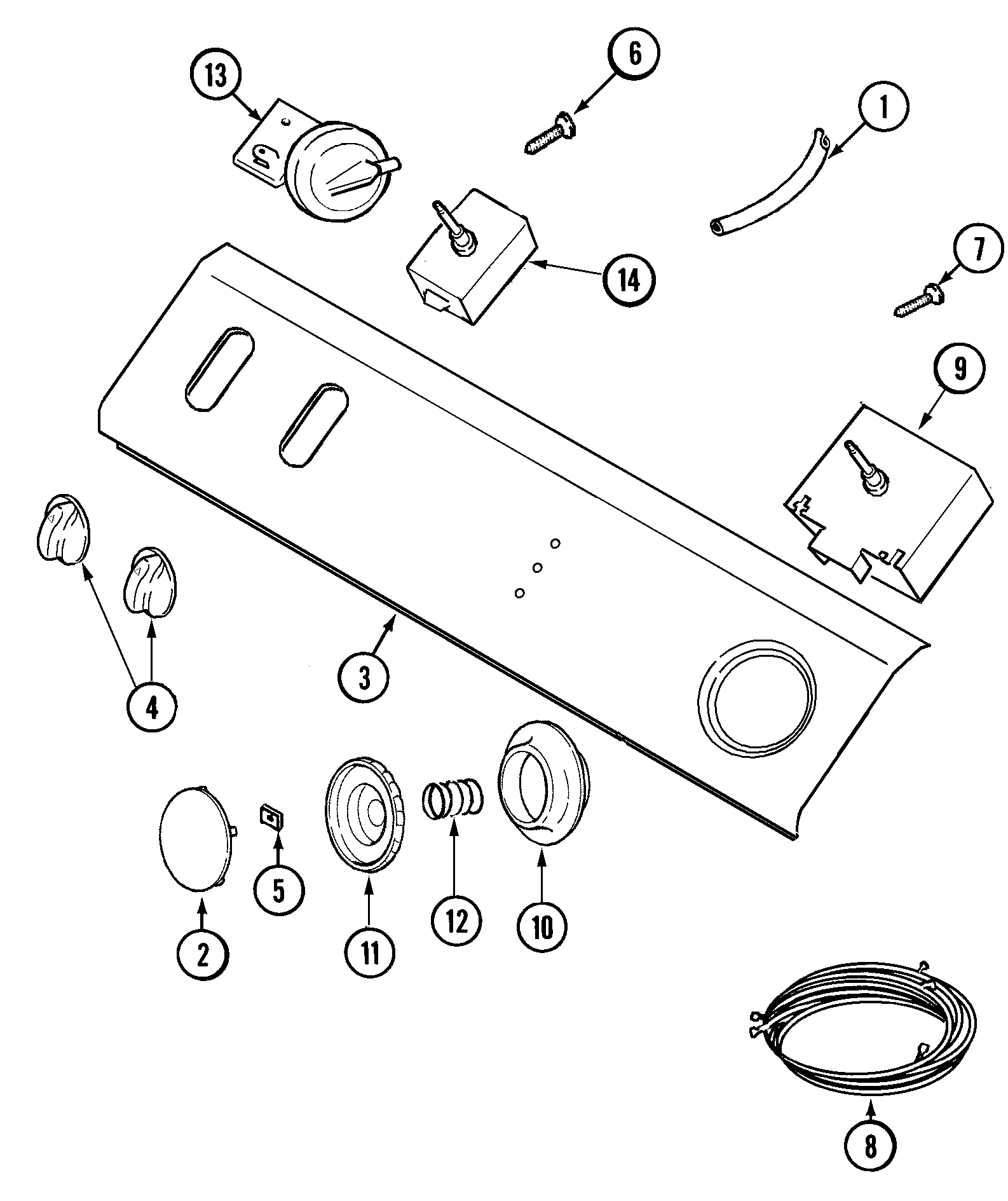

Manufacturer substitutionThis part replaces 200720. Substitute parts can look different from the original.This item is not returnableIn Stock$15.9111% OFF Phone Price : $17.91QtyControl panel diagram
Washer Timer
Part #22003361
The manufacturer no longer makes this part, and there's no substitute part

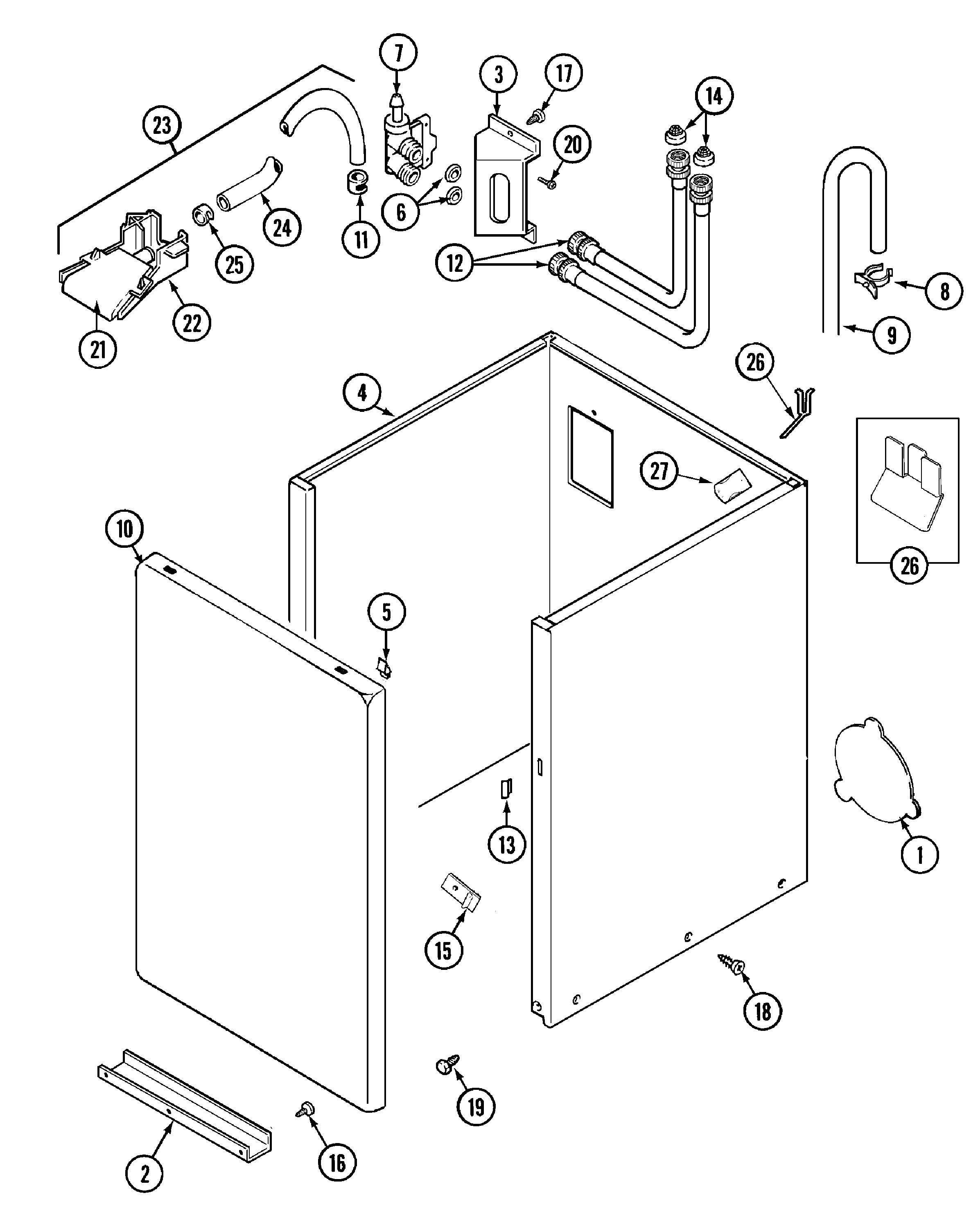

Cabinet diagram
Washer Tub Fill Nozzle
Part #22001304Replaced by #WP22001304
Manufacturer substitutionThis part replaces 22001304. Substitute parts can look different from the original.In Stock$58.719% OFF Phone Price : $64.71QtyControl panel diagram
Timer
Part #22002200Replaced by #WP22003361

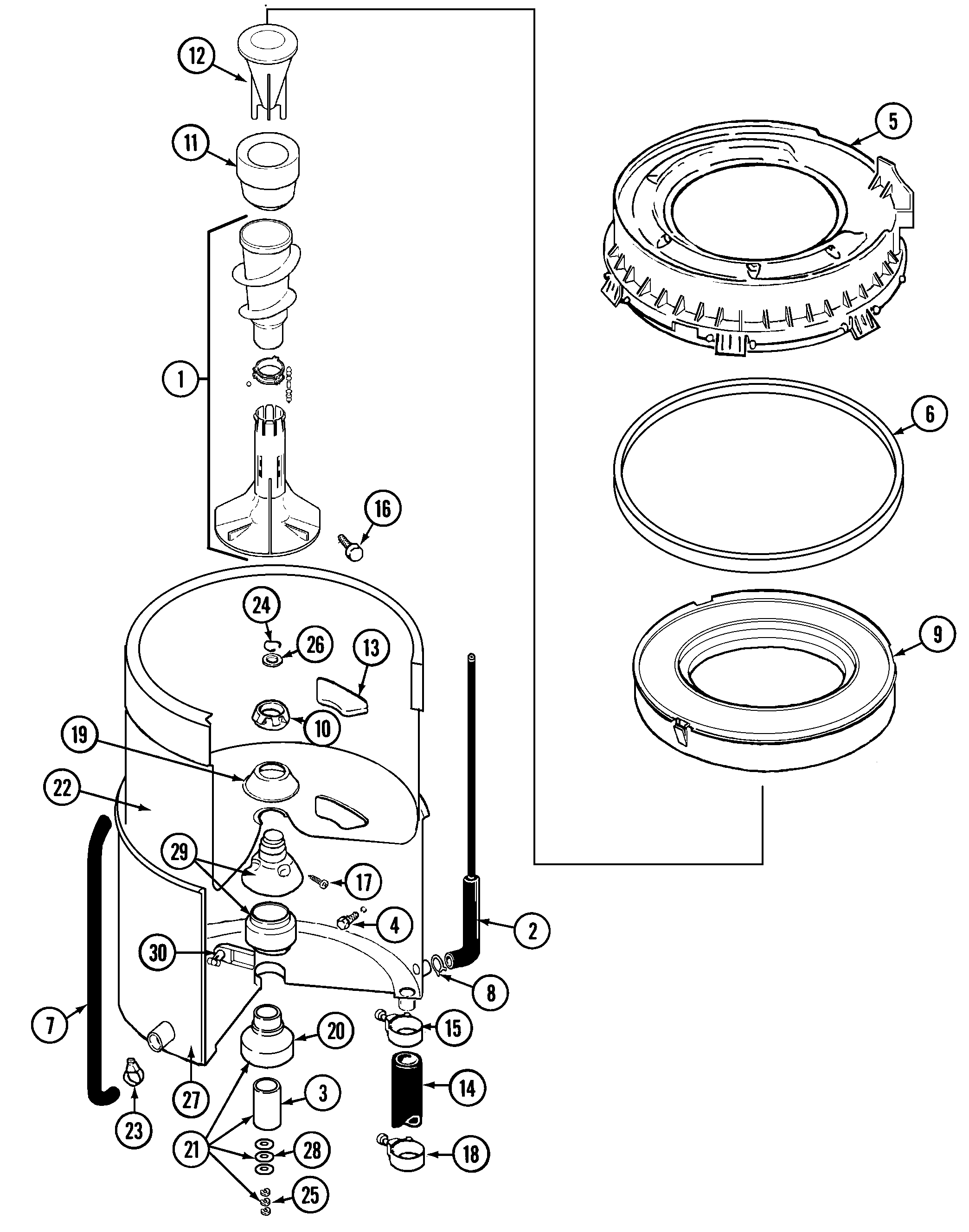

Manufacturer substitutionThis part replaces 22002200. Substitute parts can look different from the original.In Stock$257.14$12.00 OFF Phone Price : $269.14QtyTub (lat2300aae) diagram
Fabric Dispenser
Part #21001599Replaced by #WP21001905

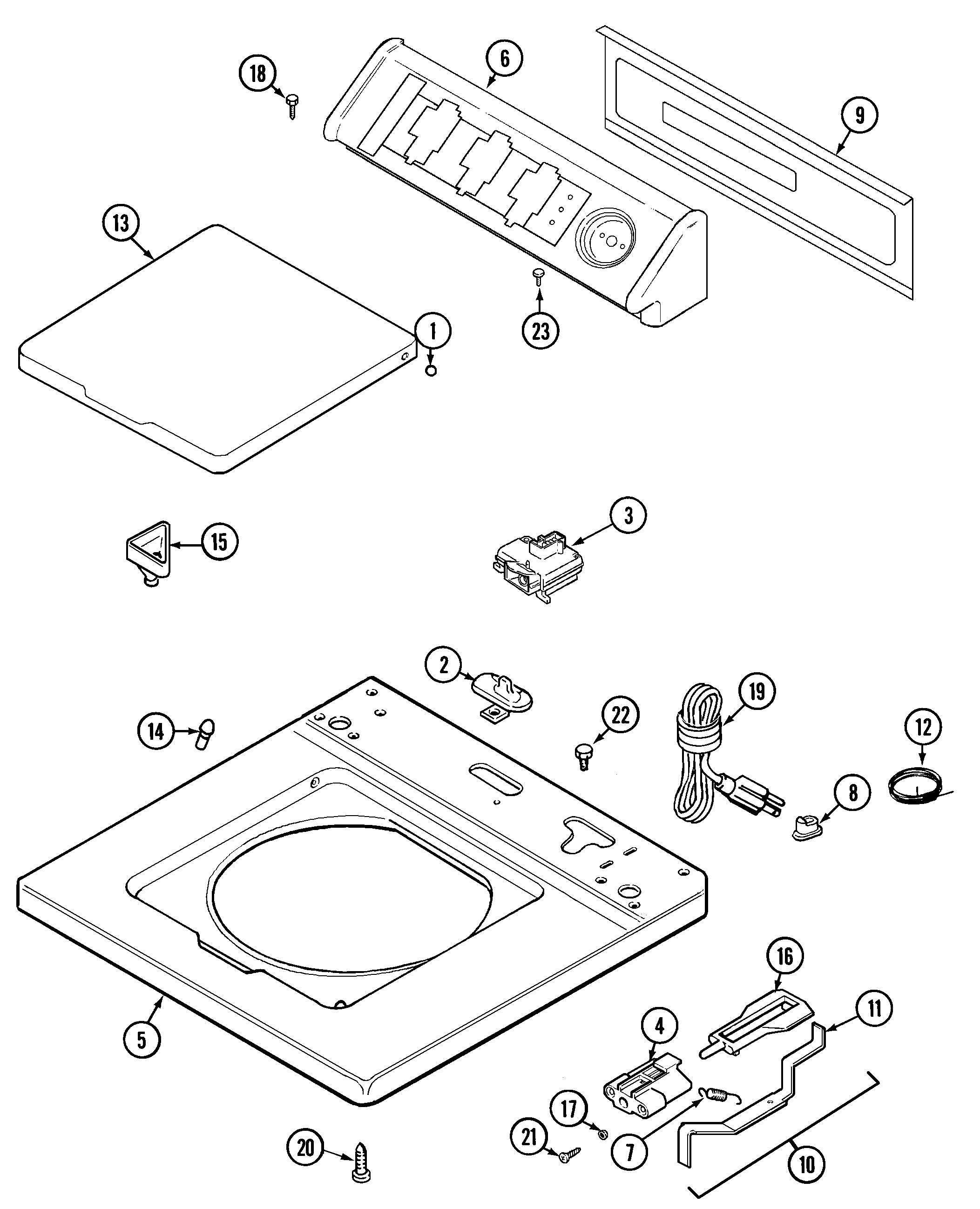

Manufacturer substitutionThis part replaces 21001599. Substitute parts can look different from the original.In Stock$67.138% OFF Phone Price : $73.13QtyTop (lat2300aae) diagram
Hinge Ball
Part #211726Replaced by #WP211726
Manufacturer substitutionThis part replaces 211726. Substitute parts can look different from the original.In Stock$7.9411% OFF Phone Price : $8.94QtyWasher Retainer
Part #015666Replaced by #WPY015666
Manufacturer substitutionThis part replaces 015666. Substitute parts can look different from the original.This item is not returnableIn Stock$6.77QtyBase diagram
Tub Washer
In Stock$27.79Qty
