Do you remove cardboard from the bottom of a Whirlpool refrigerator?
On the Whirlpool WRF767SDEM00 bottom-mount refrigerator, we leave the cardboard-like bottom cover in place. It is designed to protect and help direct airflow around components underneath the refrigerator, and removing it can lead to performance issues or damage.
What you should remove vs. what you should keep
Use this quick checklist during setup and cleaning (see the WRF767SDEM00 owner's manual).
- Remove: exterior tape, foam blocks, shelf packing materials, and protective films
- Remove: glue residue (use mild dish soap and warm water, then dry)
- Keep installed: the bottom cover/panel under the refrigerator
- Keep installed: the base grille (remove only when leveling or servicing)
- Keep installed: any factory-installed rear or lower protective panels
Why the bottom cover matters
That bottom cover is not “extra packaging.” It typically serves one or more of these purposes:
- Shields wiring, tubing, and mechanical parts from bumps and debris
- Helps manage airflow for efficient cooling
- Reduces the chance of damage when sliding the refrigerator into place
If you are moving the refrigerator
When pulling the WRF767SDEM00 out for cleaning or service, we protect the floor first and move it straight out.
| Task | Best practice | Avoid |
|---|---|---|
| Sliding the unit | Use cardboard or hardboard under the wheels/feet | “Walking” or wiggling the refrigerator |
| Cleaning around it | Vacuum dust from accessible areas | Removing protective panels to “clean better” |
| Repositioning | Push straight back into place | Twisting the cabinet or forcing it over thresholds |
Why it matters
Keeping the bottom cover installed helps the refrigerator run as designed and prevents accidental damage to components underneath, which can lead to cooling, noise, or reliability problems.
Last updated: January 2026
Are all fridges 36 inches wide?
No. Refrigerators are not all 36 inches wide; 36 inches is simply a very common size for full-size units. For Whirlpool model WRF767SDEM00, use the cabinet-opening and clearance guidance in the WRF767SDEM00 owner's manual to plan fit, airflow, and door swing.
Common refrigerator widths you will see
Most household refrigerators fall into a few standard width groups:
- 24 inches: apartment or compact full-height models
- 30 inches: narrower full-size models
- 33 inches: common mid-width full-size models
- 36 inches: very common for French door and side-by-side styles
- Over 36 inches: some larger or built-in style units
Fit tips that matter more than “36 inches”
Width is only one part of a proper install. For WRF767SDEM00, our manual guidance includes ventilation and door-swing clearance:
- Leave about 1/2 inch space on each side and at the top for ventilation
- Leave about 1 inch behind the refrigerator
- Allow extra space behind if you have an ice maker and water line connections
- If installed next to a fixed wall, leave about 3 3/4 inches so the door can swing open
Quick planning checklist
Before you buy or move a refrigerator, we recommend:
- Measure the cabinet opening width at the front and back
- Measure height to the lowest cabinet/soffit
- Measure depth including door and handles
- Confirm a clear path through doorways and hallways
- Plan for water line routing if you use the ice maker or dispenser
Typical “appliance width” vs “opening width”
| What you measure | What it affects | Why it can differ |
|---|---|---|
| Appliance width | Whether the unit physically fits | Doors, hinges, and trim vary |
| Cabinet opening width | Whether it installs cleanly | Install specs often assume clearance |
Why it matters
Choosing the right width prevents poor airflow (warm temps), doors that cannot open fully, and installation headaches, especially on bottom-mount and French door designs.
Last updated: January 2026
Is a bottom mounted refrigerator good?
Yes. A bottom-mount refrigerator like the Whirlpool WRF767SDEM00 is a strong choice because it keeps fresh-food items at eye level, provides a roomy freezer drawer, and is designed for energy-efficient operation with normal longer compressor run times. See the WRF767SDEM00 owner's manual for features specific to your unit.
What you typically get with a bottom-mount design
- Easier access to fresh food (less bending for everyday items)
- Wide refrigerator section for trays, platters, and tall items
- Freezer drawer storage that’s easy to organize with baskets/dividers
- Efficient temperature control; many models run the compressor longer at varying speeds as part of normal operation
- Good feature support for ice and filtration on many Whirlpool French door bottom-mount models
Model-specific highlights for WRF767SDEM00
Based on the Use & Care Guide for this Whirlpool French door bottom-mount platform, common features include an in-door ice system, an air filter, and a water filter (features can vary by configuration). If you’re dealing with odors, the refrigerator air filter W10311524 is the model-matched air filter part listed for this refrigerator.
| What you care about | Bottom-mount (like WRF767SDEM00) | Top-freezer (typical) |
|---|---|---|
| Fresh food access | Higher, more ergonomic | Lower, more bending |
| Freezer access | Drawer style, lower | Eye level |
| Organization | Strong for fresh food and wide shelves | Strong for freezer-first users |
| Energy behavior | Often longer, variable run times are normal | Often shorter, on/off cycles |
When a bottom-mount is the best fit
- You use the refrigerator section more than the freezer
- You want more fresh-food storage and wide shelving
- You prefer a freezer drawer for bulk frozen items
Why it matters
Most households access fresh food far more often than frozen food. A bottom-mount layout puts the most-used items where they’re easiest to reach, while still giving you a large freezer drawer for long-term storage.
Last updated: January 2026
What is the most common problem with Whirlpool refrigerators?
The most common Whirlpool refrigerator problems are cooling complaints (warm fridge/freezer, running constantly) and ice maker or water dispenser issues. On the Whirlpool WRF767SDEM00, many “no cool” calls trace back to airflow, power/control settings, or normal high-efficiency operation that sounds different.
Most common symptoms and what they usually point to
- Not cooling well or temperature swings: dirty condenser coils, blocked vents, door not sealing, evaporator fan airflow problems
- Runs a lot or seems louder than expected: high-efficiency compressor and fans running longer at lower speeds (often normal)
- Ice maker not making ice: water supply restriction, frozen fill path, inlet valve issue, ice maker assembly failure
- Water dispenser slow or not dispensing: clogged water filter, air in the water line, inlet valve issue
- Control panel unresponsive: “Cooling Off” mode enabled or control initialization glitch
Quick checks we recommend first (before replacing parts)
Use these steps from the WRF767SDEM00 owner’s manual troubleshooting guidance:
- Confirm the power cord is plugged into a grounded 3-prong outlet (no extension cord).
- Verify the outlet has power (test with a lamp), then reset any tripped breaker or replace blown fuses.
- Make sure the controls are turned on and the refrigerator is not in “Cooling Off” mode.
- After a new install or power interruption, allow 24 hours for the refrigerator to cool completely.
- If the pantry temperature control is unresponsive, unplug for 5 seconds, plug back in, then wait 30 seconds before opening doors or touching the control panel.
Parts that commonly solve these problems on WRF767SDEM00
If the basic checks do not fix it, these model-matched parts are common next steps:
| Problem area | Common fix | Example model-matched part |
|---|---|---|
| Bad odors and stale air | Replace the air filter | Refrigerator air filter W10311524 |

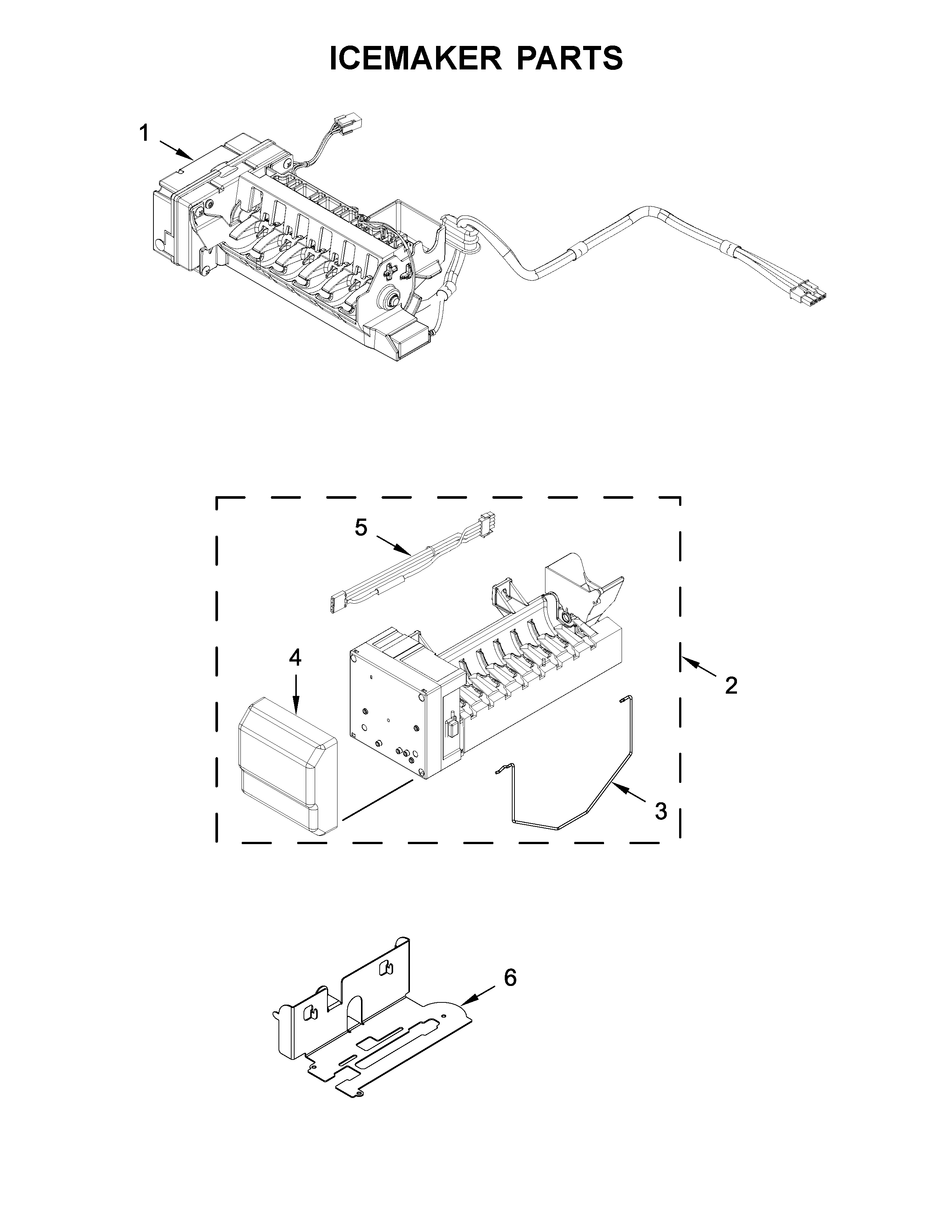

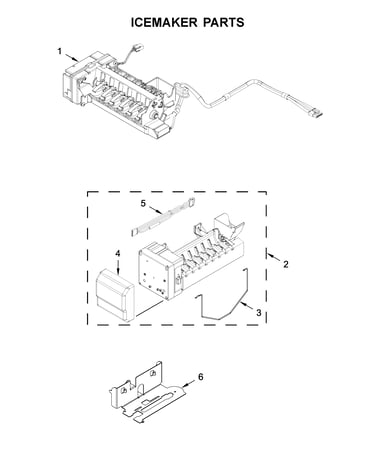

| No ice or intermittent ice | Replace ice maker assembly | Ice maker assembly W11658802 |
| No water to dispenser/ice maker | Replace inlet valve | Refrigerator water inlet valve assembly WPW10341329 |
Why it matters
Cooling and ice/water issues often share the same root causes: restricted airflow, incorrect settings, or water supply problems. Starting with power, controls, and basic airflow checks helps avoid unnecessary part replacement and gets temperatures stable faster.
Last updated: January 2026
