Whirlpool LSQ9560PW2 washer Parts

A Whirlpool washer typically lasts 10 to 14 years with normal household use. For your Whirlpool LSQ9560PW2, consistent care (correct loading, proper detergent use, and routine maintenance) is what most directly determines whether it lands closer to 10 years or keeps running well beyond that.

Typical lifespan and what affects it most

• Load size and balance: Overloading and chronic out-of-balance loads shorten drive and suspension life.
• Water quality: Hard water speeds up residue buildup and can increase wear.
• Detergent habits: Too much detergent can cause oversudsing and poor rinsing.
• Drain and spin health: Slow draining or weak spinning strains the drive system.
• Installation basics: Leveling and correct drain hose setup reduce vibration and leaks.

Quick maintenance checklist (high impact)

• Keep loads evenly distributed; mix large and small items.
• Use the right amount of HE or standard detergent for your detergent type and soil level.
• Run an occasional hot wash (or cleaning cycle if equipped) to reduce buildup.
• Inspect fill hoses for bulges or cracking; replace if worn.
• Address early symptoms (burning smell, grinding, not draining) before they cascade into bigger failures.

Common wear items vs. what they usually mean

Symptom	Common cause	Example part for LSQ9560PW2
Won’t spin or drains poorly	Drain pump issue or blockage	Washer drain pump WP3363394
Won’t start or stops when lid opens	Lid switch problem	Washer lid switch assembly WP8318084

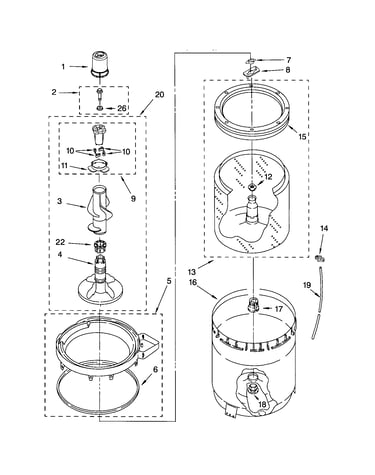

Agitator moves poorly or “ratchets”	Worn agitator dogs	Agitator dog 80040

Why it matters

A washer’s “life expectancy” is mostly about preventing avoidable stress. Small issues like a weak drain pump or worn agitator dogs can make cycles run harder and longer, which accelerates wear on the motor coupling, clutch, and gearcase.

Where to confirm model-specific care and usage

For the exact operating and maintenance guidance for the LSQ9560PW2 (including proper use practices referenced in the warranty and care instructions), follow the LSQ9560PW2 owner’s manual.

Last updated: February 2026

The most common Whirlpool washer problem is a no-drain or no-spin condition. On the Whirlpool LSQ9560PW2 (a direct-drive top-load washer), this is often caused by a failed lid switch, a worn motor coupling, or a drain pump issue, and it can also show up as loud noise or a tub that will not move.

Quick checks we recommend first

• Make sure the lid closes firmly; a broken lid switch can stop spin and sometimes drain.
• Redistribute the load; a badly unbalanced load can prevent a normal spin.

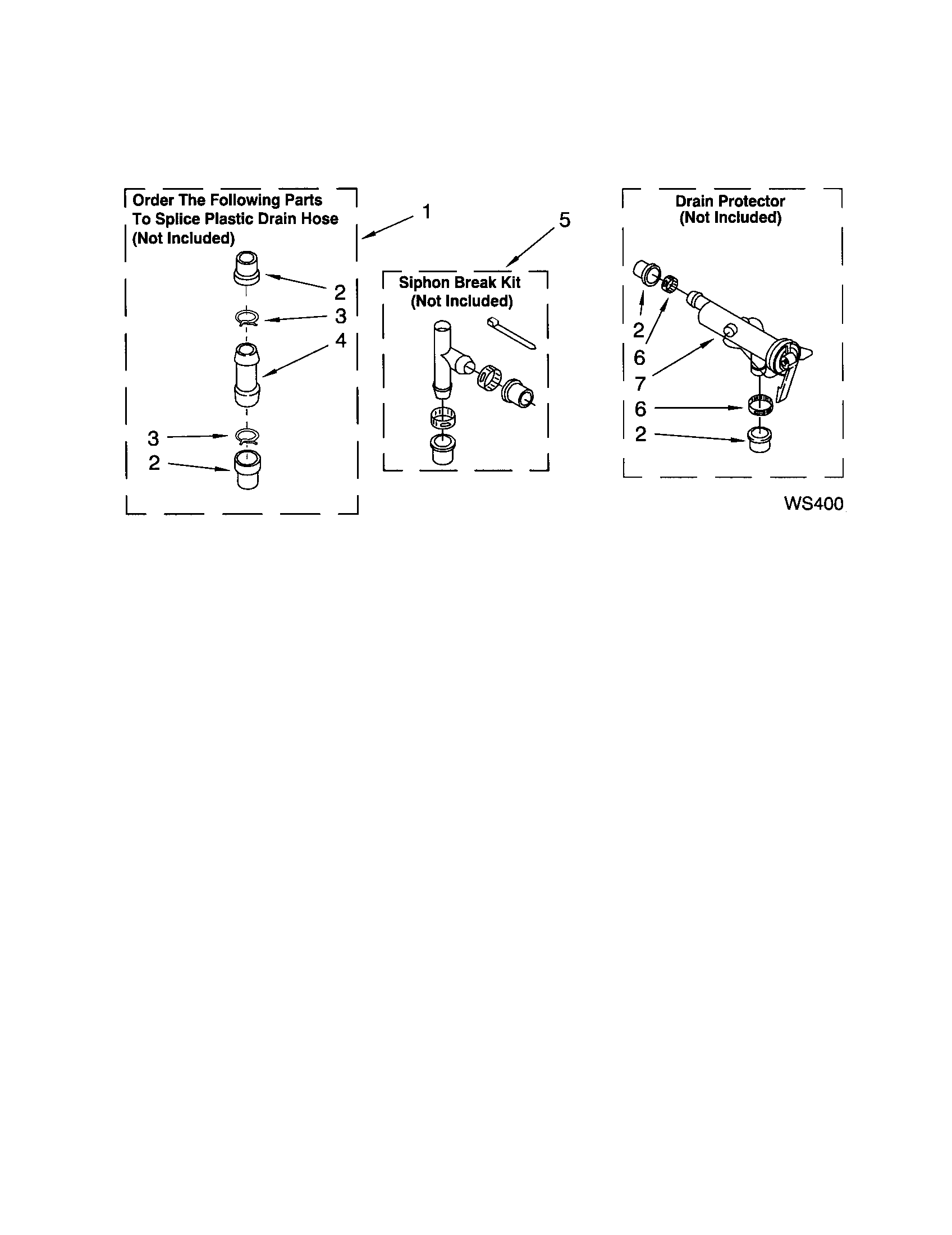

• Verify the drain hose is not kinked or shoved too far down the standpipe.
• Listen for the motor: running but not moving points to a coupling or drive issue.
• Look for water left in the tub; slow or no drain points to the pump or a blockage.

Most common causes on this style of Whirlpool top-load washer

Symptom	Most likely cause	Common related part for LSQ9560PW2
Won’t spin (and may not drain)	Lid switch not closing electrically	Washer lid switch assembly WP8318084

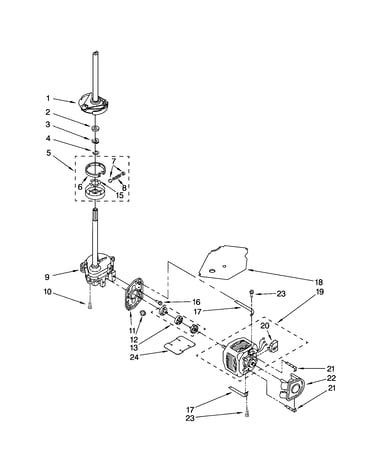

Motor runs, tub does not move	Motor coupling broken	Washer motor coupling 285753A
Won’t drain or drains slowly	Drain pump jammed or worn	Washer drain pump WP3363394
Agitates poorly, “ratcheting” sound	Worn agitator dogs/cam	Agitator dog 80040

Why it matters

A washer that cannot drain or spin leaves clothes soaking wet and can strain the drive system. Catching the root cause early (switch, coupling, or pump) helps prevent bigger repairs like gearcase or clutch wear.

Where to confirm model-specific steps

For LSQ9560PW2 safety steps, access panels, and the correct diagnostic approach, follow the LSQ9560PW2 owner’s manual. For leveling, drain hose setup, and installation checks that affect draining and spinning, use the LSQ9560PW2 installation guide.

Last updated: February 2026

Whirlpool washer parts are not universally interchangeable. For Whirlpool model LSQ9560PW2, we recommend using factory-specified replacement parts designed for this exact washer so the part fits correctly, works correctly, and avoids performance problems.

What “interchangeable” really means

Parts can look similar across Whirlpool washers, but small differences (mounting points, electrical connectors, shaft sizes, timer cam profiles) can prevent proper operation.

Common examples where exact matching matters:

• Lid switch assemblies: connector style and actuator length vary
• Drain pumps: hose port angle and motor mounting can differ
• Drive system parts: couplers, clutches, and gearcase components must match the drive design
• Timers: cycle chart and internal contacts are model-specific

How we recommend confirming compatibility for LSQ9560PW2

Use the model-specific diagrams and part lists to match by part number, not by appearance.

• Look up the part in the LSQ9560PW2 owner's manual
• Match the original part number to the replacement listing
• If a listing shows “replaces” or “substitutes,” use that approved substitution
• Compare key attributes: plug type, mounting holes, shaft length, and hose size

Quick compatibility check

What you have	Best way to match	Why it helps
Old part in hand	Match by part number	Prevents wrong fit even if it looks similar
Only symptoms	Use model-based troubleshooting	Avoids replacing the wrong part
Unsure between two parts	Use model diagrams	Confirms location and mounting style

Parts that are often confused with “universal”

These LSQ9560PW2 parts are common replacements, but they still need to match the model:

• Washer lid switch assembly WP8318084
• Washer drain pump WP3363394
• Washer motor coupling 285753A

Why it matters

Using the correct Whirlpool factory-specified part helps your washer fill, agitate, drain, and spin as designed. It also reduces repeat failures caused by misalignment, leaks, or incorrect electrical switching.

Last updated: February 2026

Yes, it’s worth repairing a Whirlpool washer like model LSQ9560PW2 when the fix is a common wear item and the total repair cost stays well below the price of a comparable new washer; it’s usually not worth it when the repair involves major drive or tub components and the estimate approaches replacement cost. See the coverage details in the LSQ9560PW2 owner’s manual.

Quick way we decide: cost, failure type, and downtime

• Repair it when the symptom points to a single, serviceable part (no-spin, no-drain, won’t start).
• Repair it when labor is minimal and parts are readily available.
• Replace it when multiple major components are failing or the machine has severe leaks or structural wear.
• Replace it when the repair estimate is close to the cost of a new washer (especially if you also need hoses, valves, or other add-ons).
• Repair it when you want to keep a proven direct-drive style washer and the cabinet and tub are in good shape.

Common LSQ9560PW2 repairs that are often worth it

These are frequent, relatively straightforward fixes on Whirlpool top-load washers:

• No drain or weak drain: check the washer drain pump WP3363394
• Won’t spin or stops when lid is open: check the washer lid switch assembly WP8318084
• Agitator not moving properly: inspect agitator dogs and cam parts

Typical “worth it” vs “not worth it” examples

Scenario	Typical direction	Why
Won’t drain, pump noisy	Repair	Targeted part replacement, limited teardown
Won’t spin, lid switch intermittent	Repair	Common failure, low parts cost

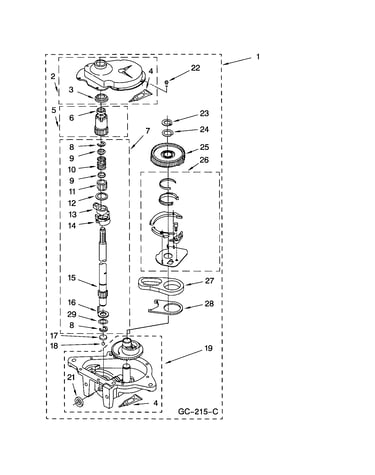

Gearcase failure, loud grinding, oil leak	Replace (often)	High parts cost and labor time
Multiple symptoms plus heavy rust/leaks	Replace	Compounding failures raise total cost

Why it matters

A good repair decision prevents repeat breakdowns. On LSQ9560PW2, small control and safety items (like a lid switch) can mimic bigger problems; confirming the failure first helps you avoid replacing expensive parts unnecessarily.

What to check before you commit to a repair

• Confirm the symptom: fill, agitate, drain, spin
• Look for simple causes: unbalanced load, kinked drain hose, clogged pump inlet
• Note any burning smell, grinding, or oil under the washer (often points to drive system wear)
• Review installation basics in the LSQ9560PW2 installation guide (leveling and drain setup affect performance)

Last updated: February 2026

On the Whirlpool LSQ9560PW2 top-load washer, the lid “lock” is reset by stopping the cycle, closing the lid, and restarting; the washer will not agitate or spin with the lid open. If it still will not run, a quick power reset and a lid switch check usually solves it. See the LSQ9560PW2 owner's manual for the exact stop and restart steps.

Quick reset steps (LSQ9560PW2)

• Push in the Cycle Control knob to stop the washer.
• Make sure the lid is fully closed (the washer will not agitate or spin with the lid open).
• Pull out the Cycle Control knob to restart.
• If the washer is unresponsive, unplug it for 5 minutes, then plug it back in and try again.
• If the tub is full of water, set the timer to Drain/Spin (or a spin portion of a cycle) and restart.

When it is not a “reset” problem (common causes)

If the washer stops when you lift the lid but will not restart when you close it, the issue is usually the lid switch circuit, not a control lock feature.

Most common checks:

• Lid closes firmly and the strike area is not bent or obstructed
• You hear a distinct click at the lid switch area when closing
• The Cycle Control knob is pulled out fully (not between detents)
• The load is balanced (severe out-of-balance can interrupt spin)
• Power is steady (no tripped breaker or loose outlet)

Parts that commonly fix “won’t spin with lid closed”

If the washer will fill and drain but will not agitate or spin with the lid closed, the lid switch is a top suspect.

Symptom	Most likely area	What we typically replace
No spin, no agitate, lid must be closed	Lid safety circuit	Washer lid switch assembly WP8318084
Hums, won’t drain or spin	Drain system	Washer drain pump WP3363394
Agitates poorly or only in one direction	Agitator drive	Agitator dog 80040

Why it matters

The lid switch is a safety device; on the LSQ9560PW2 it prevents agitation and spin with the lid open. Resetting the cycle gets you running again when the timer was paused, but a worn switch can stop the washer from operating even with the lid closed.

Last updated: February 2026

For your Whirlpool LSQ9560PW2 washer, we recommend ordering parts by matching the model number and the exact part identifier so you get the correct fit and performance. If your washer is still covered, Whirlpool’s warranty terms may require using factory specified parts and service through a designated provider; confirm details in the LSQ9560PW2 owner's manual.

How we recommend ordering the right part

• Find the full model number LSQ9560PW2 on the washer’s model tag.
• Identify the failed symptom (won’t drain, won’t spin, won’t agitate, leaking).
• Use the parts list for LSQ9560PW2 to select the exact replacement.
• Match by part ID and part name (not just a similar-looking part).
• If you’re unsure, compare your old part to the listing photos and descriptions.

Common LSQ9560PW2 parts customers order

These are frequent replacements for direct-drive Whirlpool top-load washers like the LSQ9560PW2:

Symptom	Likely part	What it affects
Won’t drain or leaves water in tub	Washer drain pump WP3363394	Pumps water out during drain
Won’t spin or stops when lid opens	Washer lid switch assembly WP8318084	Safety switch that allows spin
Agitator moves poorly or “ratchets”	Agitator dog 80040	Helps the upper agitator grip and turn
No agitation/spin but motor runs	Washer motor coupling 285753A	Connects motor to transmission

Warranty and “factory specified parts” guidance

The LSQ9560PW2 documentation recommends using FSP factory specified parts because they are built to the same precision as the original components. For warranty-covered repairs, the manual also notes service is provided by a Whirlpool designated service company; details vary by coverage period and component.

Why it matters

Ordering by exact model and part ID prevents returns, repeat breakdowns, and issues like poor draining, weak agitation, or unsafe spinning due to mismatched components.

Last updated: February 2026

On a Whirlpool LSQ9560PW2 washer, start by doing a safe power reset and then focus on the most common “won’t run / stops mid-cycle” causes for this direct-drive top-load design: lid safety, draining, and the drive connection. Use the model’s diagnostics and wiring guidance in the LSQ9560PW2 owner’s manual to pinpoint the exact failure.

Step-by-step checks that fix most “error code” situations

• Unplug the washer (or turn off the breaker) for 2 minutes, then restore power.
• Set the timer to Drain/Spin and start the cycle to see if it will drain and spin.
• Confirm the lid closes firmly; do not bypass lid safety.
• Listen for the pump: humming with no draining points to a blockage or failed pump.
• If the motor runs but the tub does not move, suspect a broken drive connection.

What to check based on the symptom

What the washer does	Most likely area	Common fix/part to inspect
Won’t spin (often won’t agitate)	Lid safety circuit	Washer lid switch assembly WP8318084
Won’t drain, may hum	Drain system	Washer drain pump WP3363394 and hoses
Motor runs, no agitation/spin	Drive connection	Washer motor coupling 285753A

Why this approach works

Many Whirlpool top-load washers like the LSQ9560PW2 do not use a modern console “UI board” system; when customers see an F-style code, the real issue is often a basic safety or drive condition that stops the cycle. Checking lid switch, drain pump, and motor coupling prevents repeat stoppages and protects the motor and gearcase.

When to use the installation guide

If the washer is vibrating, walking, or banging (which can interrupt cycles), level it using the LSQ9560PW2 installation guide.

Last updated: February 2026

The F28 code is a motor control communication error on Whirlpool washers that use electronic controls and a motor control board. The Whirlpool LSQ9560PW2 is a mechanical, timer-driven top-load washer, so it does not use an F28 fault code; if you are seeing “F28,” it is coming from a different model or a separate display.

Confirm you have the right model

Check the model tag under the lid or on the rim of the washer opening, then match it to your paperwork.

• Verify the model number reads LSQ9560PW2 exactly
• If the tag shows a different model, use that model’s error-code chart
• If your washer has a digital display, it is not the LSQ9560PW2 design
• If the washer uses a mechanical dial timer, troubleshooting focuses on switches, wiring, and drive components

What to do if your washer is LSQ9560PW2 (no error codes)

When this Whirlpool washer stops, will not spin, or will not drain, use symptom-based checks instead of fault codes.

Symptom on LSQ9560PW2	Most common checks	Parts often involved
Won’t spin	Lid switch circuit, timer contacts	Washer lid switch assembly WP8318084, washer timer WP8557301
Won’t drain	Pump blockage, pump impeller	Washer drain pump WP3363394
Won’t agitate but motor runs	Drive coupling, clutch/drive train	Washer motor coupling 285753A, clutch (model-specific)

Why it matters

Chasing an F28 “communication” repair on an LSQ9560PW2 leads to unnecessary parts replacement because this washer does not use a motor control board. Matching the model first gets you to the correct troubleshooting path and the right Whirlpool parts.

Where we recommend checking specs and setup

Use the LSQ9560PW2 owner’s manual for model-specific operation and care guidance, and the LSQ9560PW2 installation guide to confirm power, grounding, and drain standpipe setup.

Last updated: February 2026

Yes; 5.2 cubic feet is an extra-large capacity washer size. For Whirlpool model LSQ9560PW2 specifically, the manual describes capacity using load examples (extra large, super capacity, super capacity plus) rather than a 5.2 cu. ft. tub size; use the load charts in the LSQ9560PW2 owner’s manual to match the load size setting to what you are washing.

How “large capacity” is typically classified

Capacity labels vary by brand, but these ranges are commonly used:

• 3.5 to 4.4 cu. ft.: standard to medium capacity
• 4.5 to 5.0 cu. ft.: large capacity
• 5.1+ cu. ft.: extra-large capacity
• Bulky items still need room to move for good cleaning
• Overloading reduces wash action and can cause out-of-balance spinning

What LSQ9560PW2 uses instead of a single cu. ft. number

The LSQ9560PW2 documentation focuses on “full-sized load” examples by capacity class. Typical examples include towels, mixed loads, and sheet sets.

Here are examples shown in the manual for full-sized loads:

Manual capacity class	Example load type	Example items (from manual)
Extra large capacity	Towels	8 bath towels (plus hand towels and washcloths)
Super capacity / super capacity plus	Towels	10 bath towels (plus hand towels and washcloths)
Extra large capacity	Mixed load	Sheets plus shirts, jeans, and T-shirts

Why it matters

“Large capacity” is useful for reducing the number of loads, but cleaning performance depends on loading items loosely and selecting the correct load size or water level for the fabric type and soil level.

Last updated: February 2026
