Model # LFX31945ST/05 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFX31945ST-05 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 255 parts  |
Refrigerator Air Filter ADQ73214404
#631C

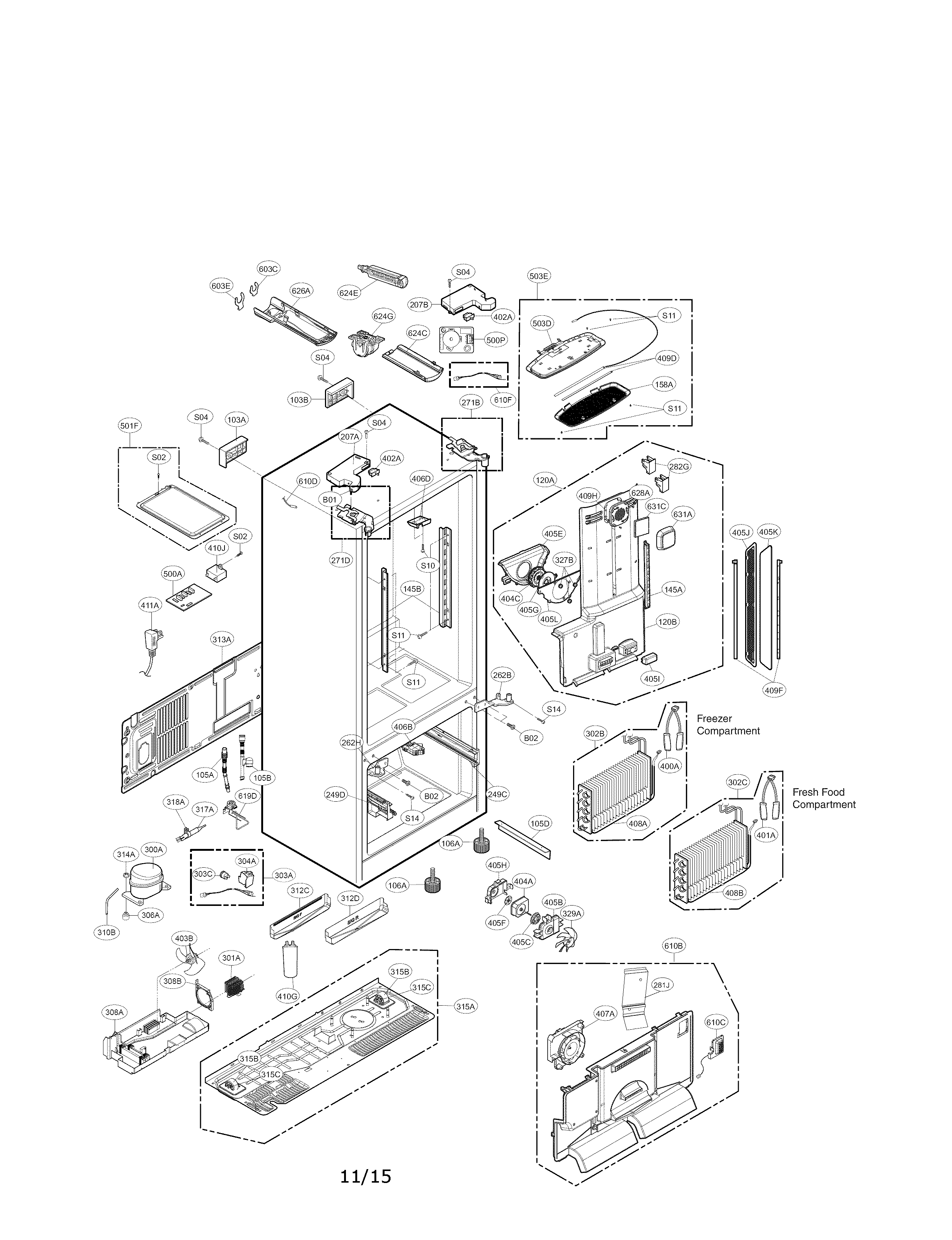

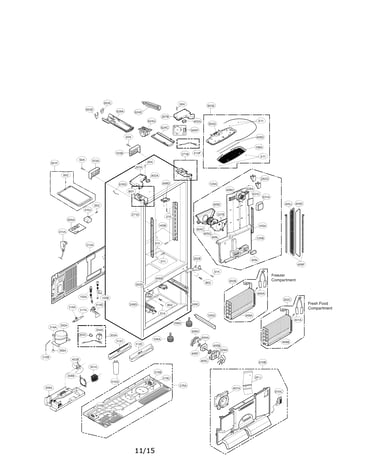

Case parts diagram

Refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.91 |
16% OFF Phone Price : $37.91
In Stock
Refrigerator Filter Dryer 5851JA2007U
#317A

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007U

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007U. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Kenmore Lg Lt700p Refrigerator Water Filter (replaces Adq36006113) ADQ36006101
#624A

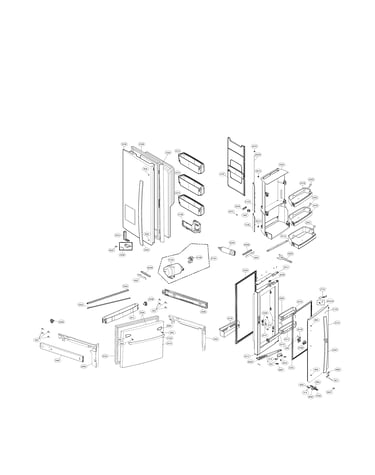

Door parts diagram

Kenmore lg lt700p refrigerator water filter (replaces adq36006113)

Part #ADQ36006101

BEST SELLER

Get free shipping with Automatic Reorder

$68.99
In Stock
Refrigerator Evaporator ADL73341402
#302C

Case parts diagram

Refrigerator evaporator

Part #ADL73341402

Replaced by #ADL73341411

?
Manufacturer substitution
This part replaces ADL73341402. Substitute parts can look different from the original.
BEST SELLER
$146.21 |
8% OFF Phone Price : $158.21
In Stock
Refrigerator Door Bin AAP73252301
#241K

Door parts diagram

Refrigerator door bin

Part #AAP73252301

Replaced by #AAP73252302

?
Manufacturer substitution
This part replaces AAP73252301. Substitute parts can look different from the original.
BEST SELLER
$45.95 |
12% OFF Phone Price : $51.95
In Stock
Refrigerator Water Inlet Valve (replaces Aju72992610) AJU72992603
#619A

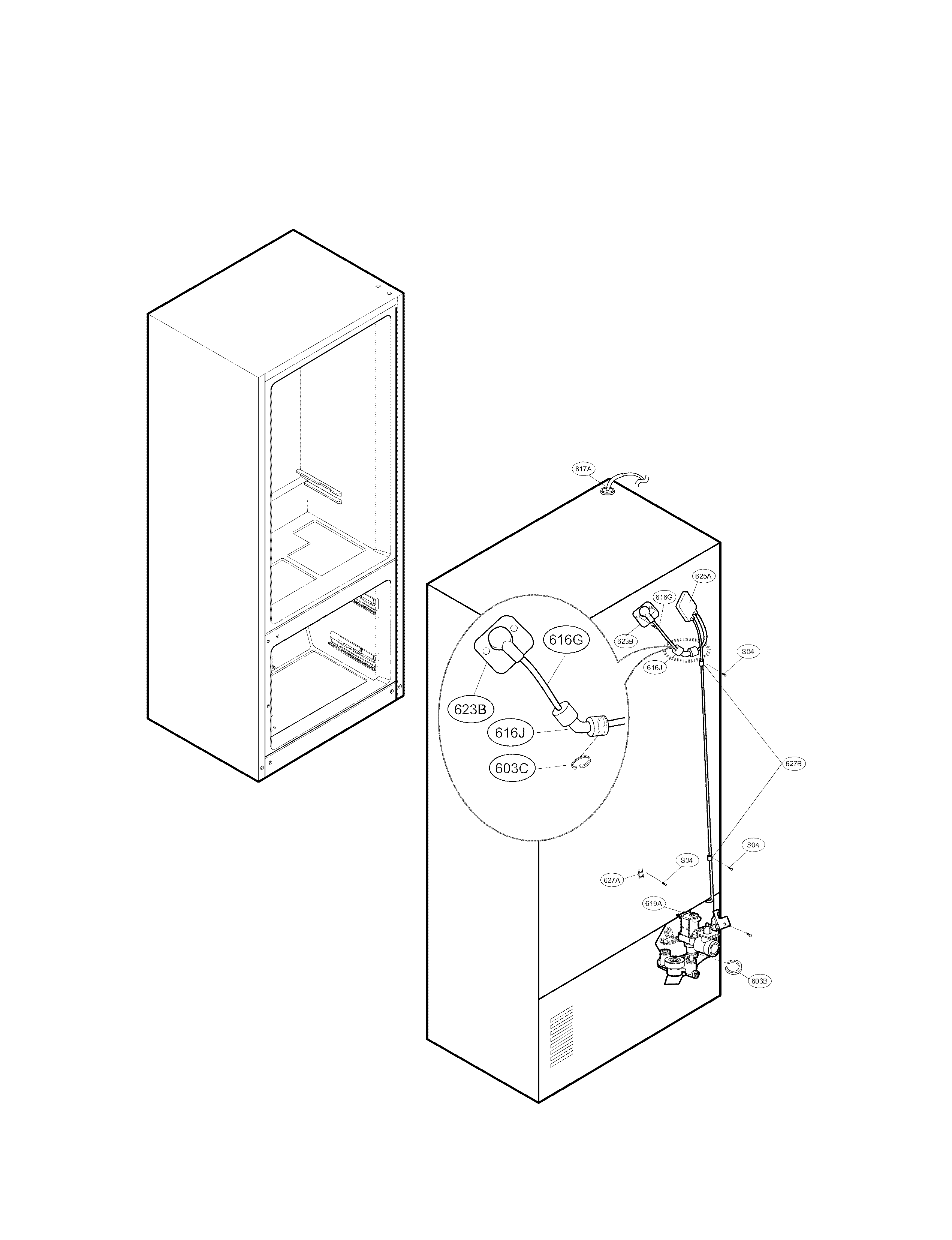

Valve and water parts diagram

Refrigerator water inlet valve (replaces aju72992610)

Part #AJU72992603

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Gasket, Right ADX72930414
#233A

Door parts diagram

Refrigerator door gasket, right

Part #ADX72930414

Replaced by #ADX72930461

?
Manufacturer substitution
This part replaces ADX72930414. Substitute parts can look different from the original.
BEST SELLER
$85.40 |
7% OFF Phone Price : $91.40
In Stock
Refrigerator Ice Maker Assembly AEQ72910408
#600A

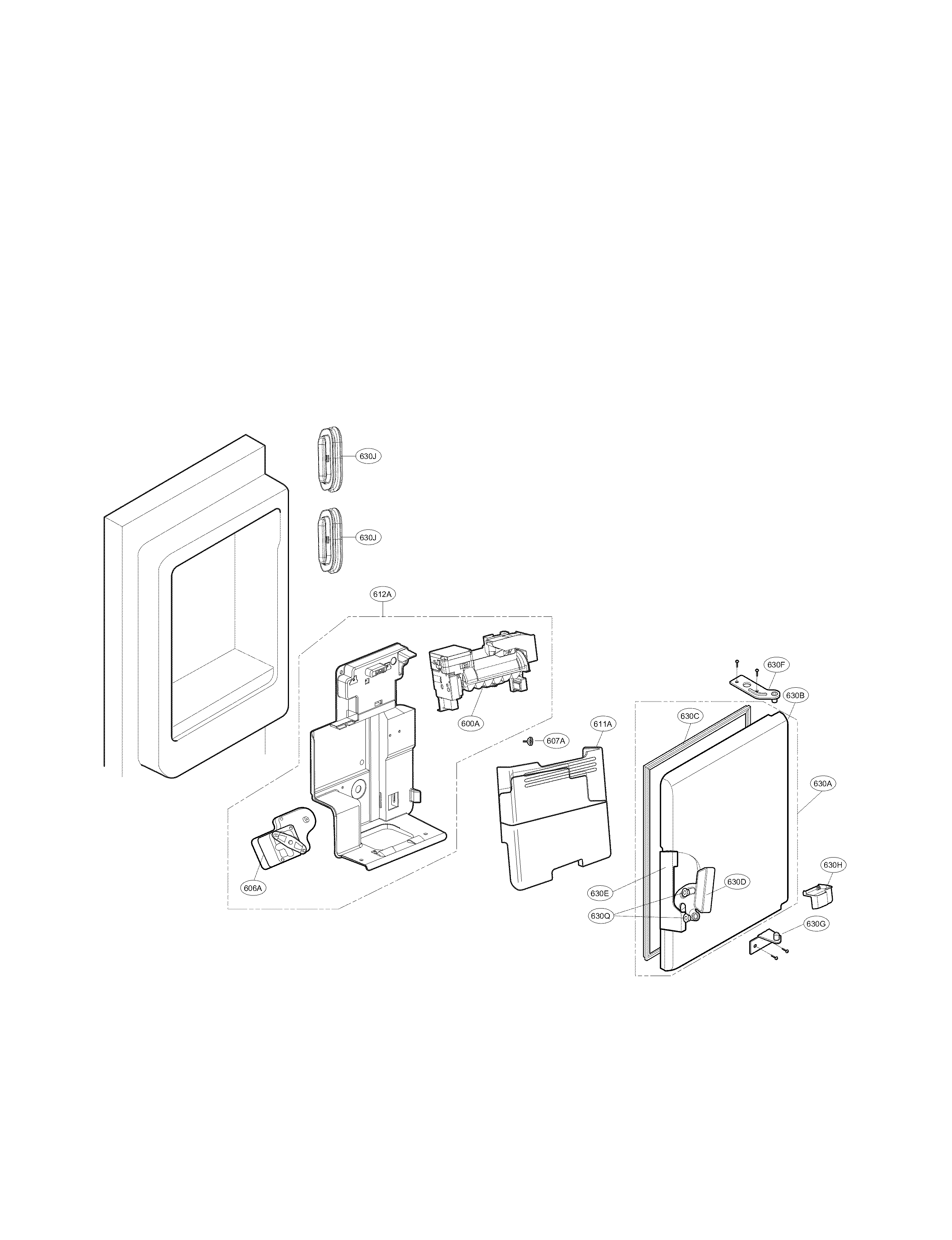

Ice maker parts diagram

Refrigerator ice maker assembly

Part #AEQ72910408

Replaced by #AEQ73110205

?
Manufacturer substitution
This part replaces AEQ72910408. Substitute parts can look different from the original.
BEST SELLER
$161.51 |
7% OFF Phone Price : $173.51
In Stock
Refrigerator Defrost Sensor Assembly (replaces Acm73919201) 6615JB2005R
#401A

Case parts diagram

Refrigerator defrost sensor assembly (replaces acm73919201)

Part #6615JB2005R

BEST SELLER
$29.53 |
17% OFF Phone Price : $35.53
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C
#402C

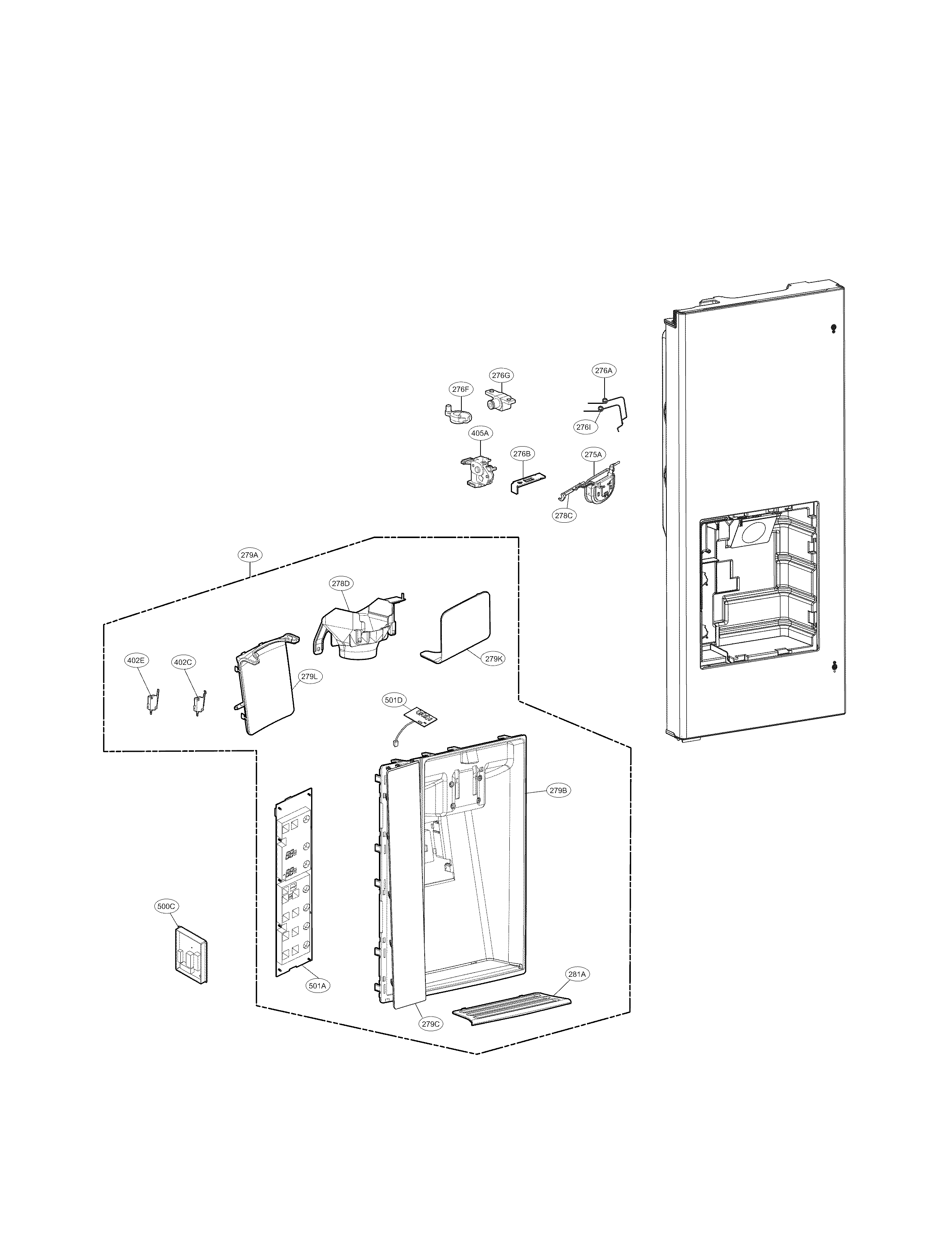

Dispenser parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$33.25 |
15% OFF Phone Price : $39.25
In Stock
